Chemicals mineral ore powder steel slag dry powder double roller compression

We are small factory but dedicated in roller compactor for granulating & briquetting powders

SG-500B dry powder briquette press machine operating principle:

The dry granulator adopts two rollers compaction. Between 2 rollers, there is a gap. One roller is fixed and the other is floating. With the support of hydraulic pistons, the floating roller is pushed close to the other and the hydraulic system can has the action of compensation and protection. In the surface of the roller, it is profiled with plenty of die holes of "Eggs" shape. Feedstock (powders) is fed into the gap between two rollers by screw. With rotating in reverse of two rollers, powder are compacted into Final product directly.

Dry powder briquette press machine technical parameter:

a).roller diameter: 504   width: 300mm

b).roller speed: 14-20rpm.

c).screw feeder: 11kw motor with VFD

d).accumulator pre-pressurization:11Mpa

e).linear pressure: 55kN/cm

j). compactor power: 75kw

k).Installed capacity: about 90kw

l).dimension (L×W×H) : 3650×2250×2500

m).weight: abt 15t

n). briquette output: 6000-8000kg/h

o). briquette size: 40-50mm

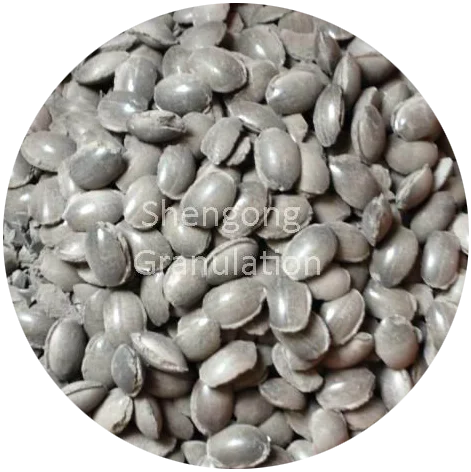

p). briquette shape: oval ball shape

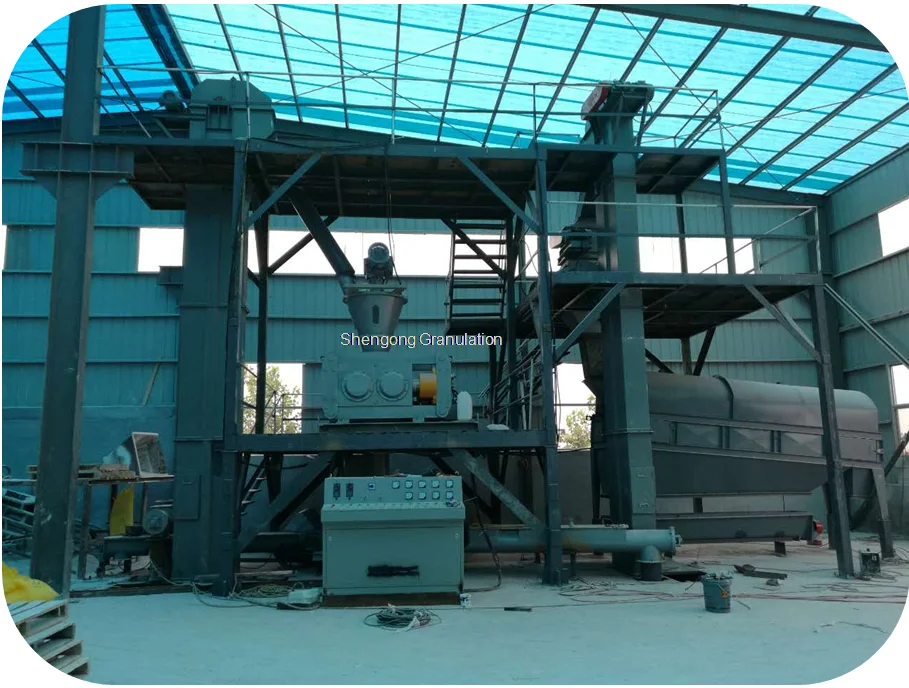

Dry powder briquette press machine line components:

Briquetted steel slag

Dry powder briquette press machine applications:

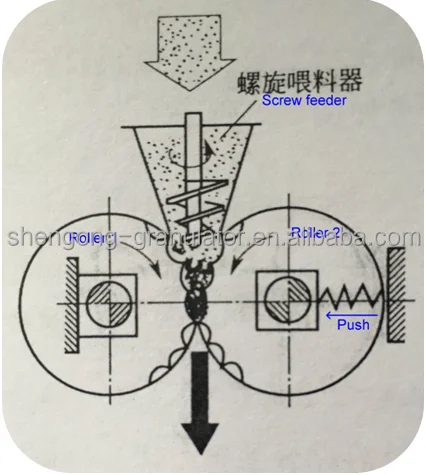

Dry powder briquette press machine principle (A type produces small angular irregular granules)

Difference of Dry powder briquette press machine type A and type B.

Dry powder briquette press machine peripheral equipments

Briquettes vairable shape

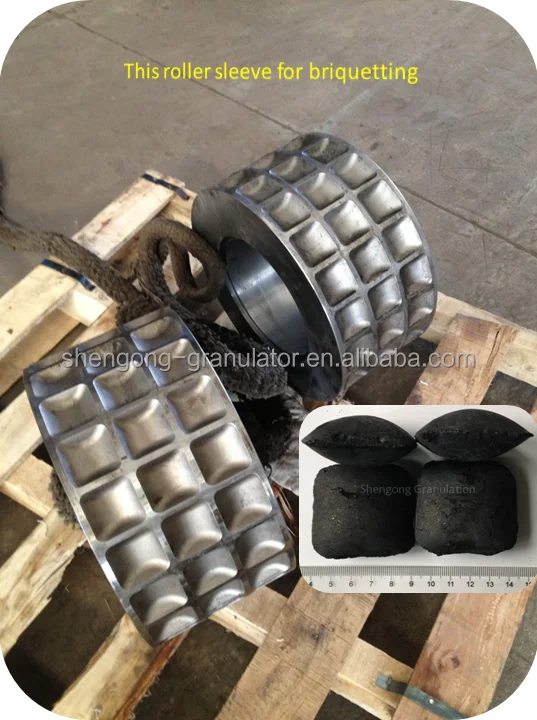

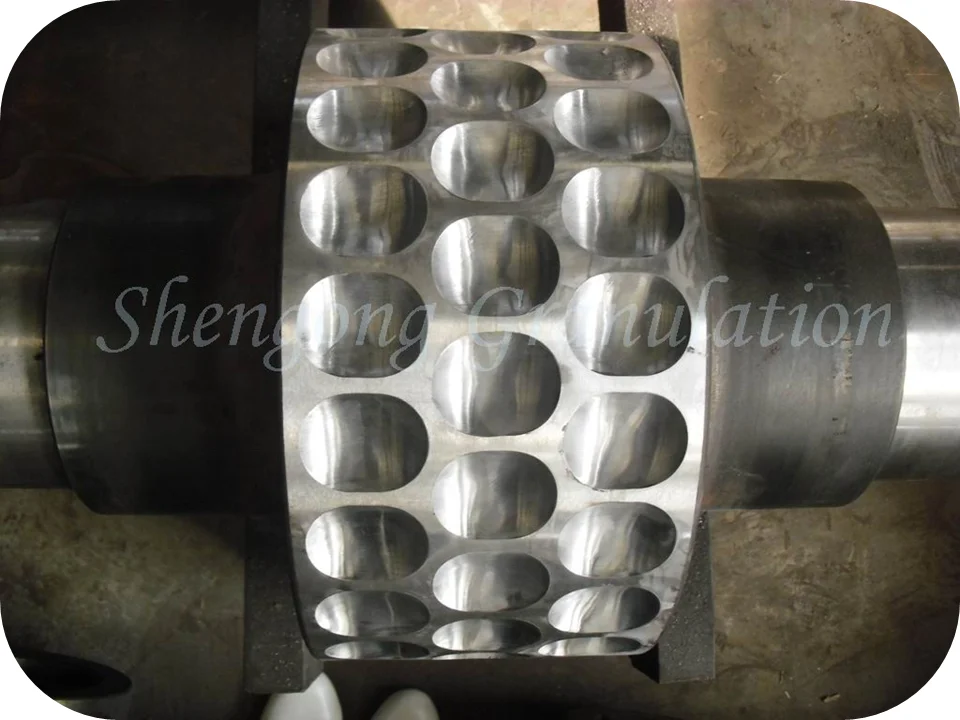

Briquettes and its rollers
