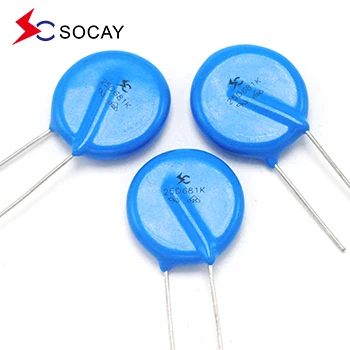

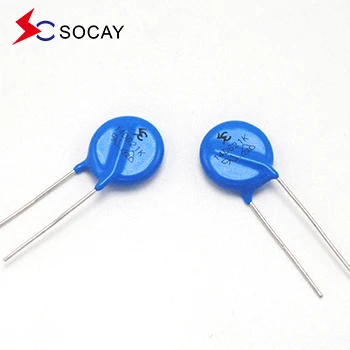

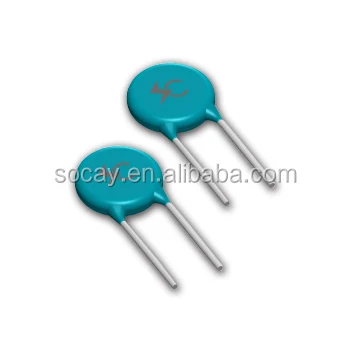

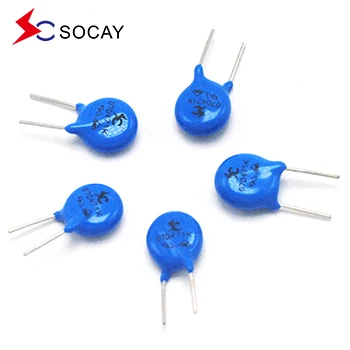

Zinc Oxide 14mm Varistor For generator MOV

Features

Wide operating voltage (V1mA) range from 8V to 1800V.
Fast responding to transient over-voltage.
Large absorbing transient energy capability.
Low clamping ratio and no following-on current

Metal Oxide Varistor 14D471K

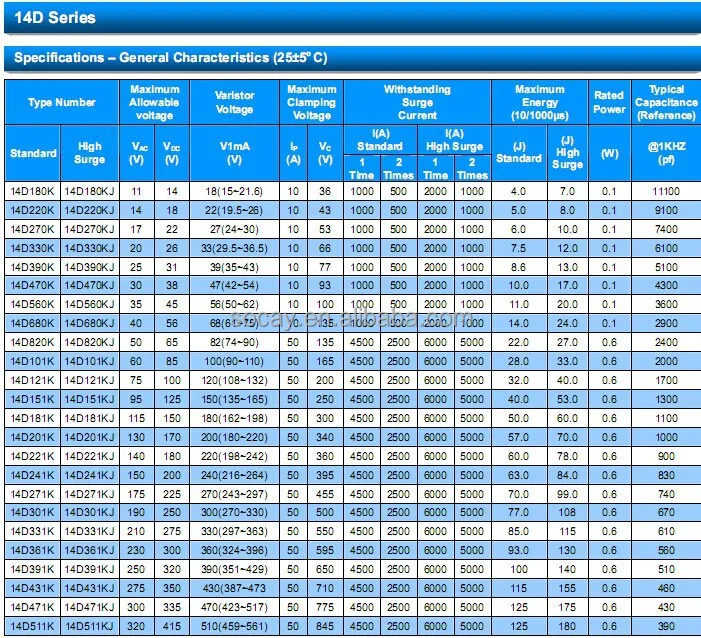

Specifications

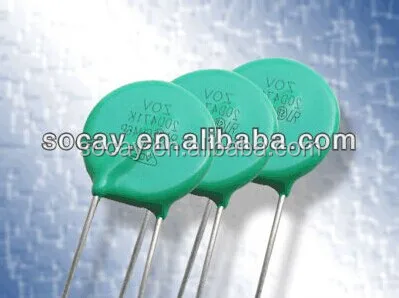

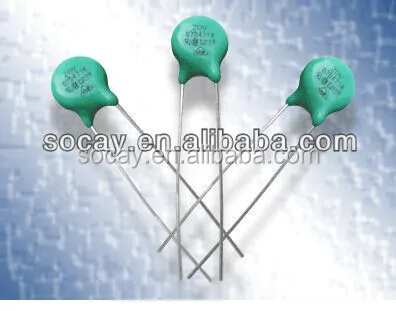

metal oxide varistor
Fast responding
Low clamping ratio
withstanding surge crrent:15000A
power rated:0.6W

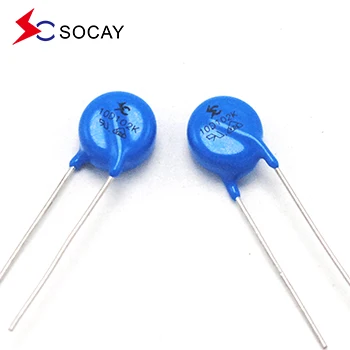

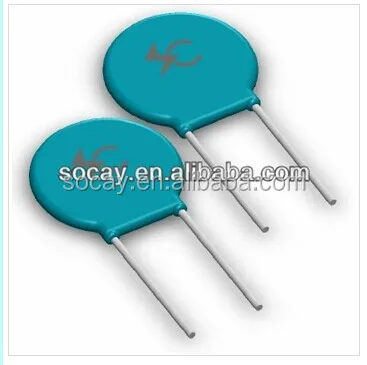

Zinc Oxide 14mm Varistor For generator

General Information

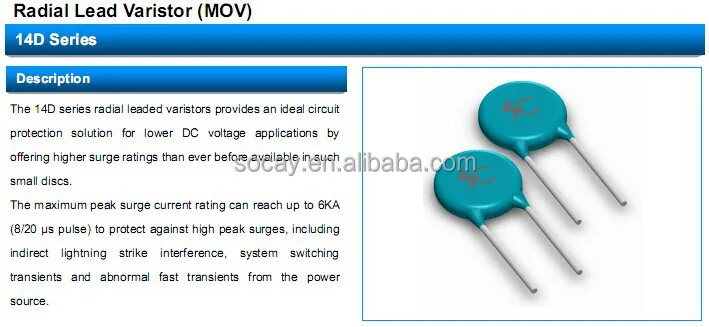

The MOV-14DxxxK Series of 14mm radial leaded varistor devices
protects against overvoltage transients such as lightning, power
contact and power induction. The metal oxide varistors offer a
choice of varistor voltages from 18 V to 1800 V and Vrms voltages
from 11 V to 1000 V.

Zinc Oxide 14mm Varistor For generator

  General Characteristics

No Radioactive Material
Leads: Surface-mount, Axial Devices: Tin Plated
Storage Temperature: -55oC to +125oC
Operating Temperature: -55oC to +85oC
The devices have a high current handling, high energy absorption
capability and fast response times to protect against transient
 Devices with No Leads: Nickel Plated
faults up to rated limits.
 Body: Nickel Plated

Zinc Oxide 14mm Varistor For generator

Application

Transistor, diode, IC, thyristor or triac semiconductor protection.
Surge protection in consumer electronics.
Surge protection in industrial electronics.
Surge protection in electronic home appliances,
gas and petroleum appliances.
Relay and electromagnetic valve surge absorption.
