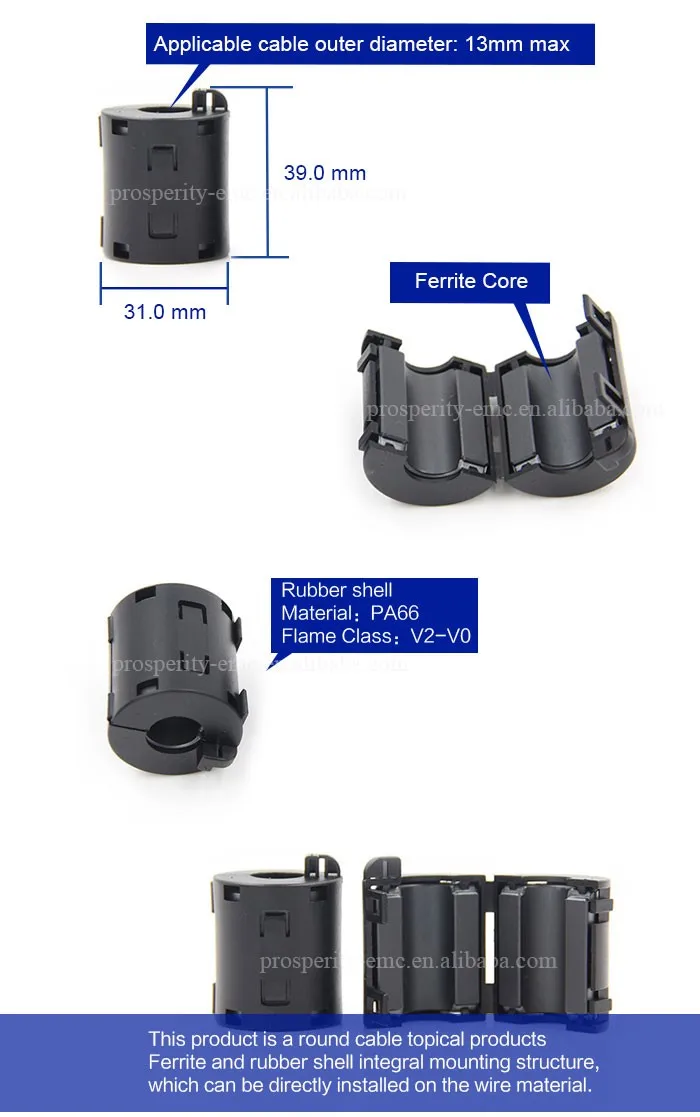

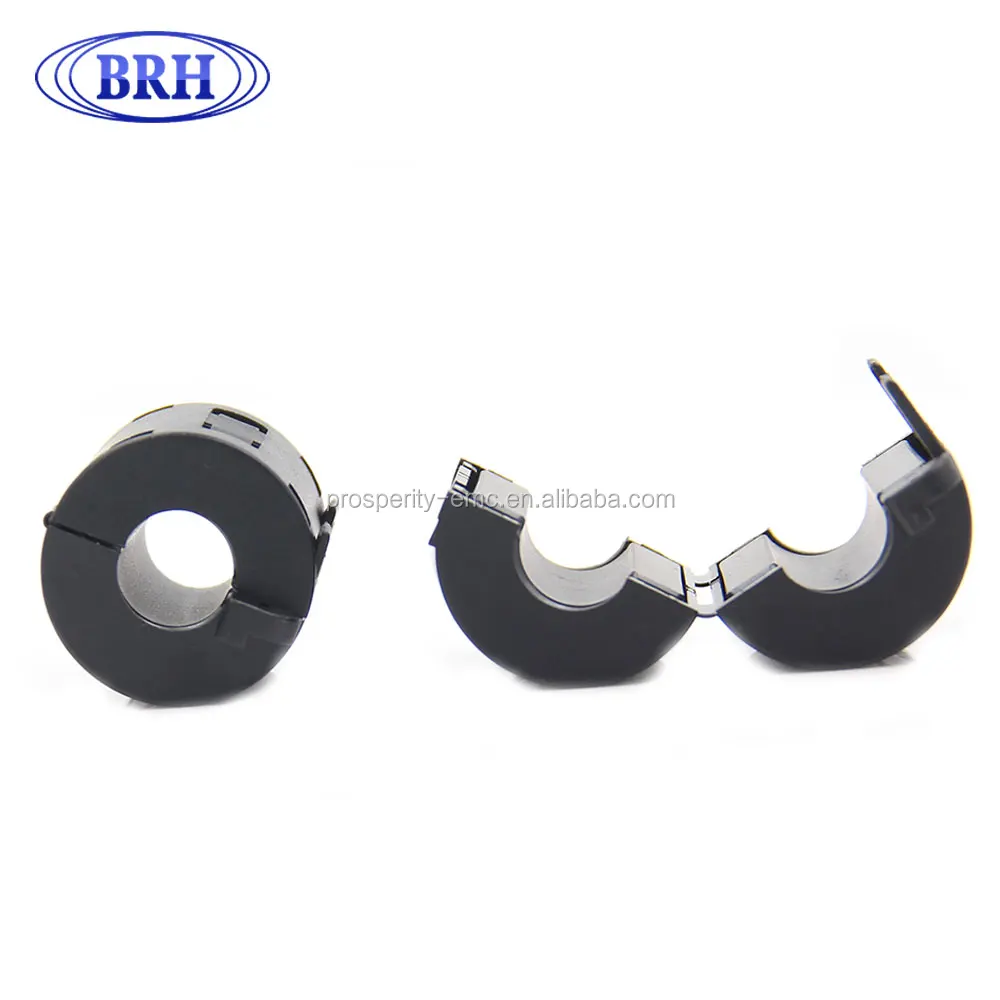

Product Overview

Description


Description
\t

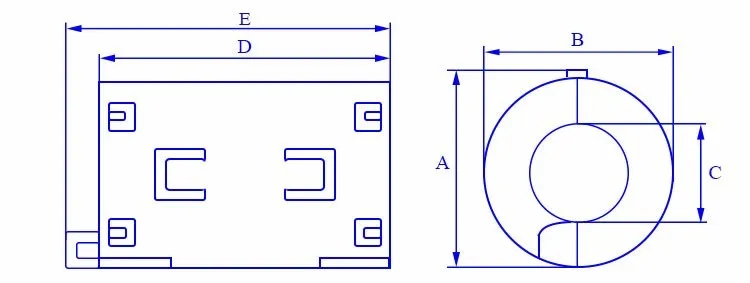

SIZE CODE (mm)
\t
A
\t
B
\t
C
\t
D
\t
E
\t
A2 RC 26*30*13-MB
\t
31.00±1.0
\t
30.75±1.0
\t
13.00±0.8
\t
34.00±1.0
\t
39.00±1.0

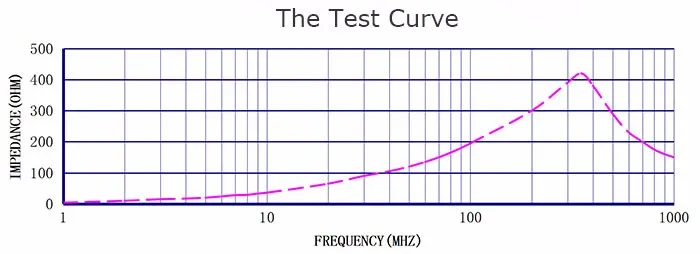

Parameter
\t
Electrical Requirements
\t
SIZE CODE (mm)
\t
A2 RC 26*30*13-MB
\t
at 25 MHz
\t
100 MIN
\t
at 100 MHz
\t
195 MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t

MEAS. Item
\t
Ω
AT 25MHz
\t
Ω
AT 100MHz
\t
A
 m/m
\t
B
m/m
\t
C
 m/m
\t
D
m/m
\t
E
m/m
\t
Suggest
\t
100 MIN
\t
195 MIN
\t
31.0±1
\t
30.75±1
\t
13.0±0.8
\t
34.0±1
\t
39.0±1
\t
1
\t
113.7
\t
243.2
\t
31.33
\t
29.9
\t
13.00
\t
34.1
\t
39.03
\t
2
\t
112.5
\t
243.5
\t
31.42
\t
29.92
\t
13.15
\t
34.15
\t
39.15
\t
3
\t
112.8
\t
244.2
\t
30.78
\t
29.95
\t
13.05
\t
34.25
\t
39.2
\t
4
\t
113.3
\t
244.5
\t
31.05
\t
30.05
\t
13.08
\t
34.28
\t
39.05
\t
5
\t
113.0
\t
245
\t
30.92
\t
30.02
\t
13.26
\t
34.3
\t
39.09
\t
6
\t
113.1
\t
243.8
\t
31.43
\t
30.00
\t
13.18
\t
34.29
\t
39.16
\t
7
\t
112.7
\t
244
\t
30.95
\t
30.06
\t
13.28
\t
34.3
\t
39.18
\t
8
\t
113.2
\t
245.2
\t
31.06
\t
30.08
\t
13.21
\t
34.2
\t
39.15
\t
9
\t
113.6
\t
243.3
\t
31.42
\t
29.99
\t
13.25
\t
34.16
\t
39.21
\t
10
\t
112.0
\t
245.4
\t
34.55
\t
29.9.0
\t
13.3
\t
34.5
\t
39.22
\t

\t

\t

\t

\t

\t

\t

\t

\t
X-bar
\t
112.99
\t
244.21
\t
31.49
\t
29.99
\t
13.18
\t
34.25
\t
39.14
\t
R
\t
1.70
\t
2.20
\t
3.77
\t
0.18
\t
0.30
\t
0.40
\t
0.19
\t
The above test data for reference,Actual results may differ due to different production batches
