DC 12V 24V to DC 5V 5A 25W Buck Step Down Voltage Power Converter 12 24 Volt to 5 Volt 5 Amps 25 Watts 12Vdc 24Vdc to 5Vdc
- Category: Inverters & Converters >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60663735620):
Product Overview
Description
DC 12V 24V to DC 5V 5A 25W Buck Step Down Voltage Power Converter 12 24 Volt to 5 Volt 5 Amps 25 Watts 12Vdc 24Vdc to 5Vdc
Product Description
Product Name | 12V 24V to 5V 5A Converterer | |
Brand | Fulree | |
Model No. | F35J5V5A4L (Old:C240505) | |
Module Properties | non-isolated buck module | |
Rectification | synchronous rectification | |
Input | ||
Input Voltage | DC 12V 24V | |
Input Voltage Range | DC 8-35V | |
Output | ||
Output Voltage | DC 5V | |
Output Current | 0~5A Max | |
Output Power | 25W Max | |
Conversion Efficiency | 96% | |
Voltage regulation | ±3% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 150mV | |
No-load current | < 100mA | |
Working Temperature | -40~85℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection 6A | |
Overheat protection 150℃ | ||
Output Short-circuit protection | ||
Full waterproof potting | ||
Input/Output Reverse Polarity Protection | No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it. | |
Application | Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System, Photo voltaic energy Electrical appliances, water pumps, industrial equipment, telecommunications and so on. | |
Certification | CE/RoHS/FCC | |
Case Material | Aluminum Alloy, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |

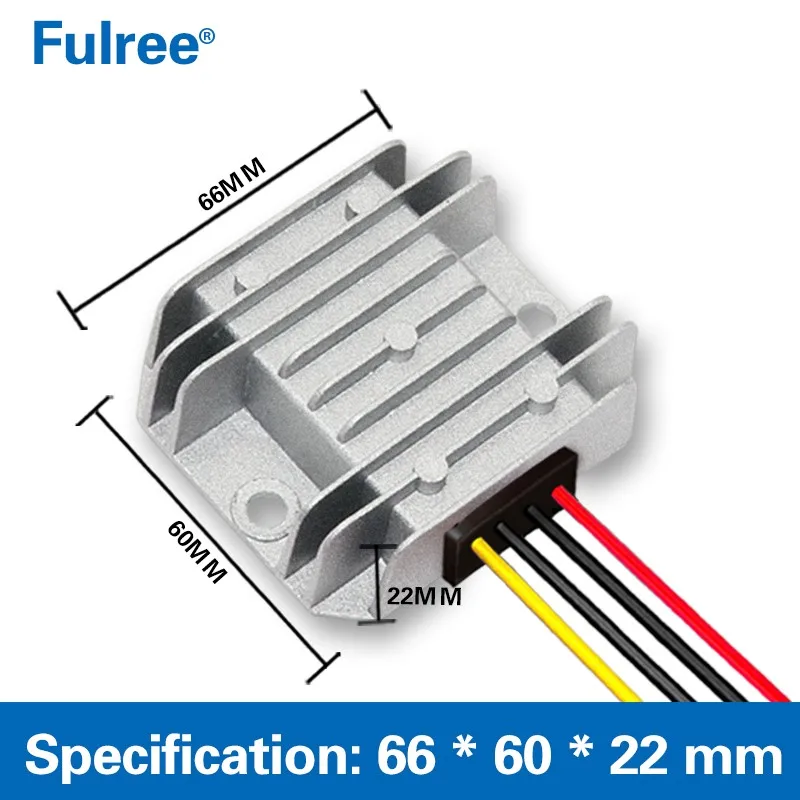

Product Size (L x W x H) | 66*60*22mm | |
Installation Cable Length | 13-15cm | |
Product Weight | 100g | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |
OEM Service | Accept OEM logo/label/manual/packing box, Contact Fulree Now! | |
Customized Service | ||

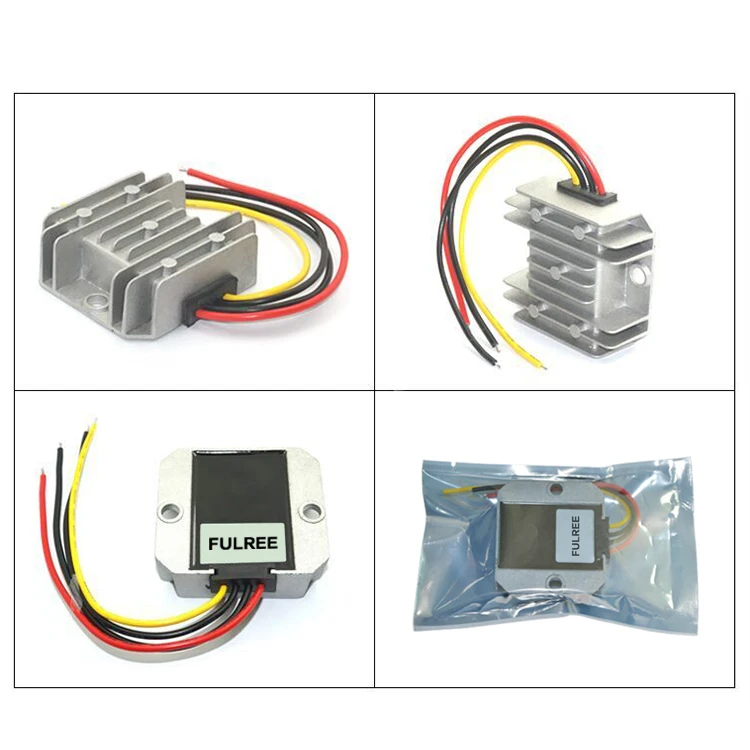

Product Picture
Packaging & Delivery
1. We pack each item with OPP bag individually, then put all items in export cartons (around 50-300pcs per carton). The export cartons will be taped to protect the parcel from water stains or something others, it's not easy to break or damage during the shipment by air or sea.
2. We make shipment between 3-15 days for normal order and 3 to 5 days for samples.
3. We can offer you express like FedEx, DHL, UPS & TNT when you make a relatively small order like samples. The ocean shipping is also available when you place a big order. The customers can use their own freight forwarder account.
4. If you need some special request on shipment, please note us before placing order.
5. In order to clear customs soon, please provide accurate receiving address including zip code and taxes number. The HS code is 8504401400.
