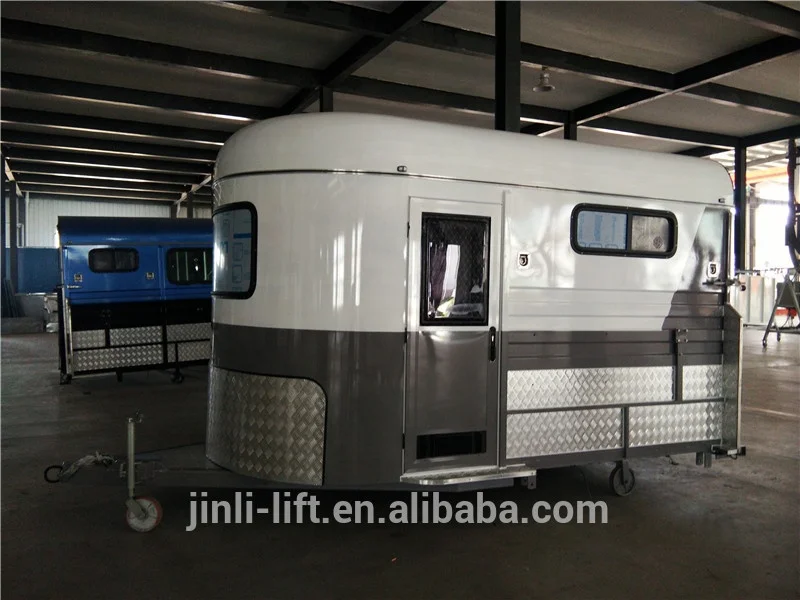

factory supply horse float 2 horse float straight load float

Overall Dimensions

4325*2270*2590mm

Dimension of Body

3475*1750*2230mm

Maximum Internal Dimension of body

3450*1700*2155mm

Chassis

hot-galvanized RHS (3.5mm-4.0mm)

Frame

hot-galvanized RHS(2.5mm)

Body

galvanized(iron) sheet(1.0mm-1.5mm)

Roof

glass fibred reinforced plastic 3475*1750mm

Wheel/Tyre

alloy wheels 185R14C

Spare Wheel

1,mounted outside

Suspension

6-leaf plate spring suspension(400KG/leaf),Independent

Axles

trailer axles

Brake System

both axle electric brake

Front Window

1220*610 polycarbonate wind shield

Side Window

two rectangle(diamond) sliding windows, one each side

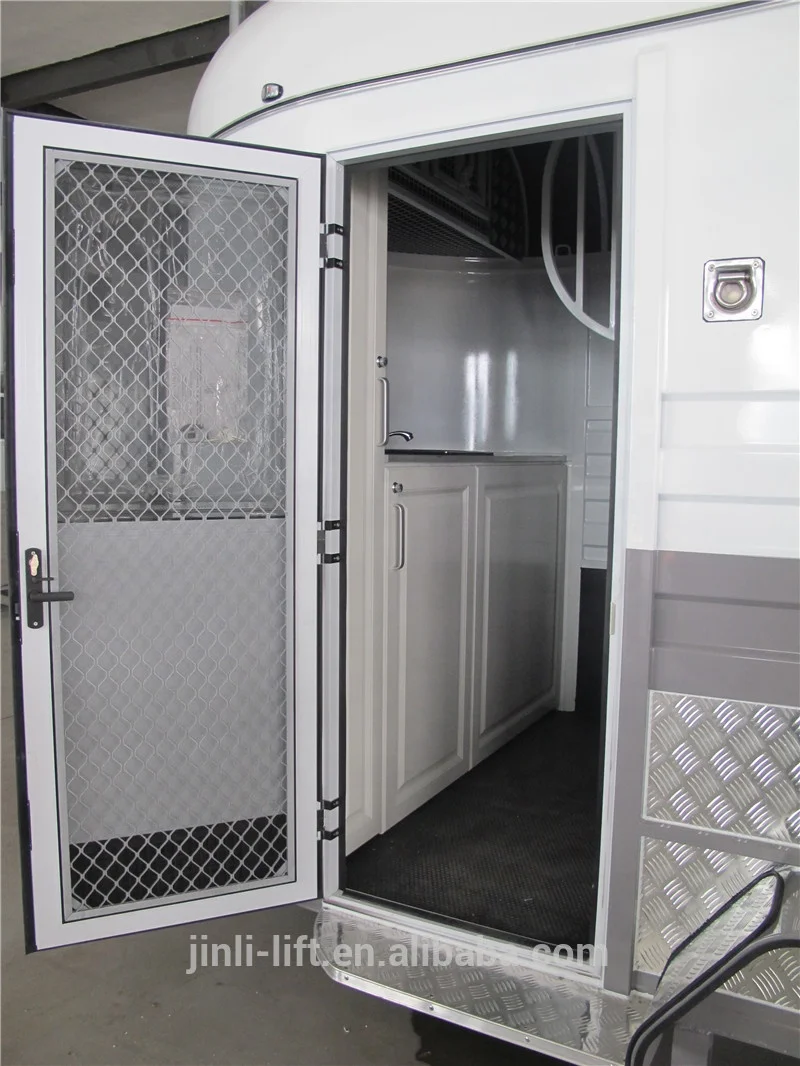

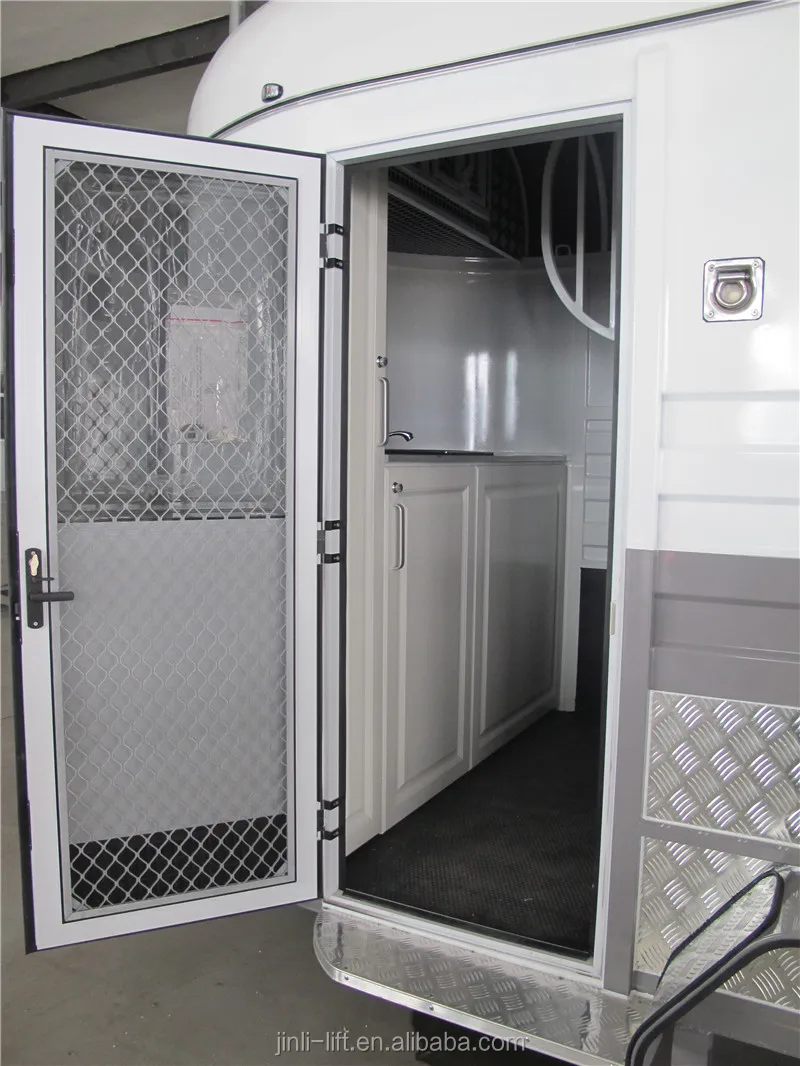

Side Door

one

Turn Lights

two each side(except tail lights)

Tail Lights

two sets

Horse Divider

soft cushion

Decorative Front panel

aluminium checkered plate 1.2mm

Mudguard

protected by aluminium checkered plate

Pedal Plate

decorated with aluminium checkered plate

External Tie Hooks

four, two each side

Jockey Wheel

swing-up jockey wheel

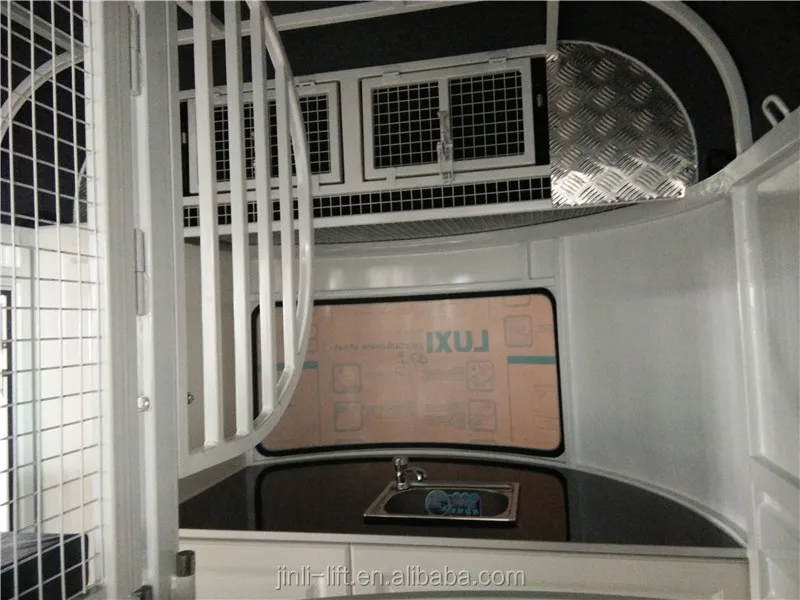

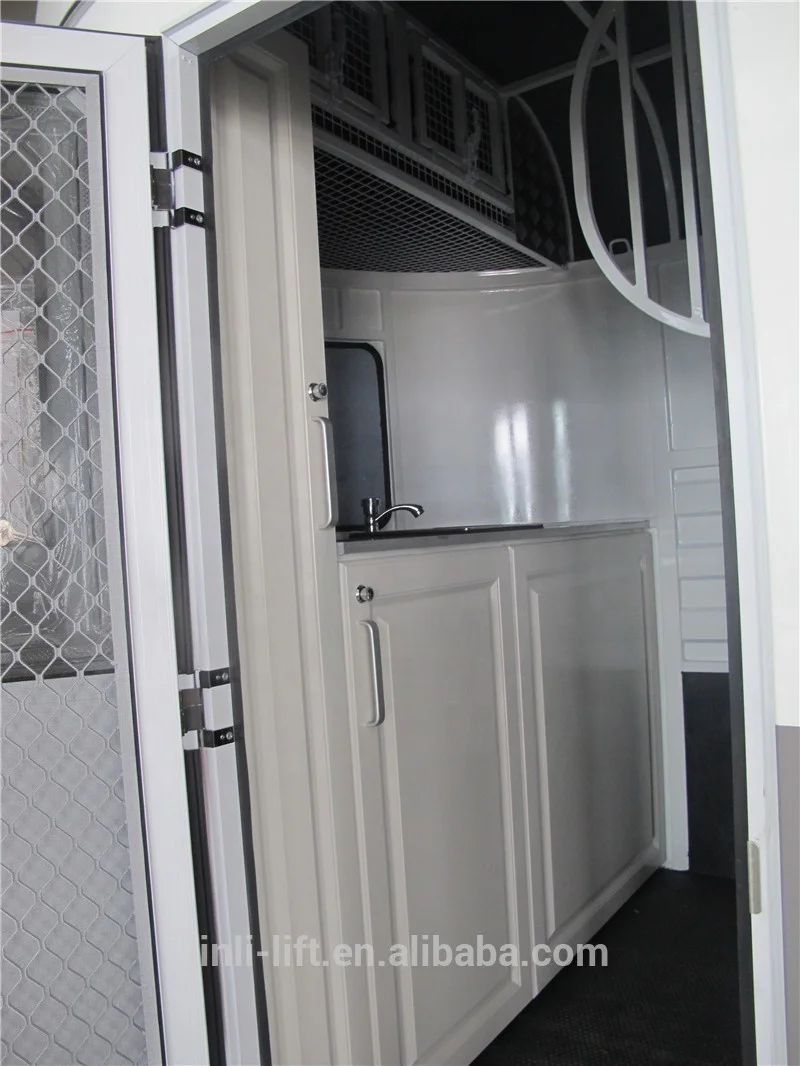

A kitchen

with a cupboard and all appliance from yourself

Roof Vents

two vents

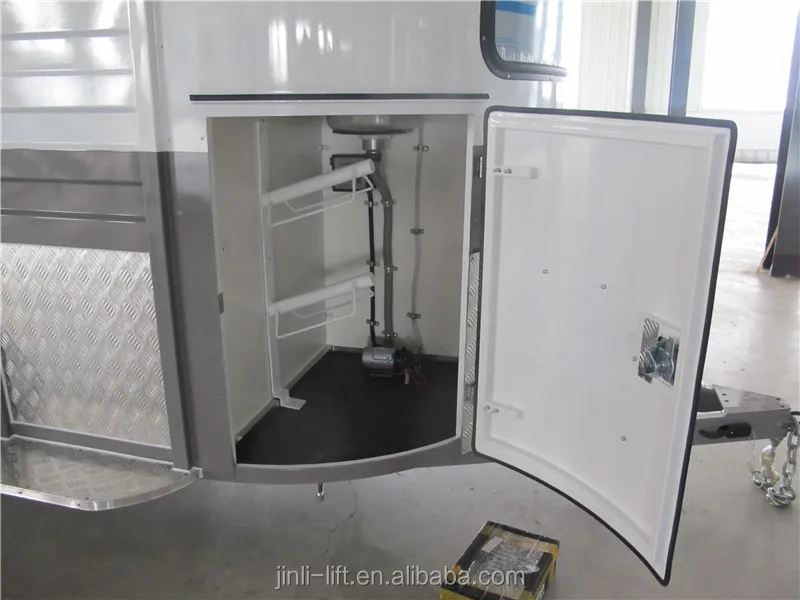

Saddle Stents

hangers in saddle box

Toolbox

800*550*200mm,made of stainless or aluminium

Rug Rack

one side

Tailgate(upper)

1800*1065mm, pneumatic spring-loaded

Tailgate/Ramp Door

1800*1210mm, pneumatic spring-loaded,10mm rubber matting

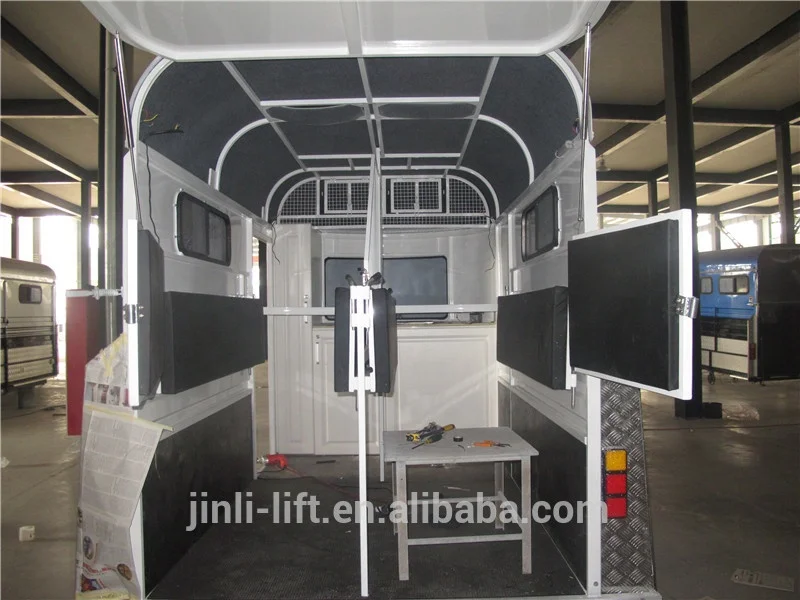

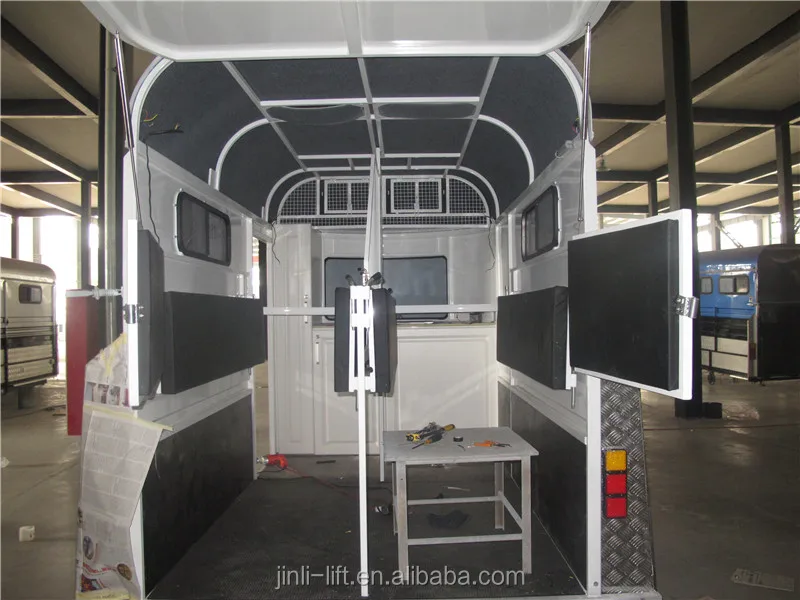

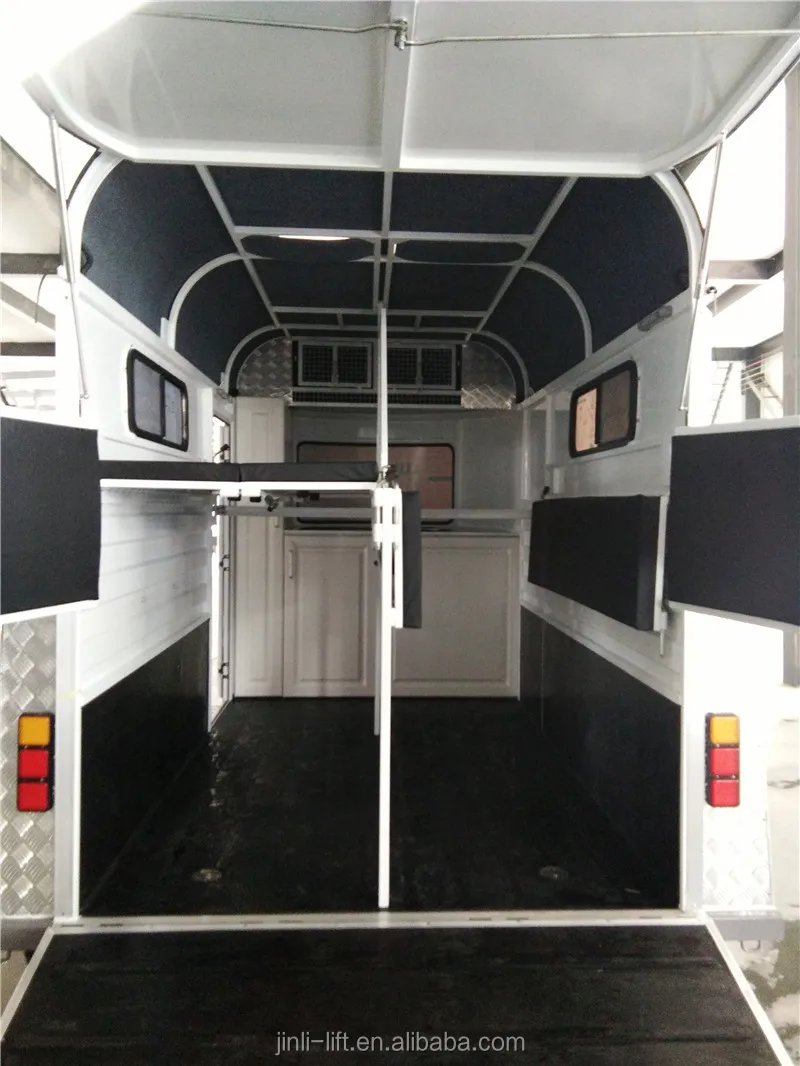

Horse Area

10mm rubber floor

Side Area Inner

6mm rubber matting

Taillight Mounting Plate

aluminium checkered plate
