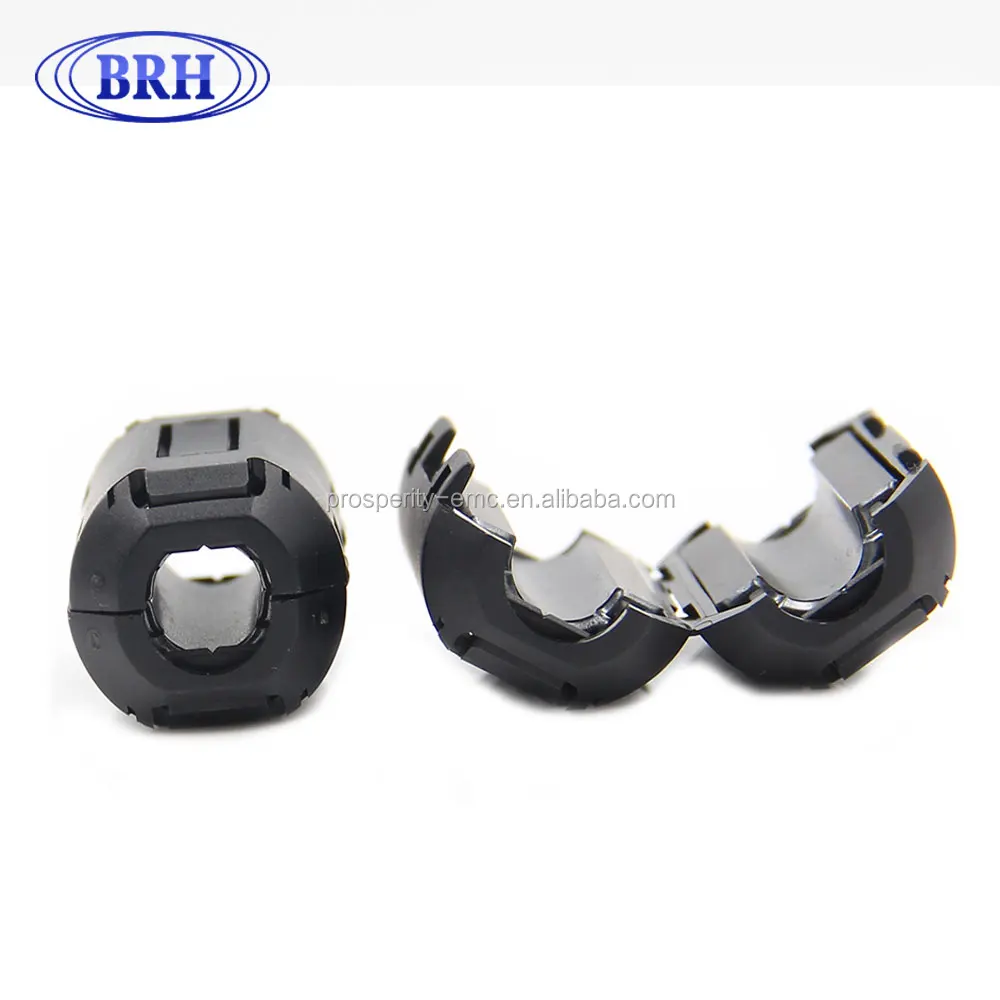

Clip on ferrite ring core RFI EMI noise suppressor cable clip with plastic case

Share on (60663772203):


Price:

Quantity:


Product Overview

Description


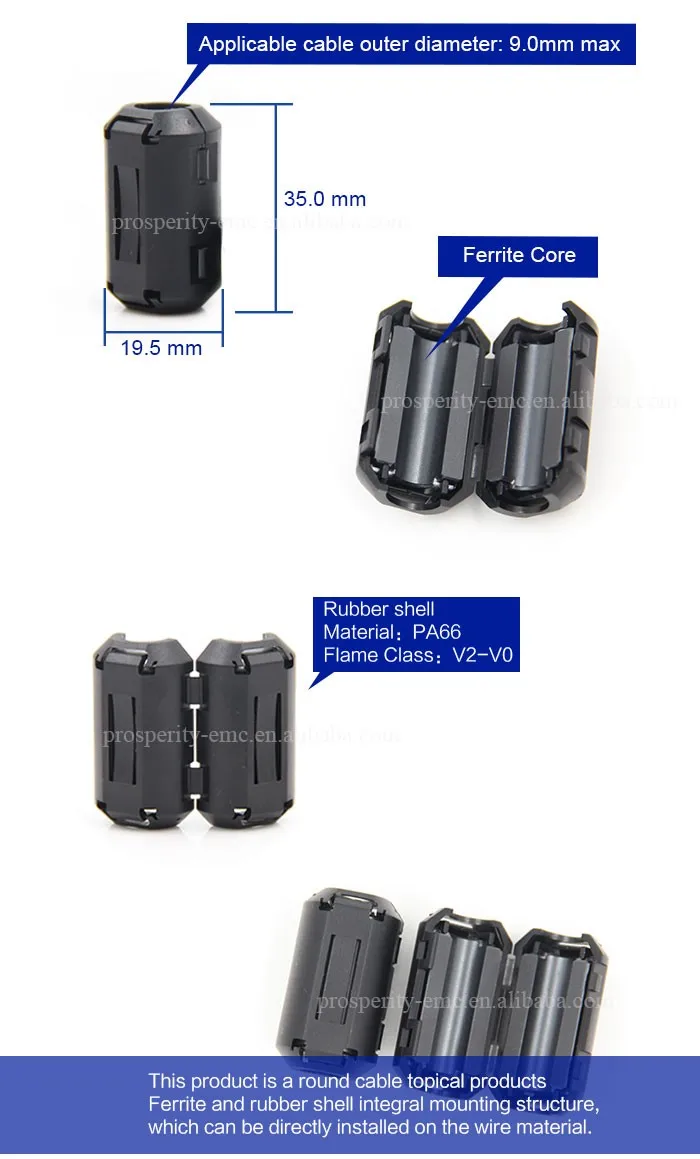

Description
\t
SIZE CODE (mm)
\t
A
\t
B
\t
C
\t
D
\t
A2 RC 16*28*9-MB
\t
19.5±1.00
\t
18.0±1.00
\t
9.00±0.80
\t
35.00±1.00

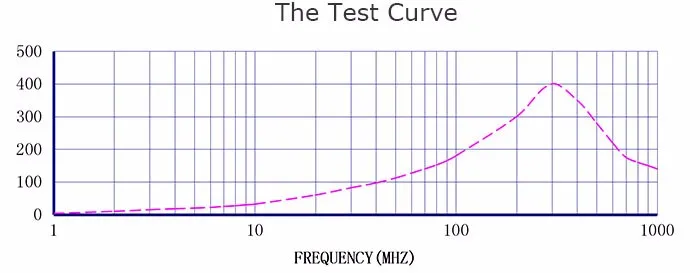

Parameter
\t
Electrical Requirements
\t
SIZE CODE (mm)
\t
A2 RC 16*28*9-MB
\t
at 25 MHz
\t
55 MIN
\t
at 100 MHz
\t
135 MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t

MEAS. Item
\t
Ω
AT 25MHz
\t
Ω
 AT 100MHz
\t
m/m
\t
B
 m/m
\t
C
 m/m
\t
D
 m/m
\t
Suggest
\t
55 MIN
\t
135 MIN
\t
19.5±1.0
\t
18.0±1.00
\t
9.00±0.80
\t
35.00±1.00
\t
1
\t
69.8
\t
191.4
\t
19.3
\t
18.36
\t
8.7
\t
35.4
\t
2
\t
69.6
\t
191.8
\t
19.4
\t
19.34
\t
8.8
\t
35.5
\t
3
\t
70.2
\t
190.6
\t
19.39
\t
19.32
\t
8.6
\t
35.48
\t
4
\t
70.4
\t
190
\t
19.33
\t
18.35
\t
8.63
\t
35.46
\t
5
\t
70
\t
190.8
\t
19.35
\t
19.37
\t
8.72
\t
35.44
\t
6
\t
71
\t
190.2
\t
19.37
\t
18.39
\t
8.69
\t
35.42
\t
7
\t
69.6
\t
190.4
\t
19.34
\t
18.4
\t
8.67
\t
35.49
\t
8
\t
70.4
\t
191.2
\t
19.36
\t
18.3
\t
8.71
\t
35.47
\t
9
\t
71.4
\t
190.6
\t
19.38
\t
18.31
\t
8.64
\t
35.42
\t
10
\t
69.2
\t
191.6
\t
19.32
\t
18.33
\t
8.67
\t
35.48
\t

\t

\t

\t

\t

\t

\t

\t
X-bar
\t
70
\t
191
\t
19.35
\t
18.65
\t
8.68
\t
35.456
\t
R
\t
2.2
\t
1.8
\t
0.1
\t
1.07
\t
0.2
\t
0.1
\t
The above test data for reference,Actual results may differ due to different production batches
