MEGA P 2018 Hot sale low prices ISO new design observation elevator

Product Overview

Description

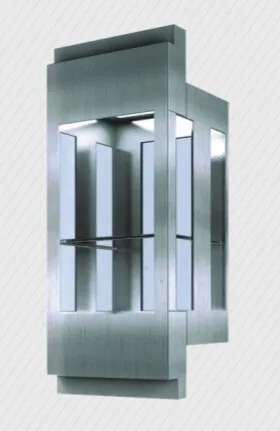

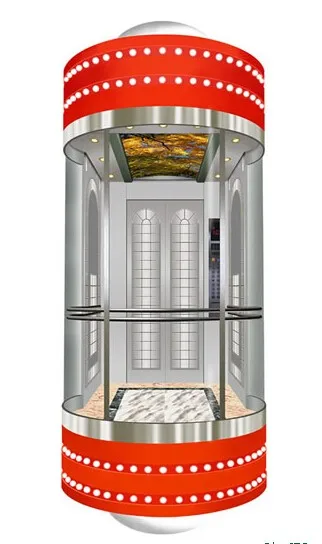

 MEGA-P 2018 Hot sale low prices ISO new design observation elevator





Description:

1.Well-suited, artistic, comfortable, safe, energy-saving and low-noise high-quality

2.Exterior and interior could also be designed to suit various styles and structures of buildings.

3.Furnished with overload protection and optoelectronic protection device; the car is provided with emergency call system.

4.Energy-saving and environmentally friendly; get into power saving mode automatically if operating instruction is not given within a certain period of time.



Observation elevator Function



 1. VVVF Drive
Motor rotating speed can be precisely adjusted to get smooth speed curve in elevator start, travel and stop, and gain the sound comfort
2. VVVF door operator
Motor rotating speed can be precisely adjusted to get more gentle and sensitive door machine start /stop
3. Independent running
The elevator can not respond to hall calling, but only respond to the command inside the car through the action switch
4. Automatic pass without stop
When the car is crowded with the passengers or the load is close to preset value, the car will automatically pass the calling landing in order to keep maximum travel efficiency
5. Automatically adjust door opening time
Door opening time can be automatically adjusted according to the difference between landing calling and car calling
6. Re-open with hall call
In the door shutting process, press re-open with hall call button can restart the door
7. Express door closing
When the elevator stops and opens the door, press door-shut button, the door will be closed immediately
8. Car stops and door open
The elevator decelerates and levels, the door only opens after the elevator comes to a complete stop
9. Car arrival gong
Arrival gong in the car top announces that the passengers arrive
10. Direct parking
It completely accords with distance principle with no crawling in the leveling. It greatly enhances the travel efficiency
11. Command register cancel
If you press the wrong floor command button in the car, twice continuous pressing of
same button can cancel the registered commandjuajuan

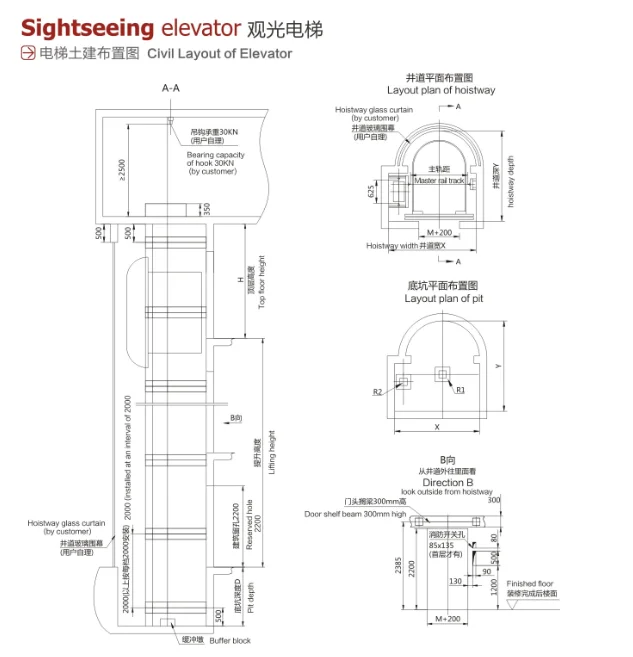

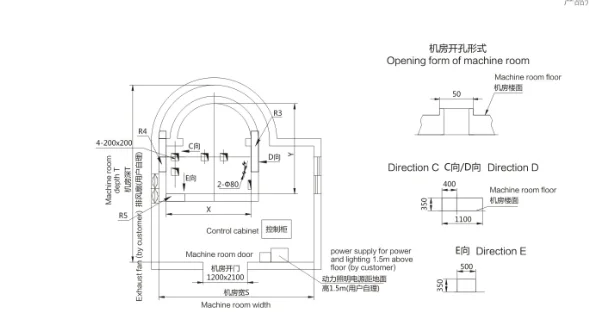

 Specification:

load	speed	car size	door opening	well size	machineroom	topfloor	depth of foundation
kg	m/s	mm	mm	mm	mm	>mm	>mm
450	1.5	1200*1000	700*2100	1900*1800	1800*3200	4500	1700
630	1.75	1400*1400	800*2100	1900*2200	2500*3700	4700	1800
800	2.5	1400*1350	800*2100	2000*1060	2500*3700	5100	2200
1000	3	1600*1400	900*2100	2200*2200	3000*3700	5200	2200
1150	3	19510*1400	1100*2100	2500*2150	3000*3700	5200	2200
1250	3	1950*1500	1100*2100	2600*2300	3200*3700	5200	2200
1350	3	1950*1600	1100*2100	2600*24000	3200*3700	5200	2200
1600	3	1950*1750	1100*2100	2600*2500	3200*4000	5200	2200











Company profile

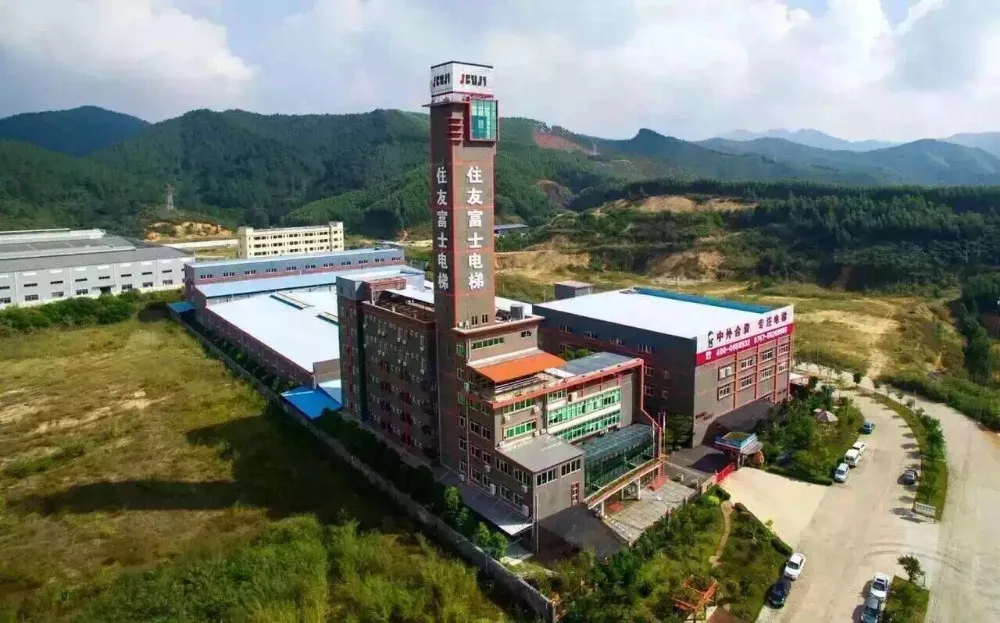

Homefriend & Fuji elevator Co.,LTD. Is a collection of r &d, design, production, sales and installation and after-sales service in one of the large-scale professional elevator manufacturing enterprise, the products cover passenger elevator, sightseeing elevator, medical elevator, cargo elevators, sundry elevators, escalators, moving pavements. Sumitomo Fuji elevator has issued by the state quality inspection administration elevator manufacturing, installation, modification and maintenance of the class A qualification, is China A line national brand elevator production leader, is the foshan elevator industry association for the launch of the unit.



AGENTS WANTED

For our global market strategy, now we are looking for agents and partners all over the world. Your success is the vital part of ours. We will keep close cooperation and help you grow with us. Let’s face the future together!
In order to provide good after sale service for our customer, our partners (agents) should have the capacity to do the installation, repair and maintenance work. We will provide the technique and engineering training if necessary. You have all our support!
Looking forward to meeting you soon and visit us!
