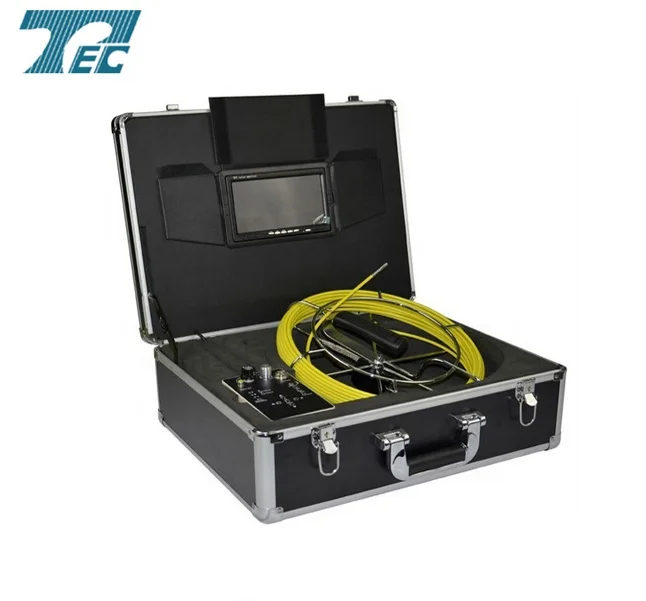

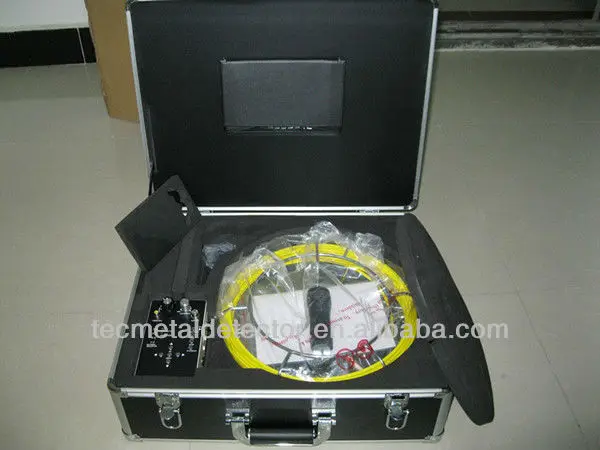

Professional Industrial Endoscope Underwater Video System/Pipe Wall Inspection camera System TEC Z710DK5

Product Overview

Description





Specification

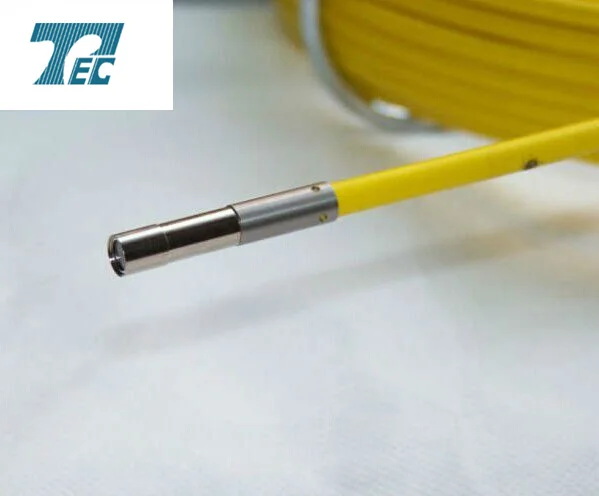

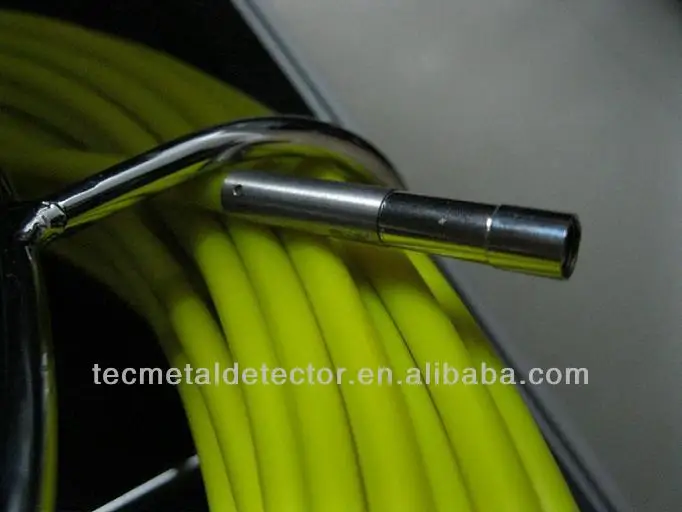

camera

1. camera size:6mm

2.Camera case material:stainless steel house stainless steel 304

3. Camera glass material:sapphir glass

4. sensor size:1/12 inch

5.Total Pixels:PAL:720X576    NTSC: 720X480

6. view angle 60°.

7. camera light:4PCS white LEDS.

8. waterproof:IP67

9.camerawork current:100MA      camara power supply:DC 3.3V

10. LEDS ADJUASTABLE.

11.Work temperature:-10°C-50°C

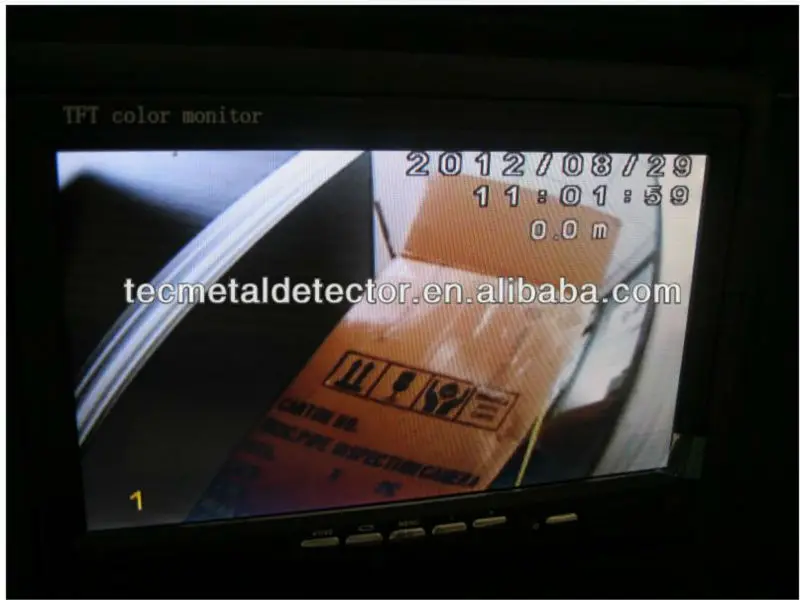

monitor

1. monitor size:  7inch  TFT color monitor

2. monitor Total Pixels:1440X234

3. monitor power supply:DC 12V

4. osd language: english

5. up,down  left,right adjustable.

6. 16:9  4:3 model

7. sunshade includ

8. waterproof connector

9. Work temperature:-10°C-50°C

DVR

1. DVR power supply: 12V

2. DVR work current:  200MA

3. storage medium:SD card (max 32G)

4. dagital clock and dagital calendar

5. DVR Total Pixels: 720X576   (D1)

6. picture snap and movie record

7. movie format: AVI

8. audio record (yes)

9. double earphone output

Audio input unit

1. micphone

2. clip type

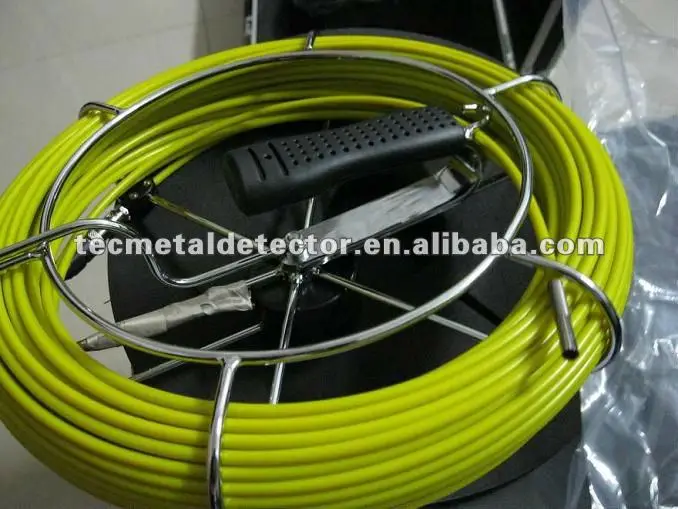

Cable wheel

Cable size:320MM(diameter)X110(h)

Wire material: fiberglass rod

Fiberglass length:20M( standard)

Fiberglass diameter:4.8MM

Fiberglass color:yellow

battery

Battey pype:  12V 4000MAH     rechargable li –ion battery(18650)

Used time :   7  hours.

charger

Input: AC90-260V        output: DC 12V    1000MA

Output cable length:1.5M

DC plug diameter :2.1MM

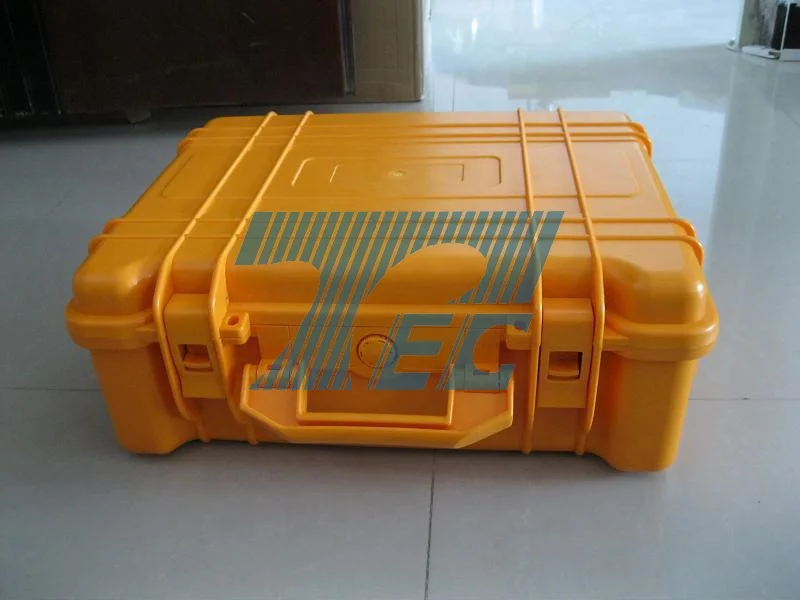

box

box material:fire protection

Box size:48cm x 39cm x 19.5cm

Weight and cartoon size

net weight: 7.5KG

gross weight: 9.5KG
