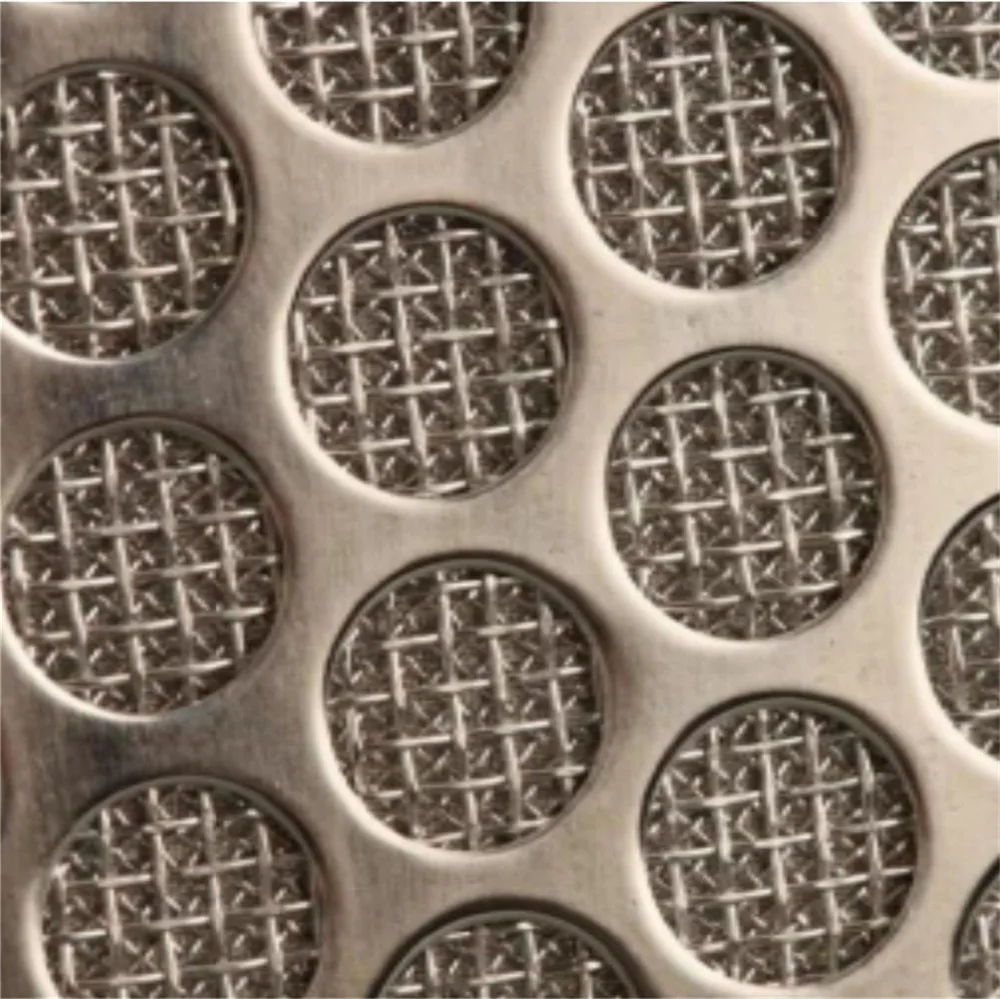

China Factory Cheaper Metal Perforated Sheet Sintered Wire Mesh Filter Screen
- Category: >>>
- Supplier: Xinxiang Xinli Filter Technology Co. Ltd.
Share on (60663908718):
Product Overview
Description

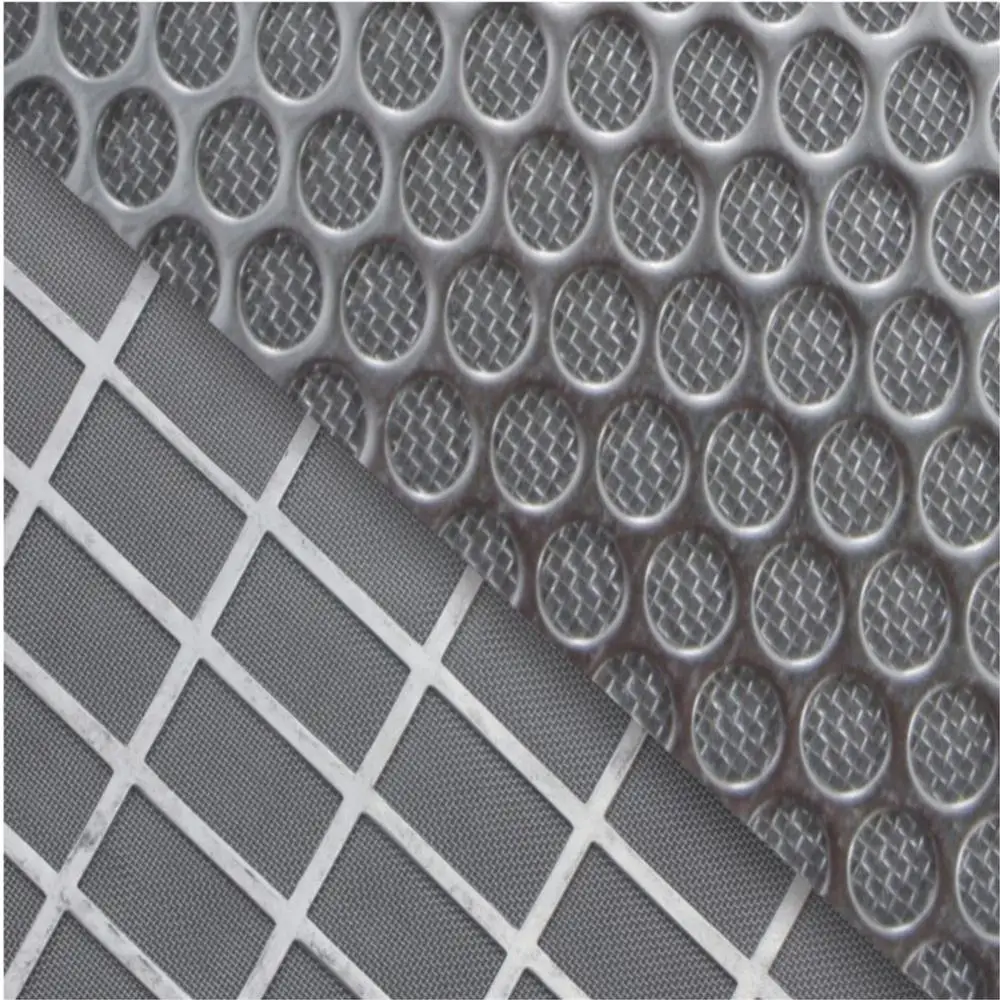

High Filtration Precision Perforated Sheet With Mesh Filters
Product Description

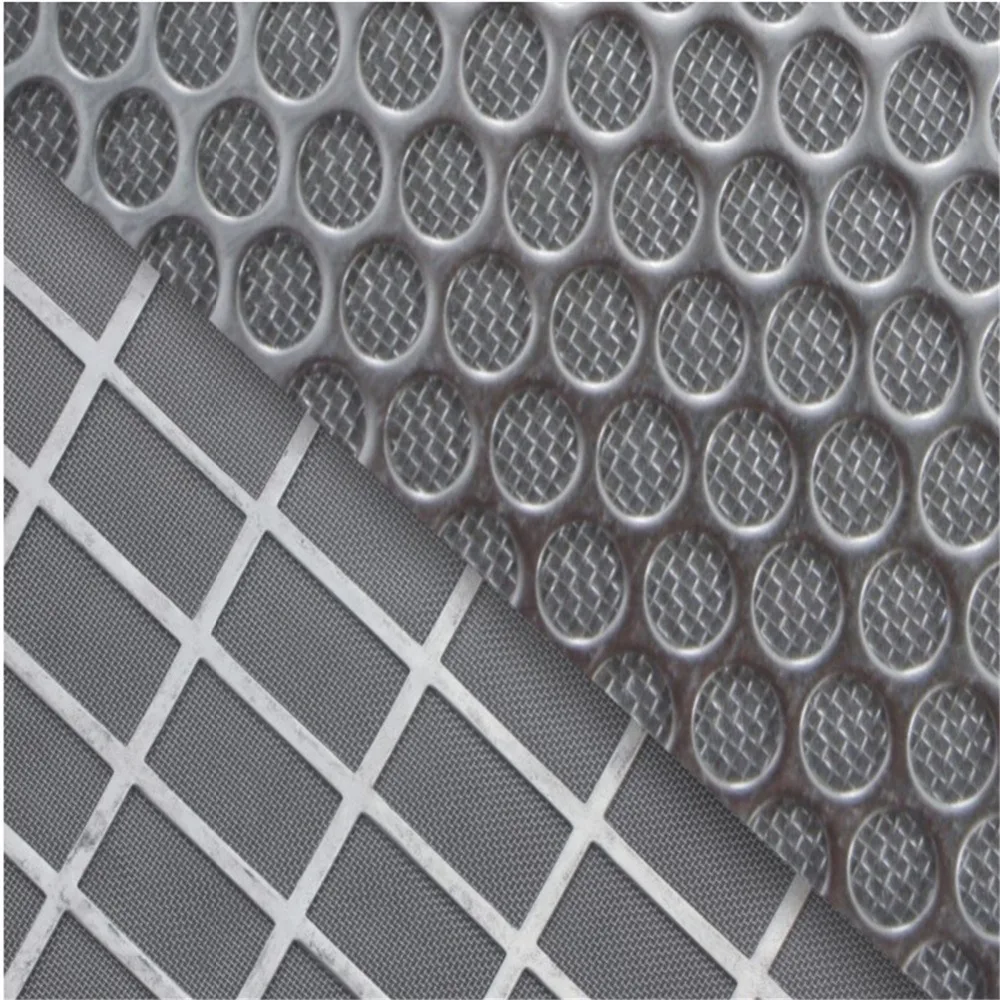

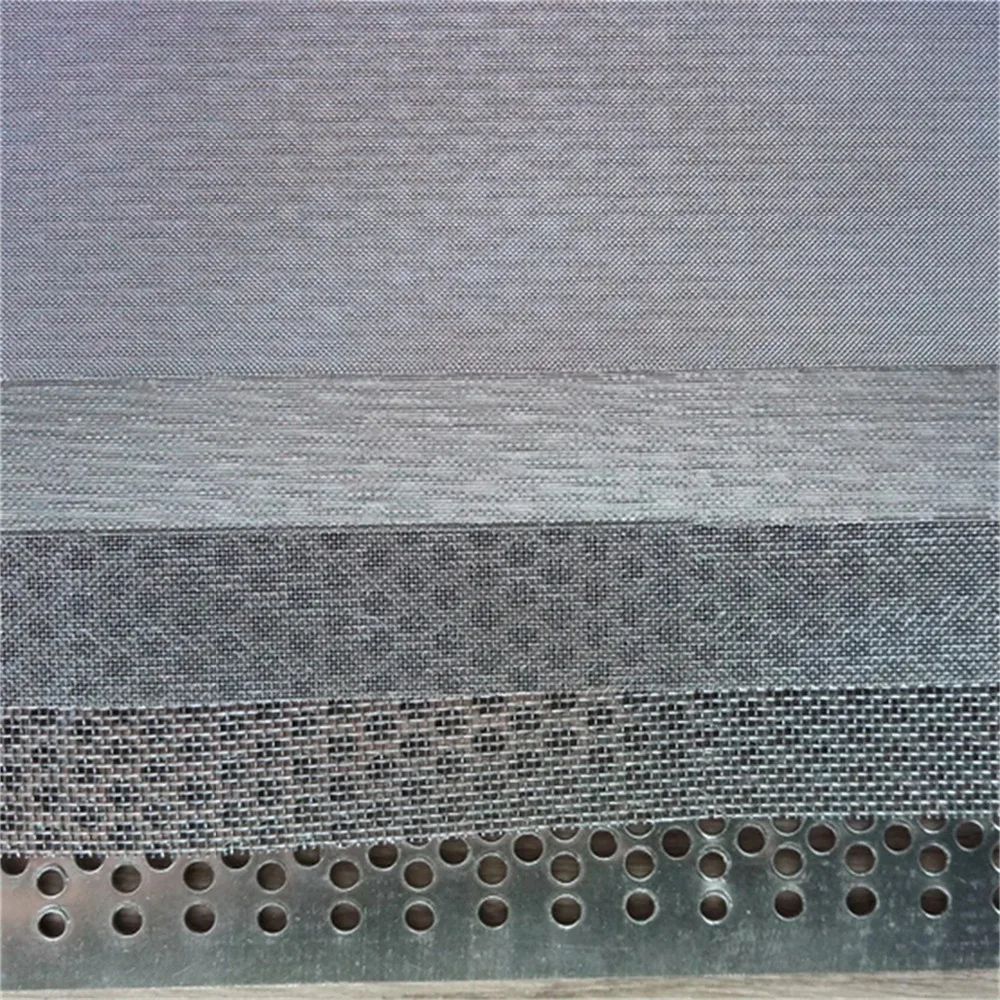

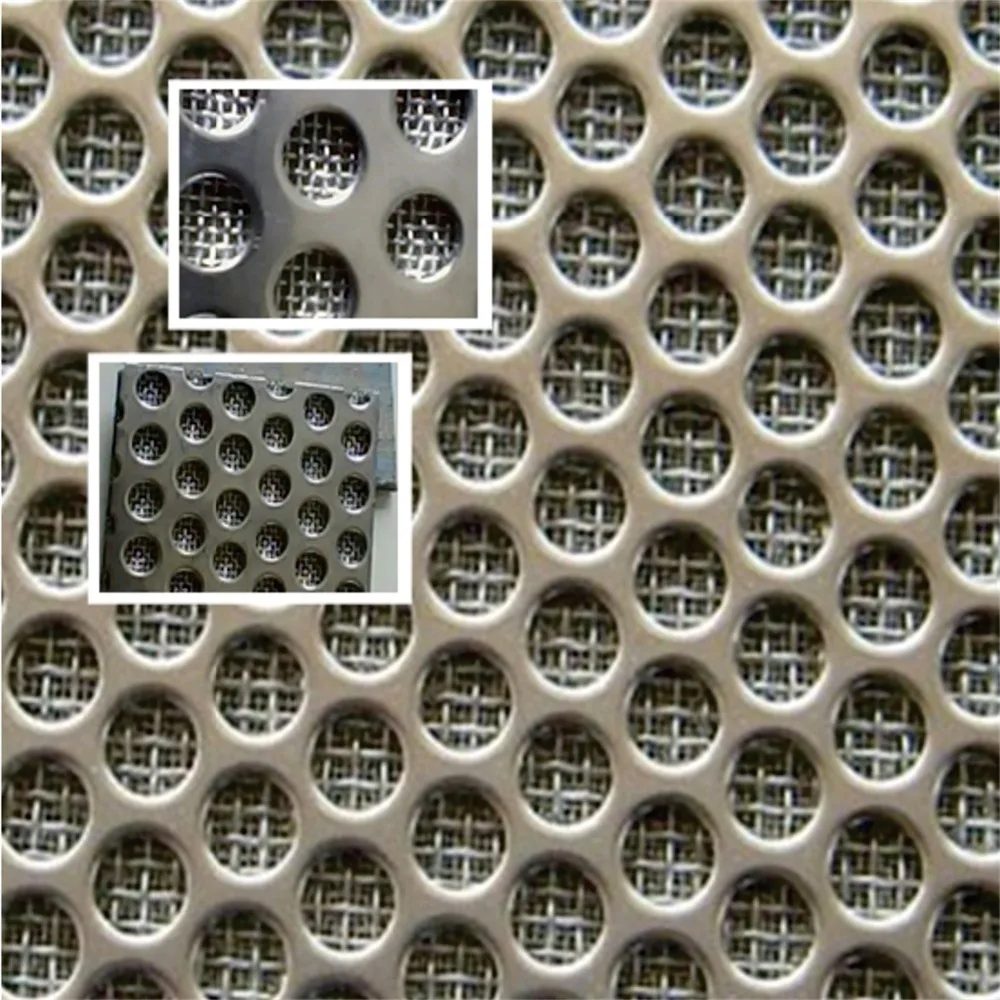

Perforated Sheet Sintered Mesh is made of multi-layer sintered woven wire mesh and Perforated stainless steel plate. The sizes and styles could be customized.The filter rating is from 2 micron to 500 micron. It provides excellent performance such as uniform and stable precision and high strength, so it is ideal filter medium for applications requiring high compressive strength and uniform filtering particle.
Technical parameters:
| Material | SS 304,316L,904L, Monel, Hastelloy, Deplex, etc |
| Micron Rate | 2-500µm |
| Operating Temperature | Min:-200℃ Max:+600℃ |
| Standard Size | 500×1000mm 1000×1000mm 1200×1000mm |
| Thickness | 0.5-12mm |
| Cleaning Type | backstream, filtration liquid, ultrasonic, dissolution and baking |
| Remarks | Special shape product can be made according to customer’s request. |
Feature:
1.High strength and rigidity
2.Uniform and stable precision
3.Widely service environment
4.Cleanable

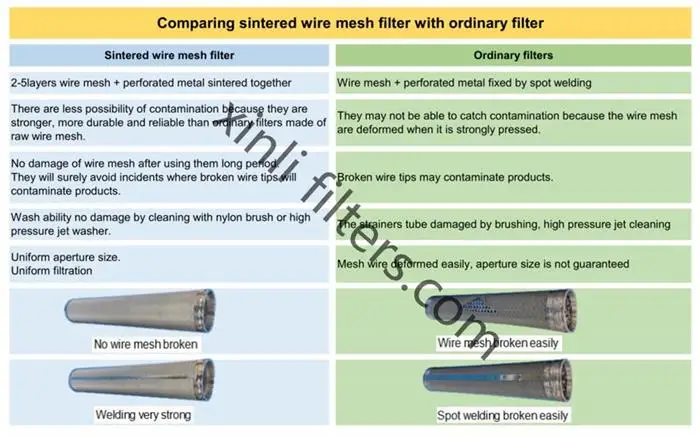

Why perforated sintered mesh:
