Universal Coupling For Synchronous Screw Jack Lifting System

Share on:

Price:$11.00 - $55.00
Price in USD:Details


Product Overview


Product Description

A universal joint is a mechanical device that allows two shafts not in line (offset) with each other limited freedom of movement in any direction whilst transmitting rotary motion and torque. It is an ideal form of coupling each two shafts by universal joints when offset is unavoidable in synchronous pair or multiple units screw jack lifting system.


700 joints (1).jpg
The universal joint material is available in alloy steel, stainless steel or special materials for increased over load and reliability, the single joint configuration can accept up to 25 degrees of angular misalignment where as the double joint designs can accept up to 50 degrees of shaft misalignment. Model designs can include needle bearings, hardened bushes or plain pin, depending on torque and speed requirements.

700 joints (2).jpg
3 types of Universal joint, Single, Double and Expandable. Expandable type have splines for telescopic movement. Various type of bores, cylindrical, square Hexagon to suit every application.

700 1.jpg

Single universal joints can compensate an angular offset of up to 45° between the input and output shaft. They typically operate at larger angles and higher torques than other types of couplings. They are also torsionally rigid and do not flex or wind up.

Single joints are subject to non-uniform speeds at input and output shafts. This means that when the speed at the input shaft is constant, the speed at the output shaft fluctuates.

700 joints (3).jpg

Double Universal Joints can be created from two single joints by pinning or butting the hubs together, or specially designing the double joints with a single center section, to eliminate additional machining and assembling.

The advantage over a single joint is either an increased operating angle (W configuration) or the capacity to compensate parallel misalignment. They can also compensate the non-constant veloctiy between driving and driven shaft on a Single Universal Joint as long as they are oriented correctly.

700 joints (4).jpg

There are also applications that require a length change of the drive shaft in operation since one or both ends move. Depending on the application and enviroment, different profiles can be selected to design the center sliding feature. The simplest form is a square or hex shaft on one side with a mating hub on the other side. These connections are robust and cost efficient. For more precision and /or torque capacity, parallel sided splines or shafts with multiple keys are a better option. Angled or involute spline profiles are available for extreme cases, but they come at a significantly higher cost.

Wear on the shaft can be an issue when the sliding features move under load and during rotation – especially for stainless steels. Heat treatment or special coatings can be used to counter the negative effects. In some cases, ball splines may offer a low friction and low wear option for long life.

700 joints (5).jpg

Drawing Dimensions

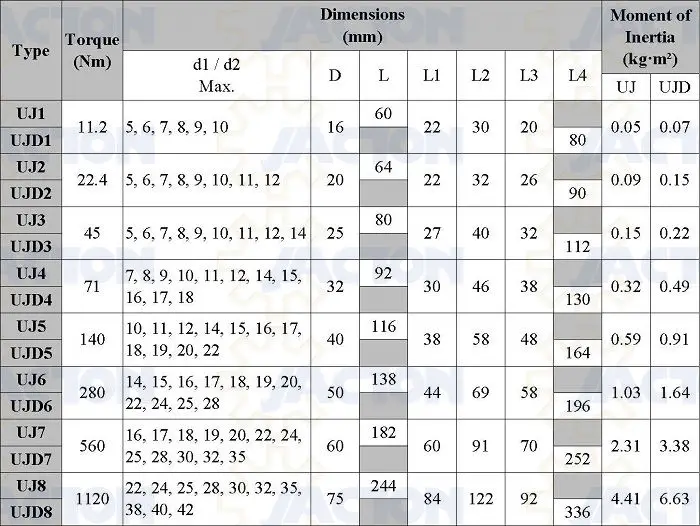

Universal Coupling Joints Specifications and Sizes

1WXD  - .jpg2WXD  - .jpg
