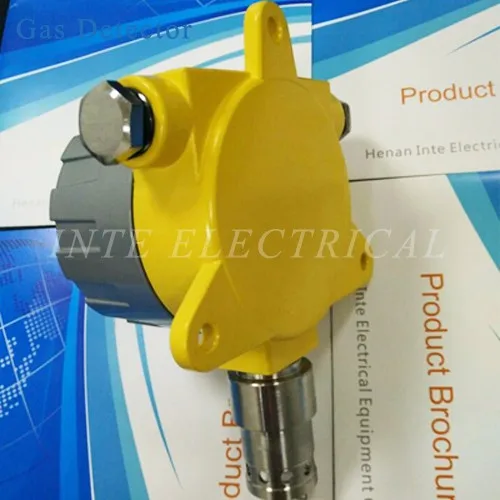

On sale KQ500D gas leakage detector for combustible gases, toxic gases, oxygen

Product Overview

Description

MORE PRODUCTS





    Portable single gas detector PG610                             Multi-gas detector







        KQ500N gas alarm control panel                                              Wall-mounted gas detector





Product Overview

KQ500D series Fixed gas detector (also called gas sensor or gas transmitter). It can detect various gases such as flammable gas, O2,H2S,CO,HCN,NO2,SO2,NH3,HCL,CL2,H2 etc, widely used in metallurgy, petrol, petrifaction, chemistry, light industry, coking, municipal administration, gas, pharmacy, sewage dealing and many other special industries and fields.

    The device adopts intrinsic safety type channel design, standard 4~20mA two wires signal output. It can transfer data in long distance, can get into the DSC system directly. The detector has high sensitivity, quick response, long lifetime, polarization time and many other characteristics; it is among the first class in similar products in China.





Main Features:

Various kinds of gases detectors, high precision

Fixed explosion-proof shell, safe and reliable

4~20 mA electric current output, compatible with existing alarm unit or DCS ( distributed control system)

Imported sensor, sensitive, high precision, quick response, stable performance

Sipmple operation steps, easy to install and maintance

Detect and analyze gases concentrantion in remote places





Technical Parameters

Detecting gas	combustible gas, toxic gas, oxygen
Measuring Range	according to the gas detected
Deviation	≤± 3% F.S
Respond Time	T90 < 30 s
Working Temperature	toxic gas: - 20 °C ~ + 50 °C
	Combustible gas: - 40 °C ~ + 70 °C
Working Humidity	< 95% R.H. no condensation
Sensor	electrochemical sensor; catalytic combustion type sensor for KQ500-EX
Sensor life	2-5 year
Working Voltage	24V DC±15%
Working Time	continuously as long as power input
Protection Class	IP66
Weight	≤900 g
Fixed parameter	Fixing type: wall-mounted type
	Transition cable: two core shield cable
	(KQ500-EX uses three core shield cable),
	section 2×1.5mm2, external diameter 10mm
	Transmission distance  ≤1000m
Technical parameter	Working voltage: 16~30VDC
	Working current: KQ500-EX is 120mA, others ≤50 mA
	Output signal: 4~20mA standard signal two wire type output
	(KQ500-EX three wire type)
Explosion-proof Level	Exd IICT6(used for explosion proofing detector);
	ExiaIICT4(used for intrinsic safety type detector)





KQ500N and KQ500D gas alarm system

Product Information Chart

Product Model	Detected Gas	Measuring Range	Resolution	Respond Time (T90)	Low Alarm	High Alarm
KQ500D-O2	O2	0-30%vol	0.1%vol	≤15s	18.5%vol	23%vol
KQ500D-CO	CO	0-1000ppm	1 ppm	≤15s	50ppm	150ppm
KQ500D-H2S	H2S	0-100ppm	1 ppm	≤15s	10ppm	15ppm
KQ500D-HCN	HCN	0-20ppm	0.1ppm	≤30s	5ppm	10ppm
KQ500D-CL2	CL2	0-20ppm	0.1 ppm	≤30s	2ppm	5ppm
KQ500D-O3	O3	0-5ppm	0.01 ppm	≤25s	0.1ppm	0.5ppm
KQ500D-NH3	NH3	0-200ppm	1 ppm	≤30s	25ppm	50ppm
KQ500D-H2	H2	0-1000ppm	1 ppm	≤30s	50ppm	200ppm
KQ500D-NO2	NO2	0-20ppm	0.1 ppm	≤25s	2ppm	5ppm
KQ500D-PH3	PH3	0-20ppm	0.1 ppm	≤15s	1ppm	3ppm
KQ500D-C3H3N	C3H3N	0-100ppm	1ppm	≤30s	5ppm	15ppm
KQ500D-NO	NO	0-250ppm	1ppm	≤25s	35ppm	50ppm
KQ500D-HCL	HCL	0-20ppm	1ppm	≤25s	3ppm	5ppm
KQ500D-SO2	SO2	0-20ppm	0.1ppm	≤15s	2ppm	5ppm
KQ500D-CO2	CO2	0-5000ppm	1ppm	≤30 s	1000ppm	2000ppm
		0-5.00%vol	0.01%vol		1.00%vol	2.00%vol
KQ500D-EX	combustible gas	0-100%LEL	1%LEL	≤30s	20%LEL	50%LEL
As for unlisted detected gas and measuring range, please contact with our company
