VMC650 CNC vertical machining center price
Product Description
The main technical parameters |
|
1.Travel |
|
X-axis | 700mm |
Y-axis | 450mm |
Z-axis | 500mm |
Spindle nose to table surface | 120-620mm |
Spindle center to column surface | 500mm |
2.Worktable |
|

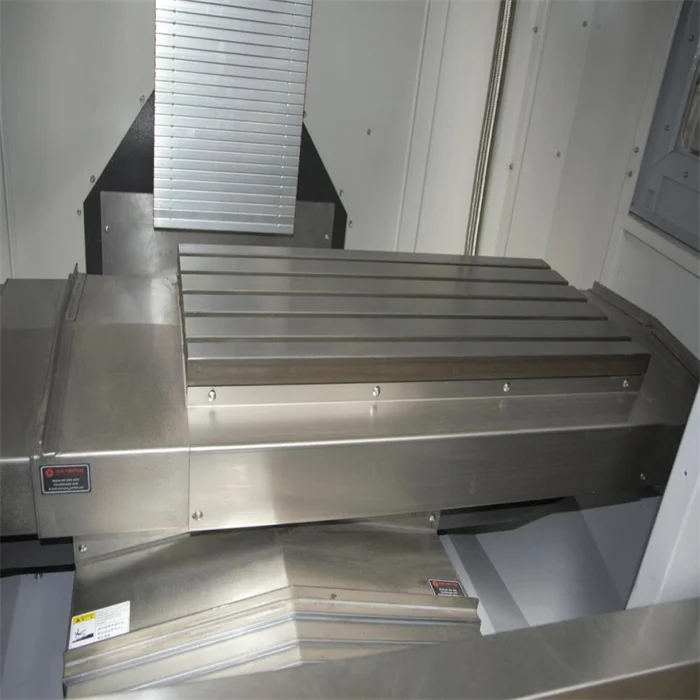

Table size | 900×400mm |
Max.loading | 400kg |
T-slot width | 16 |
T-slot quantity | 5 |
3.Spindle | |

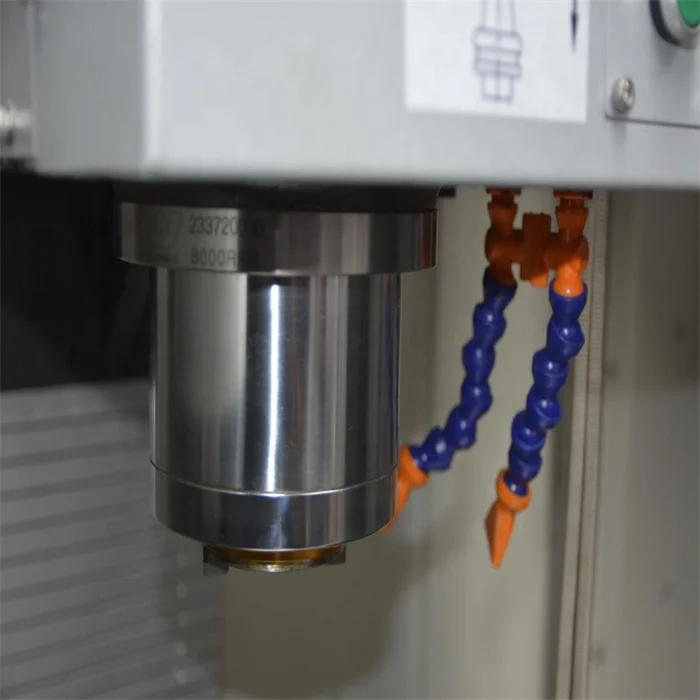

Spindle taper | BT40 |
Spindle speed | 8000rpm |
Spindle motor | 5.5kw |
4.Tool | |
Max.tool dia. | 80/100mm |
Max.tool length | 150mm |
Max.tool weight | 7kg |
5.Rapid movement | |
X,Y axis rapid feed | 24000mm |
Z axis rapid feed | 18000mm |
Cutting feed | 1-12000mm/min |
6.Accuracy | |
Position accuracy | ±0.01mm |
Repeat positioning accuracy | ±0.005/300mm |
CNC control system | |
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage, can achieve DNC processing (according to the system has differences). | |
Motor | |
X/Y/Z axis AC servo motor (torque N.m 8/8/15) | |
1.Power device |
|
Power form | 3-phase AC 380V±10% 50Hz±10% |
Capacity | 10KVA |
2.Coolant system |
|
Capacity | 200L |
Cooling pump power | 120W |
Cooling pump flow | 50L/min |
Rated head | 10m |
3.Air supply | |
Using air pressure | 0.6MPa |
4.Dimension and weight | |
Dimensions | 230X2200X2400mm |
Net weight | 3800Kg |
Main specification
Standard Accessories:
1,Spindle unit 8000rpm
2,Spindle servo motor:speed 8000rpm,power5.5Kw,torque25.8Nm;
3,GSK 218 control system

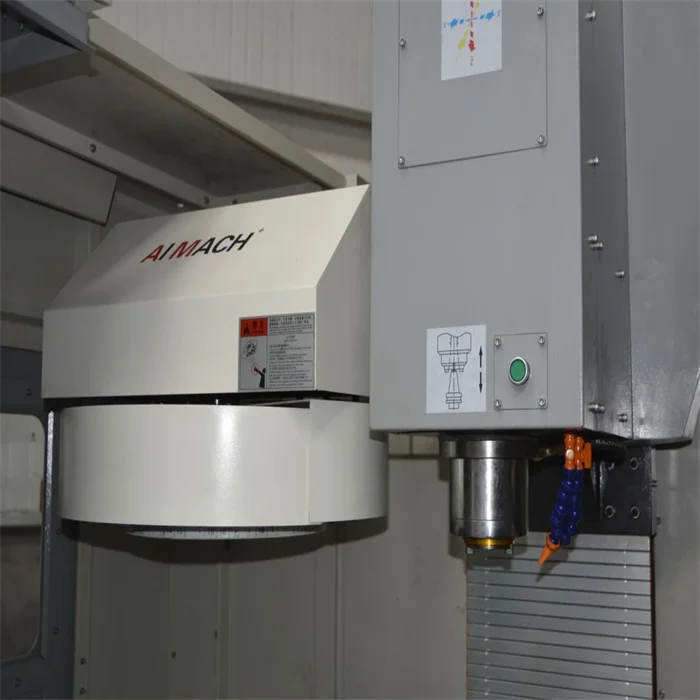

4,16tools ATC from Taiwan;
5,Jiangsu qijian screw;
6,Taiwan HIWIN linear guideway
7,Move the hand vein;
8,Centralized automatic oil lubrication;
10,External cooling system and water tank;
12,Simple oil-water separation device;
13,Full protection sheet metal shield and rail shield;
14,Adjustable block ;
15,Tubular work lights, warning lights;
16,Rigid tapping
Optional accessories:
SYSTEM:Siemens 808D/828D/Fanuc 0i-MF/Mitsubishi M80B
Detailed Images

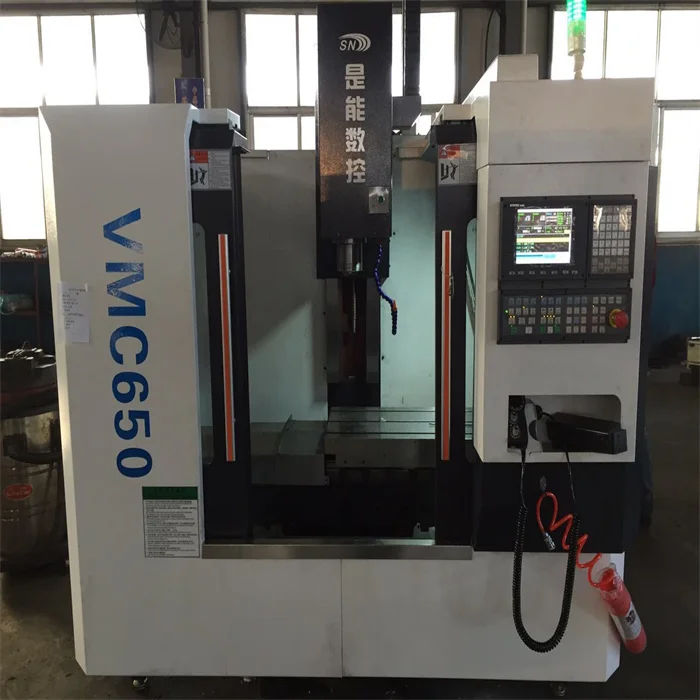

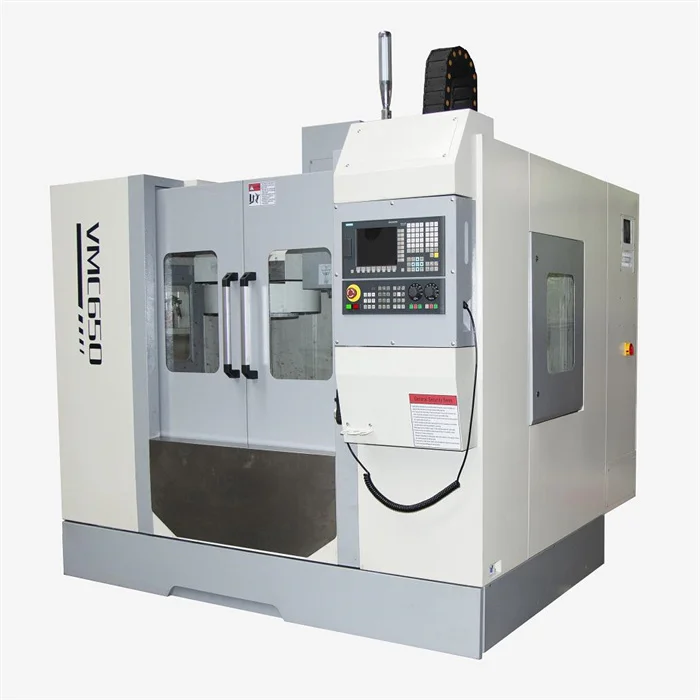

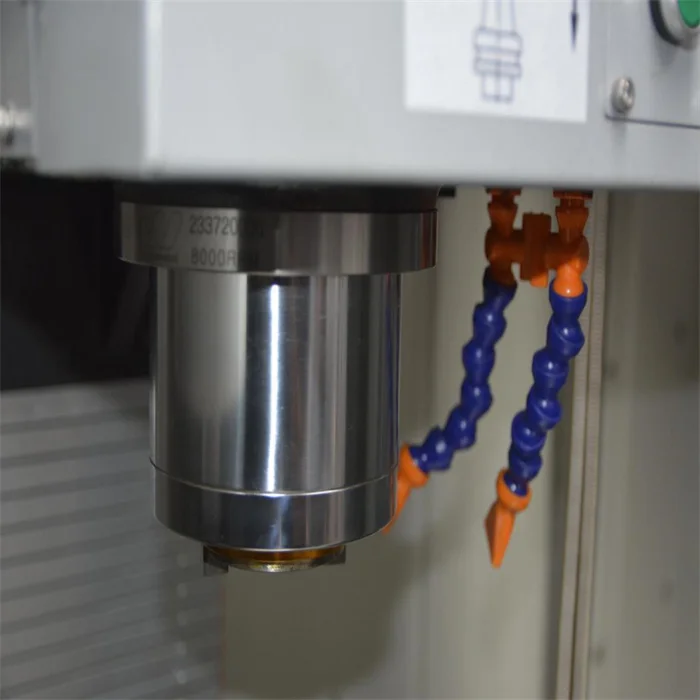

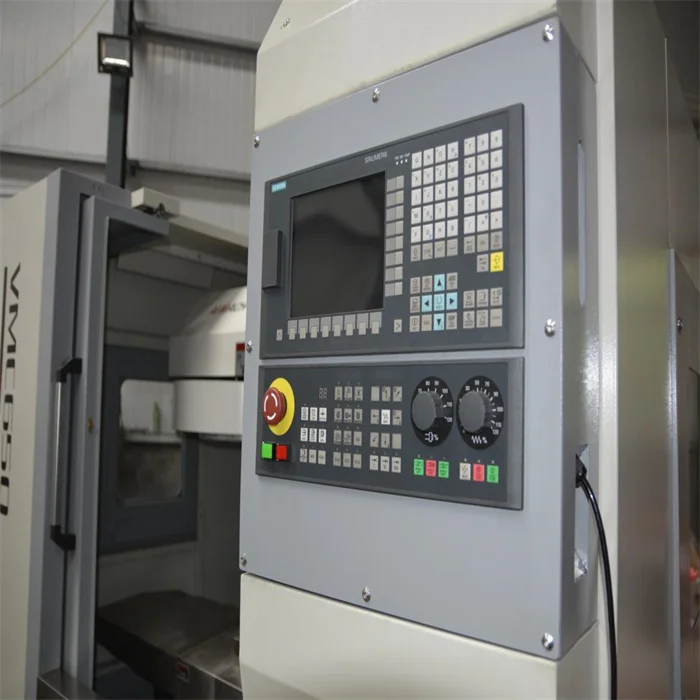

Please check the detailed pictures of our VMC650 CNC vertical machining center price as following:
Packaging & Shipping
VMC650 Chinese CNC vertical machining center price
Packing size: 2300X2250X2250mm
Package: standard export plyw/case or pallet
Our Services
We also would like to let you know our warranty:
What about the spare part if the XH7125 Chinese CNC vertical machining center price break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.

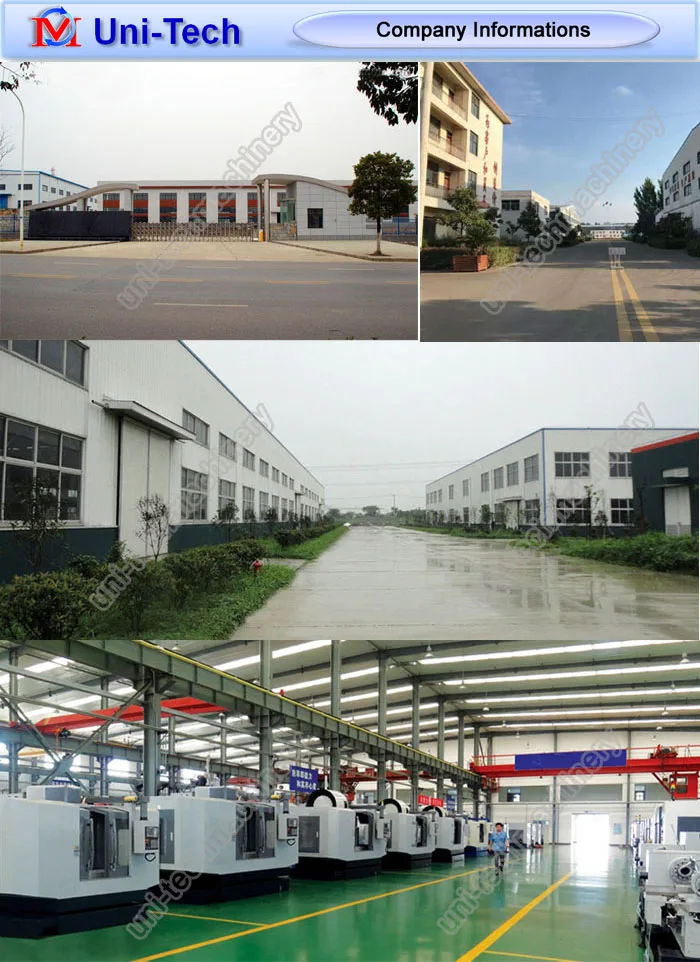

Company Information

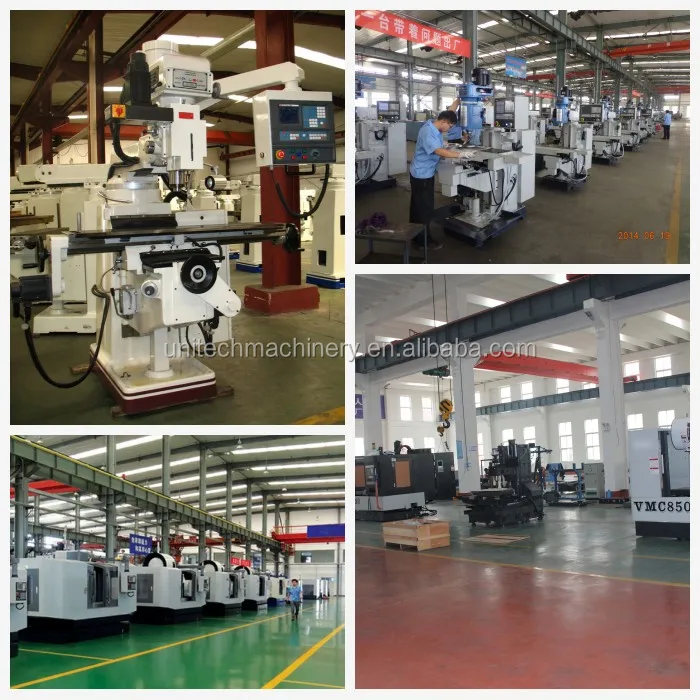

Tengzhou Uni-tech machinery Co. Ltd , Established in 2009, company grew up very fast and became a successful company in the machinery industry, using numerous machine tools. specially in the range of supplying different CNC lathe machine, flat bed cnc lathe machine, slant bed cnc lathe machine,cnc milling machine, cnc verital center, machine tools, machinery accessories. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.
