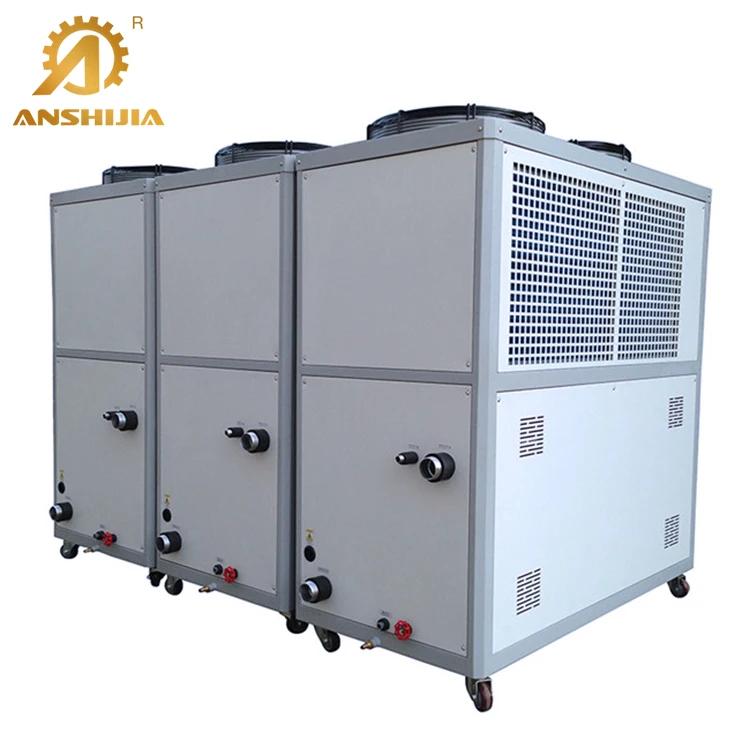

Cheap Price Air cooled Scroll Compressor Water Industrial Chiller

Share on (60664090215):


Price:RUB 381,160.00

Quantity:


Product Overview

Description

Product Description

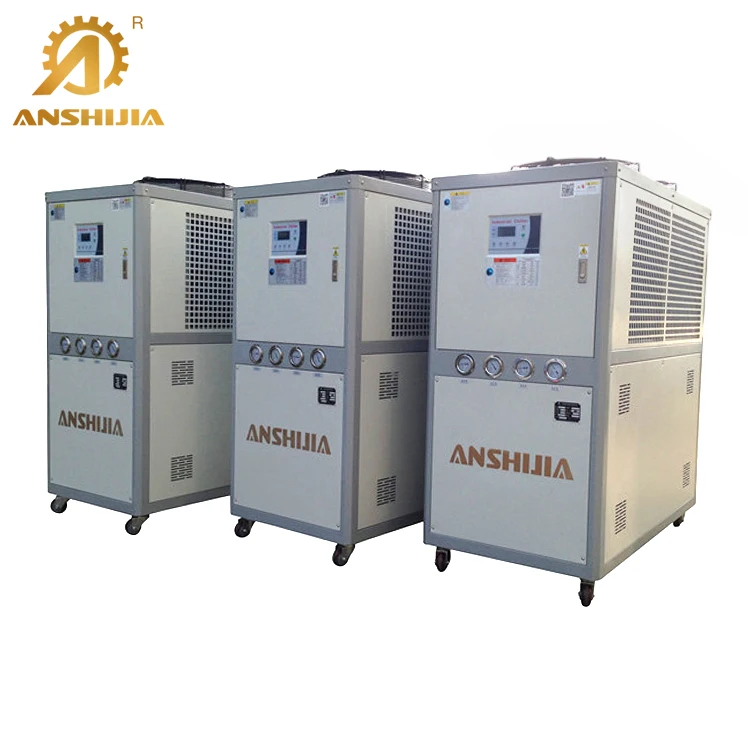

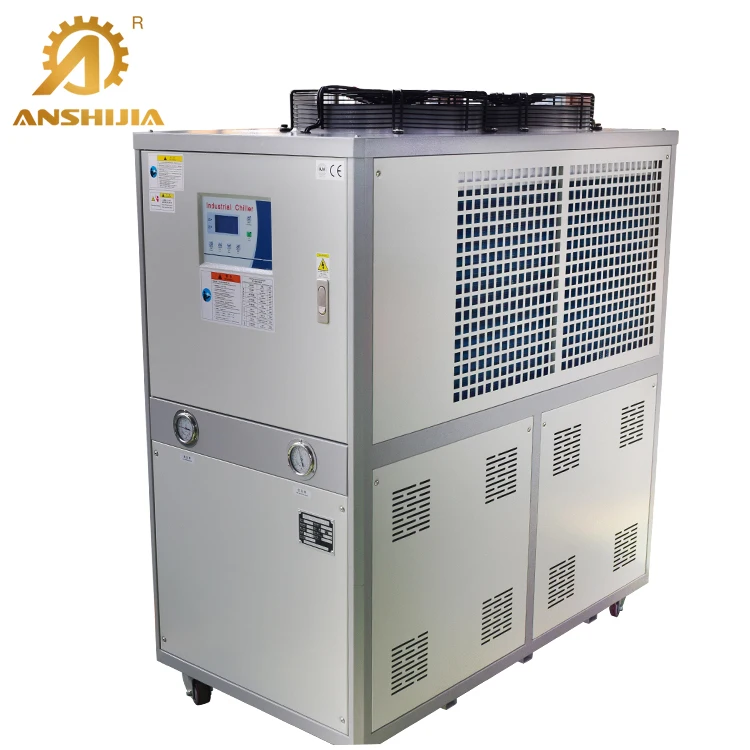

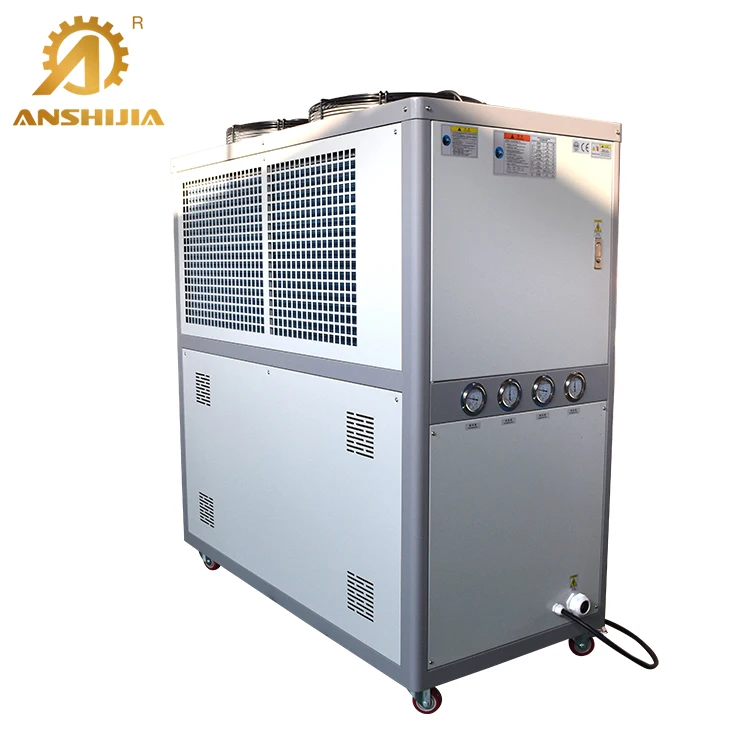

Cheap Price Air-cooled Scroll Compressor Water Industrial Chiller

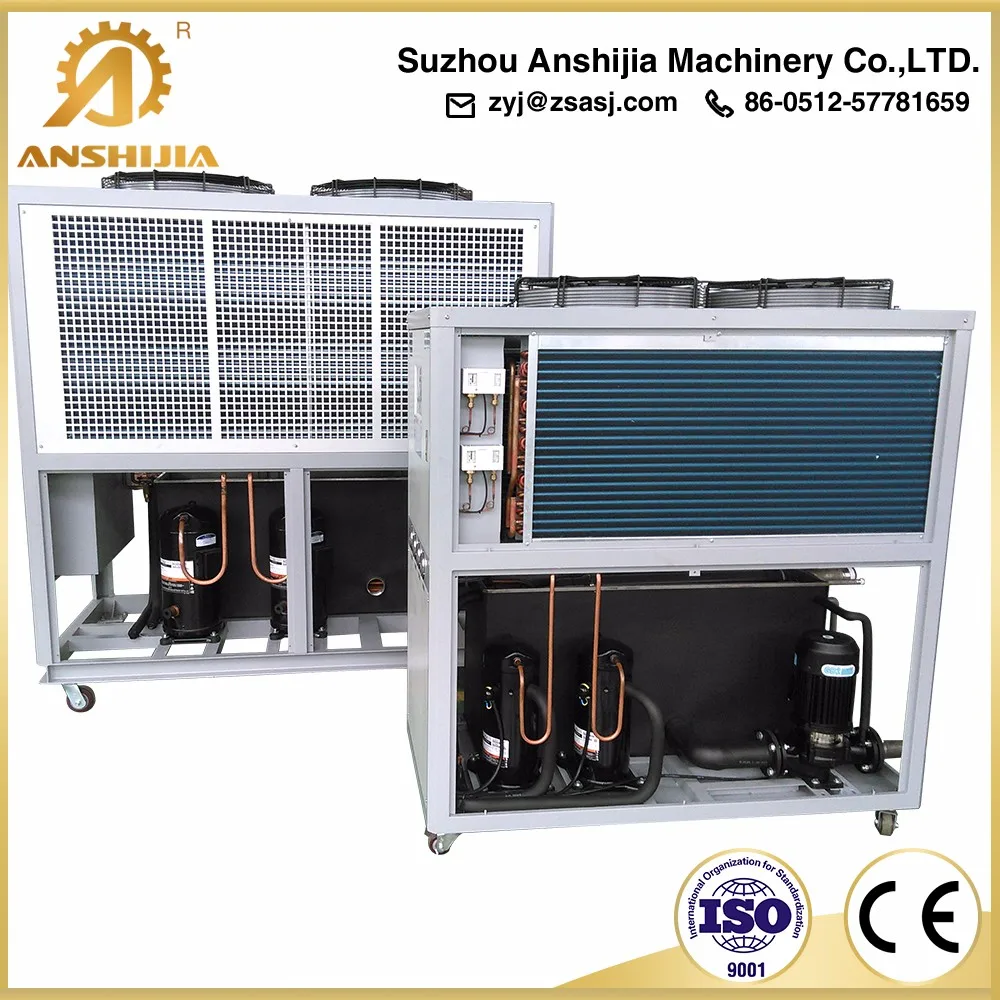

Air-cooled-5

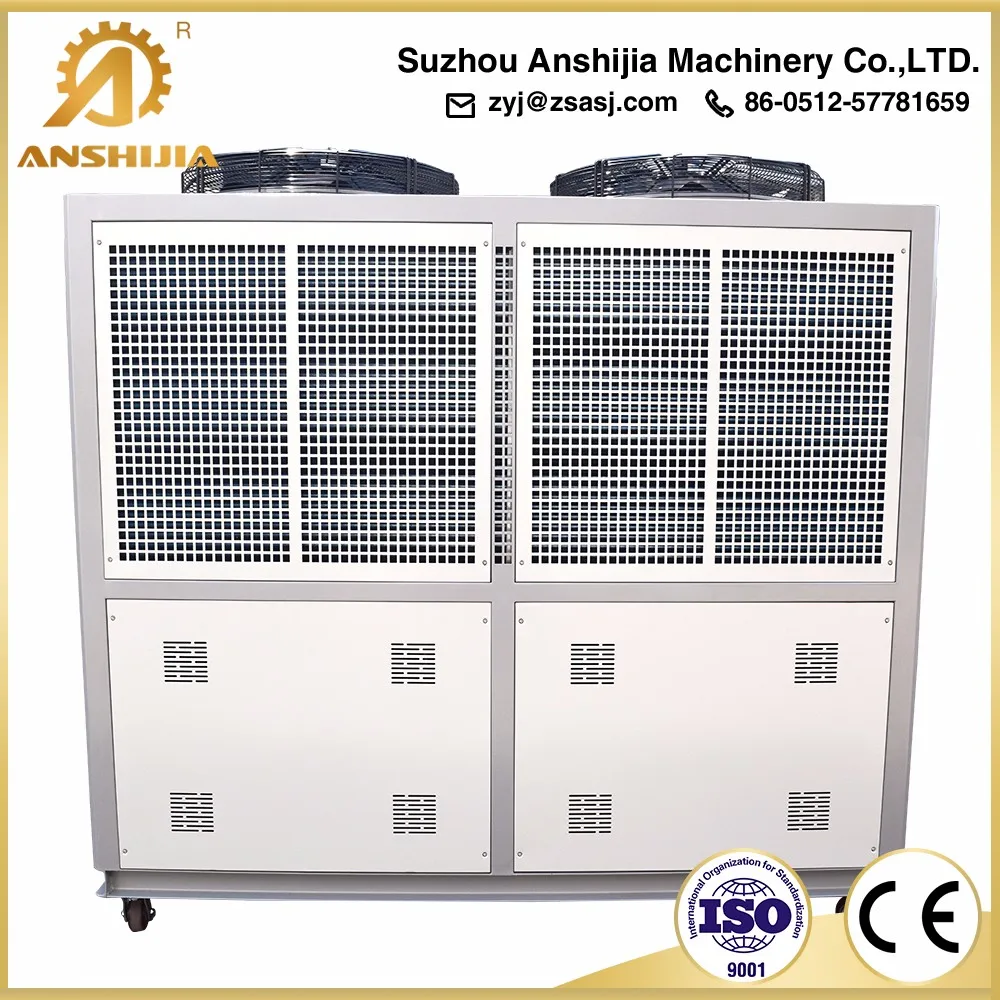

Air-cooled-8

  model SJ-1/2AS SJ-02AS SJ-04AS SJ-08AD
parameter
Cooling capacity KW(50HZ) 1.53 5.67 10.9 21.8
Kcal/h 1316 4872 9374 18748
Motor input KW 0.68 2.6 4.22 8.6
Power Supply 1N~220V 50HZ 3N~380V/415V 50HZ
Refrigerant Name R22
Charge(KG) 0.6 1.6 2.4 2.4*2
Type Capillary Tube/External Balanced Thermostatic Expansion Valve
Compressor  Control Type   Hermetic Rotary ScrollPiston Hermetic Scroll or Piston
Motor(KW) 0.55 1.5 3 3*2
Air Flow m3/h 800 2000 4000 8000
Frozen Water Flow(m3/h) 0.26 0.97 1.87 3.75
Tank(m3) 0.022 0.038 0.06 0.11
In/Out Pipe Size G1/2" G3/4" G3/4" G1-1/2"
Water Pump Motor(KW) 0.375 0.375 0.375 0.75
Pressure(Kpa) 180 250 242 290
Size Length(mm) 600 820 945 1470
Width(mm) 400 460 550 710
Height(mm) 940 1170 1370 1700
Weight(KG) 45 100 160 270

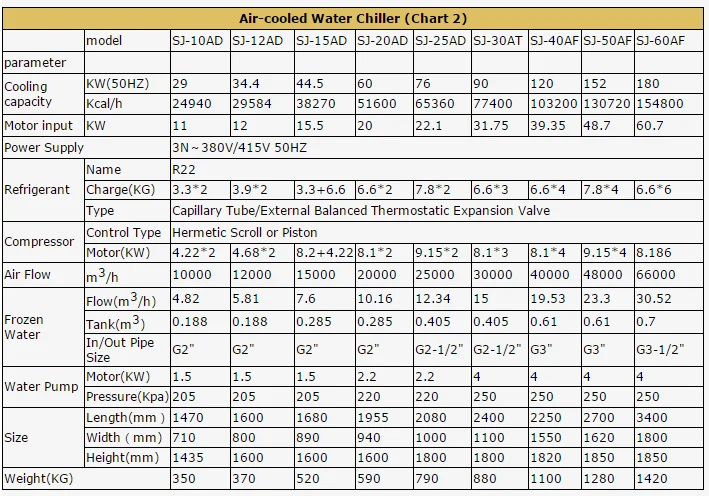

2

 7-Model

FEATURES:

 High/Low pressure protection for the compressor and overheating protection inside the machine.
Low water level alarm and low temperature alarm.
Imported compressor from Europe,US and Japan.
Refrigerating system welded with oxygen free method, to reduce oxides and ensure the smooth surface.
Throttle components from Danfosss(Denmark) and Alco(US).
SUS304 stainless steel water tank, to avoid corrosion or water leak.
Stainless plate, coil, shell, and tube or fin type efficient heat exchanger.
RS485 communication function, to realize automatic management(optional).

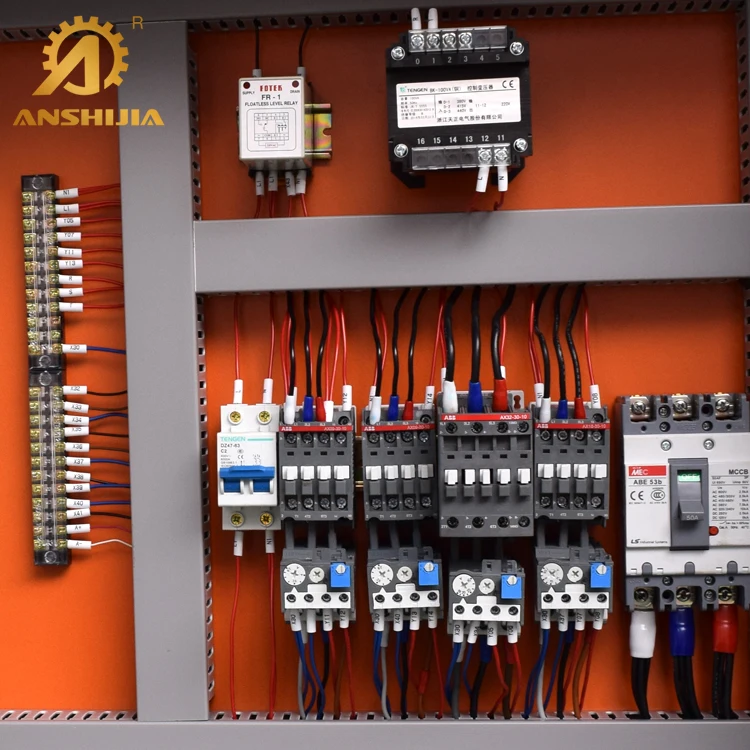

Electrical devices supplied from OMRON, FUJI.TE,LG,MOELLER and SCHNEIDER.
Control mode:imported micro-computer or PLC(optional).
Perfect safety protection, failure display, and not requiring professional personel for maintenance.
Highly efficient evaporator and conderser, to save over 30% energy.
2 compressor heads for over SJ-10AD, for individual or joint operation.

  If you do not have the attributes you need, the company received customized, please contact us, tell me your request

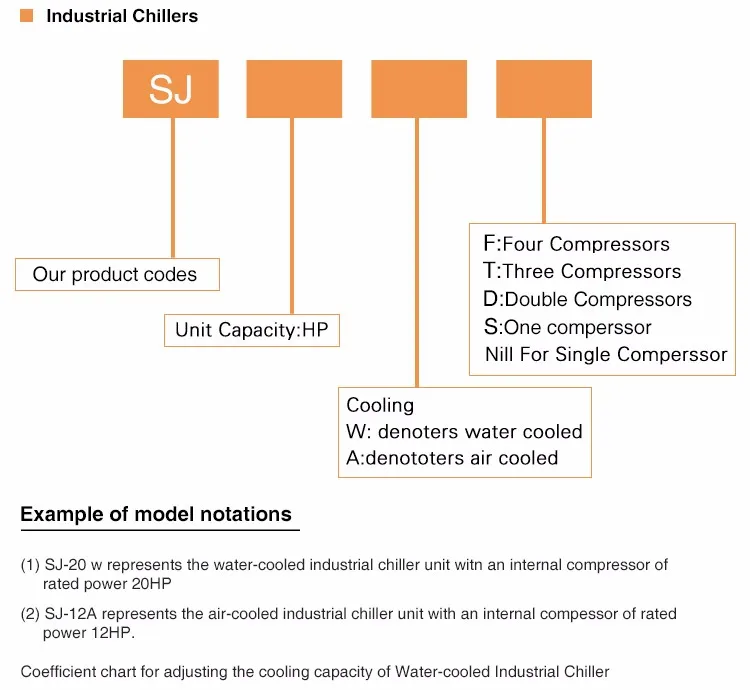

Nortation of Model



Company Information

Suzhou AnShiJia machinery co.,LET(Day lai Machinery Mquipment co.,LTD)has specialized in refrigeration temperature control more than 10 years ,strictly imprementing ISO90012008 and the standard of European Union management system(CE).We provide water chiller units and constant temperature control units of first-class quality to meet needs of different customers.

Our pruducts uses in many industries including plastic injection molding,carbon fiber molded cold and hot forming chemical reaction kettle,rubber extrution,calenderring,mixer, vulcanization molding of polyurethane foam,printing roller,textile, Dyeing drying,auto parts, Refrigeration piping high and low temperature testing equipment, Plating, electronics, laser ,CNC Cutting and food industries

We join hands with German high-tech company COMCEPET in techniques and marketing,chosing high-quality materials from Europe,America and Japan,providing the customers with more safe,precise,energy-saving,and environment protective products as well as considerate after-sales services.Our products sell well in southeast countries such as India,Indonesia,Vietnam and across Europe and the United States.
