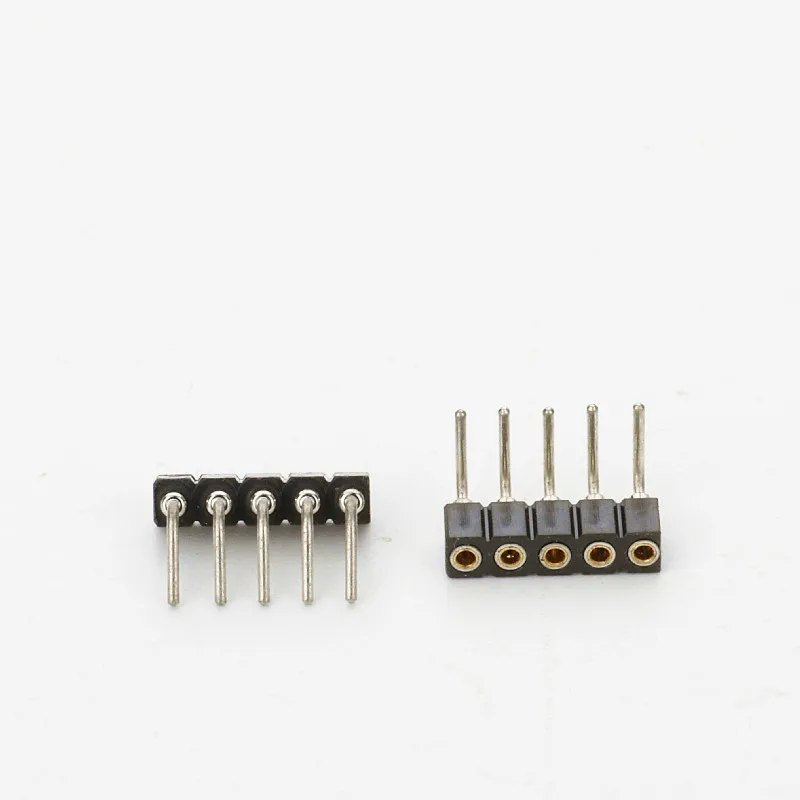

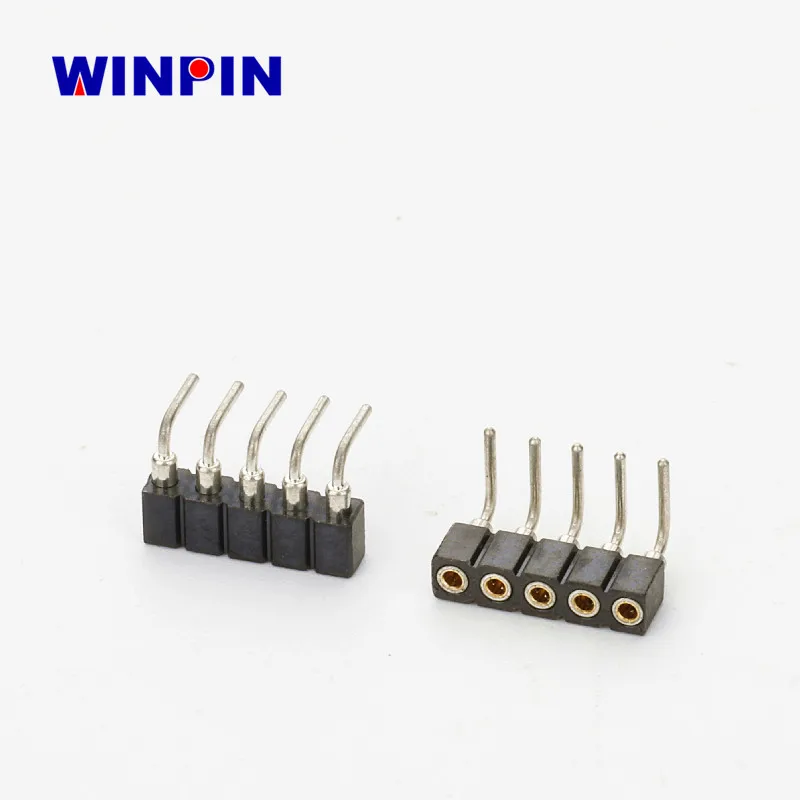

Round Pin Header 254mm Pitch Round Right Angle Socket Connector 4 Pin Round Connector
Round Pin Header 254mm Pitch Round Right Angle Socket Connector 4 Pin Round Connector
Round Pin Header 254mm Pitch Round Right Angle Socket Connector 4 Pin Round Connector
Round Pin Header 254mm Pitch Round Right Angle Socket Connector 4 Pin Round Connector
Round Pin Header 254mm Pitch Round Right Angle Socket Connector 4 Pin Round Connector
Round Pin Header 254mm Pitch Round Right Angle Socket Connector 4 Pin Round Connector
Round Pin Header 254mm Pitch Round Right Angle Socket Connector 4 Pin Round Connector

Round Pin Header 254mm Pitch Round Right Angle Socket Connector 4 Pin Round Connector

Share on (60664163983):


Price:$0.06 - $0.38

Quantity:


Product Overview

Description

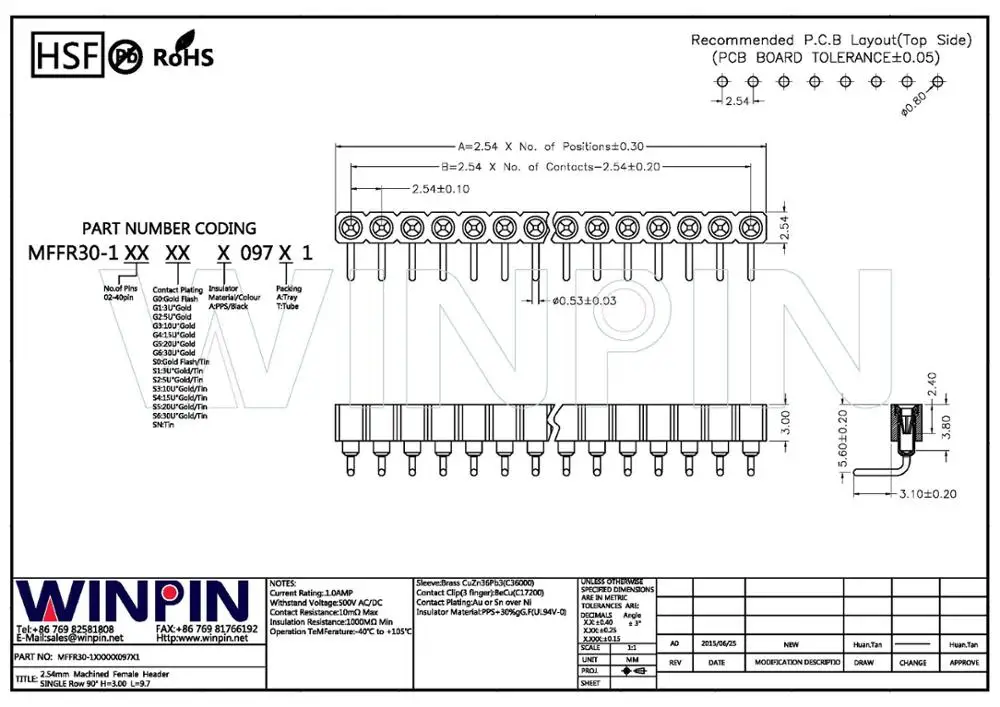

Customized Your Requested Part Number
Please code according to the specifications you need.
It is more convenient to make inquiries by code








Contact Resistance:
4m Ω Max
Insulation Resistance:
1000m Ω Min
Contact Sleeve Material:
Brass CuZn36Pb3(C36000)
Insulation Material:
Polyester PPS+30%GF Black
Contact Plating:
Au, Sn over Ni
Material Flammability Rating:
94-V0
Contact Plating Thickness:
G0 to G6
Operating Temperature:
-40°C to +105°C
Current Rating:
3.0AMP
Withstand Voltage
500V AC/DC
No. of Row:
1
Mounting Type:
Right Angle Type (RA)
No. of Positions:
2-40P
Termination:
Solder Type
Pitch:
2.54mm
Packing:
Original Packing
Row Spacing:
-
Certificate:
ROHS,REACH,SGS,ISO9001/14001
Contact Clip Material
BeCu(C17200) (3 finger)
Manufacturer Standard Lead Time:
1-3 Weeks
