Manual sheet metal press brake folding machine for sale bending
- Category: >>>
- Supplier: Zaozhuang DS Machine Tool Co. Ltd.
Share on (60664168015):
Product Overview
Description

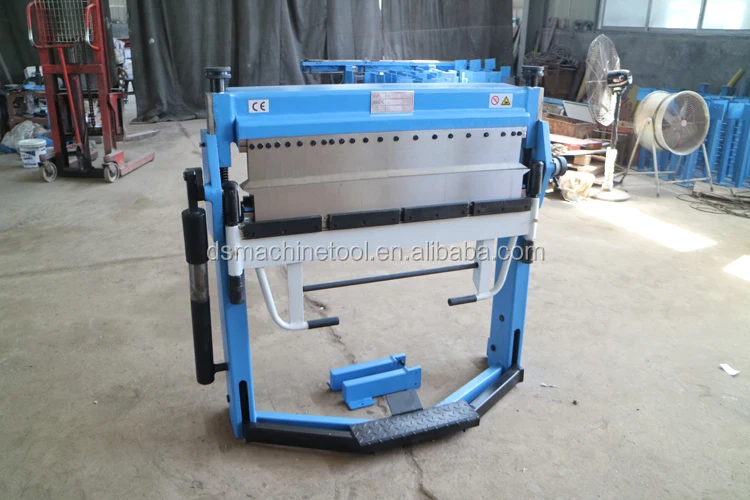

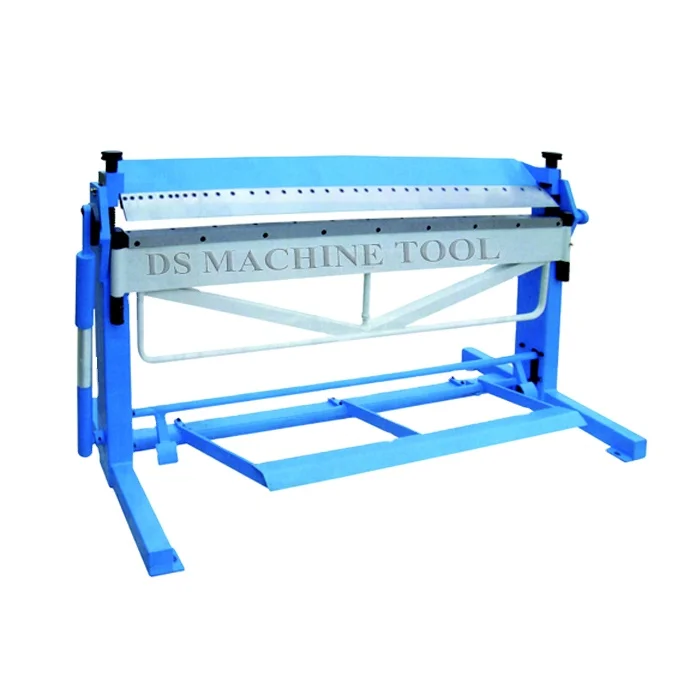

Cost-effective Manual Hand Press Brake metal sheet folding machine
Product Description
A. With foot control.
B. Easy for operation and relax hands for adjusting the material
C.Function of air spring which can be installed inside the arm(Optional)
D.Press blade and folding blade are segment structure
E.Adjustable bending angle stop up to 150°
F.Metform precision folding machine upper and bottom blades can be dismantled
G.Our manual folding machine can choose a combination of upper blades according to the abnormity workpieces degree and length
H.A fully developed quick release system for the clamp beam segment ensures fast interchangeability
I.The folding beams are fitted with a counterbalance and angle stop to provide perfect and effective operation within the full capacity of this machine

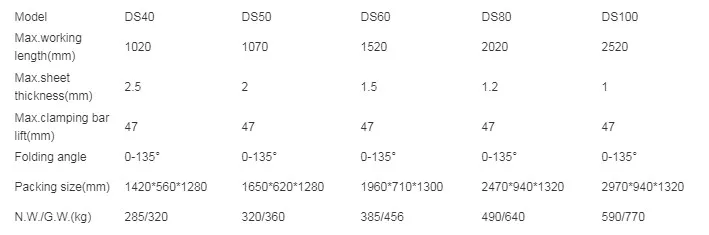

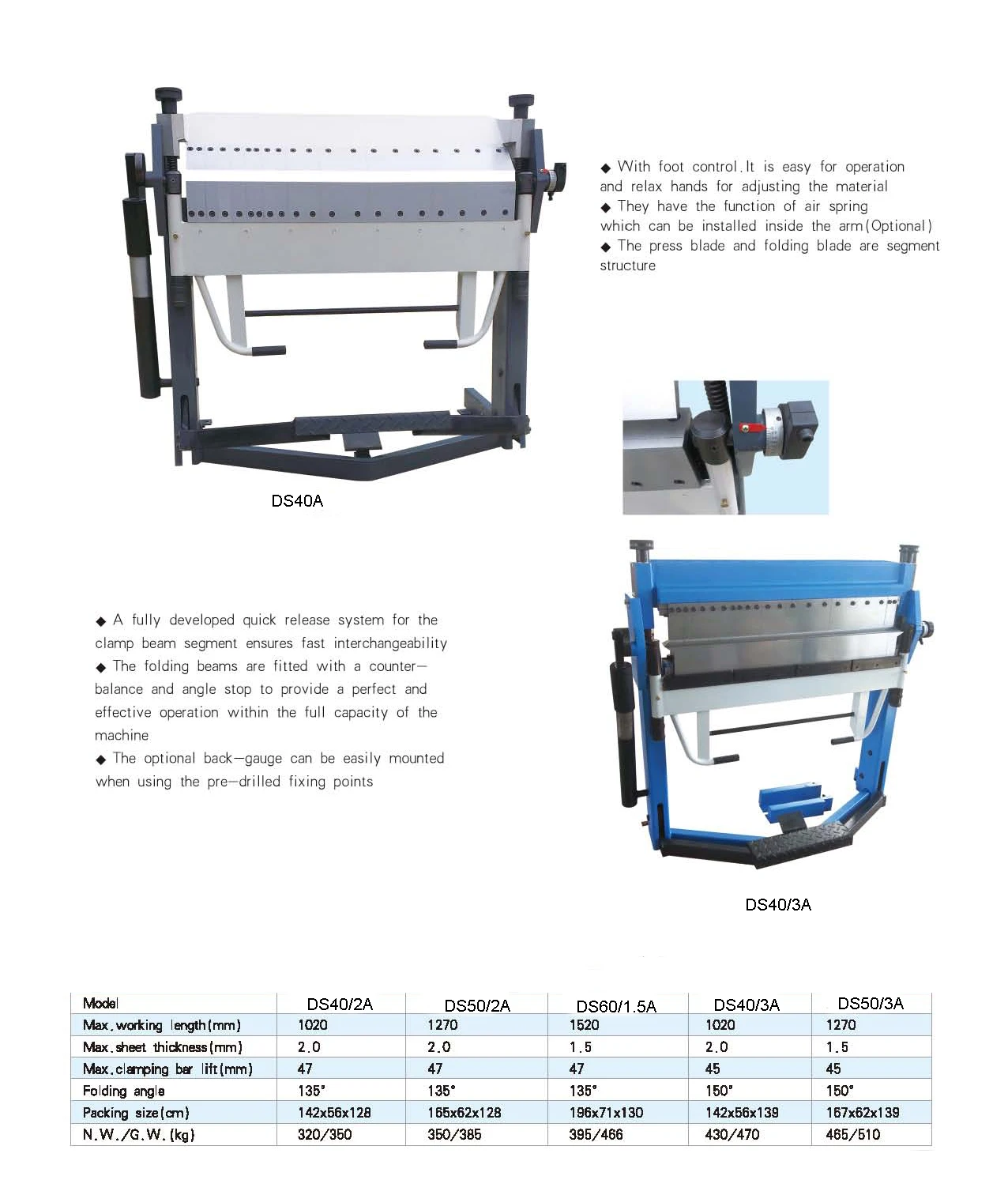

| Model | DS40/2A(1020/2.5) | DS50/2A(1270X2.0) | DS60/1.5A(1520X1.5) | DS40/3A(1020X2.0) | DS50/3A(1270X1.5) |
| Max. working length(mm) | 1020 | 1270 | 1520 | 1020 | 1270 |
| Max. sheet thickness(mm) | 2.5 | 2.0 | 1.5 | 2.0 | 1.5 |
| Max. clamping bar lift(mm) | 47 | 47 | 47 | 45 | 45 |
| Folding angle | 0-135 | 0-135 | 0-135 | 0-150 | 0-150 |
| Packing size(cm) | 142X56X128 | 165X62X128 | 196X71X130 | 142X56X139 | 167X62X139 |
| N.W/G.W(kg) | 320/350 | 350/385 | 385/456 | 430/470 | 460/510 |

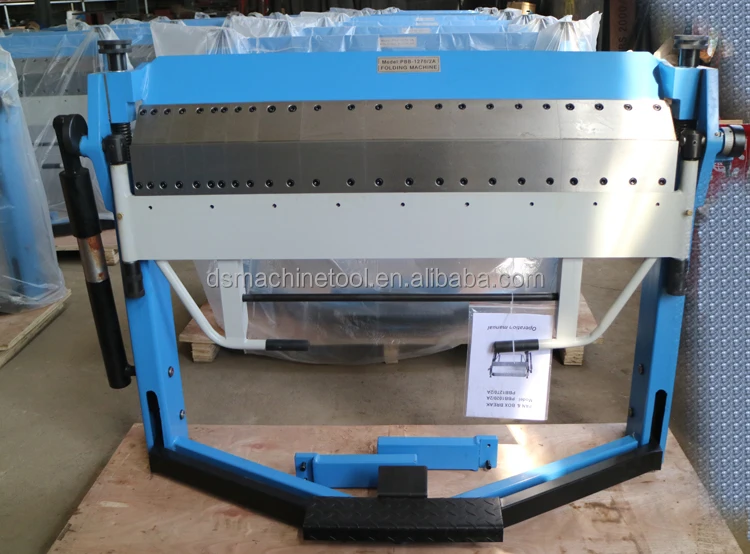

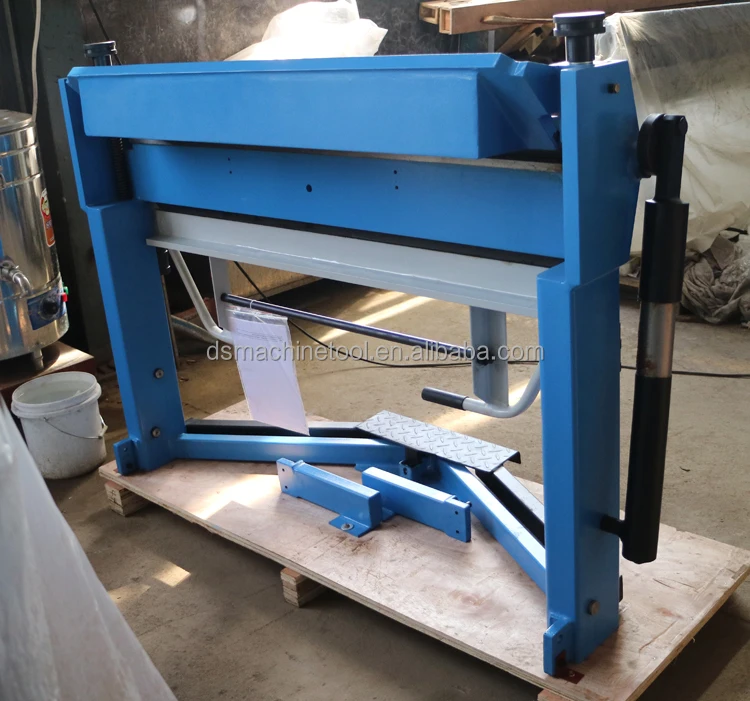

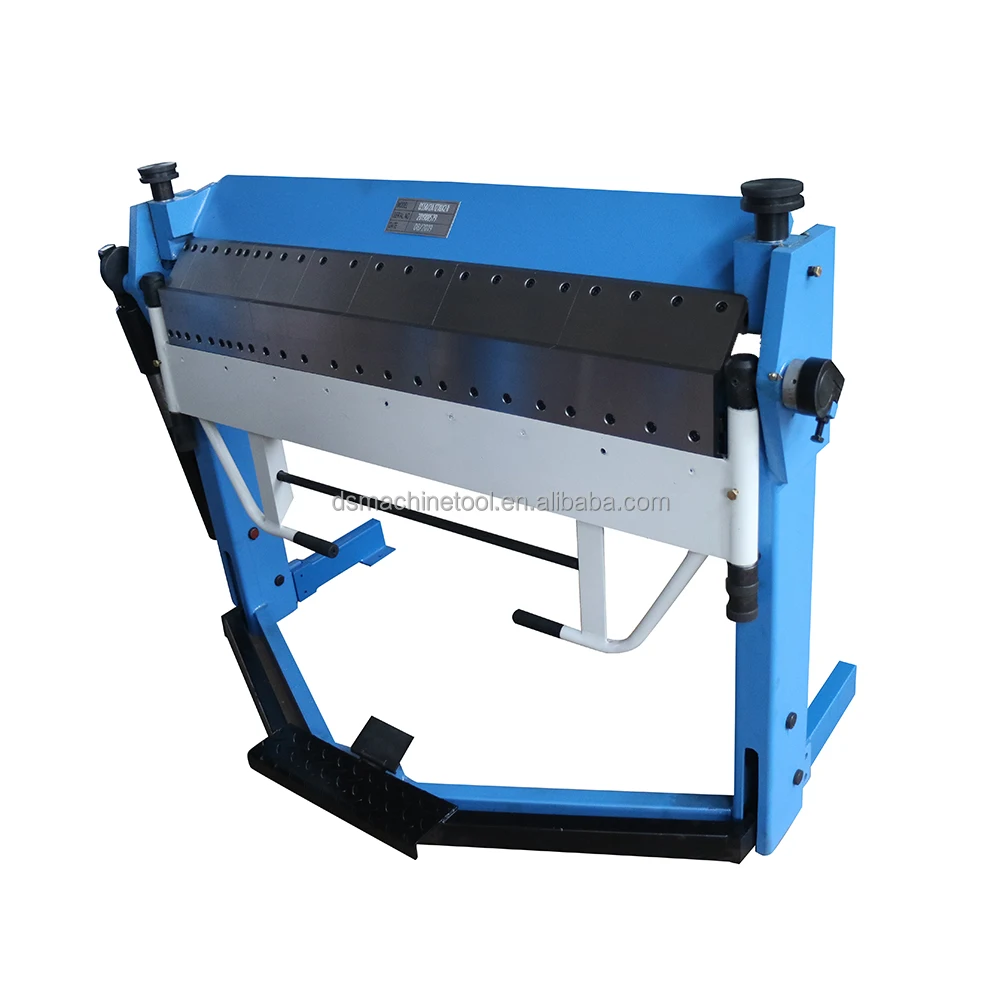

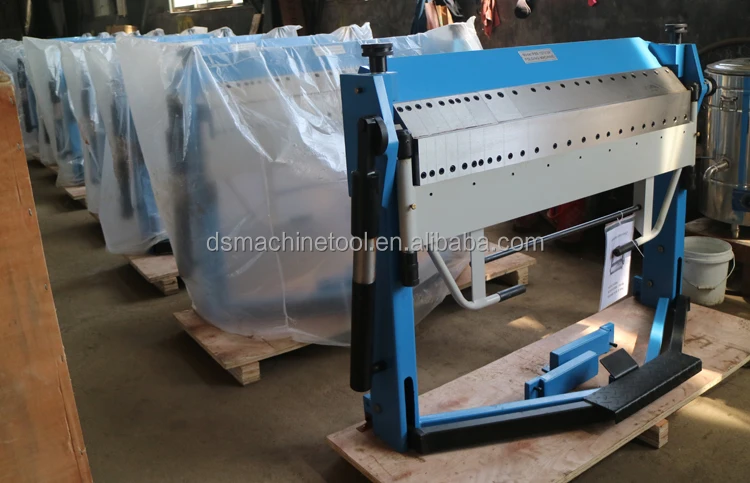

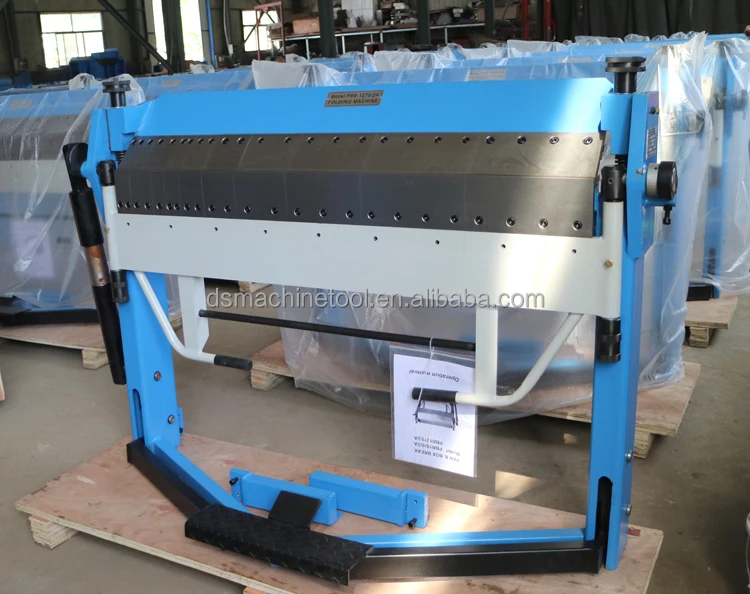

AS below is model: DS50/2A (1270*2.0MM) some pictures:

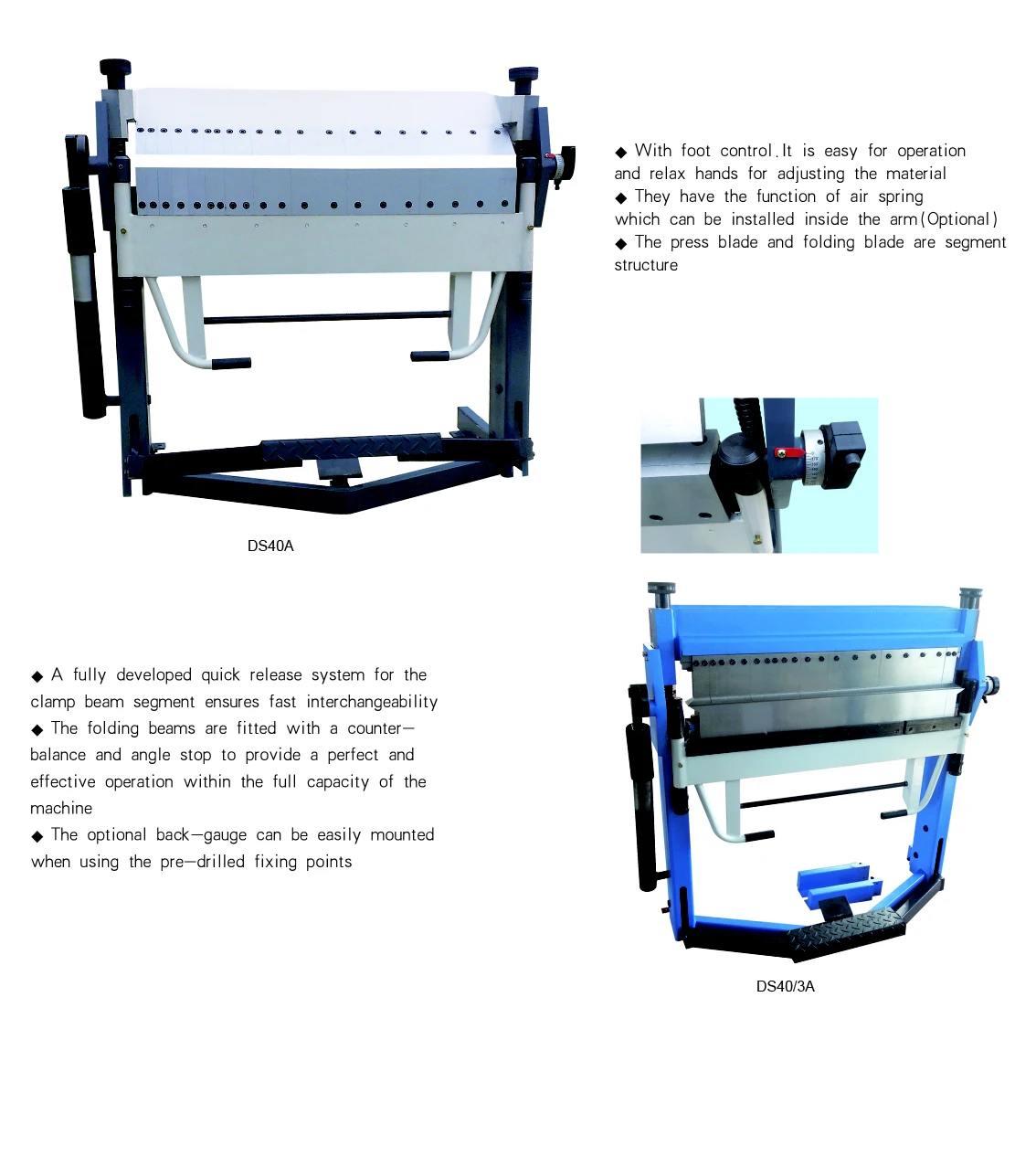

DS40/3A (1020*2.0MM)
Packing picture:
