High durable HC50 hydraulic drifter

Product Description

Deep knowledge in shock wave transmission and percussion mechanism theory have allowed Montabert engineers to be the first to develop new concepts such as hydraulic dampening and progressive blow energy. This results in an effective, less energy-intensive hydraulic drifter for all.

Progressive Blow Energy

The unique design of the piston generates a perfect, long shock wave of a trapezoidal shape:
better transmission of energy at the couplings
minimum stress into the drilling rods
better bit penetration

Hydraulic Dampening System

This technology is the reason why Montabert’s hydraulic drifters have a long operational lifespan. The action of the dampening piston, not only absorbs the lost part of reflected energy but ensure a constant, thrust onto the tools:
Optimum shock wave transmission
Protection of the hydraulic drifter and tools
Reduced vibrations

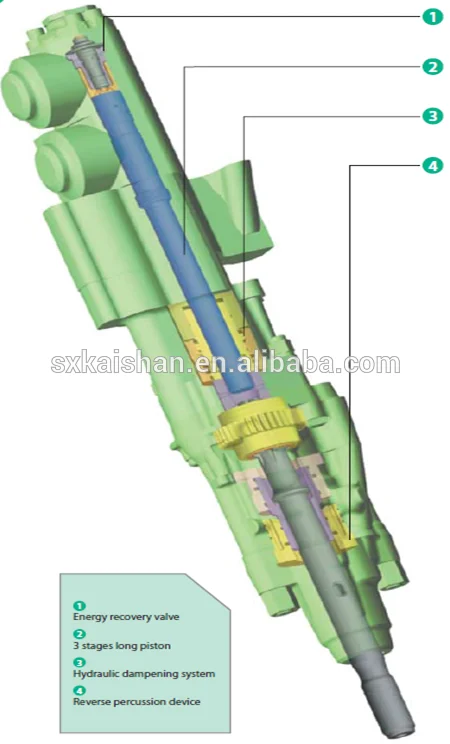

Energy Recovery Valve

This valve allows the piston rebound energy to be utilized for the next blow, giving a definite advantage to the HC series of hydraulic drifters:
Better efficiency
No internal peak of pressure source of cavitation
Best drifter protection

Hydraulic Reverse Percussion

The optional hydraulic reverse percussion system insure a real back hammering:
Tool extraction in fractured ground
No rods left in the hole

Straight Hole Drilling

When associated with Montabert drilling automatics

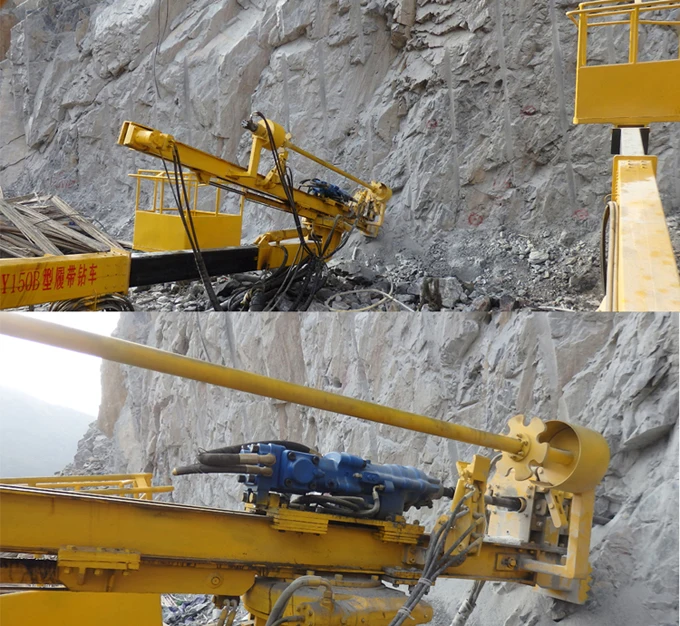

Details with pictures

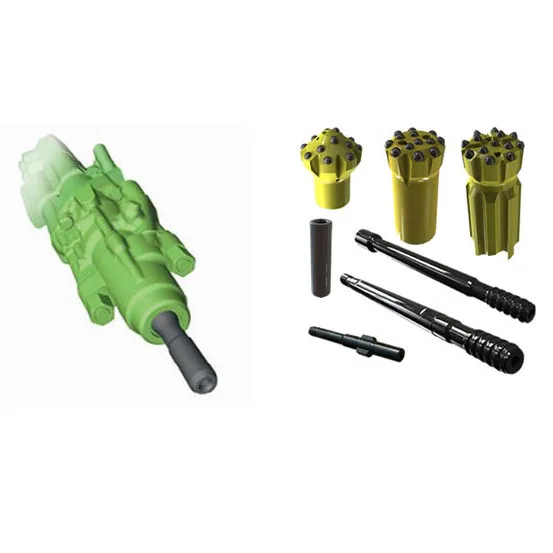

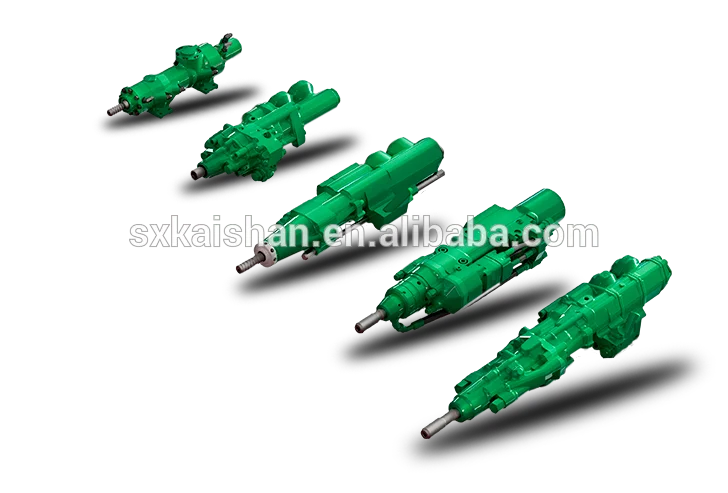

More pictures of our drill drifters:

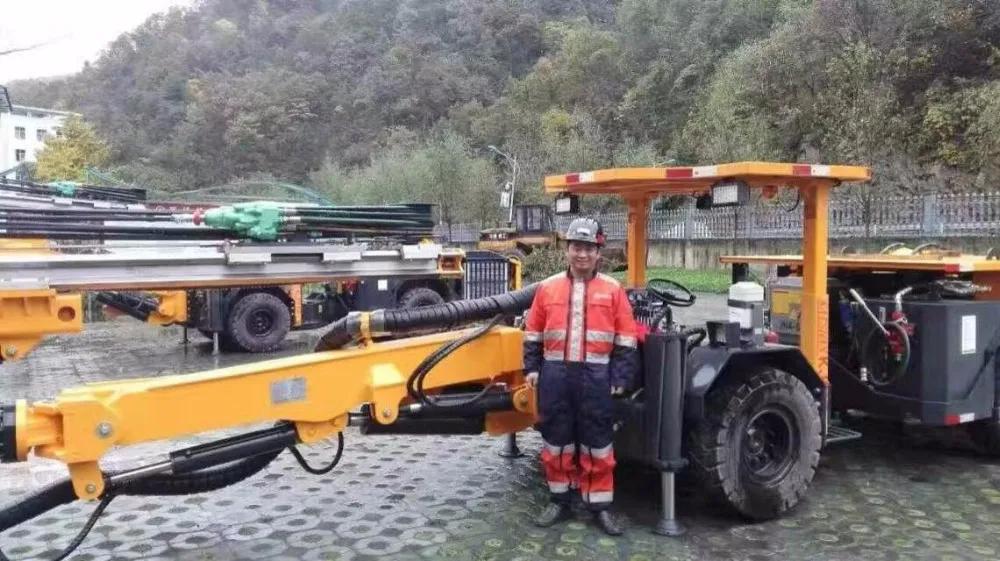

It can match our drilling rig

Our company:

Shanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a
1. Beautiful ancient City-Xi'an. Since founded more than 10 years ago, our company has accumulated much experience in the business of air compressors and drilling rig machines
2. National Free-inspection Product,Have passed ISO9001 certification.
3. Good Service, competitive price, high quality, fast shipping and perfect after sale service.

Kaishan group Co., Ltd was founded in 1956.There are 31 members of the company, the company's total assets are 6 billion yuan, more  than 6,000 employees and sales revenue is 4.5 billion yuan in 2011,Kaishan group Co., Ltd is the world's largest drilling machine manufacturing enterprises,  the largest in Asia, the world's third air compressor manufacturing enterprises, and the largest drilling equipment manufacturers.Good Service, competitive price, high quality, fast shipping and perfect pre-sale and after-sale service.

 Specialized in air compressor / pneumatic drill /pump/ rig/drill carriage/ project design

   Through years development, Shaanxi kaishan had become a comprehensive form of complete equipments enterprise that combine sales,installation,repair &maintenance as one,and can provide all kinds and model of industrial screw ,piston , scroll air compressor rang from 1.1 kw to 335 kw to satisfy demand at the working condition of diverse customers and mobile compression air equipment in the blasting hole process.at same time,offer a complement Compression air purification equipment and spare parts,The company have long been cooperate with Zhejiang kaishan compressor Co.,Ltd. Which is exclusive distributor of kaishan brand equipments at northwest region.the company is now dedicate to provide a special compress air technique solution, ,top class products and perfection after-sales service,in line with customers demand-orientation ,and saving customers production efficiency as the object.
