XK7136C China factory bed type CNC milling machine
- Category: >>>
- Supplier: Tengzhou Uni-Tech Co. Ltd.
Share on (60664229567):
Product Overview
Description
XK7136C China factory bed type CNC milling machine
Product Description
XK7136C China factory bed type CNC milling machine
MAIN FEATURES:

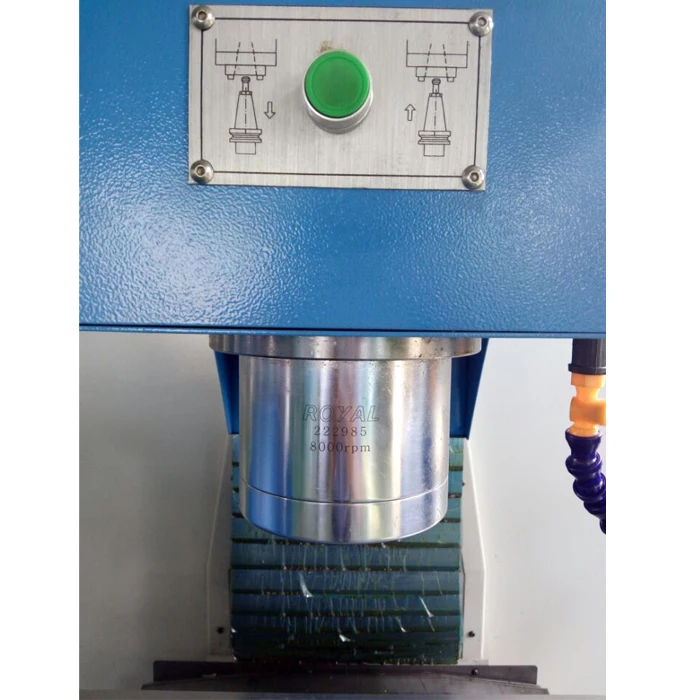

1. High-speed Spindle unit with 6000 rpm
2. Work table travel with 900mm , Y, Z—axis with rectangular guide way,

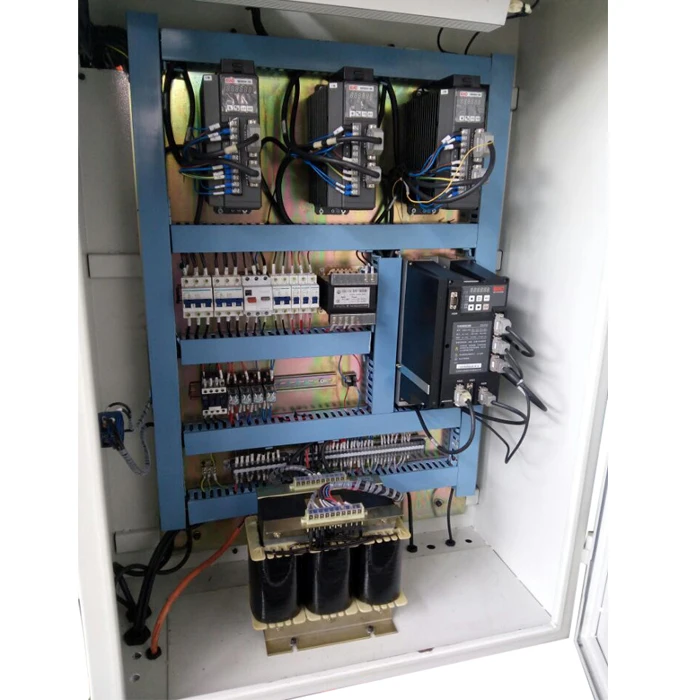

3. X, Y, Z three directions of feed servo motor drive,

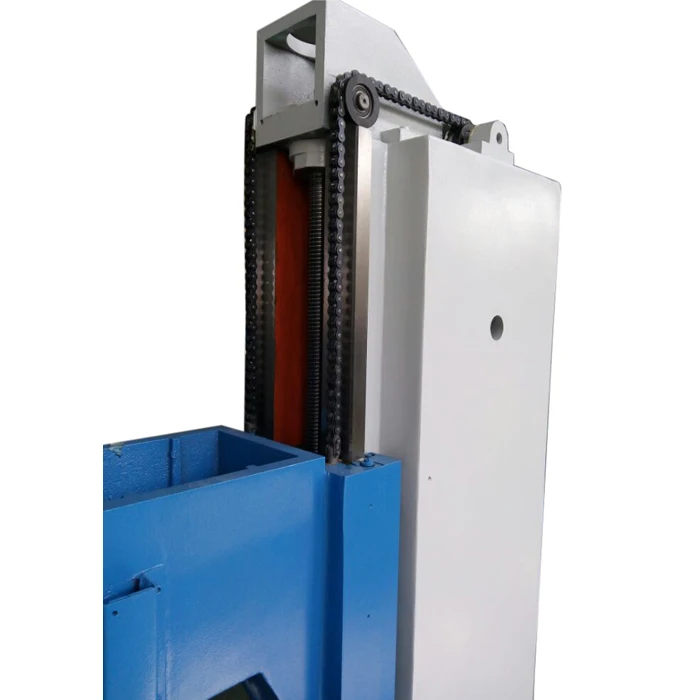

4. Z direction with weight balance
5. Electric lubricating device
6. Arm Hanging Operation panel easy and convenience for handling.
7. Air clamping
Technical specification:
| SPECIFICATIONS | Unit | XK7136C |
| X-axis travel | mm | 900 |
| Y-axis travel | mm | 360 |
| Z-axis travel | mm | 500 |
| Spindle nose to table | mm | 100-600 |
| Spindle center to column guide-way face | mm | 460 |
| High speed feeding of X,Y axis | mm/min | 5000/5000/4000 |

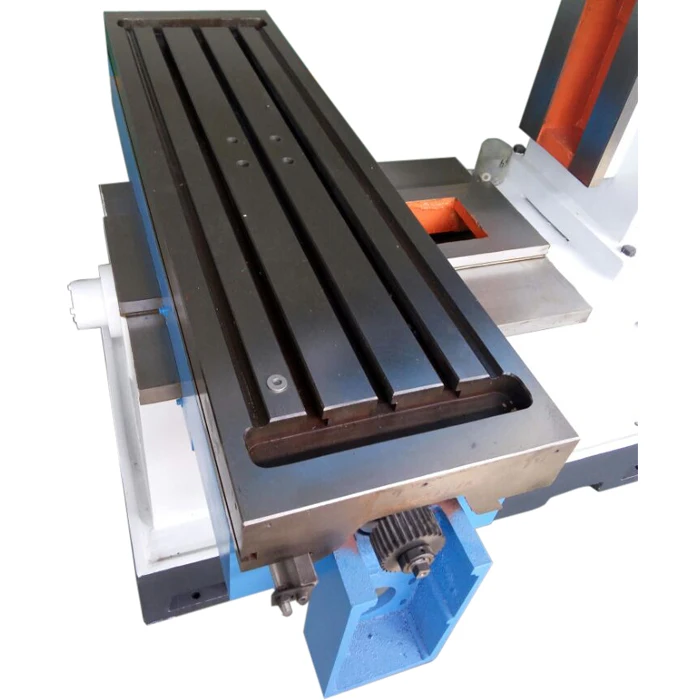

| Size of working table | mm | 1250*360 |
| Max.loading capacity of rotary table | KG | 400 |
| T-slot NO./width/distance of rotary table | 3/18/80 | |
| Spindle speed range | r/min | 20-6000 |
| Main motor | Kw | 5.5 |
| Spindle hole taper | BT40 | |
| Position accuracy | mm | X: 0.040 |
| Y/Z:0.030 | ||
| Re-position accuracy | X: 0.025mm | |
| Y/Z: 0.020mm | ||
| N.W | KG | 2200 |
| Overall dimension | mm | 2220*1850*2350 |
| Packing dimension | 2220*1820*2550mm |
Standard Accessories
Foundation Bolt M16x450
Screw Nut
Washer
Operation Manual
Operation Manual for controller
Communication Software(Soft Disk)
Communication Cable
GSK controller
Operational Accessories:
Fanuc Controller
The 4-axis
Siemens 808D controller
Packaging & Shipping
XK7136C China factory bed type CNC milling machine
packing size:2220*1820*2550mm
weight:2200kgs
package in ply wooden pallet with full closed plastic cover.
