Product Overview
Description
Product Description

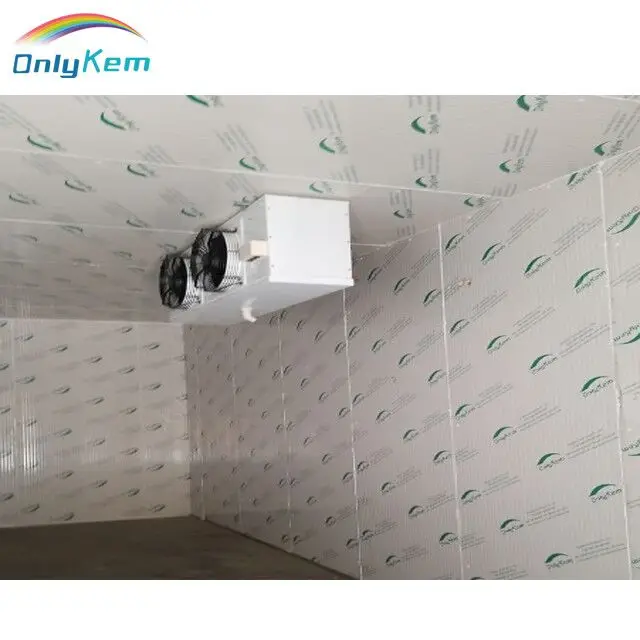

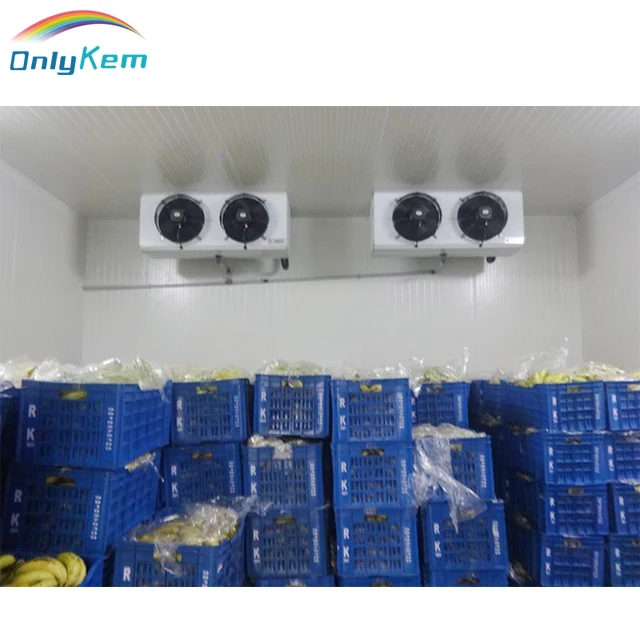

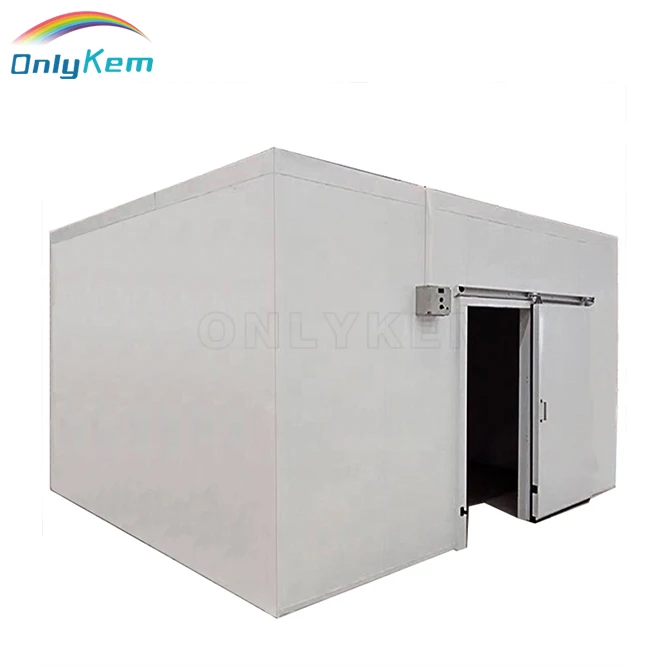

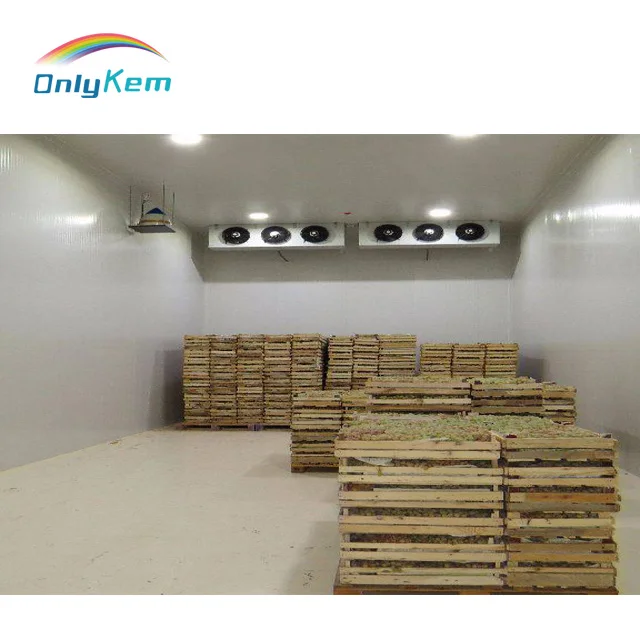

Onion Cold Storage Warehouse with Low Temperature
Cold storage is the widely used professional cold storage room to store Fish / Beer / Fruit and toiletries. It is very suitable for restaurants, supermarkets, shopping malls.
Cold storage room (also called walk in cooler ) is widely used in Fishery, fruit and vegetables, Supermarket, Hotel and Restaurant, etc. The temperature range of cooler goods walk in freeze is usually keeping in -10~+15°C by insulation and cooling system,With the help of walk in freezer, the stored fruit and vegetables is not perishable and the taste is good.
Cold storage room (also called walk in cooler ) is widely used in Fishery, fruit and vegetables, Supermarket, Hotel and Restaurant, etc. The temperature range of cooler goods walk in freeze is usually keeping in -10~+15°C by insulation and cooling system,With the help of walk in freezer, the stored fruit and vegetables is not perishable and the taste is good.
In recent years, the world onion sales are increasing, especially in South Asia, people's demand for onions is growing. Now is a good time to develop onion industry. More and more people are using cold rooms to store onions.
Name | Onion cold room cold storage | |
Size | 6*4*3m | |
Pu panel thickness | 100mm | |
Cold room door size | 0.8*1.8m | |
Condensing unit (Copeland compressor ) | 5Hp | |
Usage | Fruits,Vegetable,Beer, milk | |
Size can also be customized | ||
Cold storage requirements for onions
Temperature: The most suitable temperature is 0-5 degrees Celsius
Humidity: 65% ~ 70% (may need to add a dehumidifier)
Before storage: The temperature of the freshly picked onions is relatively high, and the humidity is relatively high. It needs to be dried and then stored.
During storage: It needs to be turned over in two or three days during storage, and can not be piled up for storage. The longest storage time is 3 ~ 8 months.
Next, we will introduce the precautions when storing onions in detail.

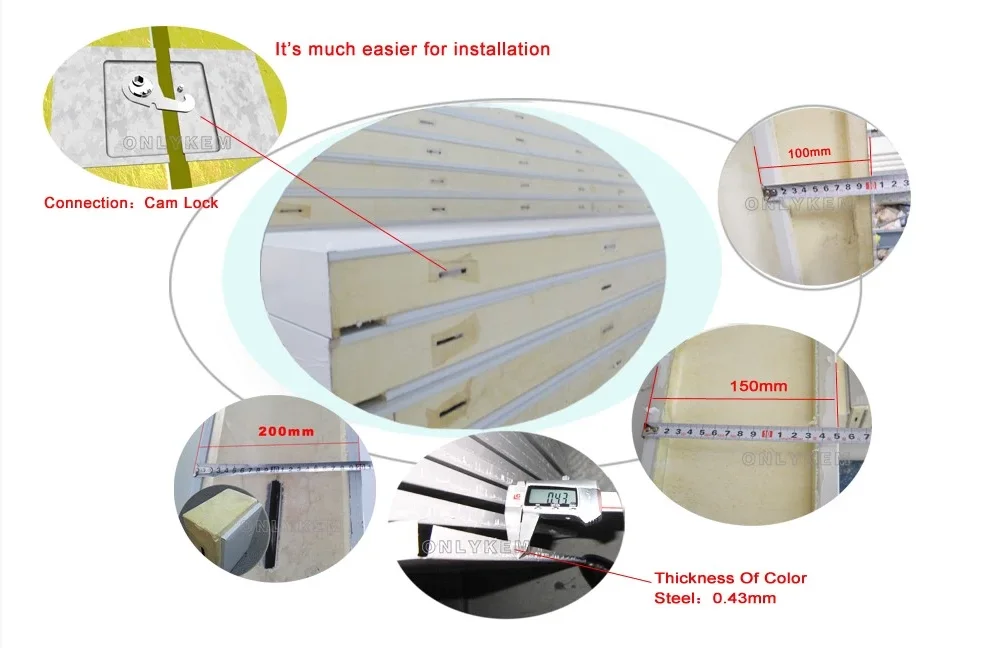

Onion Cold Storage Panel
1. Outer materails specification of Polyurethane Foam Insulated Sandwich Panels Prices
1) Two sides: painted steel sheet, stainless steel sheet and hot-galvanized steel sheet for customers' option
2) Thickness(mm): 100~120mm
3) Color: According to customer requirement, default is milk white.
4) Width: 960mm,
5) Length:According to customer requirement,the max length is 11m.
Panel | Polyurethane foam insulation panel,42kg/m³ fire resistance |
Thickness of Panel | 75mm,100mm, |
Panel Connection | cam lock connection |
Surface Steel | color steel or stainless steel option |
❤① The most suitable storage temperature for onions is between 0-3 ℃. Freezing damage may occur when the temperature is at -3 ℃ for more than two hours. The temperature is 5-20 ℃. After the dormancy period, the onions are extremely prone to rooting and rot , Causing storage failure.
❤② Cold storage The cold storage is a forced dormancy method. When the onion head is about to germinate through dormancy, it enters a low-temperature environment, and the onion continues to dormant to prolong the storage period. The method is to store the cold storage in boxes (baskets) before the onions leave natural dormancy in late August. Pre-cool the selected onions before entering the warehouse. When the temperature of the onion is close to the storage temperature, store it in the cold storage. The temperature of the warehouse is controlled at 0-3 ℃. The temperature fluctuation should be as small as possible.
❤② Cold storage The cold storage is a forced dormancy method. When the onion head is about to germinate through dormancy, it enters a low-temperature environment, and the onion continues to dormant to prolong the storage period. The method is to store the cold storage in boxes (baskets) before the onions leave natural dormancy in late August. Pre-cool the selected onions before entering the warehouse. When the temperature of the onion is close to the storage temperature, store it in the cold storage. The temperature of the warehouse is controlled at 0-3 ℃. The temperature fluctuation should be as small as possible.

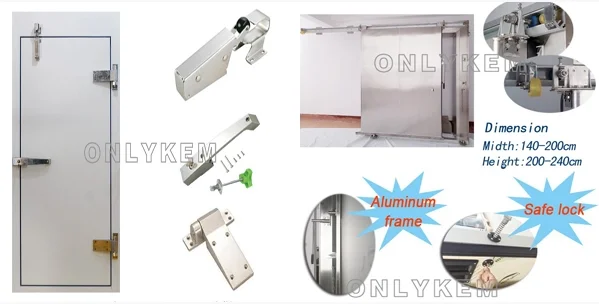

Type of Door | sliding door, hinged door option, size can be customized |
Thickness of Door | 100mm,for options |
Accessories | Heating Wire and Escape Device |

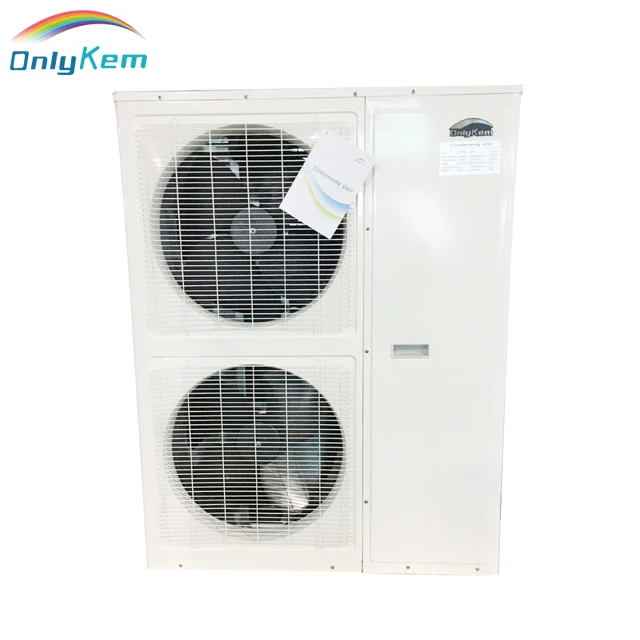

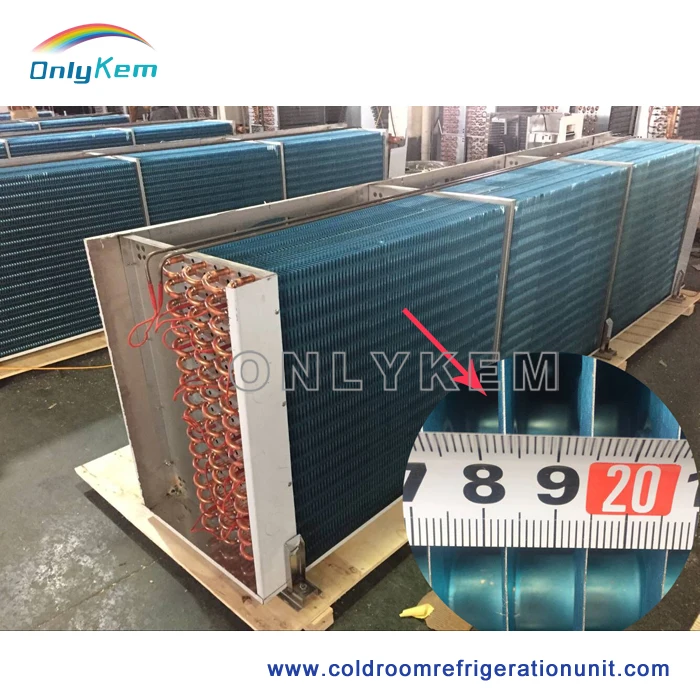

Condensing Unit for cold storage
1.Configuration of condensing unit:
Compressor, condenser, axial fan with external rotor, liquid receiver, HP/LP controller, HP/LP gauge, dry filter, solenoid valve, sight glass, check valve, junction box, etc.
2.Brand of compressor: American Original Copeland compressor
3.Refrigerant: R404A, R134A
cold room
Bitzer piston Unit
Monoblock Unit
Smart Package Unit
❤③ Onions with a higher temperature before storage cannot be directly stored in the cold storage. The onions must be cooled at a lower temperature for a while.
❤④ There are generally two types of cold storage for storing onions, one is a low-temperature cold storage, and the other is a modified atmosphere storage. The modified atmosphere storehouse is based on the former with more sets of modified atmosphere equipment, so the relative cost will be higher. In general, in order to help customers save manufacturing costs and help customers achieve storage results, we will recommend cold storage to customers.

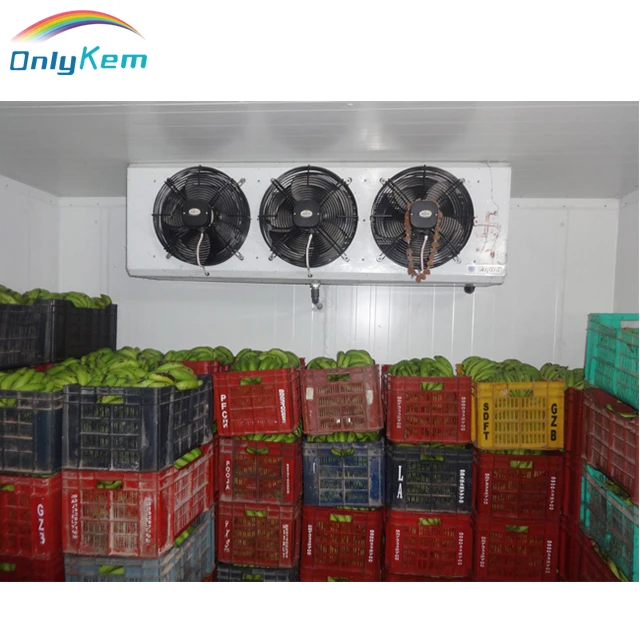

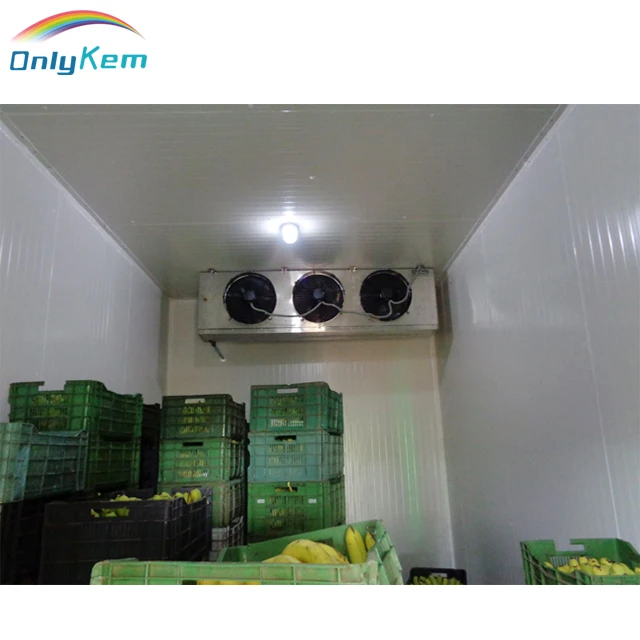

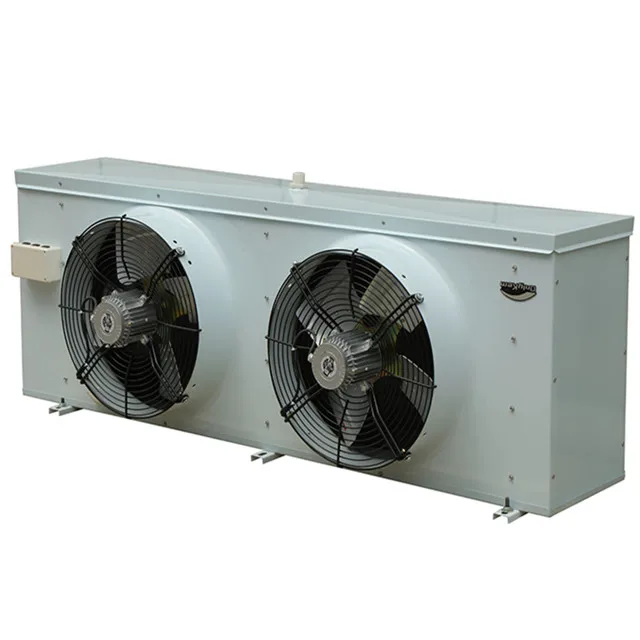

Unit Cooler for cold storage
- Axial Fan: Chinese famous brand axial fan, stable quality, more quiet, more efficient, design with waterproof, enough safetyCopper pipe data: 15.88 mm
- Fin Data: Hydrophilic aluminum fin, better anti-corrosion
- More Details:
Stainless steel screw,
Stainless steel defrost tube,
Spaying plastics for surface…
Cold room
❤⑤ Onion must be coated with plastic wrap before entering the warehouse, to ensure the storage quality of onions. At the same time, attention should be paid to ventilation to avoid the place where the onions are placed without ventilation causing rot. If rotten onions are found, they should be handled in time to avoid affecting other intact onions.
❤⑥Onion should stop watering about ten days before harvest. This can better improve the storage life of onions. Before entering the cold storage, onions must be thoroughly disinfected in order to ensure the safety of onions.
❤⑥Onion should stop watering about ten days before harvest. This can better improve the storage life of onions. Before entering the cold storage, onions must be thoroughly disinfected in order to ensure the safety of onions.
Buyer feedback
Related Products
Certifications
Company Introduction
Our Services & Strength
Our factory is the professional workshop to manufacture unit cooler, condensing unit, cold room door or PU panels. As the leading cold room designer and manufacturer, Onlykem has its own 8,000 square meters state of art manufacturing factory. cold room
We focus on refrigeration field more than 10 years, and our engineers are have more than 15 years experience in produce, installation and maintenance. They can give you reasonable solution on the configuration of cold rooms to help customers save cost and get highest efficiency. cold room
We have exported to a lot of countries all over the world. Such at Australia, USA, Canada, Colombia, Chile, Peru, Argentina, Malaysia, Pakistan, France, Britain, Norway, Kenya, Congo etc. cold room
Why Choose Us
FAQ
Can you customize cold storage room dimension?
Yes , we can customize cold room dimension according to your requirements . Any size will do , if you have no idea , please tell me total amount of your cargo , our engineer can design it for you.
- Can you offer refrigeration equipment?
Yes , we can offer panel insulation system and equipment refrigeration system.
- What brand compressor can you offer?
Normally with original New Bitzer and copeland compressor. Famous in the world.
- How about delivery time?
For panels , our delivery time is around 7~15 days.
For equipment , our delivery time is around 25 work days. If you need special customize, will be longer.
- How can you guarantee will ship for me in time?
Do you know Alibaba Trade Assurance ? OnlyKem is Trade Assurance company , so you can arrange payment to Alibaba account , Alibaba will protect your profit. If we do not ship in time for you , Alibaba will refund money to you.
Contact me to get your own cold storage room
