Spindle with VFD 800w ER11 220VAC Water cooling spindle motor VFD inverter Bracket Pump Pipe
- Category: >>>
- Supplier: Shenzhen Fast To Buy Commerce Co. Ltd. [Guangdong China]Shenzhen
Share on (60664442957):
Product Overview
Description

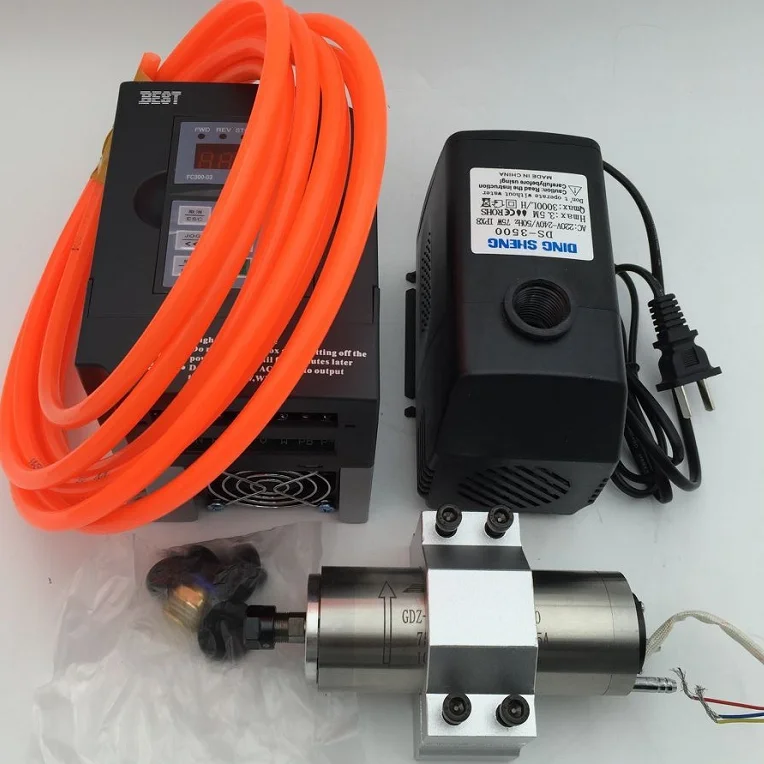

800w ER11 220VAC Water cooling spindle motor& BEST VFD inverter & Bracket & Pump Pipe
Package Content:
1*300W Spindle Motor: GDS800 I
1*1.5KW BEST VFD Variable Frequency Drive: FC300-1.5T2
1*Cast Aluminum Bracket
1* Cooling Pump& Pipe
Spindle Motor Specification:
Providing the default Nut ER1 and Collet 3.175mm, if not please do contact us for a better solution.
Specifications
Model | GDS800 I |
Product type | The Permanent Torque Electric Spindle for CNC Engraving Machine |
Frequency(Hz) | 133-600Hz |
Voltage (V) | 220V |
Rated power (KW) | 0.8KW |
Current(A) | 2.9A |
Lub | Grease |
Cooling way | Water cooling |
Joint of nose | ER11, 3.175mm Default |
Collet range | 3.175~7mm |
Bearings type | 1 x 7002CP5 1 x7001CP5 |
Spindle Diameter | 62mm |
Spindle Length | 172mm |
Weight | 3.5kg |
Runout | 0.01-0.02mm |
Notice | Spindle motor must inverter VFD input, and not directly connect power supply |
Dimensions(mm)
D | D1 | Jiont if nose | L | L1 | L2 |
62mm | 48mm | ER11 | 172mm | 6mm | 18mm |
VFD Specification:
Model | FC300-1.5T2 |
Power (KW) | 1.5KW |
Input Voltage(V) | 1-phase AC 220V ±20% 50/60Hz |
Output Voltage(V) | 0~220V |
Output Current(A) | 7A |
Output Frequency (Hz) | 0~1000Hz |
Origin& Warranty | China & One year |
Bracket Specifications
Type | Φ62mm Bracket |
Material & Origin | Cast Aluminum& China |
Cooling Pump&5M PipeSpecifications
Model | Cooling Pump |
Power | 75W |
Voltage(V) | 220~240V AC 50Hz |
Hmax | 3.2M |
Qmax | 3000L/H |
Pipe | 5m |
For more information, please send inquiry.
or contact wechat, skype, whatsapp +8615816890737
Contact us:
Fast to Buy Limited
Shenzhen Fast To Buy Commerce Co., Ltd.
Phone: +86 755 82550561 Mobile/WhatsApp/Wechat: +86-158 1689 0737
Email: ali at fasttobuy.com Skype: live:ftbali
Working time: EST 9:00am ~ 6:00pm
Address: #201, 2F, Building B, Shunxing Industrial Zone, No.140 Zhongxing Road, Bantian Street, Longgang District, Shenzhen 518129, China.
Thanks for your time of scanning, wish you a happy shopping experience with us! :)
