178f small air cooled diesel engine supplier

Product Application

Air-cooled diesel engine manufacturing process has higher demand than water-cooled diesel engine. It is welcomed by the majority of users for it is easy to start, cost-saving and adaptable to the environment, the materials used for heat, wear and coefficient of expansion requirements are also higher.

Engine Type:\tSingle Cylinder, 4-stroke, Air-cooled, Direct injection, Diesel Engine

Bore X Stroke(mm):\t78 X 62

Displacement(ml):\t296

Engine Speed(rpm):\t3000/3600

Compression Ratio:\t20:1

Rated Output Power(kw/hp):\t3.7(5,0)/3000

Rated Output Power(kw/hp):\t4.0(5.5)/3600

Fuel:\tO# OR-10#light Diesel Oil

Fuel Tank Volume (L/gal.):\t3.5(0.77)

Fuel Consumption Rate g(ml)/wk.:\t293(337)

Lubrication Oil Volume L(gal.):\t1.1 (0.24)

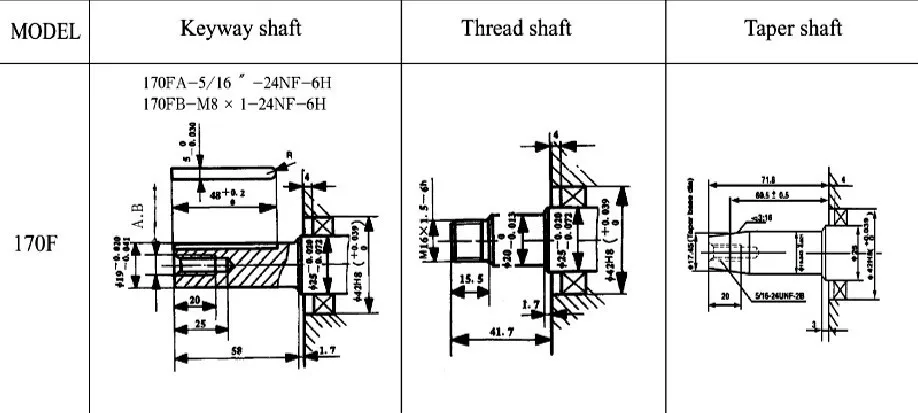

Power-take-off:\tCrankshaft

Starting System:\tRecoil Or Electric

Overall Dimension (LxWxW) mm:\t480 X 460 X 520

Dry Weight Kg(lbs):\t33(72.6) Recoil

38(83.6) Electric

Ref.QTY/20' FCL(SETS):\t325
