Semi Automatic Single nozzle magnetic pump liquid filling machine For Soft Drink,Perfume,Oil,Beverages,Cosmetic Liquid
- Category: >>>
- Supplier: Guangzhou Yuming Machinery Co. Ltd.
Share on (60664617716):
Product Overview
Description
Semi Automatic Single nozzle magnetic pump liquid filling machine For Soft Drink,Perfume,Oil,Beverages,Cosmetic Liquid
Product Description
Production description:
Controlled by microcomputer, easy convenient to control system, can automatic set volume.
Filling Liquid From 5-3000ml very precisely. Filling accuracy reaches 0.01s.
Digital Panel, very easy to operate.
Principle and Characteristics:
The gear pump is driven by magnetic power, the pump head and the motor is connected without the shaft, no need to worry about the burnout of the motor because of the high load of the pump.
The pump head and the motor is imported from Germany, other components are produced in Taiwan, Stable performance, lifetime is long.
Pumper head is made of 316L stainless steel, acid-alkaline, corrosion-resistant.
The motor run is adjusted by a potentiometer, the degree of accuracy of filling time can be lower to 0.01 second, so that can guarantee the filling accurately, the filing error is less than 1%. Filling volume is from 5ml-unlimited filling.
Fully functional, can be operated by hand, foot pedal filling, automatic filling. Interval time can be adjusted.
Widely applied in various industrious, almost can be used for filling any flowing liquid, especially suitable for oil, acid and alkali, high corrosive liquid filling.
Application:
Widely used in cosmetic, drinks, medical, chemical, medical, food industry, etc, highly improve production capacity and product quality. Ideal equipment to fill low viscosity liquid like oil, perfume, juice, milk, beverage, ink, water and so on.
Specification:
| Model: | LT-I |
| Filling Range: | 5ml-unlimited filling (adjustable) |
| Voltage | AC220V,50/60Hz |
| Max Power Rate: | 80W |
| Mainframe Size: | 350*320*220mm |
| Mainframe Weight: | 22kg |
| Precision: | ±1% |
| Max Flowing Rate: | >2 L/min |
| Overall Dimension: | 360*340*220mm |
| Quantity Pump: | 1 |
Machine panel function:
Filling time: for adjusting the filling time
Waiting time: waiting time between each filling when the machine is filling automatically.
Counter: filling the counter
Filling speed: adjusting the speed
Filling machine controller: for adjusting the filling range. When you turn on the machine, push the button "setting" When the filling range reaches what you want, push the button "setting" once again. The machine will keep the filling range in memory.
Operation instruction:
1, turn on the machine and put the bottle under the filling head
2, push the button "setting". When the filling reaches the range you want, push the button "setting" once again. Then the machine will keep the filling range in memory.
3, push the button "Auto ", and it will work automatically. Push the button "manual", and it will work manually.
4, the warranty on the machine is 1 year.
The pump is a diaphragm pump and is consumable. When you find the filling turns slow, please change the pump.

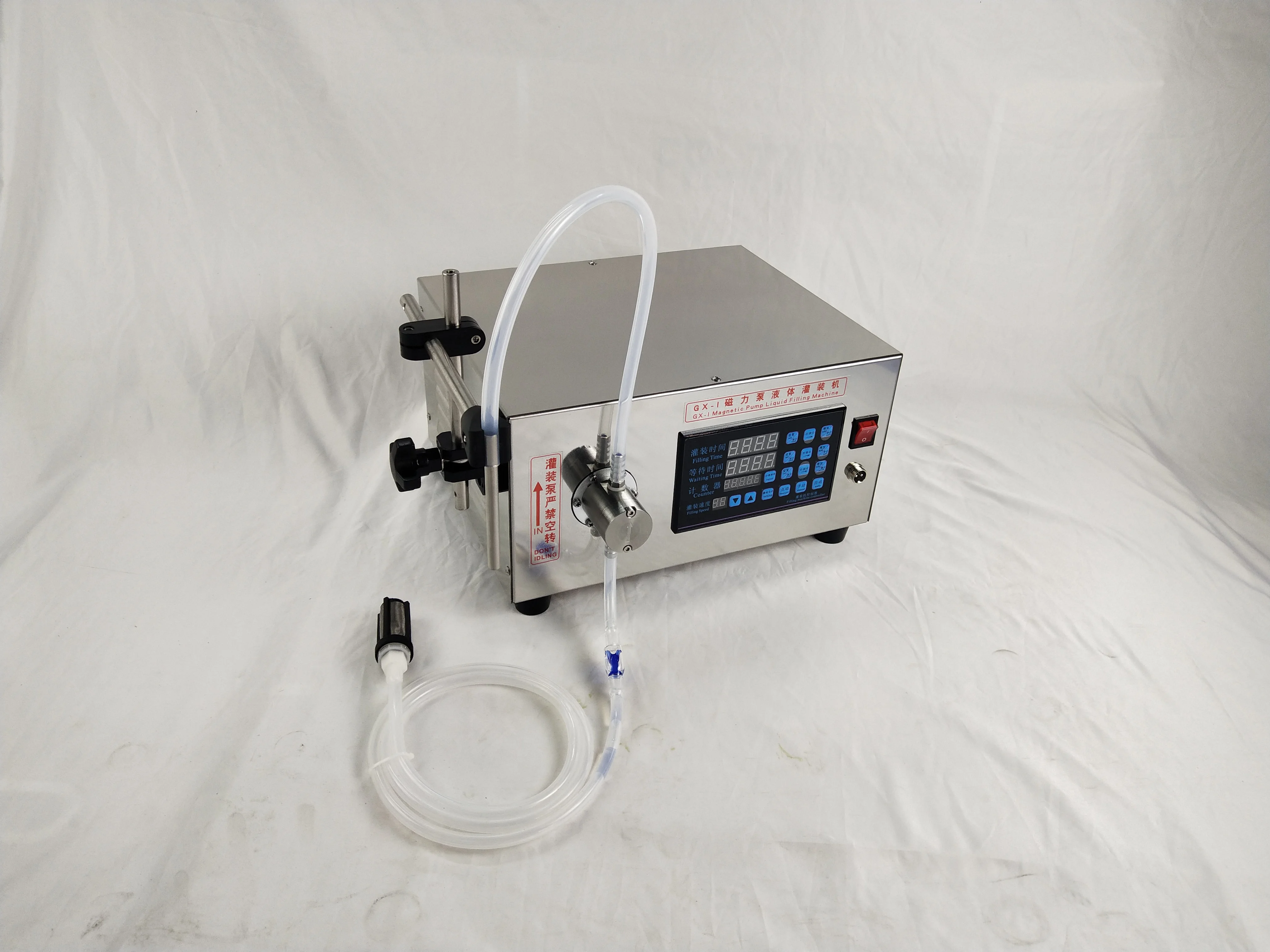

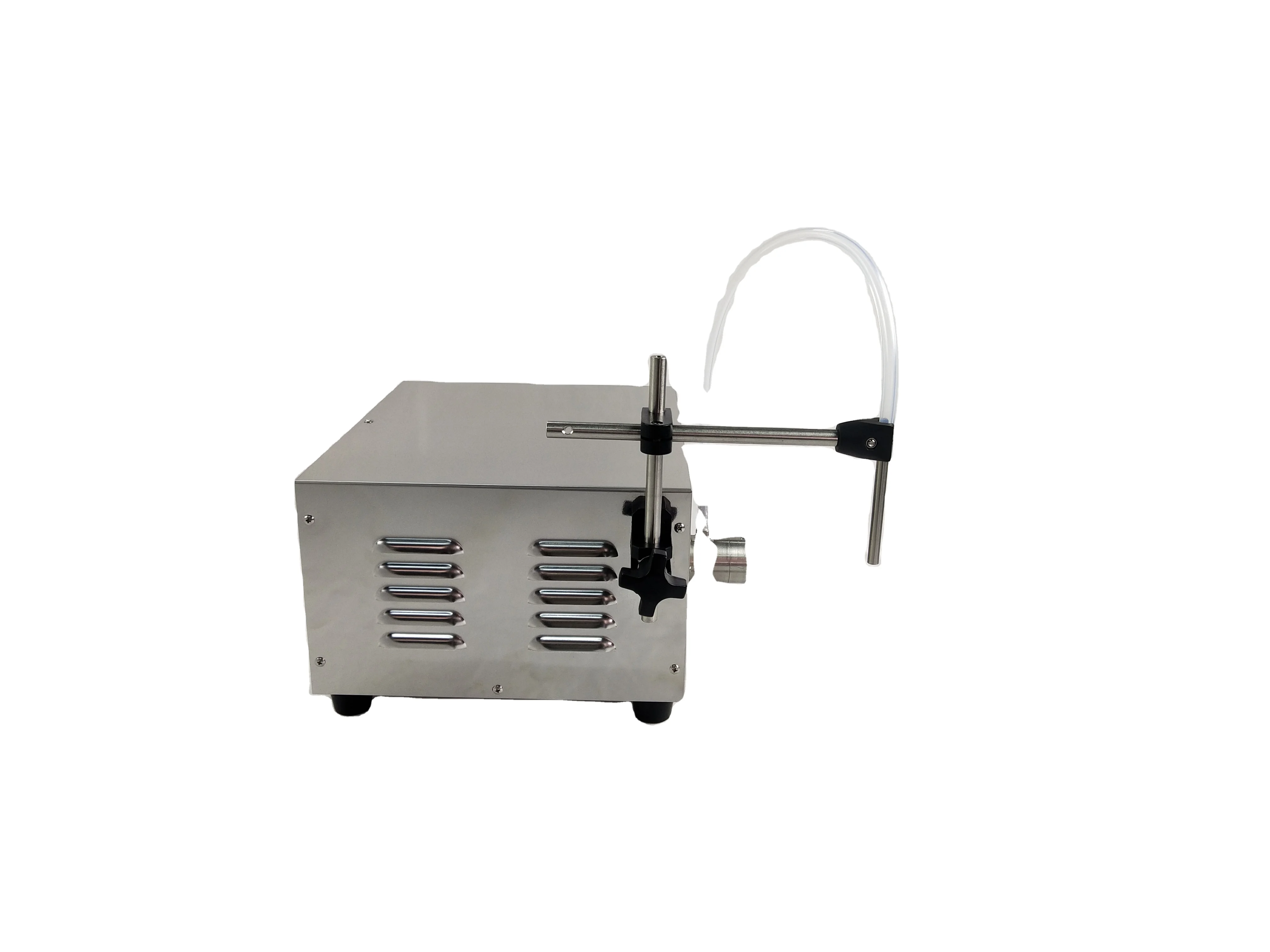

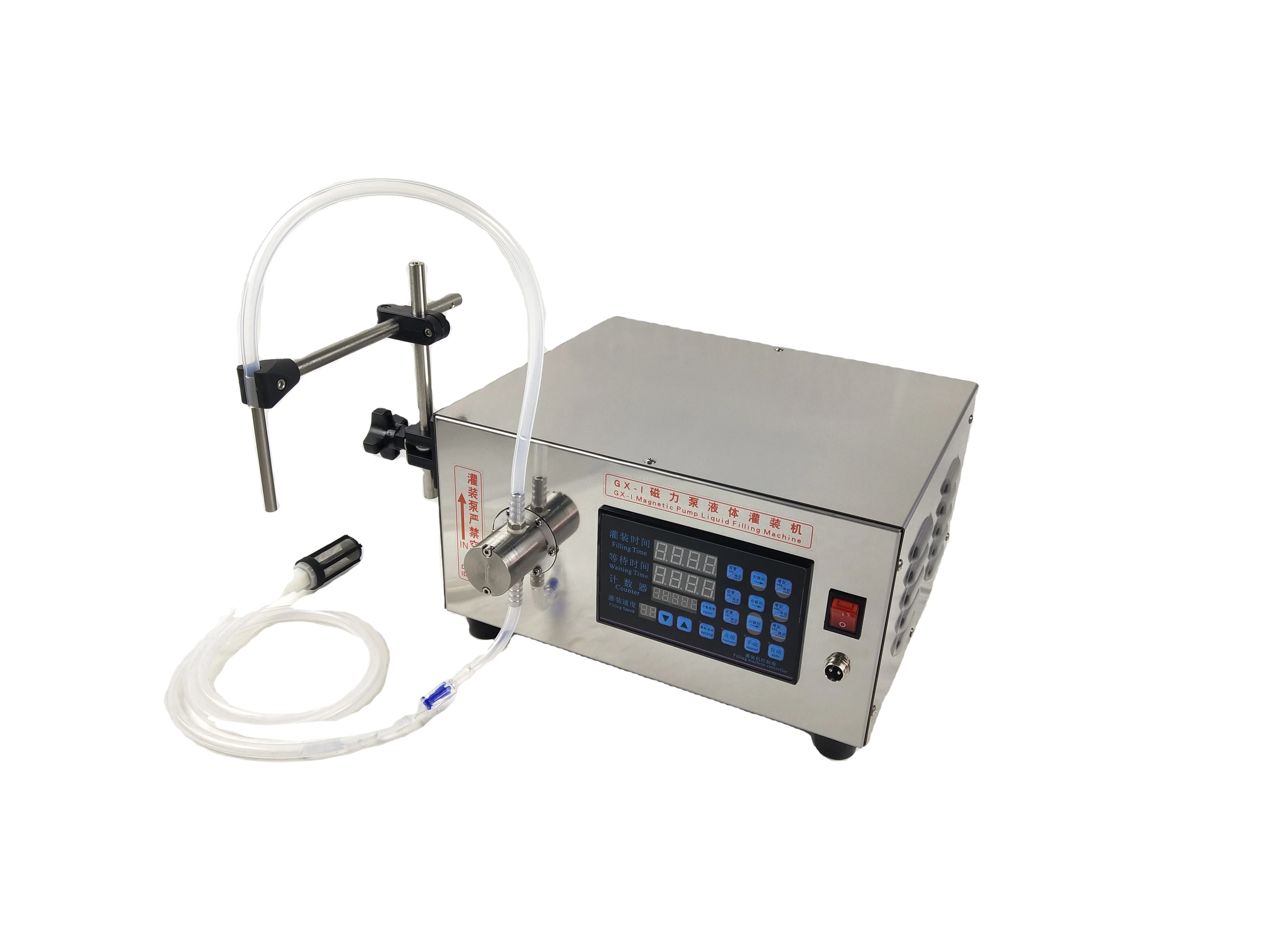

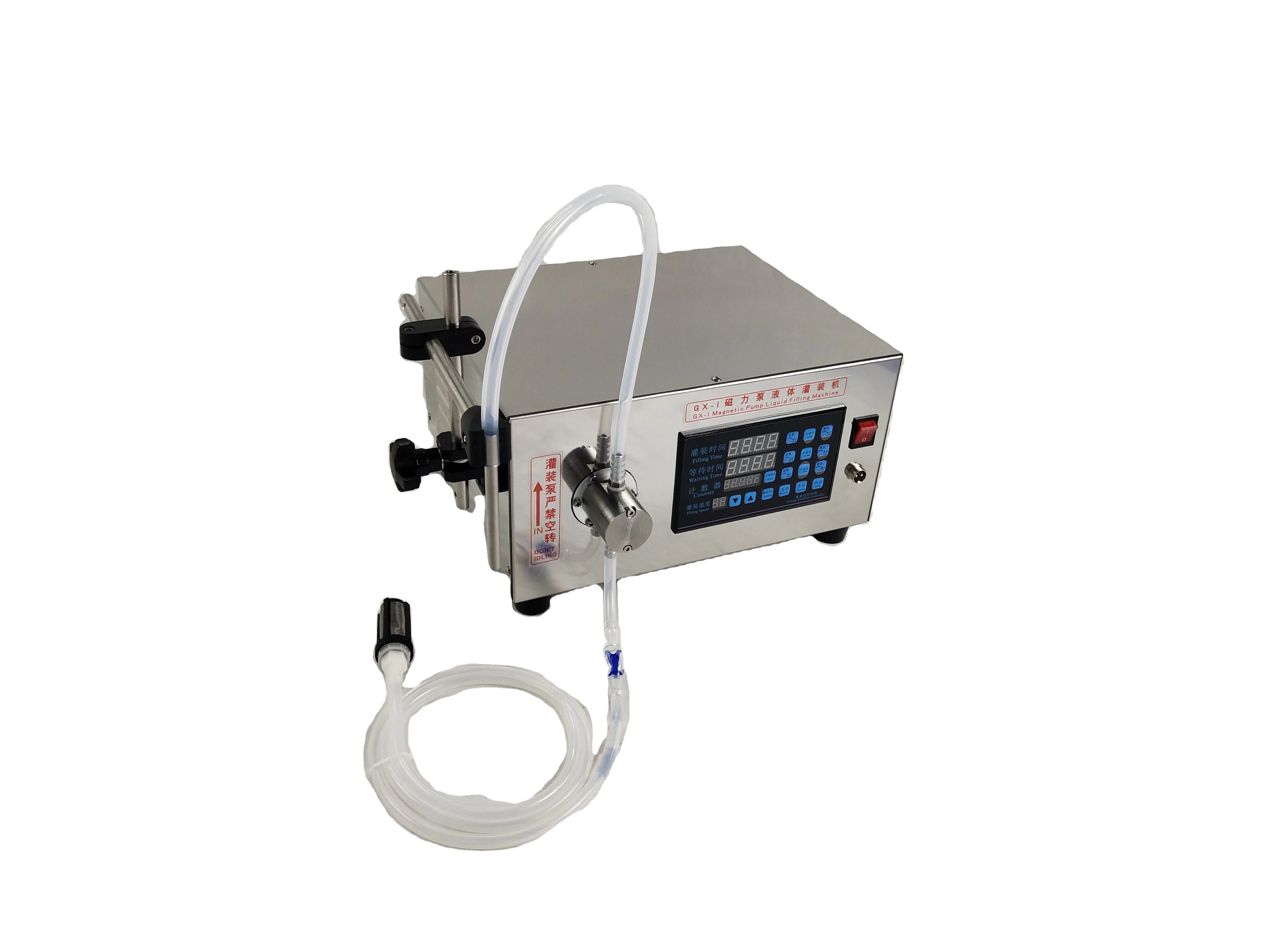

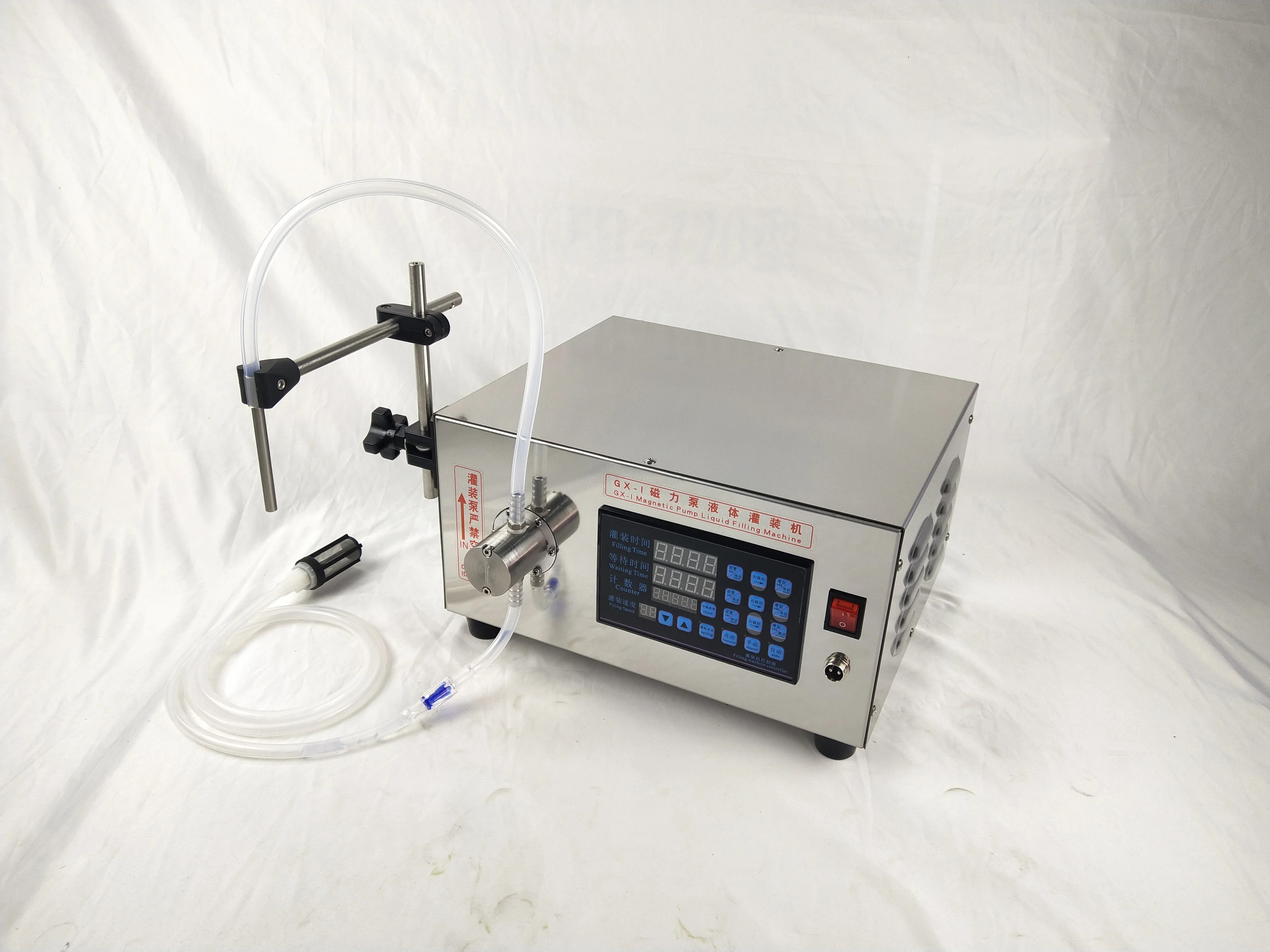

Detailed Images
Packaging & Shipping
Package: Special Export Plywood Case Packing
Warranty: One year from the date of installation. If there is any wearing part be broken within the warranty and isn’t caused by the un-properly operation, then the Seller would offer the new parts for free. Vertical semi-automatic Pneumatic Liquid Filling machine bottling machine for water, oil, juice
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.
Documents: We can provide Telex release bill of loading or Original Bill of loading, Certificate of the original. Other documents can be provided according to your requirement.
Our Services
About after-sale service of our machinery
Usually, machine guarantee time is about 1 year. Within guarantee time. Machine breaking caused by the machine itself design defect, we are responsible for it. We can provide free charge breaking part. If machine breaking caused by the human factor, the user need to take responsibility for it, we will provide technical support.
About goods shipping of our machinery
We have a long time working shipping forwarder. We can do our best to send the machine to your port safe and sound. If you need, we can help you do customs clearance.
About payment term of our machinery
Currently, in order to protect you and our rights. Both us in safe, hope we can do business in a safe way.
L/C(>20000USD),Western Union,T/T(Bank transfer),Paypal,Alibaba
which one are you want, we can discuss it.
About online Service of our machinery
24 hours online to solve any problem. Your email will be replied within 12 hours. Your satisfaction is our pursuit. Sincerely hope our cooperation.
Training:
1. We offer machines training system, the customer can choose training in our factory or in a customer workshop. The normal training days are 3-5 days.
2. We offer operation manual to the customer.
3. We offer training video and machine operation video to the customer.
4. We offer remote control service if the customer does not know how to operate and use the machine.
Installation:
We will dispatch engineers to carry out installation and debug of the equipment in buyer's place if requested. The cost for International Double ways air tickets, accommodations, food and transportations, medical shall be paid by Buyer for the engineers. Buyer shall fully cooperate with Supplier's engineer and make all the installation condition ready to work.
Warranty:
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials. The machine will be guaranteed in one year, in the guaranteed year, any spare parts are broken due to supplier’s quality issue, the spare parts will be supplied free for the customer, customer needs to pay the freight cost if the parcel weight more than 500gram.
Company Information
Business Philosophy
Quality is our life
Good cooperation starts with the trust
Scope of Business
Our company is a manufacturer that produces cosmetic, pharmaceutical, chemical, and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy, and other services. Our main products are soap machine, packing machine, labeling machine, capping machine, sealing machine, wrapping machine, vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel mixing tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of the industries mentioned above.
FAQ
Q: Are you a factory or trading company?
A: We are factory focus on designing, manufacturing, assembling, installing and debugging various types of cosmetic machinery such as filling machines, capping machines, labeling machines, soap machines, sealing machines, packing machine and printing machines, etc since 2004.
Q: Can you send a video showing how your machine works?
A: Certainly, we have made all our machine's video.
Q: Do you make a test before shipment?
A: We always test machine fully and make sure it works smoothly before shipment.
Q: What is the term of payment and trade terms?
A: We accept T/T, Western Union, MoneyGram, Alibaba Trade Assurance payments.
Trade Term : EXW,FOB,CIF,CNF.
Q: What’s the MOQ and warranty?
A: There is no MOQ, welcome to order, we promise a 12-month warranty.
Q: What kind of package for shipping?
A: Use the basic stretch film wrap around the whole machine, and packed with the exported wooden case, also can be according to your requirements.
