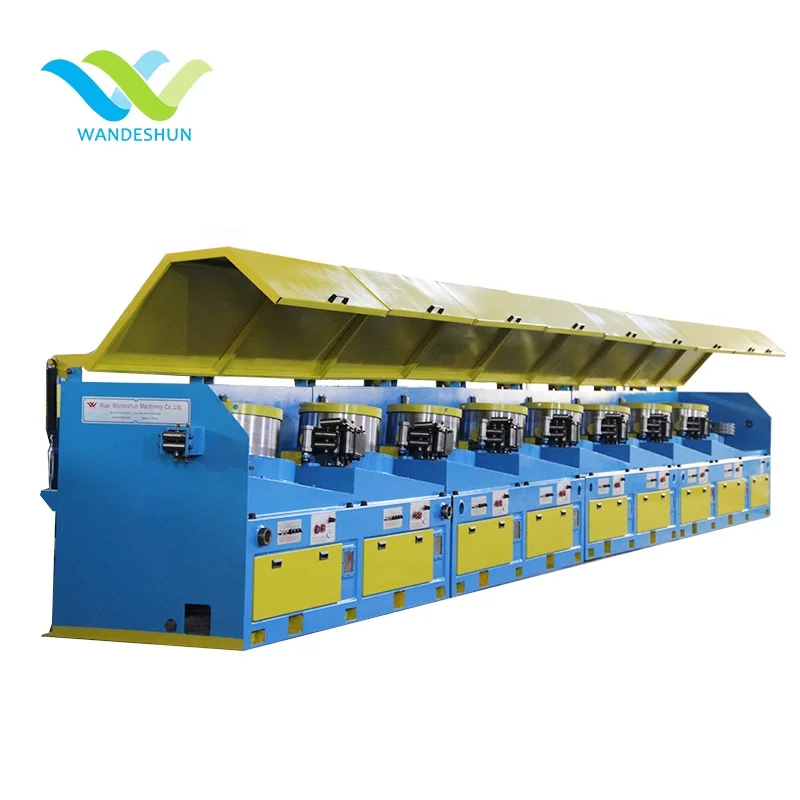

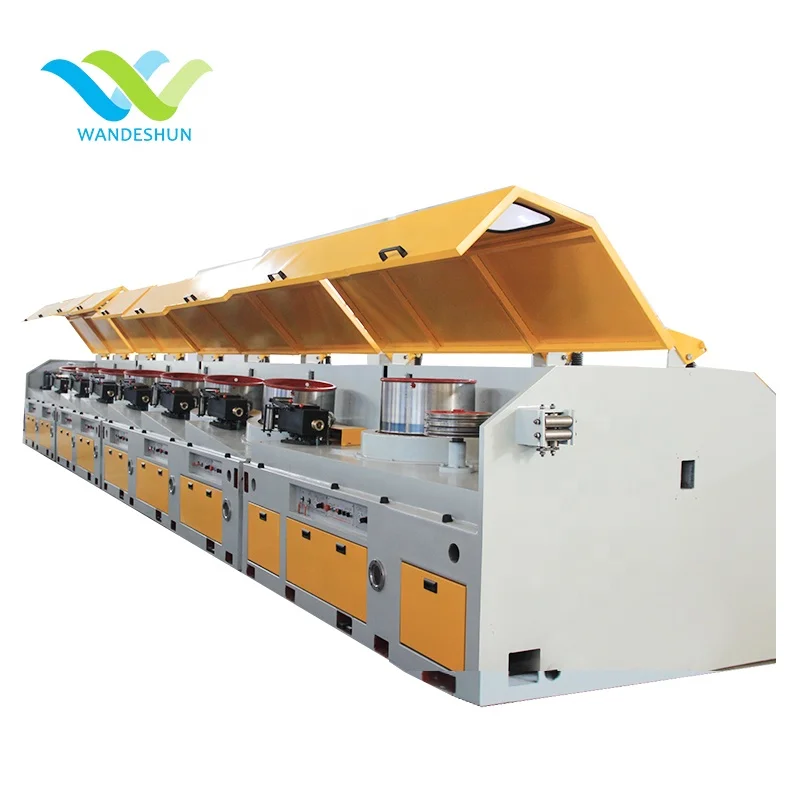

LZ9 560 straight type wire drawing machine for drawing high/dedium/low carbon steel wire

Product Overview

Description

Wuxi Wandeshun Machine Co., Ltd  (we are factory)



 1.    About us



Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.



Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey,Bolivia,Saudi Arabia and so on.



Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.





My contact way

My mobile: 86-13921534531

Whatsapp: 86-13921534531

Skype: jeaqueline998

trademanager: wxwds

Email:sales(at)wxwds.com

QQ:349791577

Product  Details

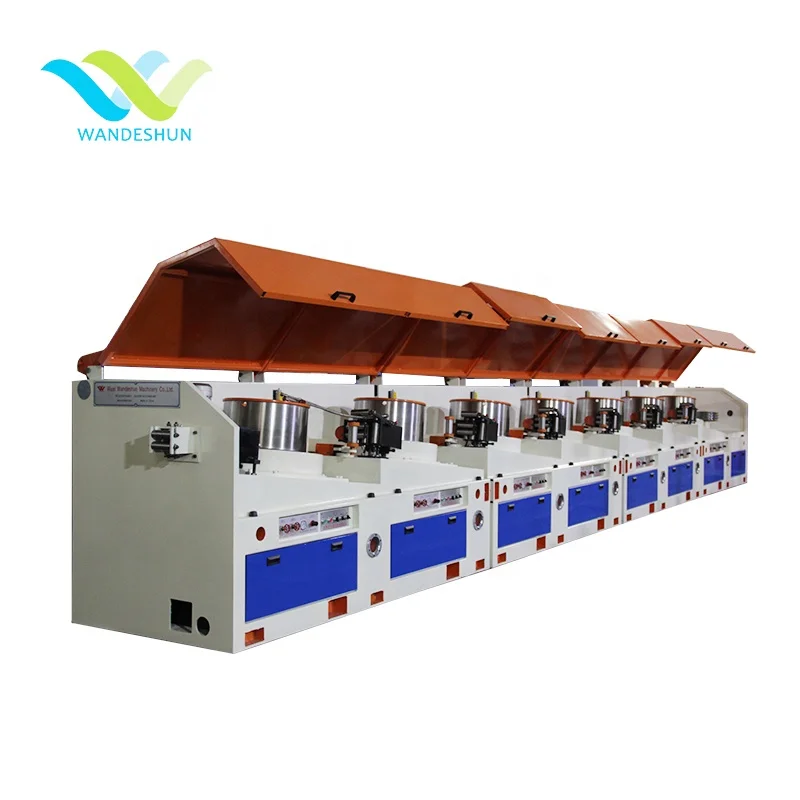

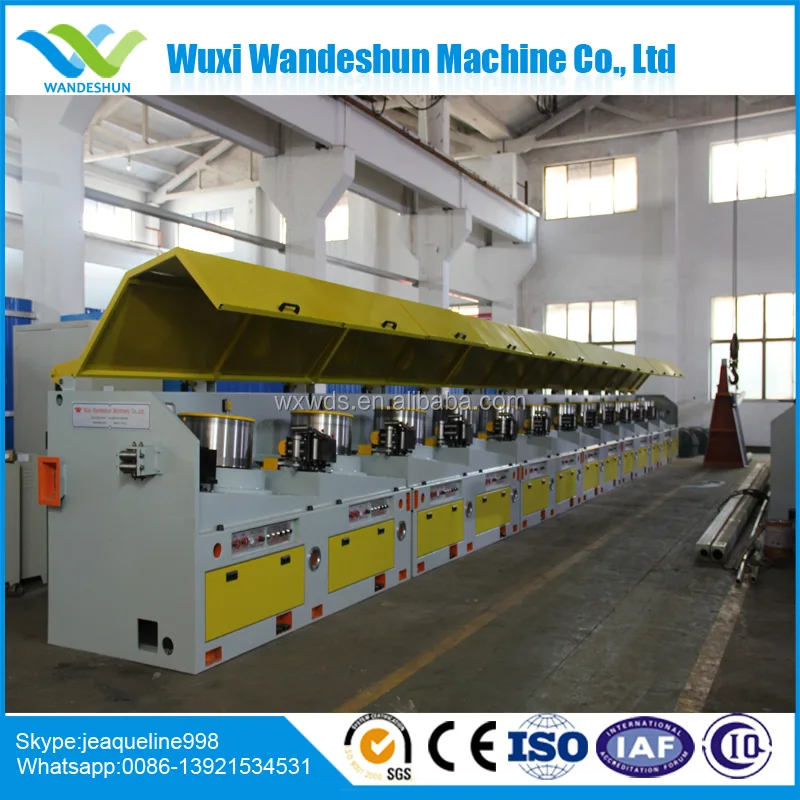

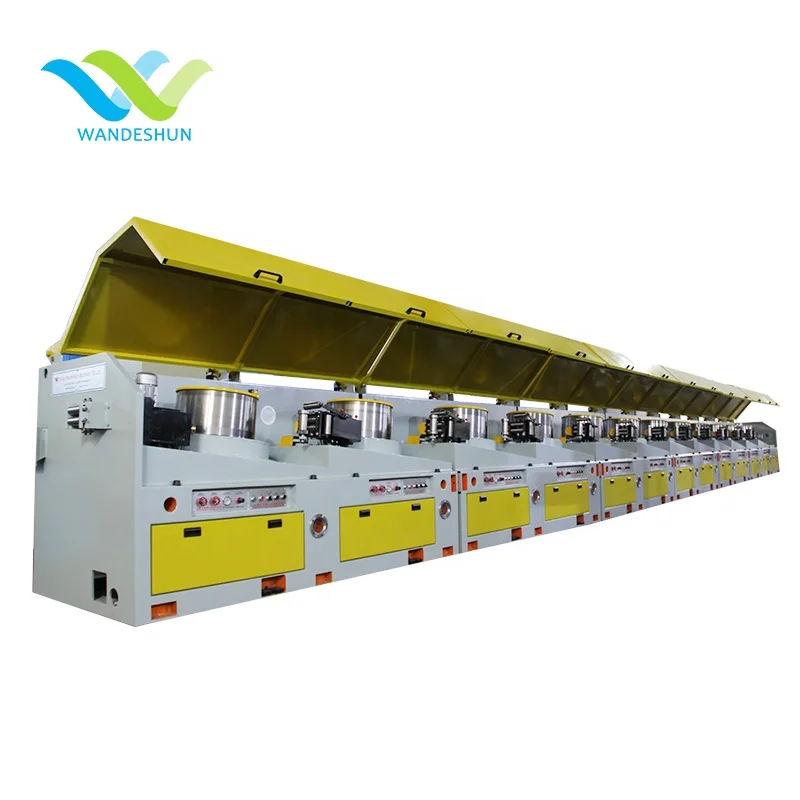

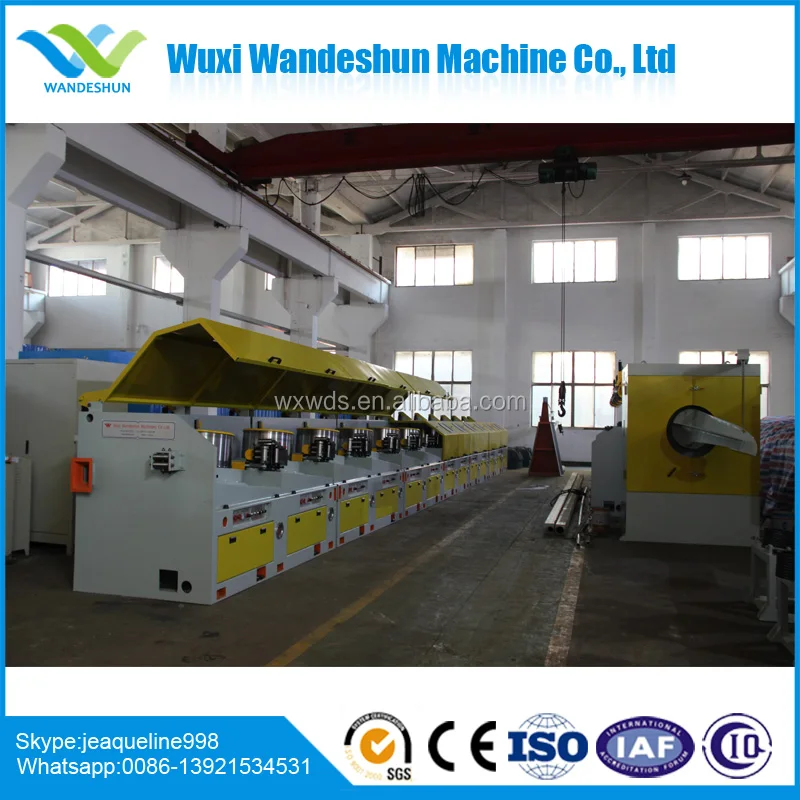

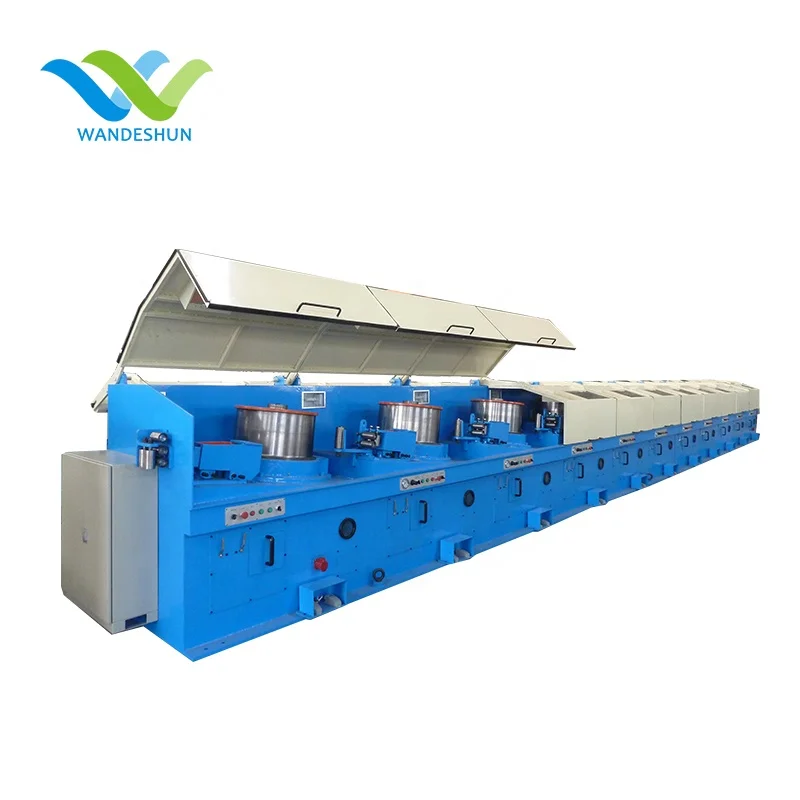

LZ9-560 straight type wire drawing machine for drawing high/dedium/low carbon steel wire

1. Machine description





1. Rack: It is the foundation of the whole drawing machine units. It is welded by buttress plate, bent steel, section steel. All materials are designed safety enough to enhance the rigidity.

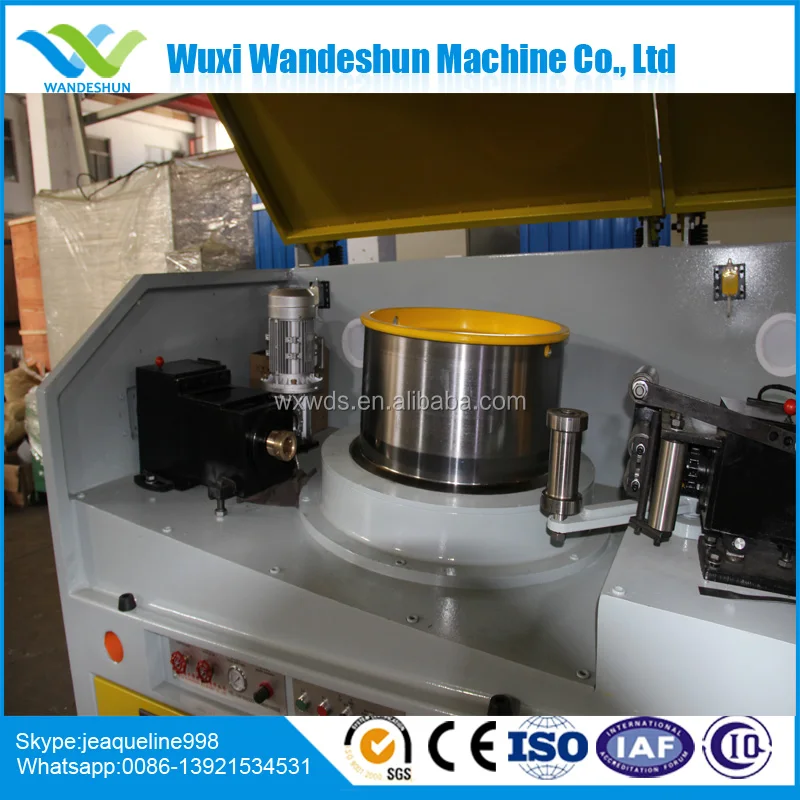

2. Capstan structure: Material is ZG45 steel casting blank body, after quenching and tempering treatment, HB250. Dig 5mm depth on the working surface of capstan, then melt the tungsten, cobalt carbide, overlay welding. Then rough lathing, precision lathing, grinding and polishing, surface roughness can reach to 0.08μm, hardening layer height 300mm, depth>3mm, HRC 58-62.



3. Capstan cooling: When capstan rotating, spiral groove will keep the cooling water to rise, then flow down along the capstan wall, discharge the water through the upper outlet, forming a good circulation water cooling.



4. Transmission system: Using the efficient narrow V joint belt + hard gear reducer drive or using two efficient joint group belt drive, the working condition is for 24 hours of continuous work system, noise≤82dB.



5. Die box and lubricant box: Circulation water cool the die shell directly, lubricant cabin sets electric mixer to turn drawing powder timely. Die box has additional copper shim, suitable for simple sealing circulating cooling water. Design die seat in the die box, can assist to fix die. Die box can be adjusted in up, down, left and right directions, and lock reliable.



6. Safety shield: Shield is provided with protective contact switch. It’s a device for realizing mechanical locking at run time. (When machine is running with shield opened, the unit immediately drop speed running or parking, recover normal after closing it. When it opens, the unit can only jog.)











  our loading and shipment  photos
