Auger feeding double roller hydraulic compacting ammonium chloride fertilizer granulating machine
- Category: >>>
- Supplier: Changzhou Shengong Granulation Equipment Co. Ltd.
Share on (60664713410):
Product Overview
Description
We are a factory located in Changzhou city which is just one hour from Shanghai by train.
Compacting granulating machine applications:
1.fertilizer:
2.powder material
zinc oxide, lead oxide, calcium chloride, calcium phosphate, High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile and inorganic powder else etc.
3.chemical raw material, fine chemical material

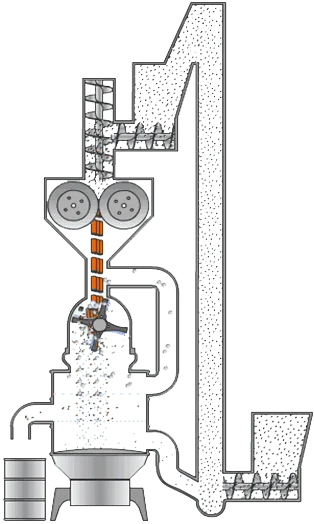

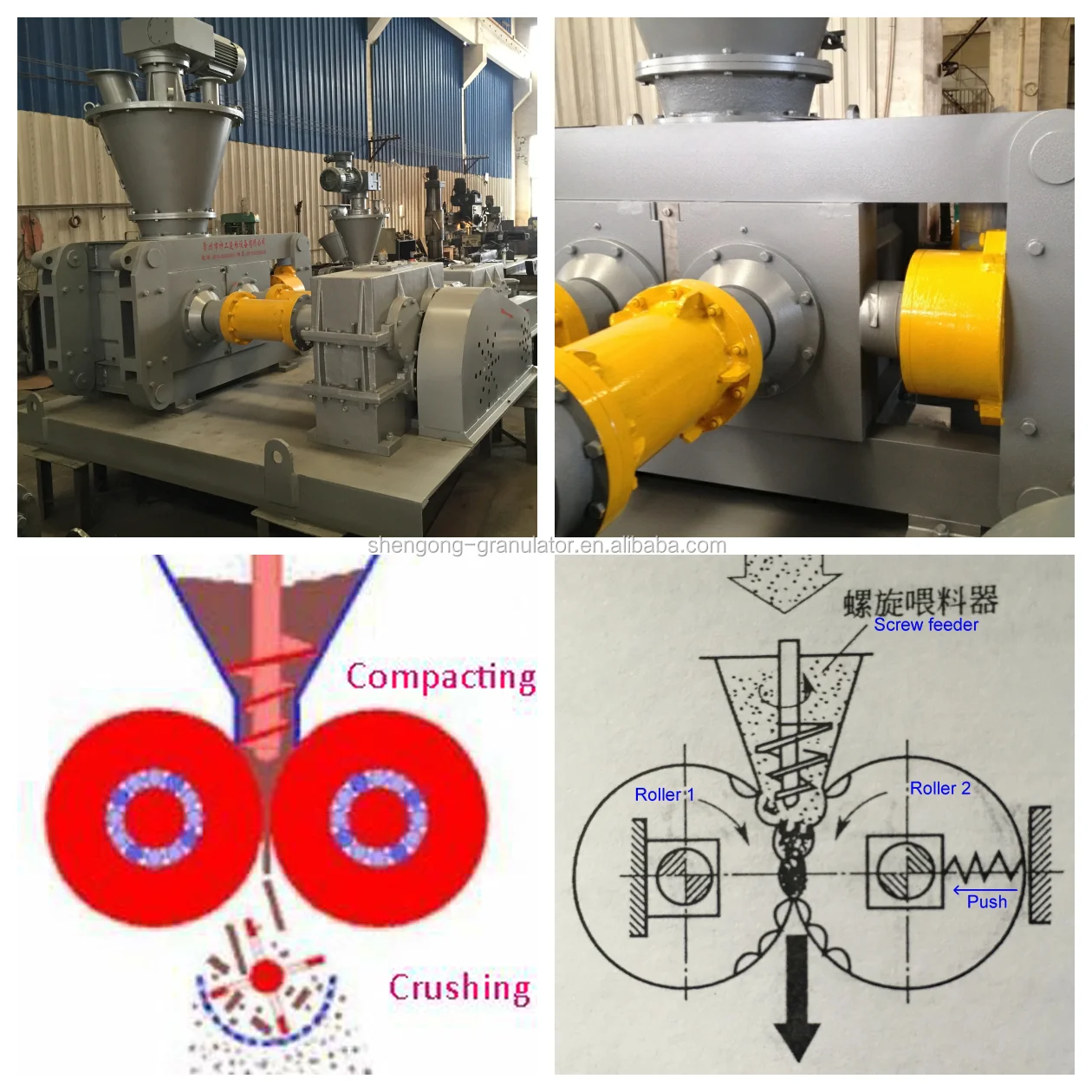

Compacting granulating machine operating principle:
Difference of Compacting granulating machine type A and type B
| Type Item | SG-240A | SG-360A | SG-500A | SG-600A | SG-650A |
| Roller dia. | Φ240 mm | Φ360 mm | Φ504 mm | Φ600 mm | Φ650 mm |
| Available roller width | 80/120/160 mm | 180 mm | 300 mm | 310 mm | 330 mm |
| Roller rotating speed | 5 to 35 rpm | 3 to 26 rpm | 14 to 20 rpm | 12 to 18 | 10 to 16 |
| Power of screw feeder | 4 kw | 7.5 kw | 11 kw | 11 kw | 15 kw |
| Pre-pressure of accumulator | 5 Mpa | 6 Mpa | 8-10 Mpa | 8-10 Mpa | 10-14 Mpa |
| Max. linear pressure | 65 kN/cm | 65kN/cm | 70(75) kN/cm | 70(75) kN/cm | 70(75) kN/cm |
| Thickness of compacted material | 2 to 6 mm | 6 to 8 mm | 10 to12 mm | 12 to 14 mm | 14 to 16 mm |
| Compacting productivity | 800 to 2,000 kg/h | 2,500 to 3,000 kg/h | 6,000 to 8,000 kg/h | 8,000 to 10, 000 kg/h | 10,000 to 12,000 kg/h |
| Power of compacting machine | 11 kw | 30 kw | 75 kw | 90 kw | 110 kw |
| granules output | 200 to 600 kg/h | 1,000 to 1,200 kg/h | 2,500 to 3,000 kg/h | 3,000 to 3,600 kg/h | 3,500 to 4,500 kg/h |
| Final granules size | 1 to 5 mm | 1 to 5 mm | 1 to 5 mm | 1 to 5 mm | 1 to 5 mm |
| Total power of whole line | 35 kw | 50 kw | 110 kw | 125 kw | 165 kw |
| Size of feeder and compactor (l*w*h) | 1850*1500*1650 mm | 2350*2000*2400 mm | 3650*2250*2500 mm | 3660*2450*2700 mm | 4000*2600*3300 mm |
| Weight of feeder and compactor | 2,500-3000 kg | 6,000 kg | 15,000 kg | 20,000 kg | 25,000 kg |
| Delivery time | 25 day | 30 day | 45 day | 60 day | 60 day |

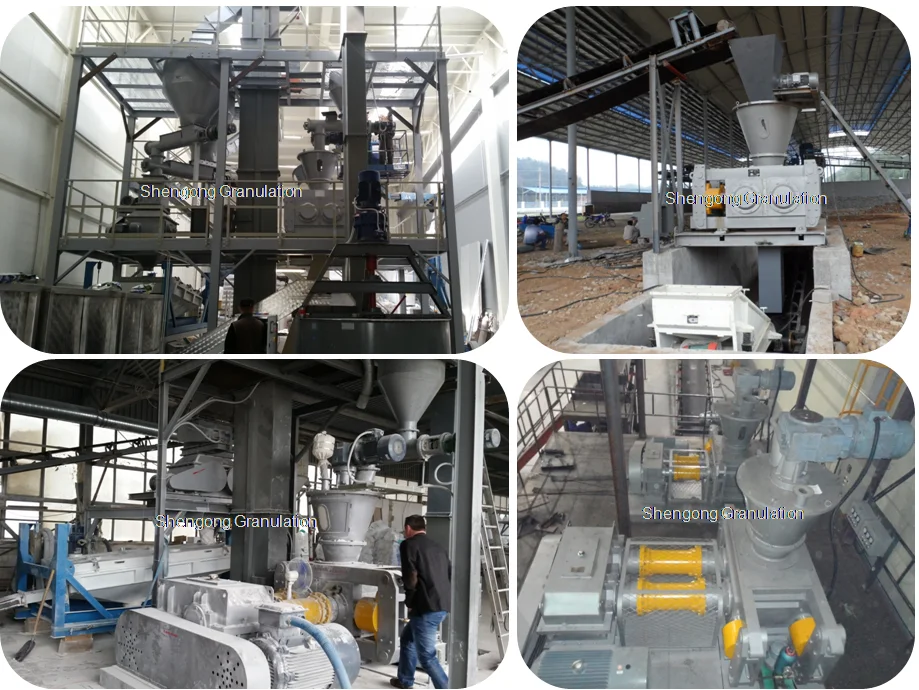

Compacting granulating machine's peripheral equipments
Compacting granulating machine final granules variable shapes

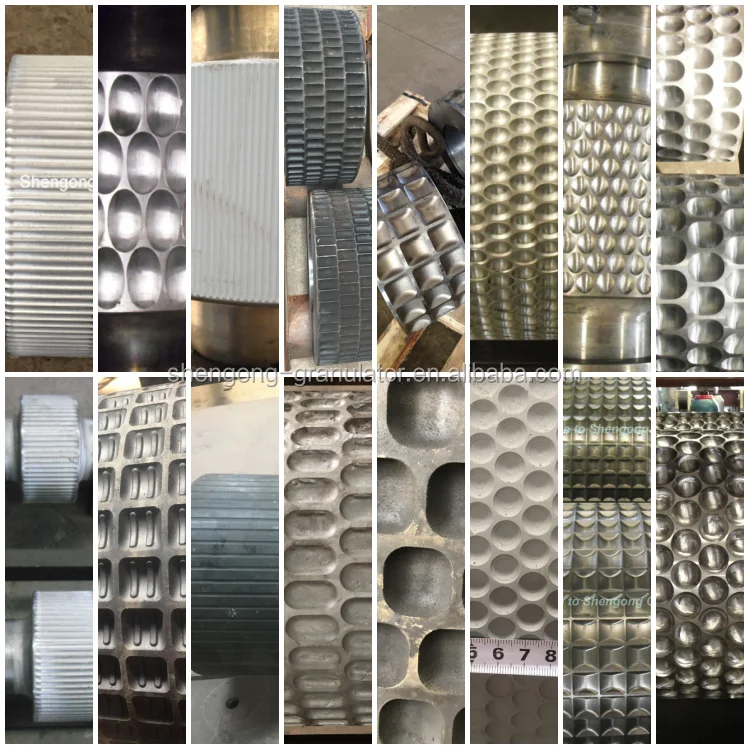

Granules and rollers
Compacting granulating machine line is being loaded into one 40ft. container
