Product Overview
Description

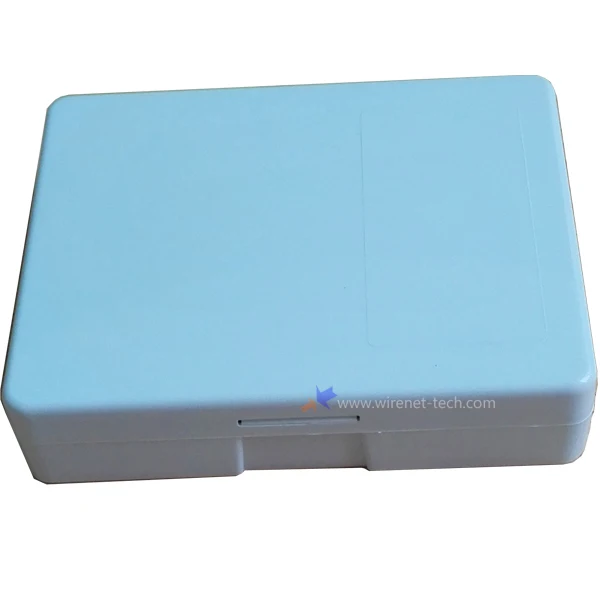

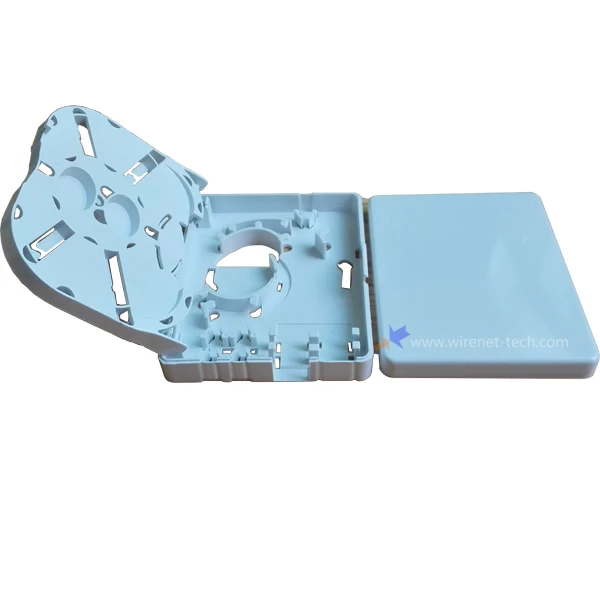

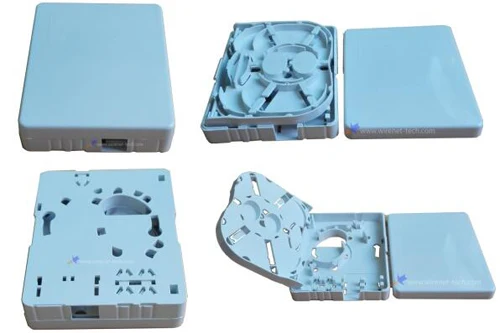

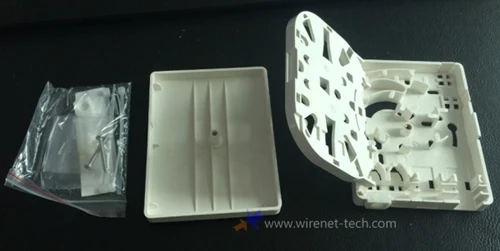

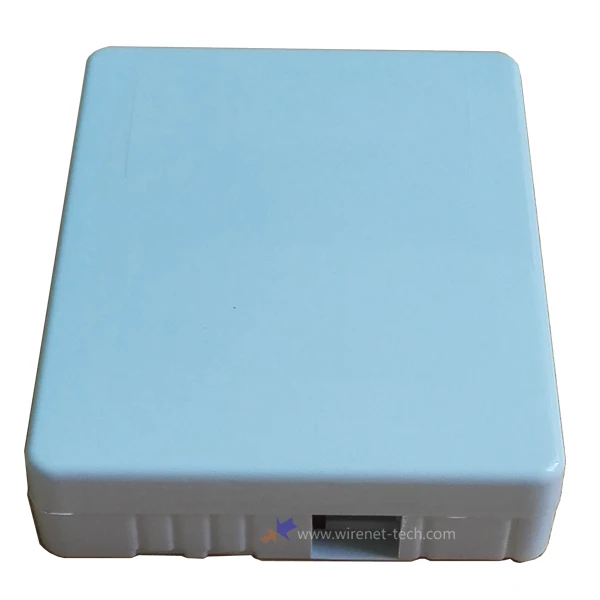

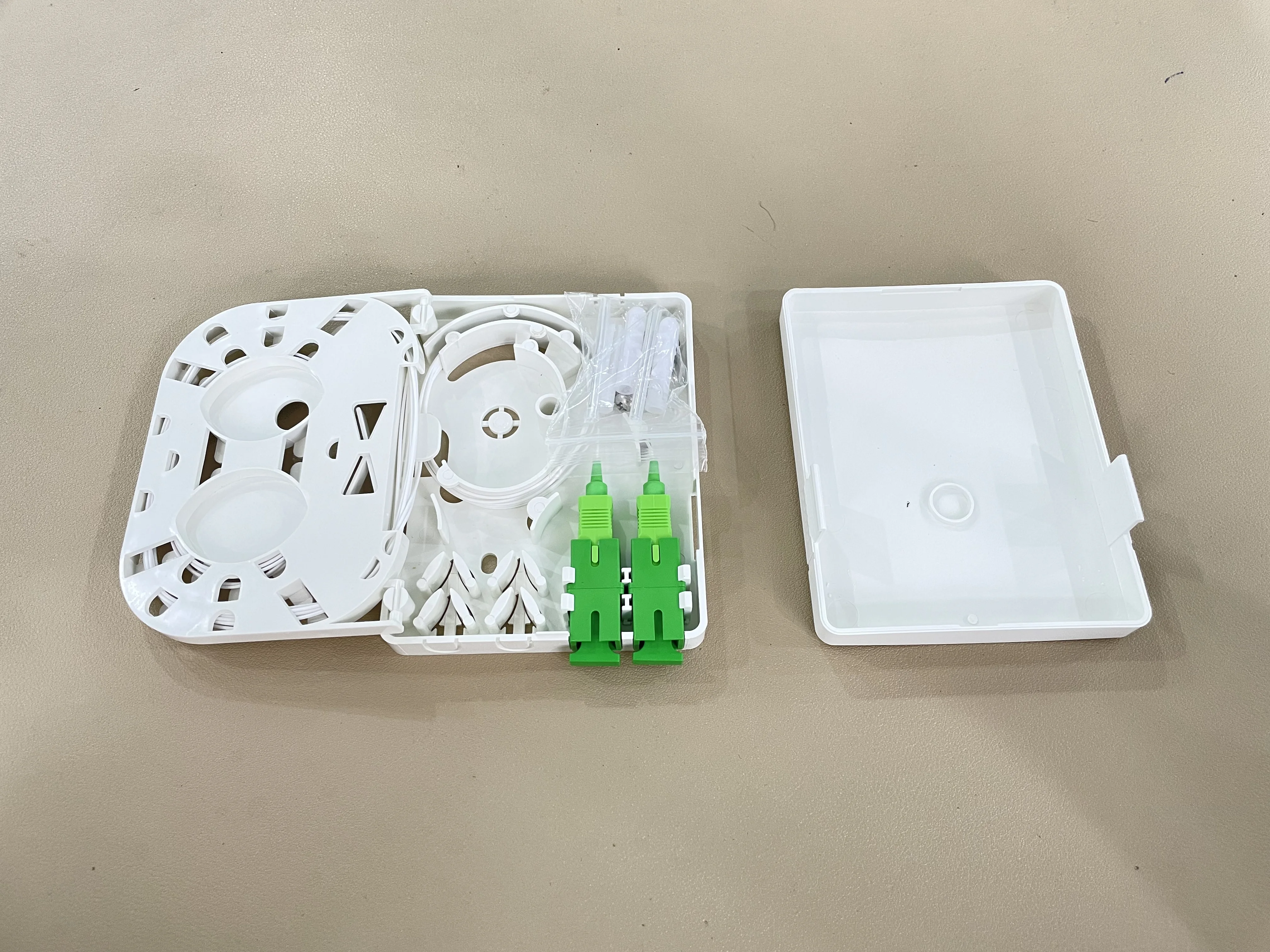

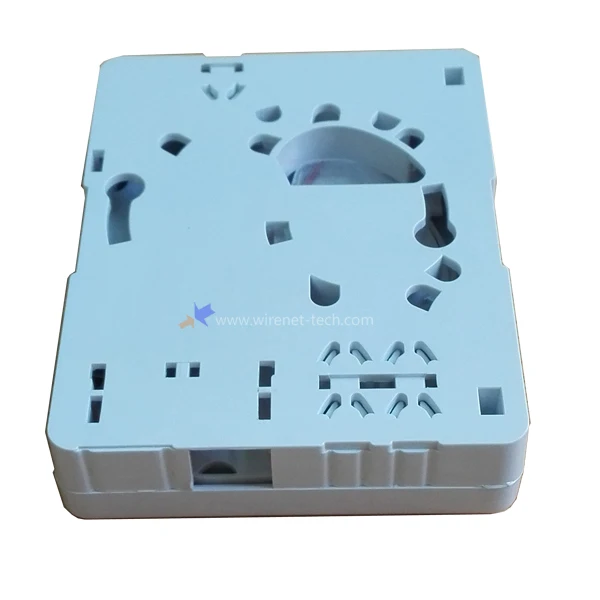

Easy operation SC LC APC UPC FTTH 2 Port ATB Access Terminal Box
FTTH: Fiber to the Home
ATB: Access Terminal Box
Product Overviews
Product Uses
- Fiber to the desk (FTTD)
- Fiber to the home(FTTH)
- Fiber to the building(TFFB)
- Local area networks
- Wide area networks
Product Description

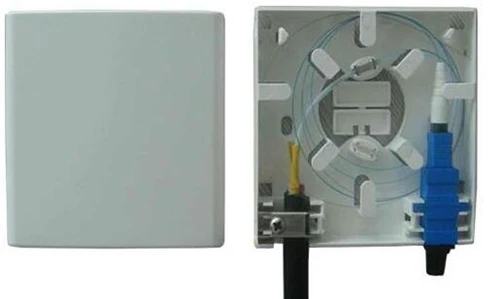

WT8006 is an indoor terminal applied in the FTTX network to connect the drop cable and ONU devices through fiber port.
WT8006 covers the capacity of 1core, 2cores and 4 cores and supports splicing, mechanical connection and FMC, wall mounted installation.
Specification
Item | Value |
Application | 3.0*2.0mm drop cable or indoor cable |
Fiber diameter | 125um |
Tight cladding diameter | 250um&900um |
Mode of application | Single mode&duplex mode |
Tensile strength | >50N |
End-usd temperature | -40~85 degree Centi |
Adaptor | SC&LC |
Insertion loss | <0.2dB(1310nm&1550nm) |
output | 2 |
Size | 80*100*23mm |

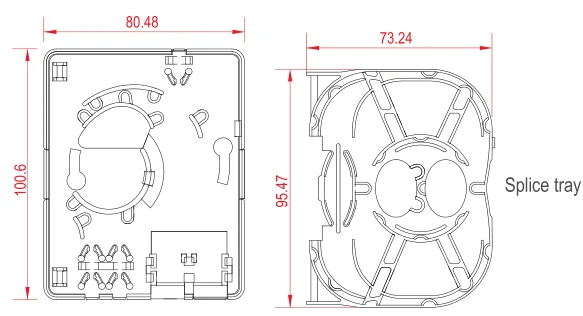

Drawing
Features
- Excellent ergonomics design, graceful appearance and convenience operation
- Plug fiber without having to open the shell, easily accessible fiber operation, port vertically downward to avoid causing personal injury.
- White color, graceful style and good adaptability to environment.
- Fiber cable inlets in every direction, supports the cable inlets for different scenarios.
- Friendly operation interface, high reliability
- Introductions clear, effectively prevent the miss-operation.
- Low construction cost
- Easy operation, saving installation working hours, lower costs
Configration
Model | Adaptor | Amount | Capacity (core) |
WT8006 | - | - | - |
WT8006-2SA | SC/APC Simplex | 2 | 2 |
WT8006-2SU | SC/UPC Simplex | 2 | 2 |
WT8006-4LU | LC/UPC Duplex | 2 | 4 |
WT8006-4LA | LC/APC Duplex | 2 | 4 |
