1238 120mm 120x120x38mm DC cooling electric plastic 12v 24v dc fan 12038
- Category: >>>
- Supplier: Shenzhen Yccfan Technology Co. Ltd.
Share on (60664911558):
Product Overview
Description
Product Description

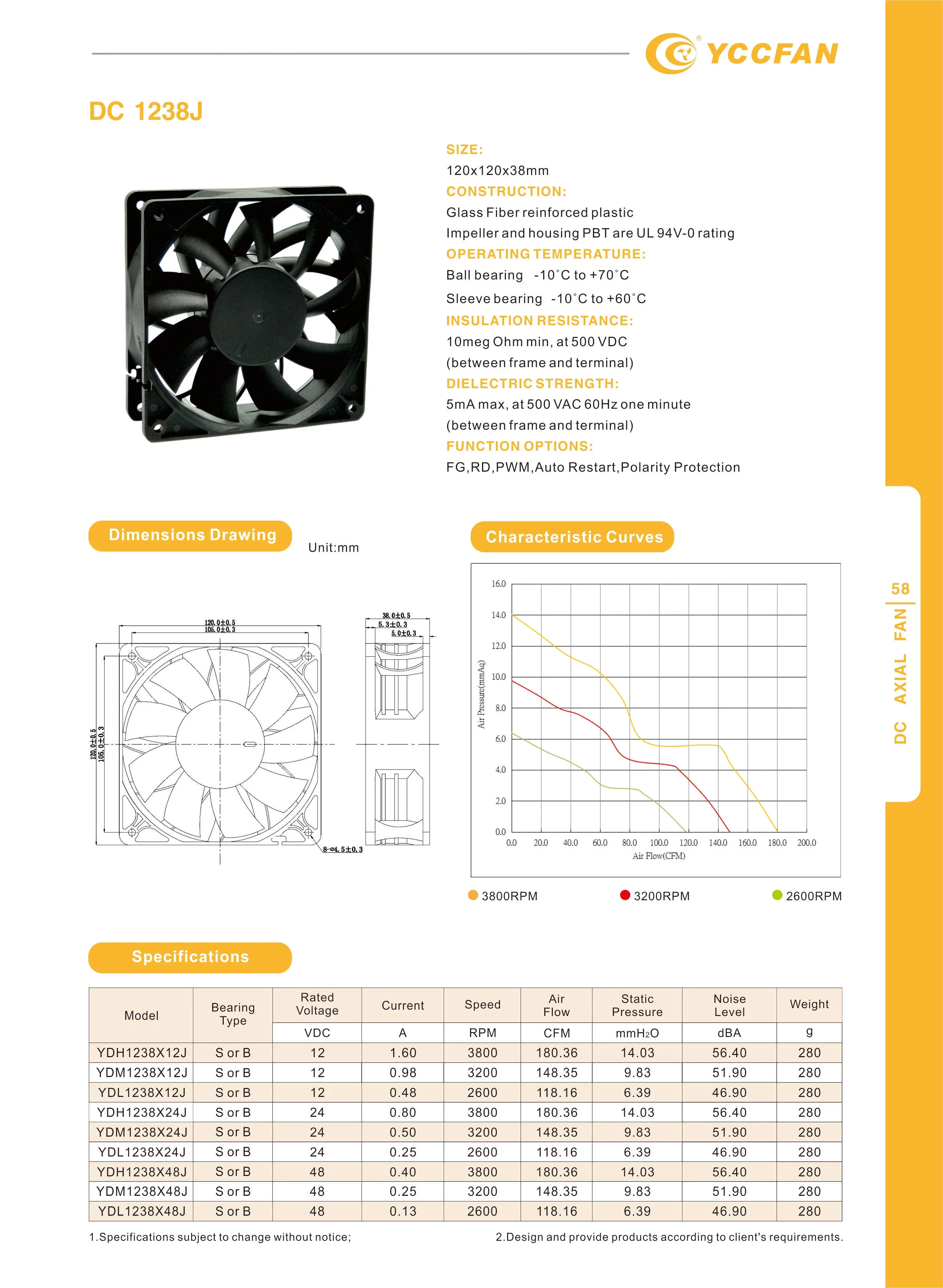

SPECIFICATION |
| ||
ITEMS | UNIT | PARAMETERS | |

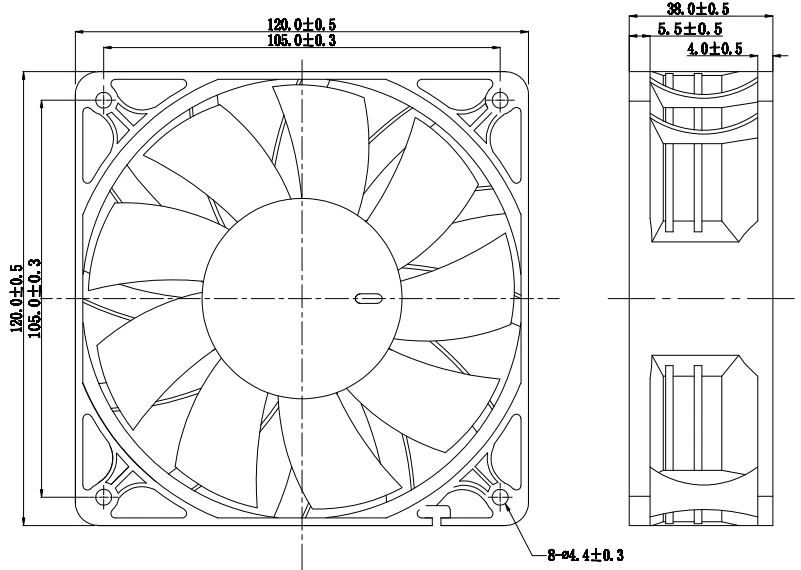

Dimension | mm | 120x120x38 | |
Material | ---- | BLACK PBT (UL94V-0) | |
Bearing System | B:Dual Ball |
| |
Rated Voltage | VDC | 24.0 | |
Rated Current | Amp | 0.94 | |
Rated Speed | RPM | 4000±10% | |

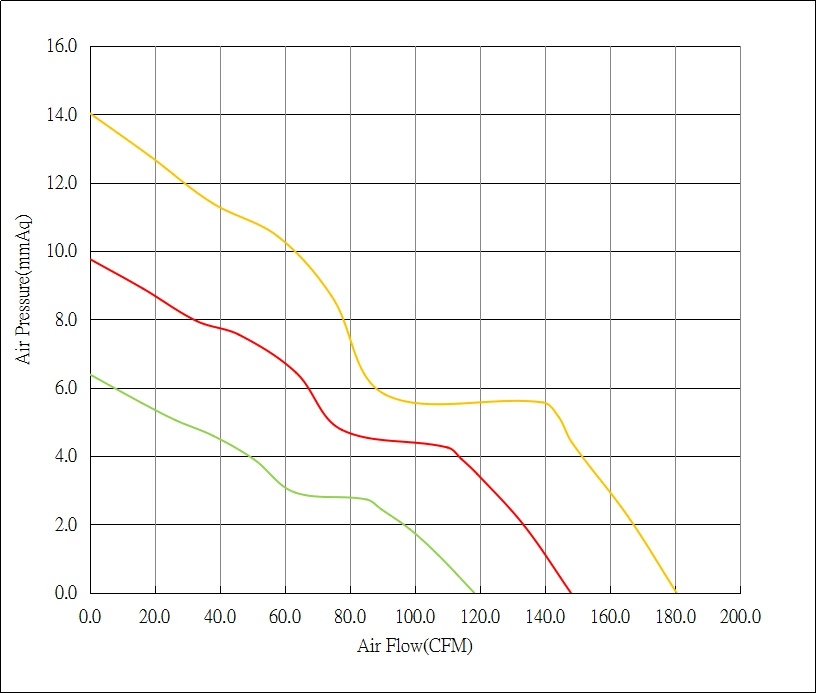

Air Flow | CFM | 193.15 | |
Air Pressure | mmAq | 15.56 | |
Waterproof Class | IP44 | Insulating Paint |
|
IP55 | Vacuum Coating or PCBa Coating |
| |
IP56 | Epoxy Waterproof Glue or Injection by Mould |
| |

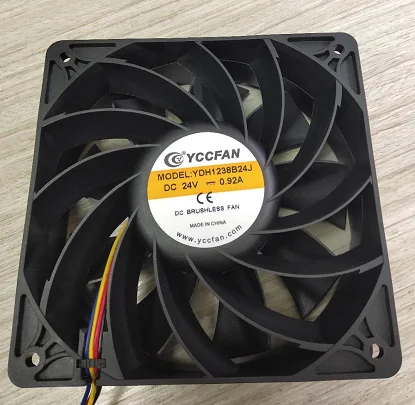

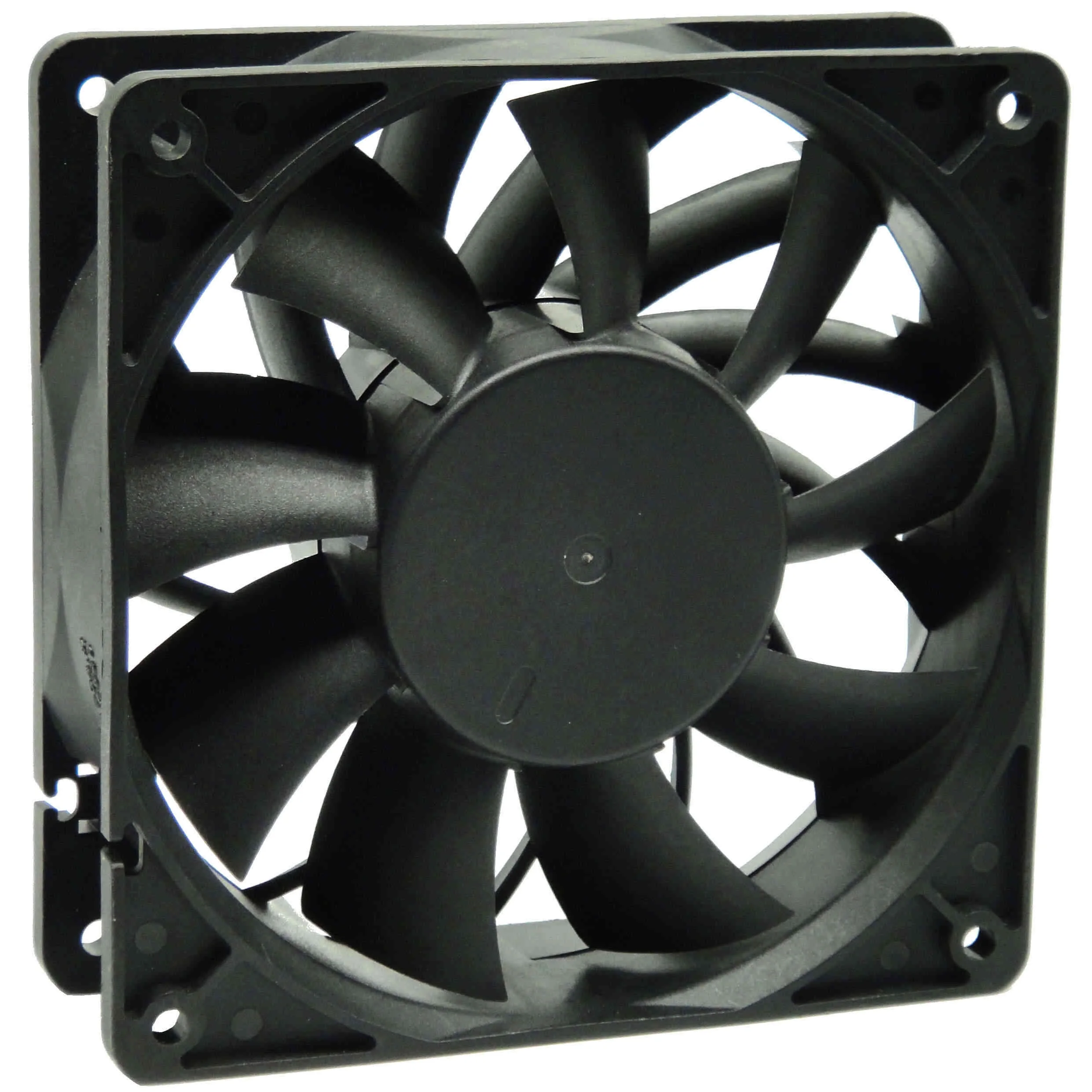

Product picture

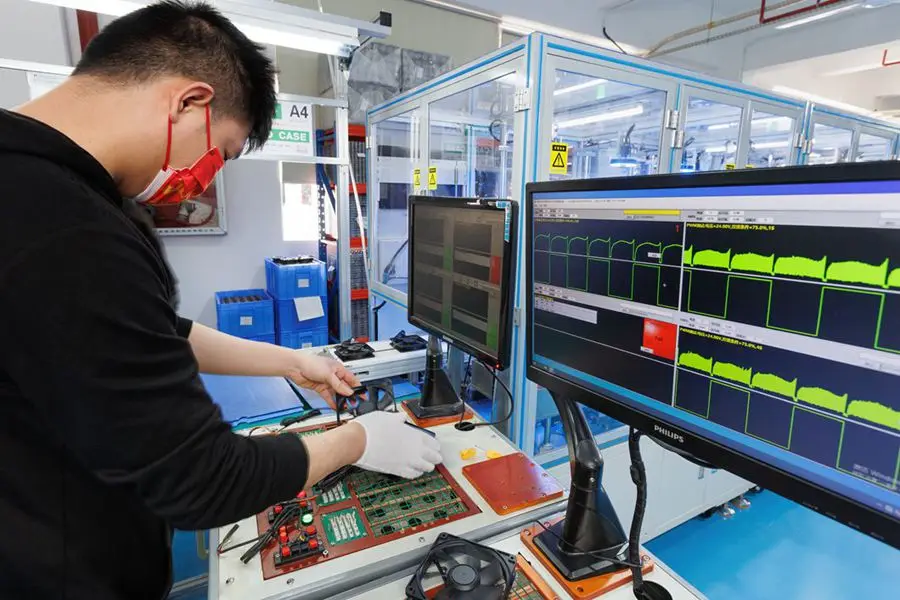

Quality Control
Quality Control:
1.Incoming quality control
2.In process quality control
3.QA Inspection
4.100% testing before the packing
Services
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. We often give one-year warranty on quality of products, and will give your refund if any quality problems occurs when you receive our items.
Certificates
Our products passed UL/CUL, CE, TUV, ROHS, SGS, CCC, ISO9001, ISO14001, IATF16949 certificates.
Company Information
YCCFAN Technology Co., Ltd
www.yccfan.com
Over 11 years producing experinece in AC/DC axial fan, DC blower fan and EC fan

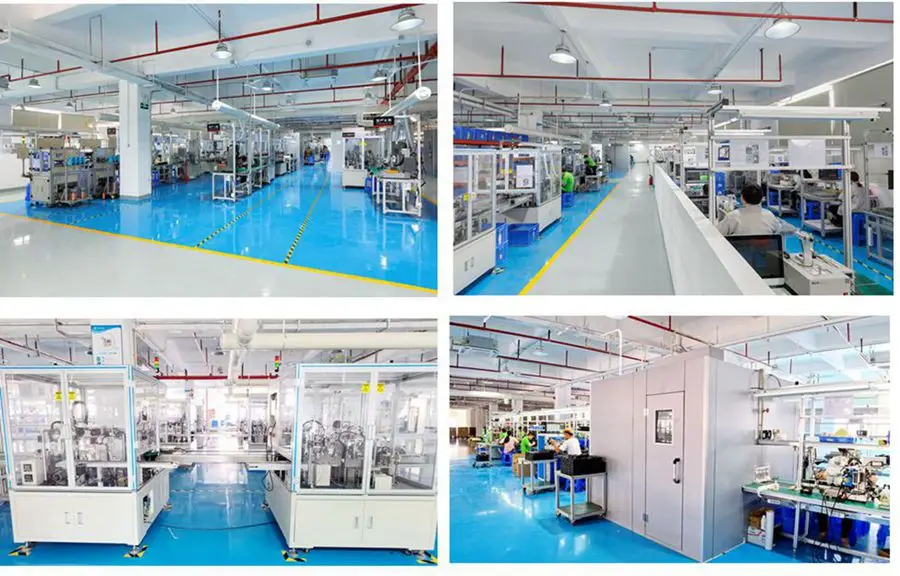

Plant area 21,000 square meters, 600 employees, daily production capacity 230,000,pieces
Our Customers
Thanks for trusting us so many years. It is our honor to work with you together. We will do our best to provide valuable products with attractive price and good after-sales service. Hoping we can work togher for another tens of years.
