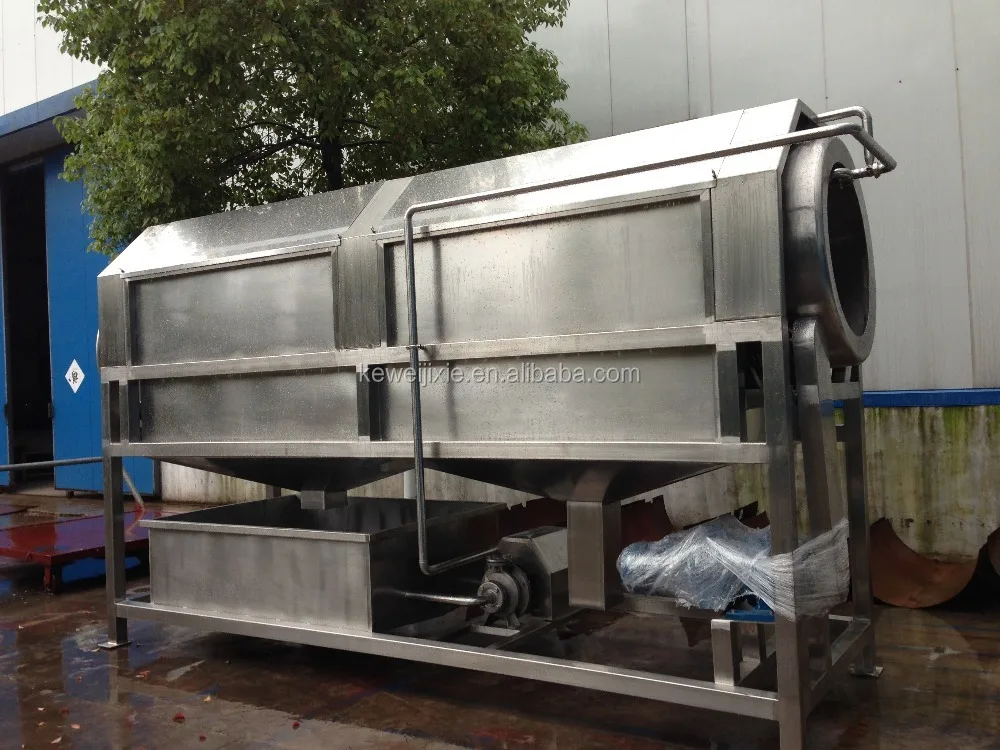

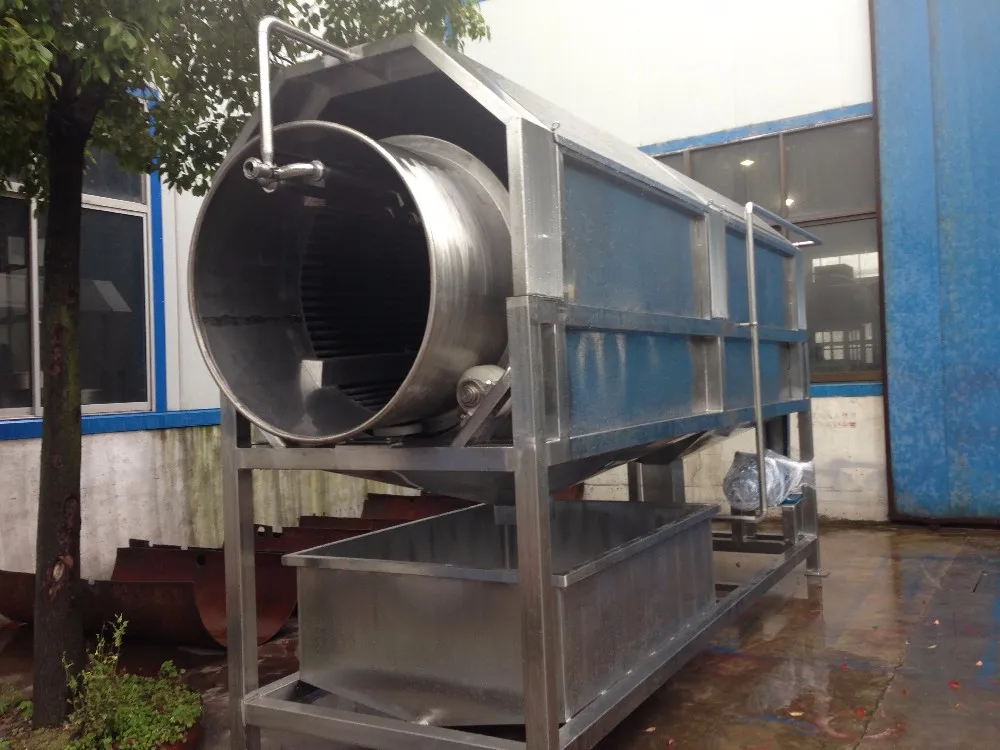

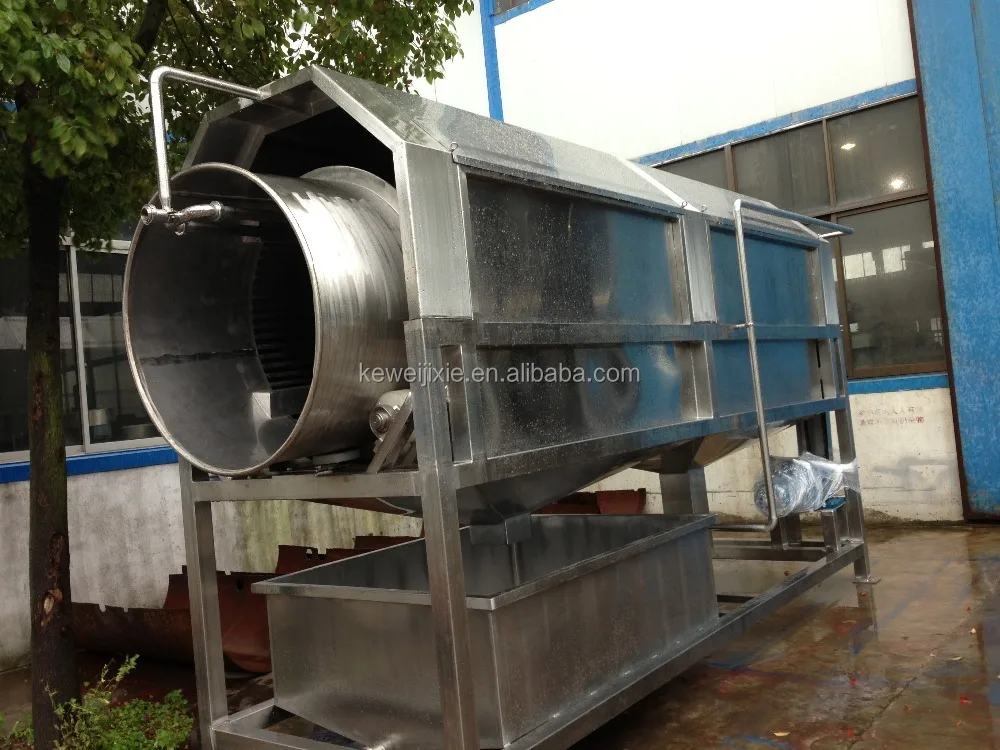

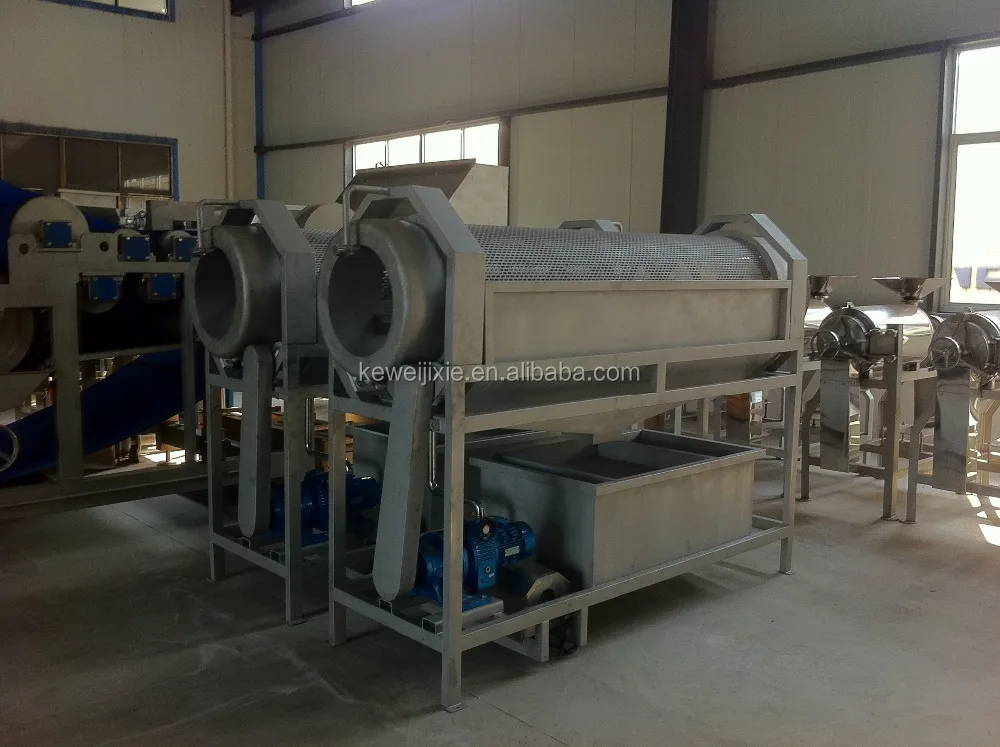

prickly pear washing machine/fruit cleaning machine
- Category: >>>
- Supplier: Jiangsu Kuwai Machinery Co. Ltd.
Share on (60664928175):
Product Overview
Description
Product Description
Product Application
Drum washing machine as introduction of the design of the international advanced level with 21 s fruit and vegetable cleaning equipment. Has the advantages of novel structure play tightly, energy-efficient, high efficiency, clean thoroughly, little damage to the fruit and vegetable, widely used, etc. This machine is widely used in carrots, potatoes, sweet potatoes, red jujube, such as fruit and vegetable cleaning, especially for fruit and vegetable cleaning grows in the soil.
SPECIFICATION | ||||||
Model | Production capacity(T/H) | Matched power(Kw) | Outline dimensions(mm) | |||
ZXJ-3 | 1-3 | 3.3 | 3000*900*1930 | |||
ZXJ-5 | 3-5 | 4.5 | 3000*1100*1930 | |||
ZXJ-10 | 5-10 | 8.5 | 3500*1300*2100 | |||
The structure characteristics and working principle

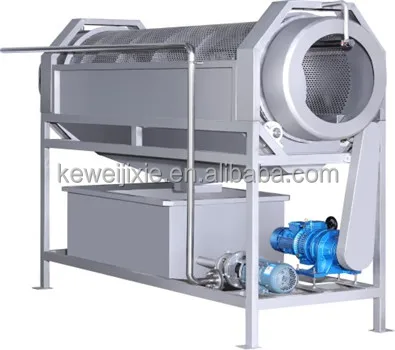

This machine consists of frame, driving speed reducer, circulating pump, conveying a hollow screw, roller, spray pipe, nozzle, water tank, filter tank, drain valve and other parts.
Working principle: by the speed reducer through the chain rotation shaft at work, and then by means of the power transmission shaft sprocket drive roller drive chain of the surface outside, thus rotating drum. Fruit and vegetable raw materials into the drum, drum, and under the action of high pressure water spray cleaning, and due to the inner wall of the cylinder is equipped with a hollow screw, which is convenient to materials uniform output forward. While sewage through the mesh on the surface of the drum, into the drip pan flow into the water filter tank and then filtered trough on the mesh into the water tank, sewage will stay inside the filter tank; After filter tank of water, under the action of circulating water pump, water to spray pipe, again to clean material, so as to achieve cleaning purpose.
Our Service
1.Before sending the machine, we will test and adjust, so you can use directly when you get it.
2.Operating video & instruction will be sent to clients, to help them better use the machine
3.Any problems occur while using, professional advice will be given by us.
4.All kinds of frequently used parts are supplied from us all the year round
Packing & Delivery
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long term cooperated forwarders who can handle the shipment smoothly.
Also we would like to have seamless cooperation with your forwarder at your convenience.
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the production item,planned production capacity usually.Layout is needed if customized.
3. Q: When we received the machine, how to install it?
A: The machine has been installed already before shipment, when you recieved, just need to connect the electric.
4. Q: How to maintenance machine?
A: Don't exposed to the sun and rain, we have introduction for each item and customer can get our guidance through video based on our 24-hour service.
5. Q: What is the delivery time?
A: Normally the delivery time of the machine is 45 days after receive down payment.
6. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
