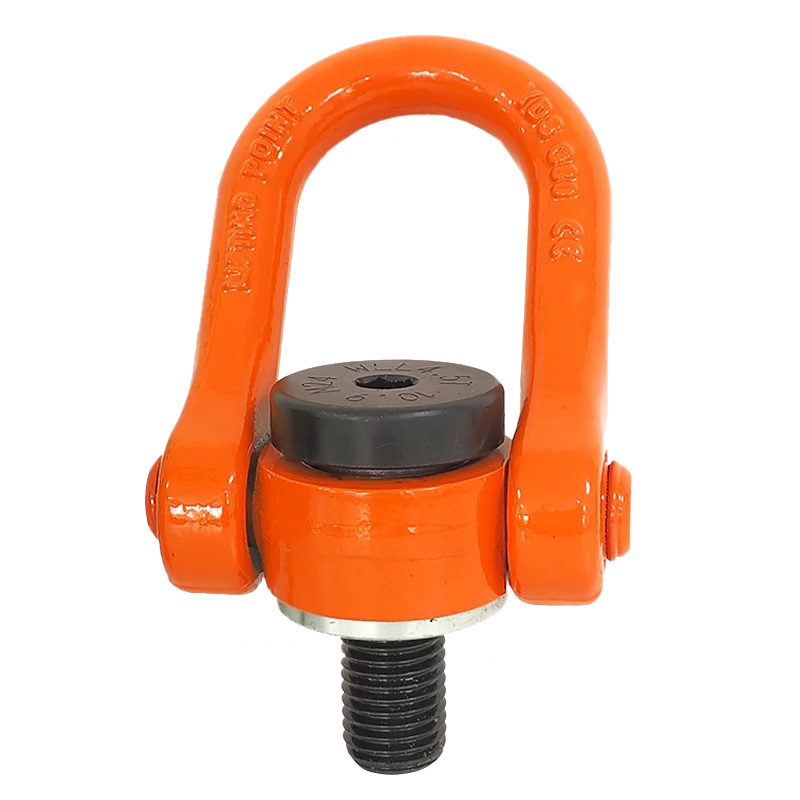

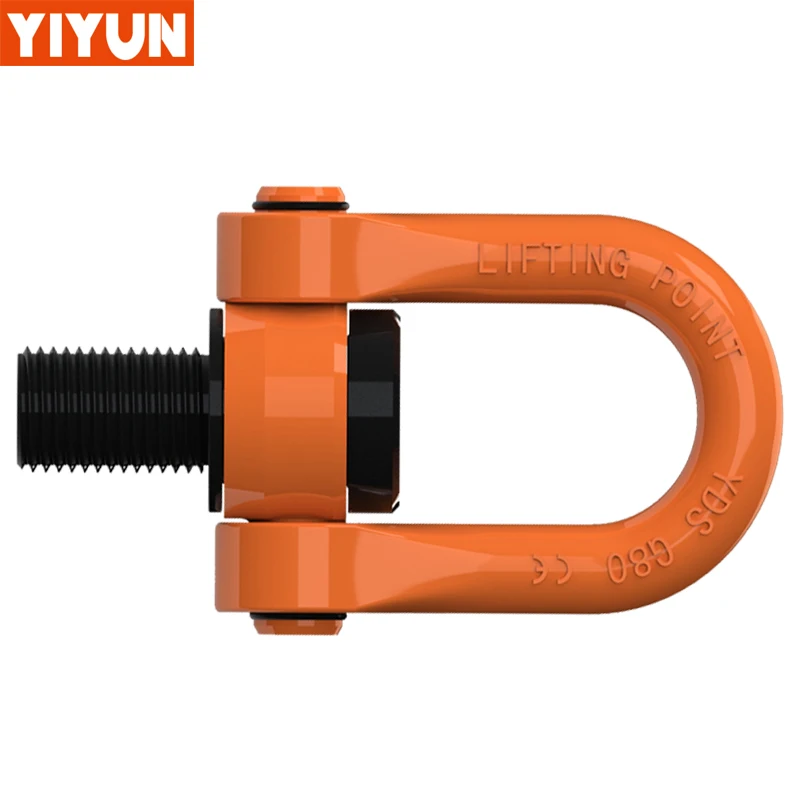

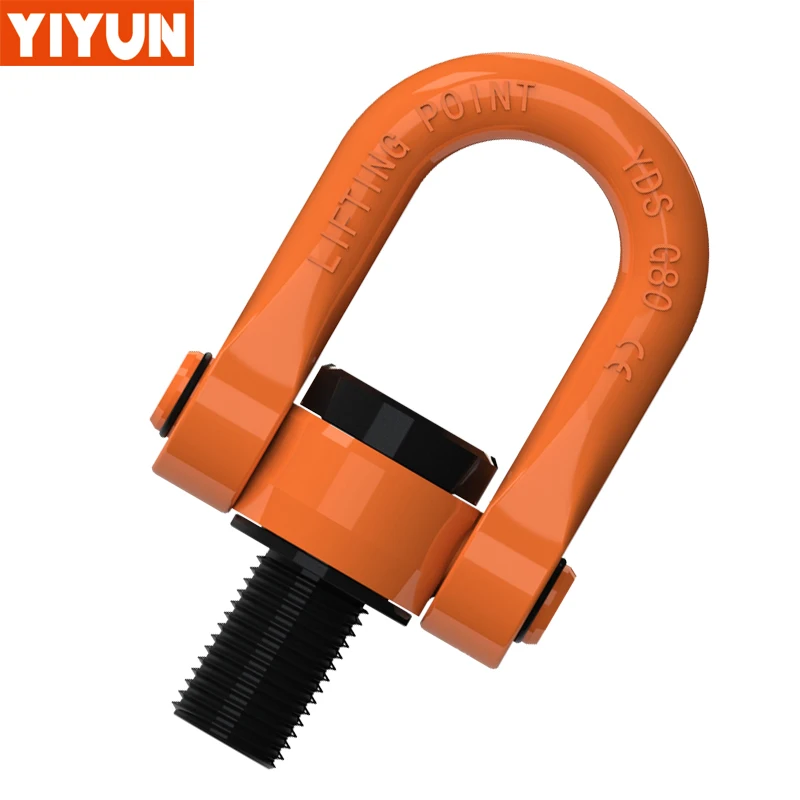

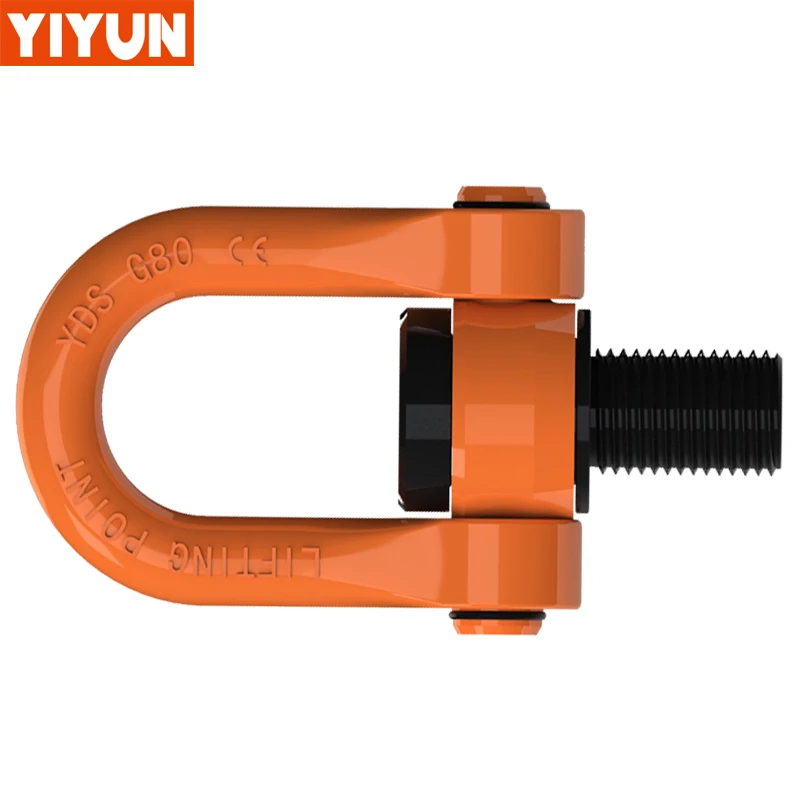

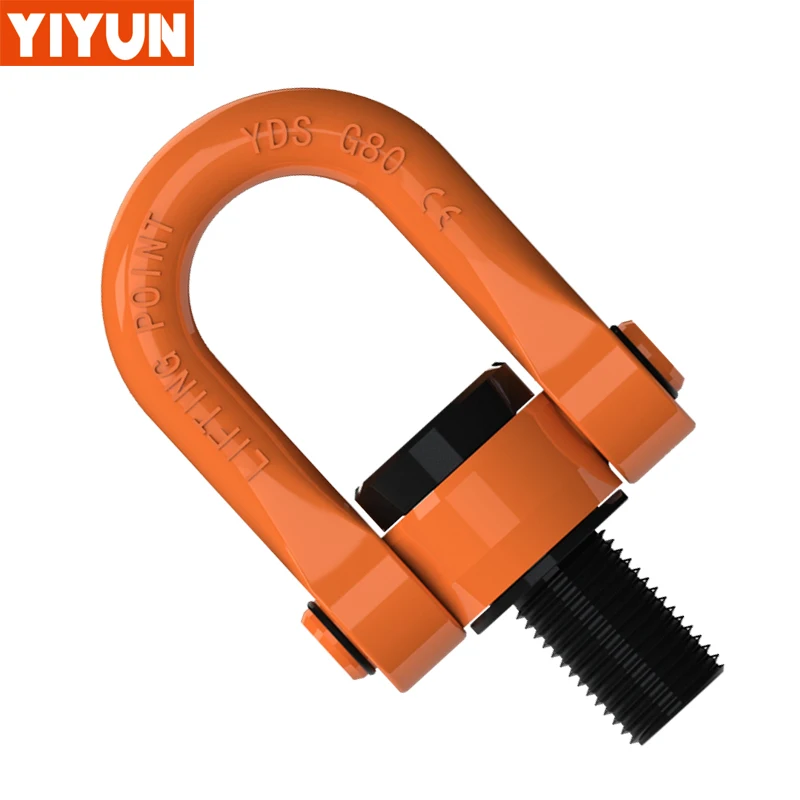

Lifting load lifting point shackle style
- Category: >>>
- Supplier: Tianjin Yiyun Rigging Co. Ltd.
Share on (60665014351):
Product Overview
Description
Product Description
Specification | ||
Material | G80 Forged 42Cr MO alloy steel(2.6times than 45#steel) | |
Size | M8-M64 | |
WLL/KG | 500-32000kgs | |
Color | Red /pink or customization | |
WEIGHT | 0.75-12.8kg | |
Rotating | 360° rotation, 180° Pivot | |
Thread | G10.9 strength, G6 precicion Metric or UNC thread | |
Safety factor | 4:1 | |
Products Show

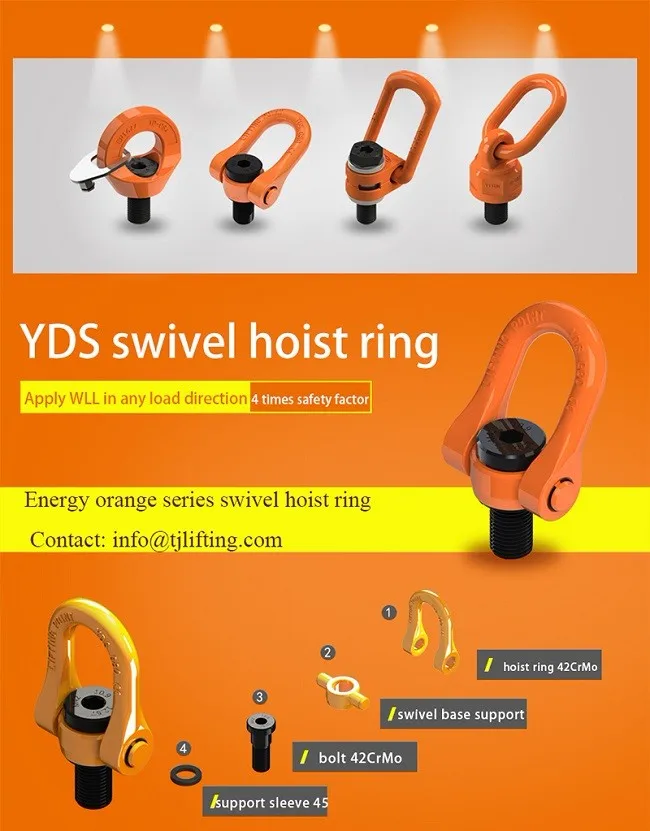

2017 hot sale side pull swivel hoist ring advantage | ||||||

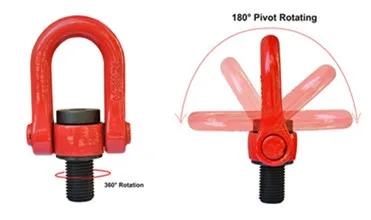

Swivel function | Lifting point are 360° rotation, point to rotate around the axis are 180°. Flip vertical 100% and maximum angle is 90°. | |||||
Inspected | A) 100% individually breakage Inspected with certification, every thread will pass GO - NO GO FIXED GAUGES before packing. B) 200% proof-load tested, with serial number for traceability. C) Fatigue tested at 1.5 times Working Load Limit for 20000 cycles. D) Easily readable raise lettering showing the name and PIC code for material traceability. | |||||

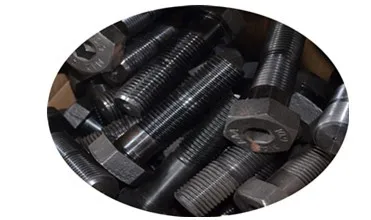

OEM | Customize special length and specification of bolts and thread | |||||
Lifting point are 360° rotation, point to rotate around the axis are 90°. Flip vertical 100% and maximum angle is 90°.
G12.9 strength, G6 precicion
Metric or UNC thread
Treatment of thread surface: black coating, sulfidizing, phosphating and sand blasting
Application
Tool & Die Makers
heavy equipment manufacturing
power/utilities, towing, wind energy and transportation
Factory & Equipment
Factory
Warehouse
Excellent Technique, Reliable Operation
Packing & Delivery
Packing Details : Packing, individual packing, 4pcs/carton
Delivery Details : 15 days after order
1. Protective sleeve for thread
2. one piece in a small box
3. customized packing
4. Customized requirements packing with bubble bag
5. Customized outer carton
6. Use our own truck to sent to Xingang Port safe and fast
Certificate
Customer Photo
Meet our old clients on Shanghai Exhibition!
Clients visit our factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
