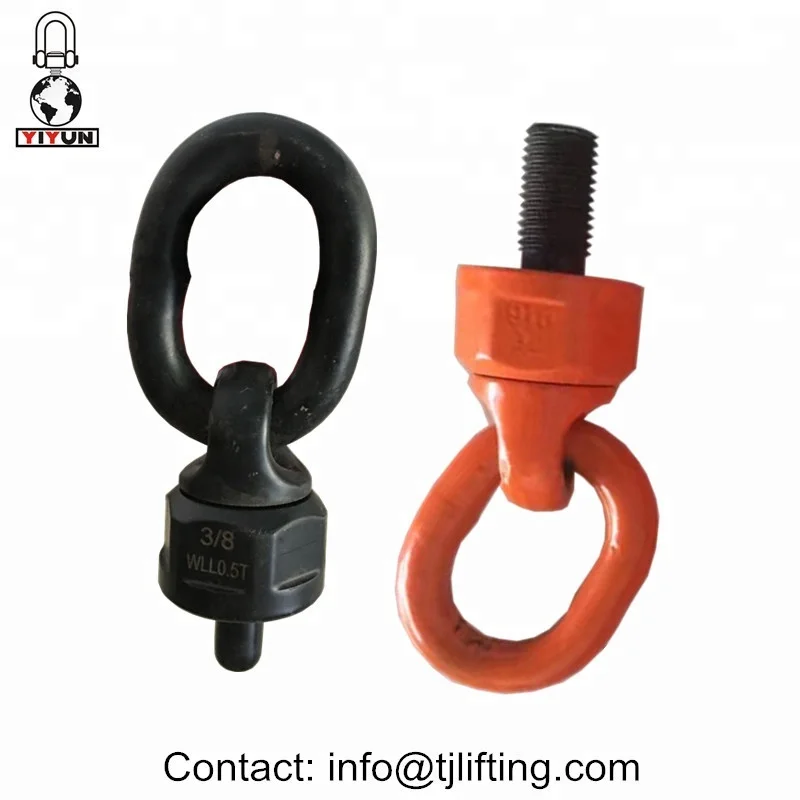

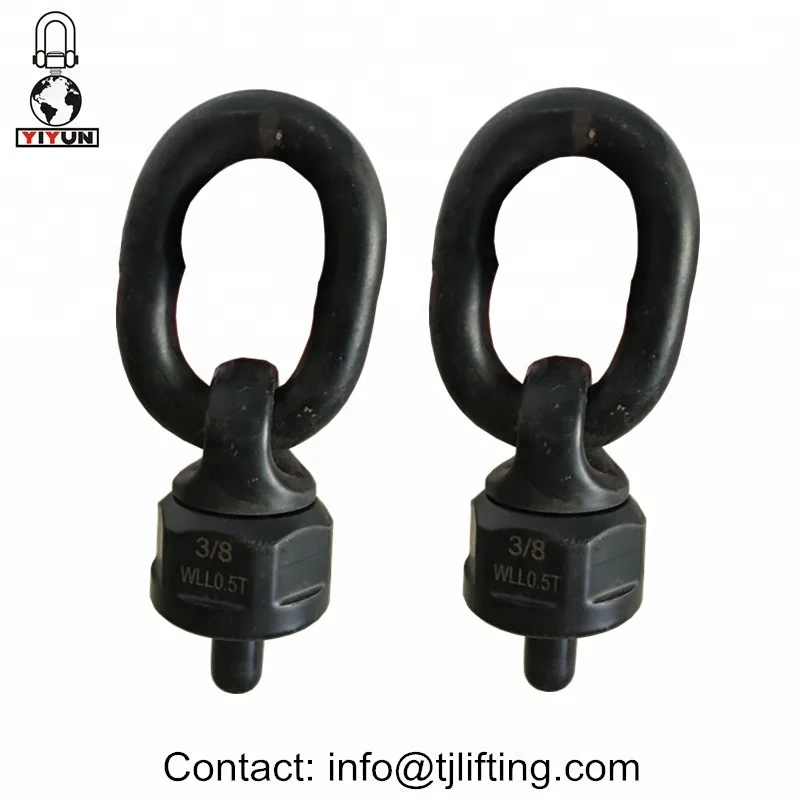

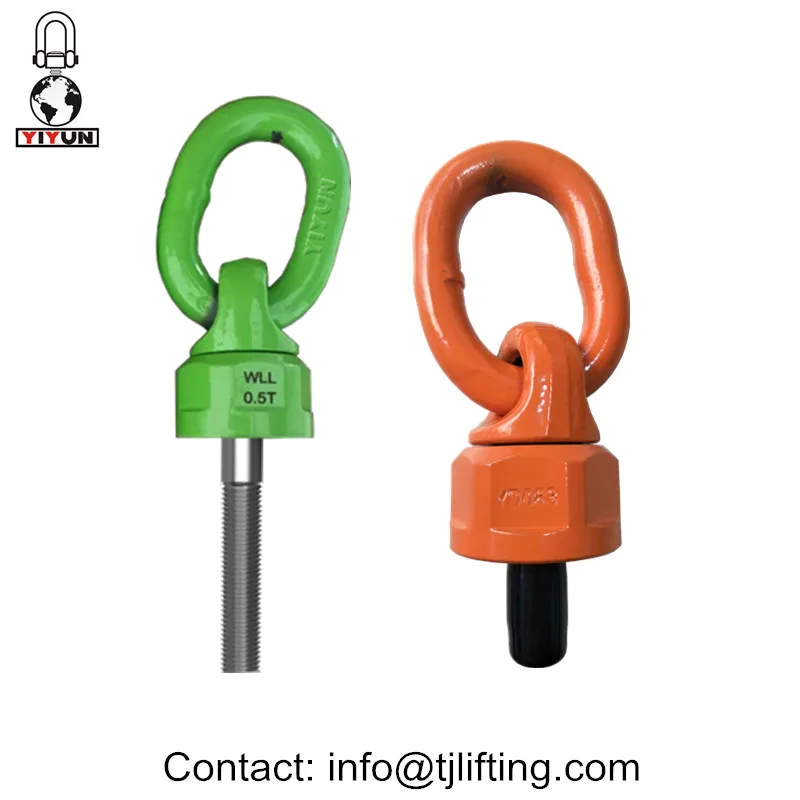

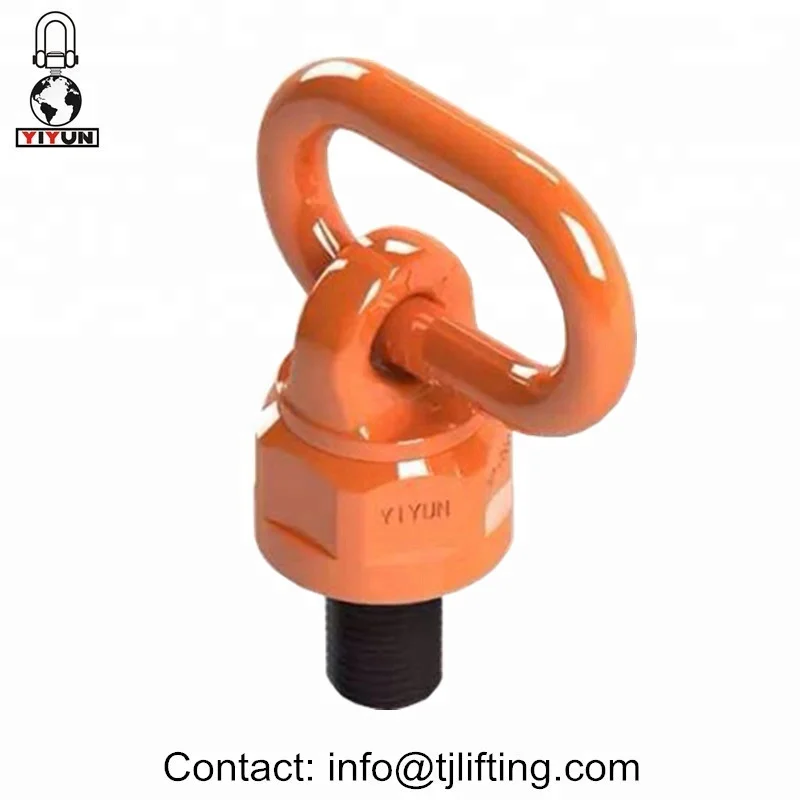

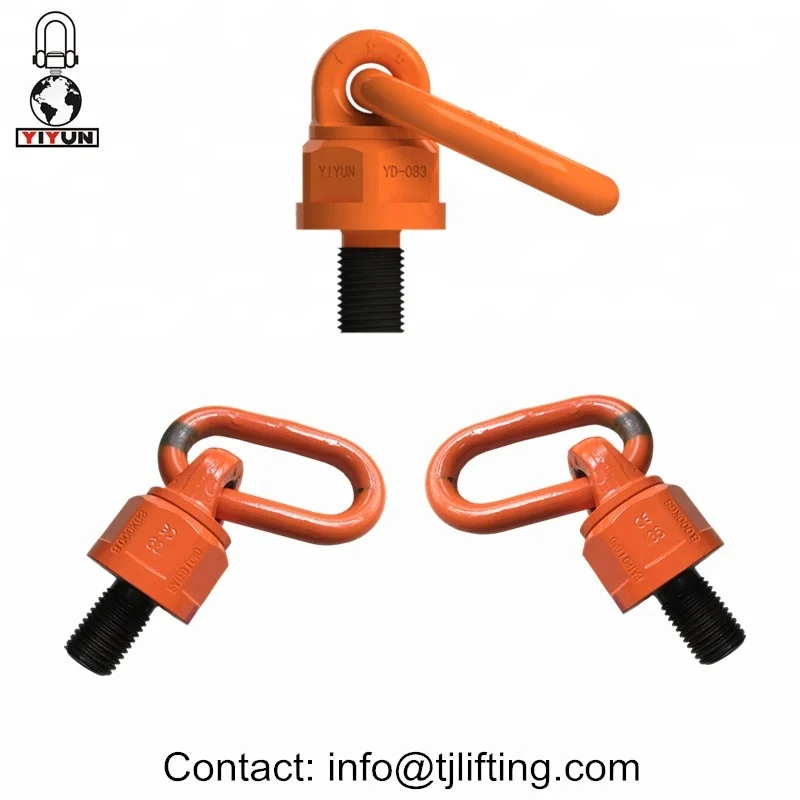

YD083 SAFE pointed lifting points non standard length bolt
YD083 SAFE pointed lifting points non standard length bolt
YD083 SAFE pointed lifting points non standard length bolt
YD083 SAFE pointed lifting points non standard length bolt
YD083 SAFE pointed lifting points non standard length bolt
YD083 SAFE pointed lifting points non standard length bolt
YD083 SAFE pointed lifting points non standard length bolt

YD083 SAFE pointed lifting points non standard length bolt

Share on (60665075990):


Price:$100.00

Quantity:


Product Overview

Description


Product Description
\t
Specification
\t
Material
\t
G80 Forged 42Cr MO alloy steel(2.6times than 45#steel)
\t
Size
\t
M8-M100
\t
WLL/KG
\t
400
\t
Color
\t
Red /pink or customization
\t
WEIGHT
\t
0.41kg
\t
Rotating
\t
360° rotation, 180° Pivot
\t
Thread
\t
G10.9 strength, G6 precicion
Metric or UNC thread
\t
Safety factor
\t
4:1
Products Show
\t
m6 0.3t 360 swivel hoist ring
\t
Swivel function
\t
Lifting point are 360° rotation, point to rotate around the axis are 180°. Flip vertical 100% and maximum angle is 90°.
\t
Inspected
\t
A) 100% individually breakage magnaflux particle Inspected with certification, every            thread will pass GO - NO GO FIXED GAUGES before packing.
B)  200% proof-load tested, with serial number for traceability.
C)  Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
D)  Easily readable raise lettering showing the name and PIC code for material                        traceability.
\t
Other Names
\t
Sling point;attachement point;swivel hoist ring;swivel point;eyebolt with links;eye safety bolt;lifting point;weld eye bolts lifting eye nut;weld on lifting lugs;g80 lifting screw point


Lifting point are 360° rotation, point to rotate around the axis are 230°. Flip vertical 100% and maximum angle is 90°.

Thread Description:

1)G12.9 strength, 6G precicion
2)Metric or UNC thread

3)Treatment of thread can be as equested:

black Oxide, sulfidizing, phosphating and sand blasting;

4)Customize special length and the thread pitch

Application

Tool & Die Makers

heavy equipment manufacturing

power/utilities, towing, wind energy and transportation

Factory & Equipment

Factory

Warehouse

Excellent Technique, Reliable Operation

Packing & Delivery

Packing Details  : Packing, individual packing, 4pcs/carton

Delivery Details : 15 days after order

1. Protective sleeve for thread
2. one piece in a small box
3. 4 boxes in outer carton
4. Customized requirements packing with bubble bag
5. Customized outer carton without our company information
6. Our own truck to Xingang Port for safe and fast delivery.
Certificate
Customer Photo

Meet our old clients on Shanghai Exhibition!

Clients visit our factory

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
