Openbox DVB T2 HD7 with TV SCART

Model

Hardware

CPU

MSTAR-MSD7T01 (128 pin) MIPS 34Kf@600MHz

Memory

MSD7T0 built-in (32X16Mbit  DDR2 Frequency1066)

Flash

32M bit

Demodulator Type

MSD7T0 built-in  Demodulator

TUNER

Rafael R836

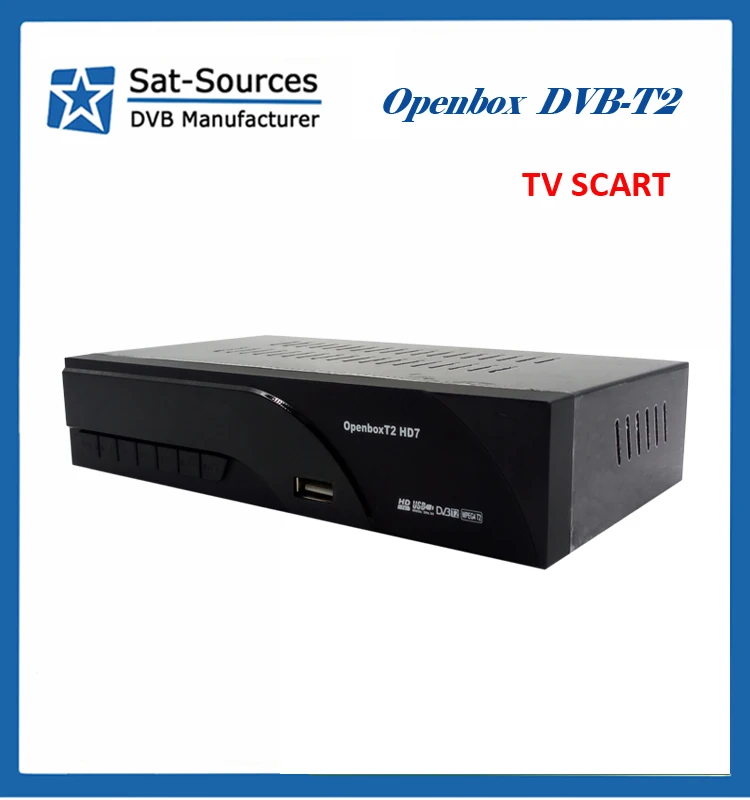

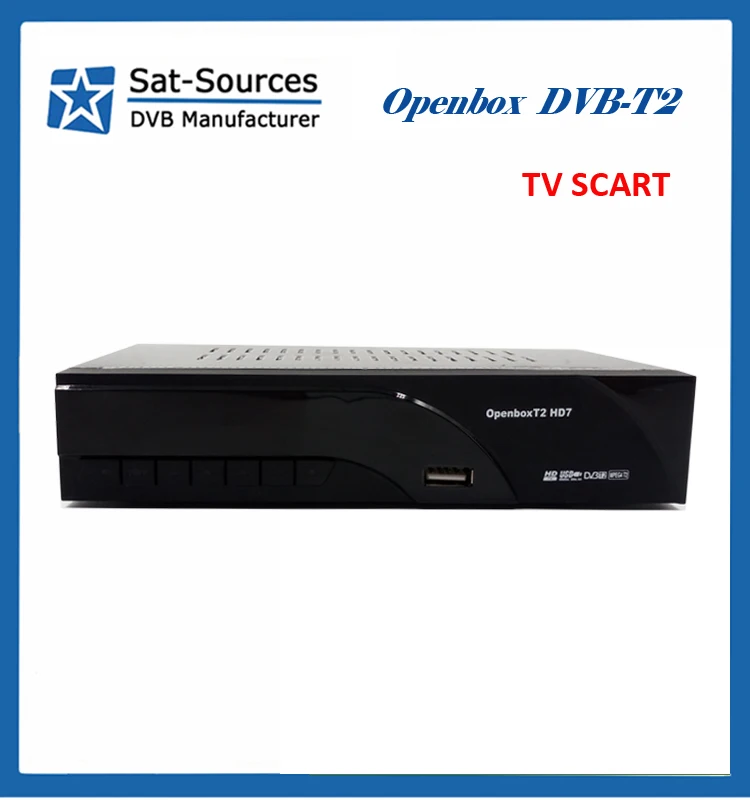

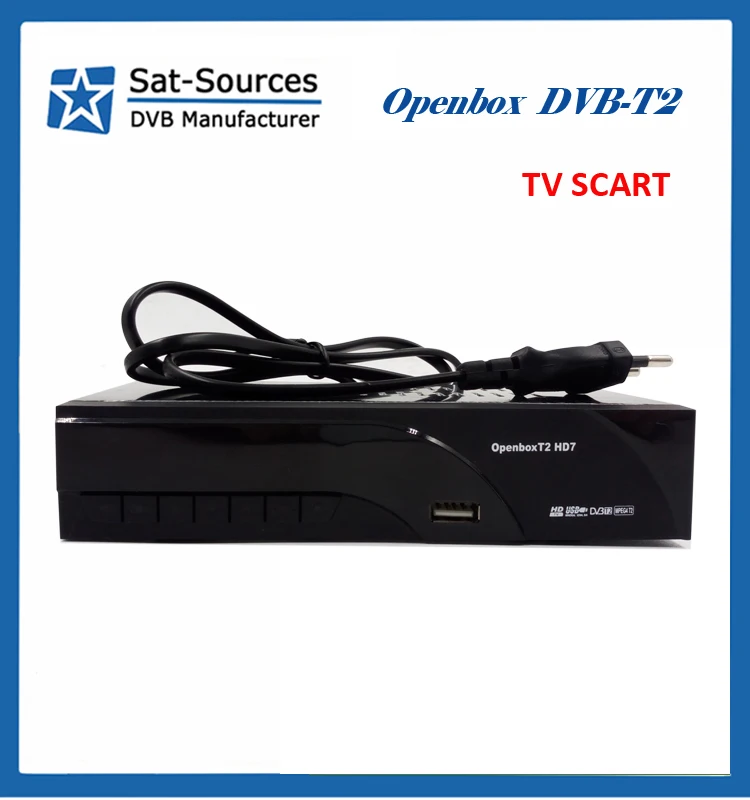

Front Panel

USB 2.0 Embedded One Host,

4-digit LED display on front panel

red LED Standby,green  LED Lock

 Panel KEY, POWER, CH+ ,CH-

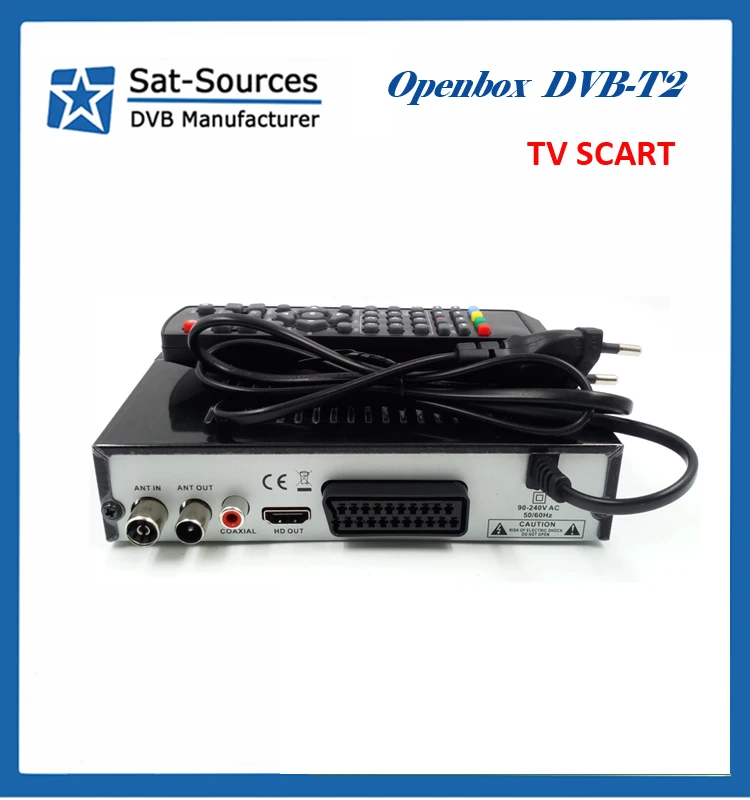

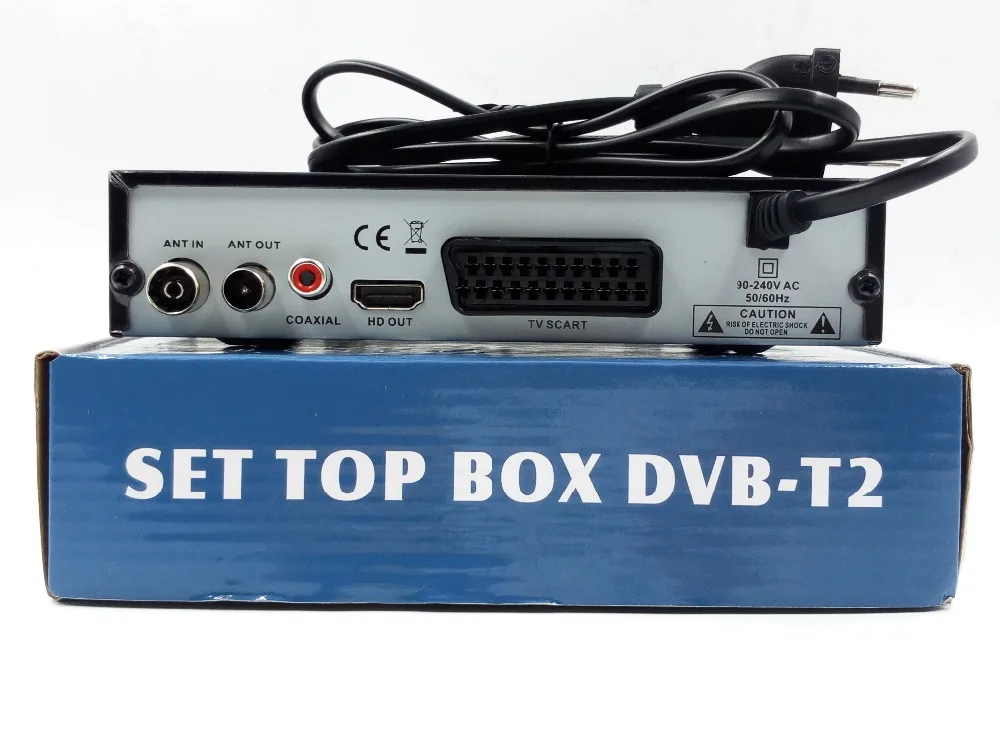

Rear Panel

Tuner RF input connector

IEC-162-2( Female)

Tuner RF Loop through connector

IEC-162-2( Male)

HD  V1.3/V1.4

SCART Connector  x1

Ypbpr RCAx1

Coaxial x1

Power  AC100~240V  50Hz/60Hz

Demodulation

Terrisal Receiver Standard

DVB-T2/T(EN_302755 V1.3.1/EN 300744)

Input RF Frequency

48~866MHZ

Bandwidth

6MHz,7MHz,8MHz

Constellation

QPSK 16-QAM 64-QAM and 256-QAM

FEC

1/2, 3/5,2/3, 3/4,4/5,5/6

Guard Interval

 1/128  1/32  1/16  19/256  1/8  19/128  1/4

FFT Mode

2K/ 8K/32K

Support

Support  Single and multiple PLPS

Input level

 -83 - -5dBm

Sortware Features

•Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard

•The maximum speed of the traffic flow of at least 50 Mbit / sec

•Support 3D interface

•Sleep Timer

•Support teletext/subtitle/muti-language

•Powerful and highly effective 7-day EPG function

•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen

•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

 Decoder

Video Decoder

Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)

Audio Decoder

MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding  HE-AAC 5.1 multi-chhannel decoding

Powerful Multimedia Features

MediaCodec

avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc

Audio Codec

 WMA,MP3,AAC (.wma,.mp3,m4a)

Photo Codec

JPEG, BMP, PNG

  License

Optional  DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx  License.

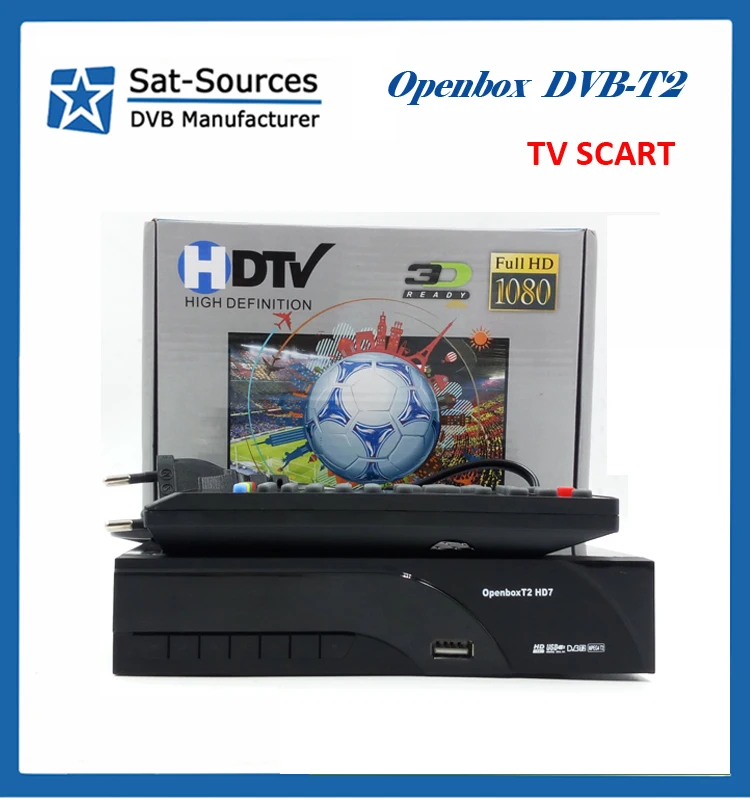

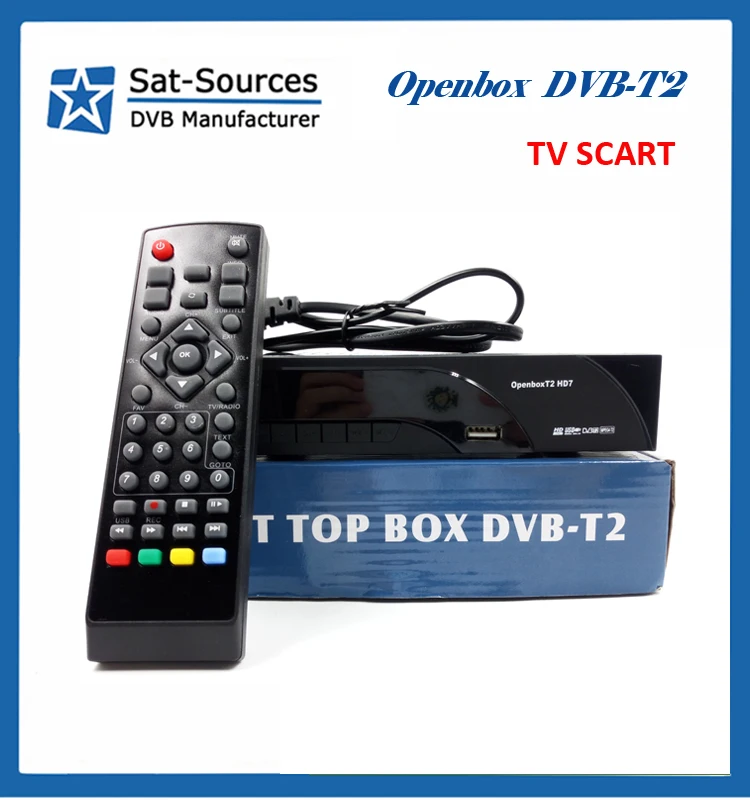

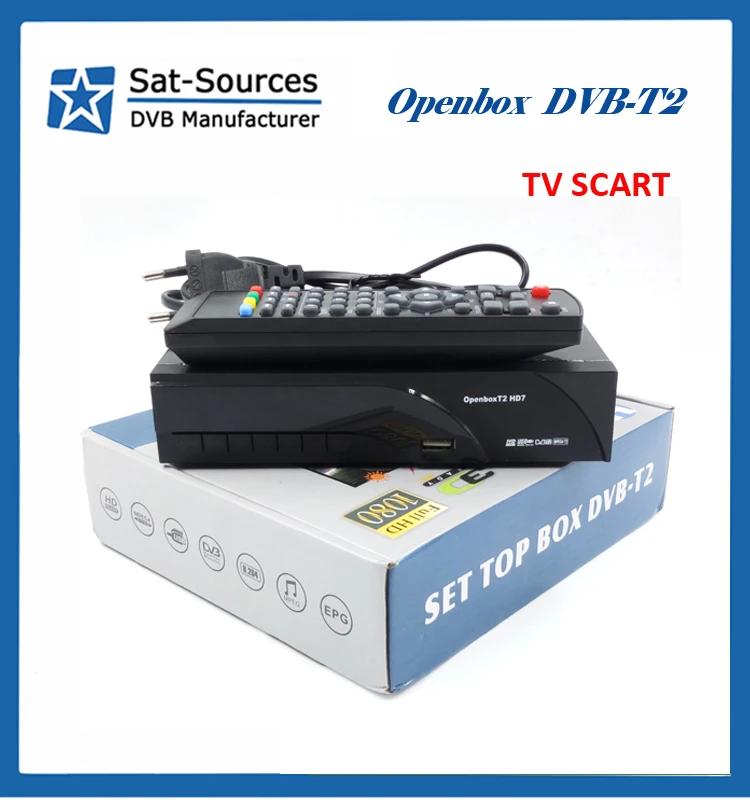

Accessories

Accessories

gift box

AV cable optional

HD cable optional

IR remote control

User Manual

Loading

Loading

machine size

168*95*37mmmm

Packaged size

machine weight

Packaged weight

Loading for 40GP

Loading for 20HQ
