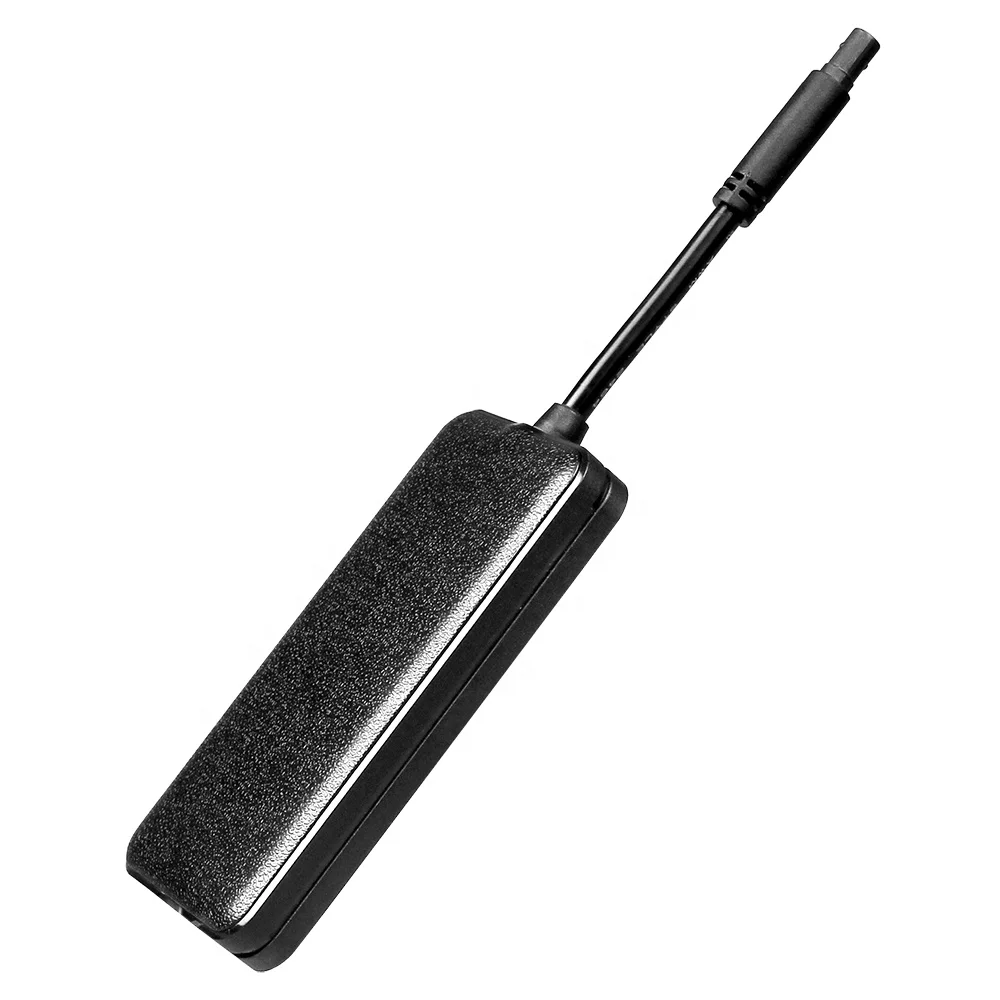

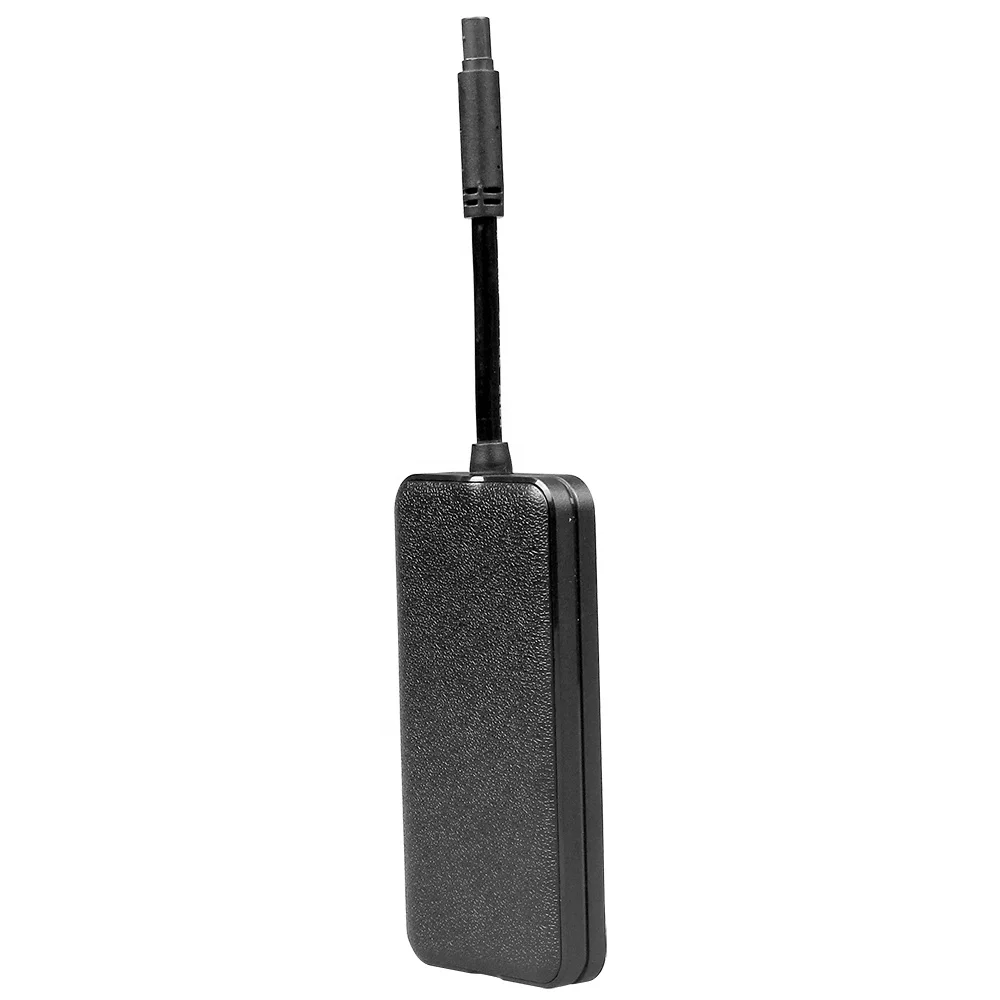

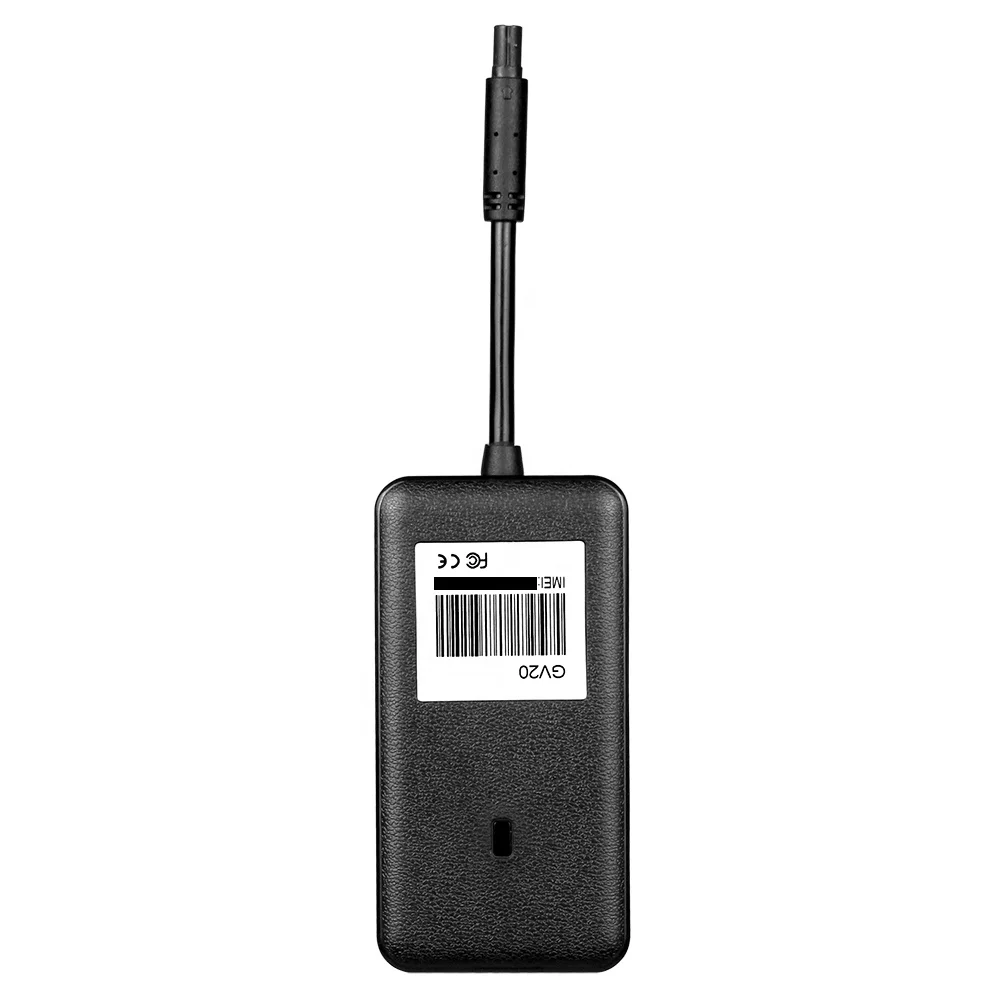

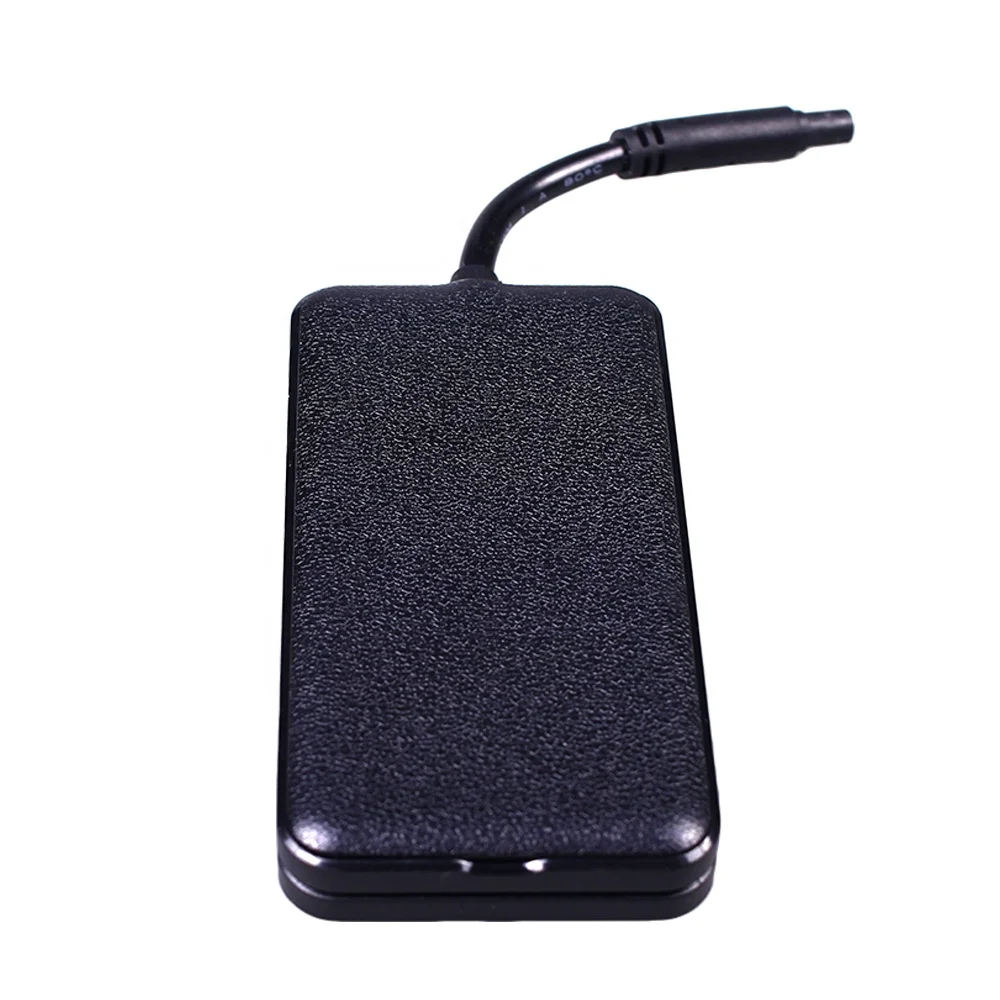

JIMI GV20 3G Basic gps tracker with relay and ACC detection
- Category: >>>
- Supplier: Shenzhen Jimi IOT Co. Ltd.
Share on (60665101111):
Product Overview
Description
JIMI Fleet Management Solutions
Optimize your fleet and keep costs down
Dynamic growth of automotive branch enables greater access to means of transport. Most companies have, smaller or larger, vehicle fleet to carry out various tasks. Understanding costs related to the vehicle maintenance, fuel consumption, driver performance, insurance and service is an important function for any business.
HARDWARE
GV20 Multi-functional 3G Vehicle GPS Tracker
GV20 is a fully-featured, highly competitive and cost-effective 3G multi-functional GPS tracker developed for a vehicle, motor, and bus tracking. It offers you crystal clear real-time tracking details, including location, route, flashback, etc., even in a tough environment. It supports remote fuel/power cutoff and gives you insight on ignition status. Wherever you go, its instant alert notifications allow you to react accordingly and immediately.
Features:
●WCDMA & GSM
●GPS+AGPS tracking
●Tamper alert
●ACC detection for ignition status
●GPS+AGPS tracking
●Tamper alert
●ACC detection for ignition status
●IP65 dust and waterproof
●Remote cut-off (petrol/power)
●Configurable tracking modes
●Alert for vibration, overspeed, power off
Specifications:
GSM Specification | ||
Communication system | WCDMA/GSM | |
Frequency | WCDMA 850/900/1900/2100MHz GSM 850/900/1800/1900 MHz | |
GPRS | Class 12, TCP/IP | |
Memory | 32+32Mb | |
Phase error | RMSPE<5,PPE<20 | |
Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3dBm | |
Max frequency error | ±0.1ppm | |
GPS Specification | ||
GPS chipset | Ublox | |
Frequency | L1,1575.42MHz C/A code | |
GPS channel | 66 | |
Location accuracy | <10 meters | |
Tracking sensitivity | -162dBm | |
Acquisition sensitivity | -148dBm | |
TTFF (open sky) | Avg. hot start ≤1sec | |
Avg. cold start ≤32sec | ||
Others | ||
LED indicator | GPS(blue), GSM(green), Power(red） | |
Battery | 400mAh/3.7V | |
Standby current | 5mA/12VDC | |
Working voltage/current | 9-90VDC/31mA(12VDC),19mA(24VDC) | |
Operating temperature | -20℃～ 70℃ | |
Dimension | 88(L)*45(W)*13(H)mm | |
Weight | 60g | |

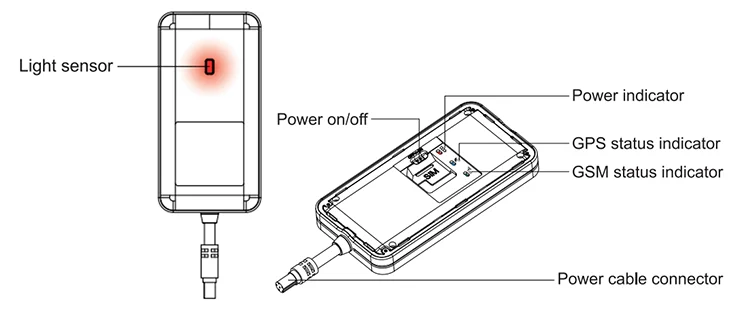

Appearance:
Certificates:
CE FCC IP65
SOFTWARE
Tracksolid (www.tracksolid.com)
COMPANY PROFILE
JIMI IOT
As a leading provider of IoT Solutions, Jimi is passionate about the design, intelligent manufacture, sales and operation of Intelligent Security Products & Solutions. Over the past 20 years, our solutions and products have been widely praised by the customers from 150+ countries and regions to help customers add value in intelligent security industry.
Our Team
We have 6 R&D Centers，600+ experienced engenieers，260+ invention patents，totally 2000+ employees.
Our Smart Factory
Automated factory is at the heart of Jimi's product manufacturing. Jimi is determined to provide ever more valuable support to the partners worldwide through the optimization and refinement of all aspects of our own business.
SMT Error Avoidance System
MES
Unattended Warehouse
You name it, we make it!
Provide customized services to achieve customers’ requests from ideas to reality.
Customers & Partners
We has expanded our business to 150+ countries and worked with exclusive/vip distributor in 20+ countries.
