BLACK DPC Polythene Waterproof DPC: damp proof courses

Share on (60665157558):


Price:RUB 33.91

Quantity:


Product Overview

Description



Product Description

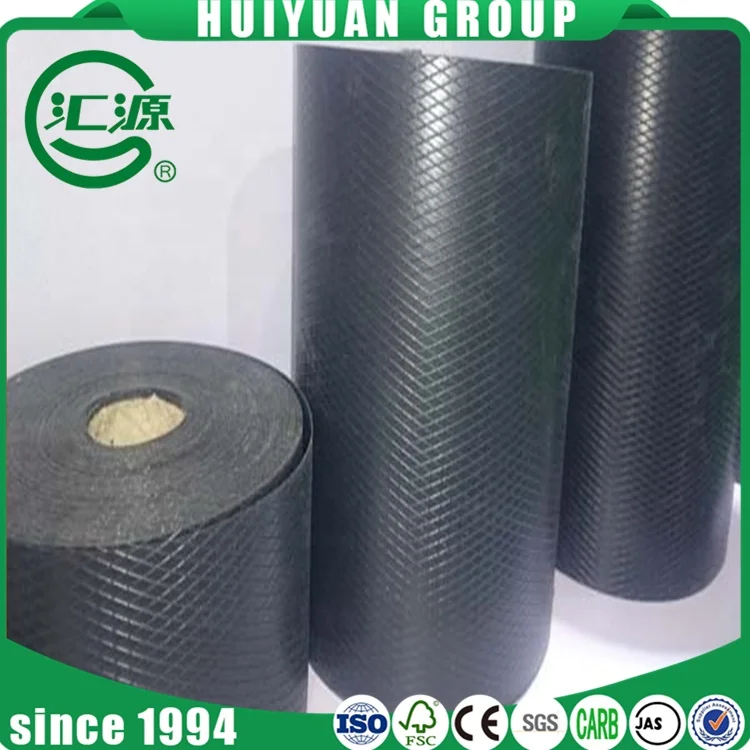

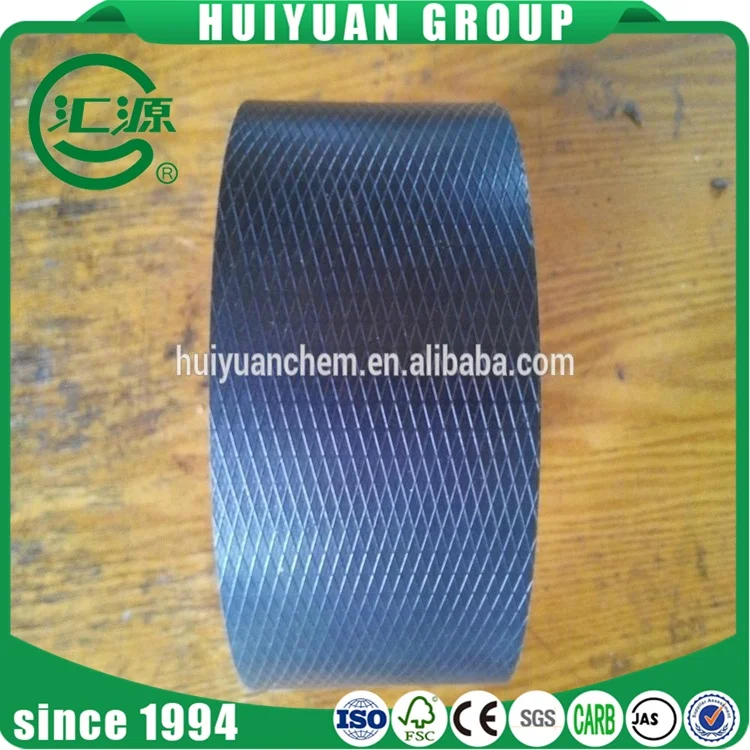

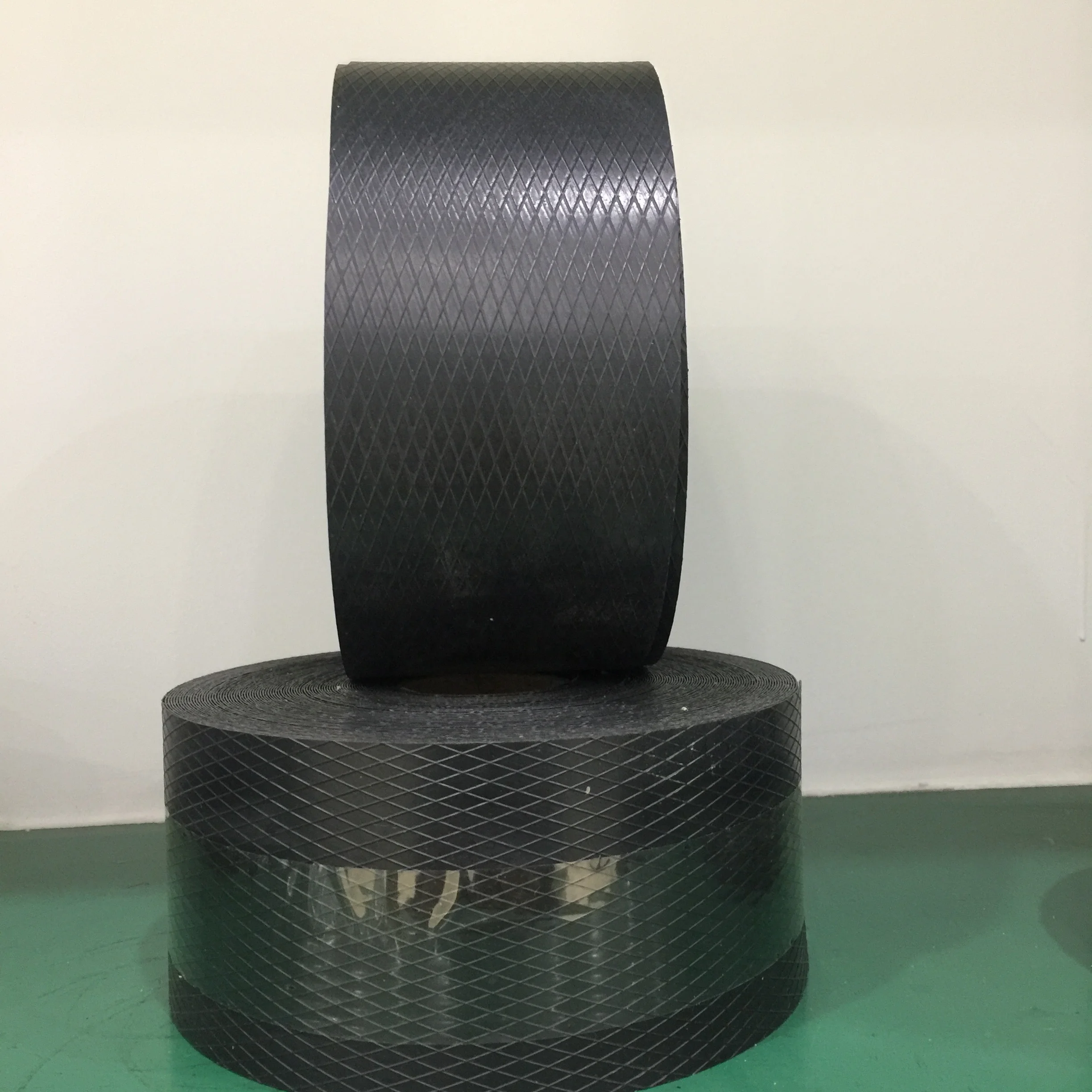

BLACK DPC Polythene Waterproof DPC: damp proof courses



is a thick, black polyethylene strip with an embossed surface that is used as a dampcourse material

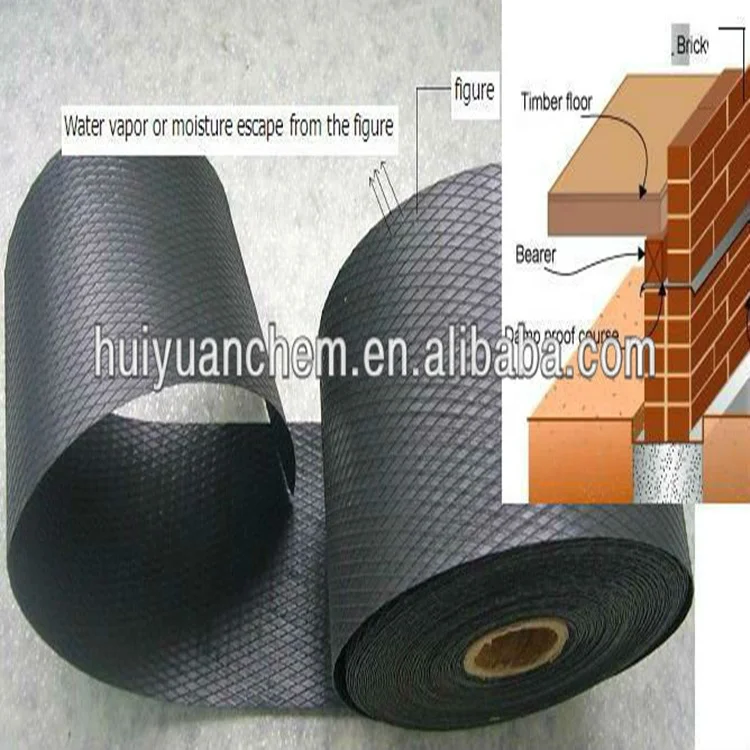

A damp proof course ( DPC ) is a physical barrier inserted into the fabric of a building to stop water passing from one place to another. This can be on a horizontal plane, stopping water rising up from the ground by being sucked up by the dry masonry above, or vertically to stop water passing from the outside of a building, though the masonry, to the inside. DPC's have taken many forms through the ages and one of the earliest forms was to use a layer of slate in the construction. Slate is still used but the less expensive plastic version ( below right ) is now more widely used.



Damp Cor – Polythene Dampcourse Flashing

size details

110mm wide x 500um x 30m
150mm wide x 500um x 30m
230mm wide x 500um x 30m
300mm wide x 500um x 30m
380mm wide x 500um x 30m
450mm wide x 500um x 30m



Technical Specification of DPC

Water Vapour Permeability

0.28 gm2 day-1

BS3177

Water Vapour Transmission

733 MNsg-1



Water Absorption

0.22%

BS2782 : 430A

Resistance to Leakage at Joints

PASS

MOAT 27 : 5.2.1

Tensile Strength of Joint

UNAGED : 300 N
HEAT AGED : 290 N
WATER SOAK : 257 N

MOAT 27 : 5.2.2/3/4

Cold Flex Temperature

−60°C

BS2782 : 320A

Tensile Strength

L : 12.9 Nmm-2
T : 11.2 Nmm-2

BS2782 : 320A

Elongation at Break

L : 415%
T : 582%

BS2782 : 320A

Tear Strength

L : 122 Nmm-1
T : 96 Nmm-1

BBA Method

Low Temperature Flexibility

L : <−25
T : <−25

MOAT 27 : 5.4.2

Dimensional Stability

L : −2.0%
T : −0.3%

MOAT 27 : 5.1.6

Mortar Adhesion Test

PASS

Cream Method

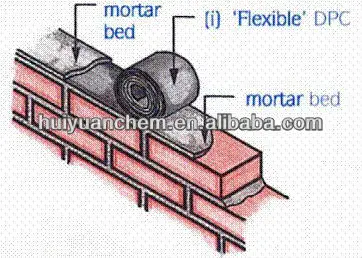

black poly damp proof course

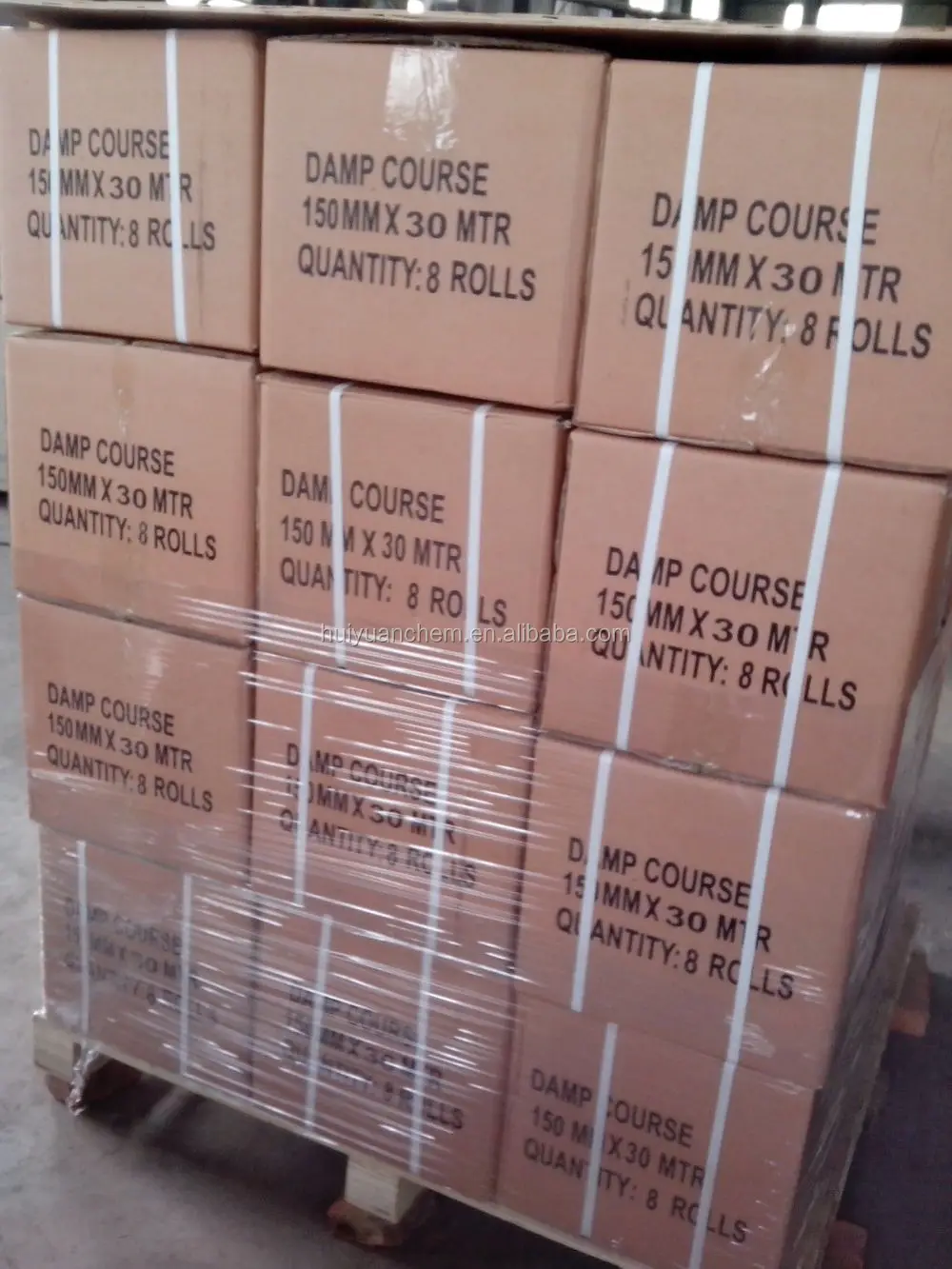

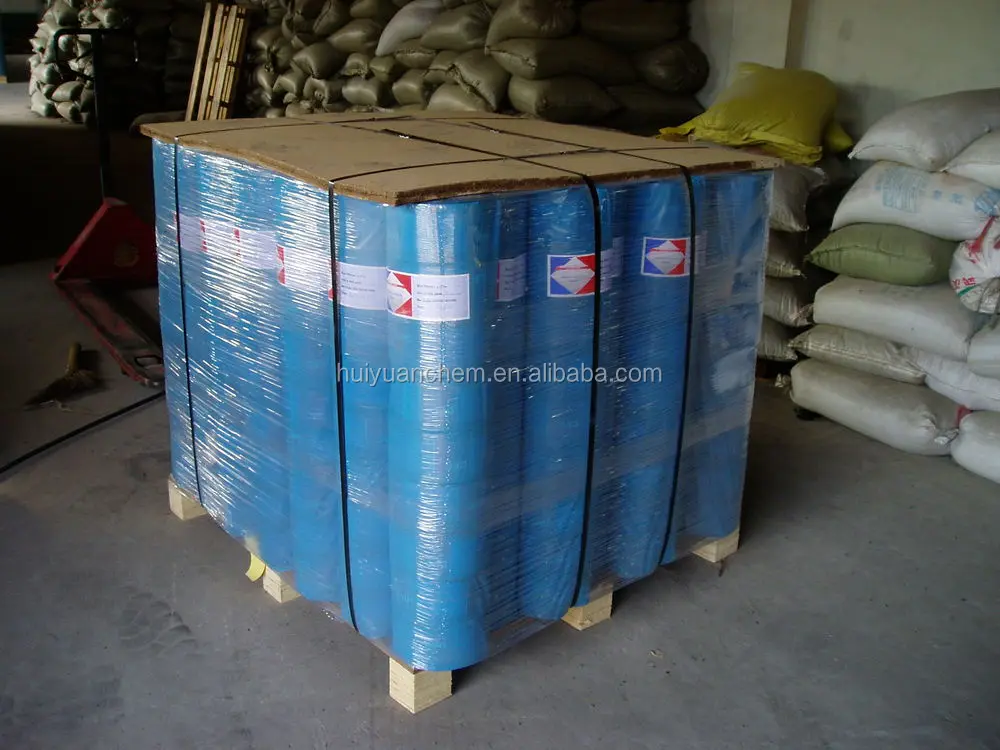

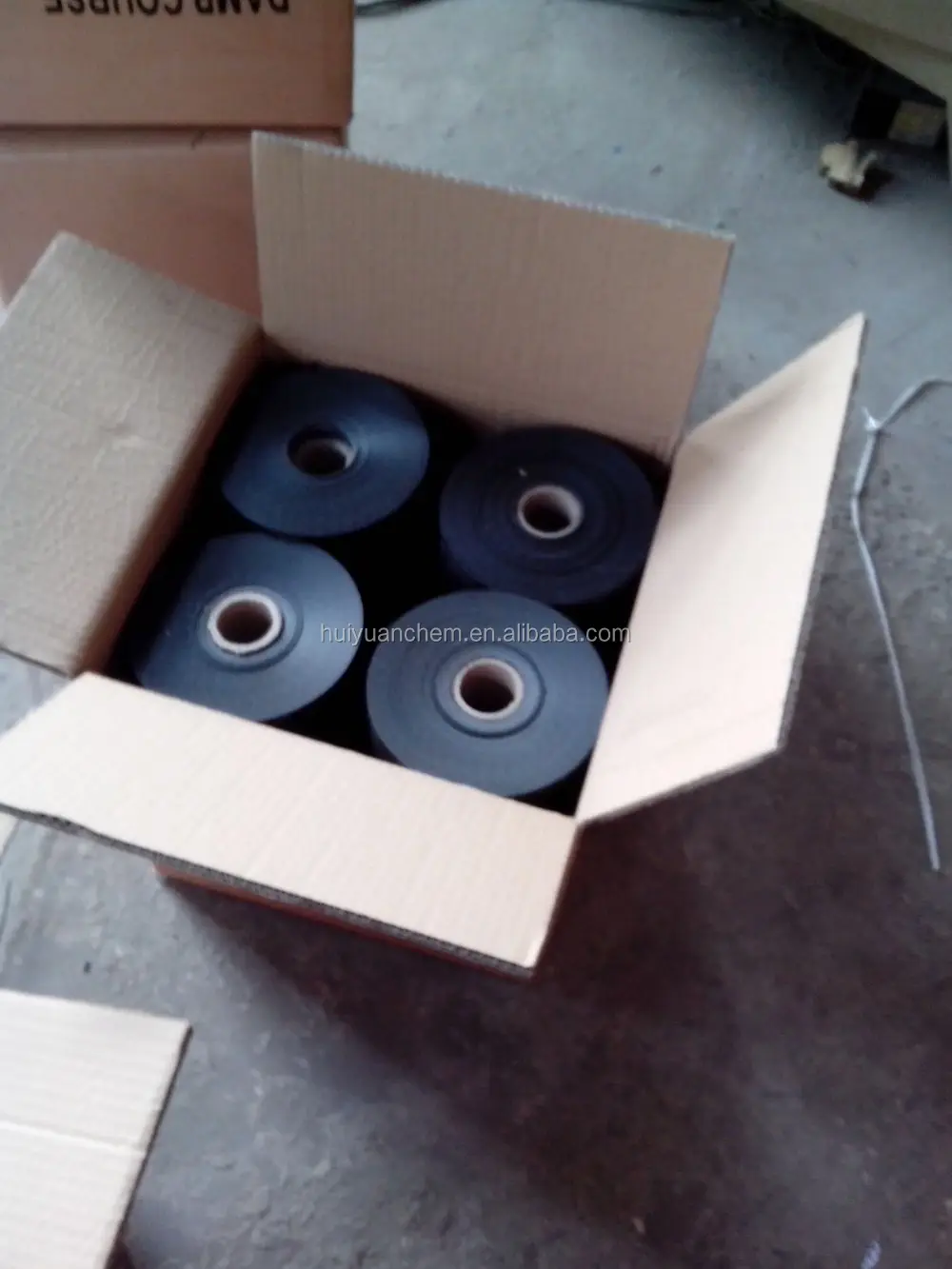

Packaging & Shipping



Sizes available



110mm x 30m /50m roll

150mm x 30m /50m roll

230mm x 30m /50m roll

300mm x 30m /50m roll

380mm x 30m /50m roll

450mm x 30m /50m roll

600mm x 30m /50m roll










Company Information

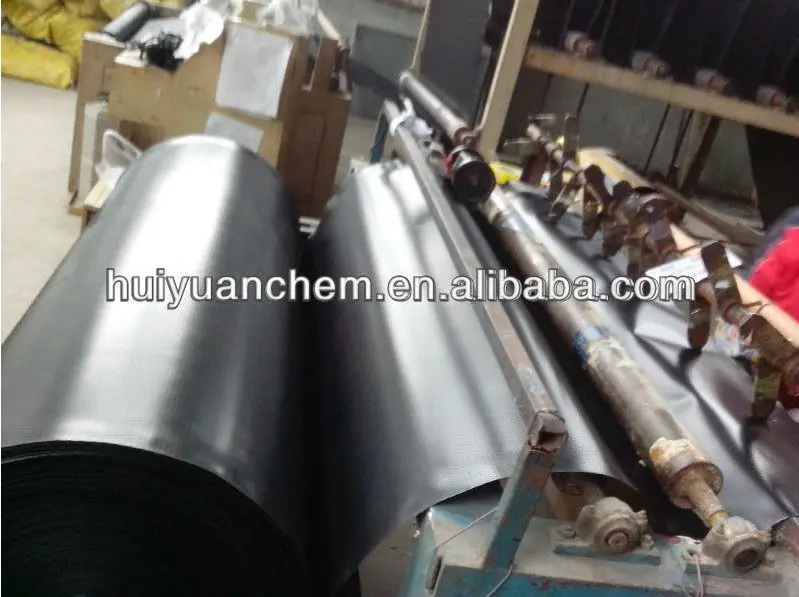

QQ20130822161010

_Damp_proof_membrane[1]

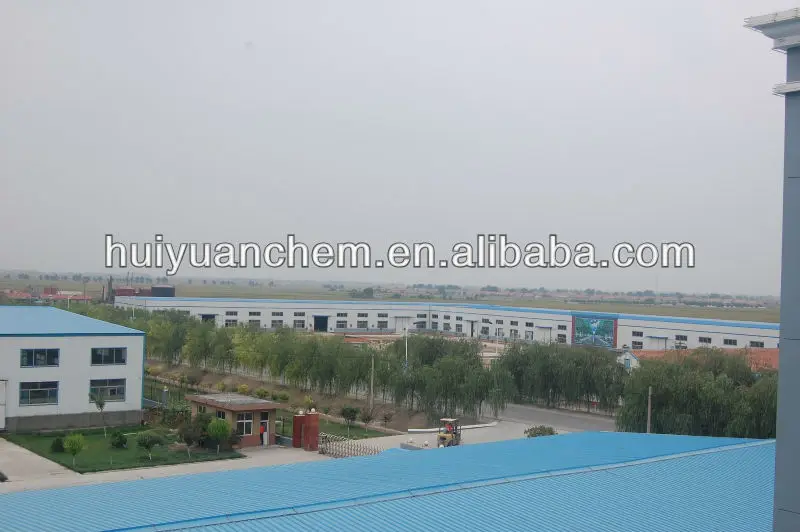

DSC_0208DSC_0264









Our Services





 Sample is free of charge.





Reasonable Price, Excellent Quality & Attentive Service



The delivery time is about 15-20 days after receiving the deposit.



We offer not just excellent products but service and market solutions.



Welcome to visit our homepage or contact with us for more information. Thank you.



Sizes available



110mm x 30m /50m roll

150mm x 30m /50m roll

230mm x 30m /50m roll

300mm x 30m /50m roll

380mm x 30m /50m roll

450mm x 30m /50m roll

600mm x 30m /50m roll

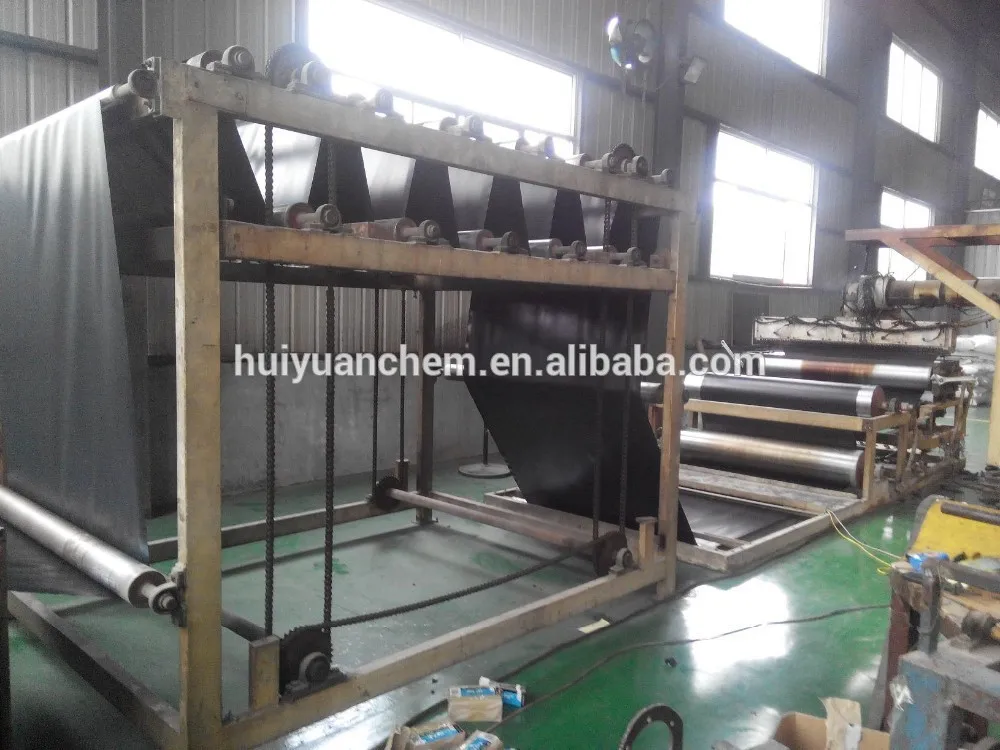

manufacturer_BLACK_DPC_Polythene_Waterproof_DPC_damp (1).jpg
