Vanadium trioxide graphite auger precompression high mechanical pressure double roller hydraulic powder compressing machine

Product Overview

Description

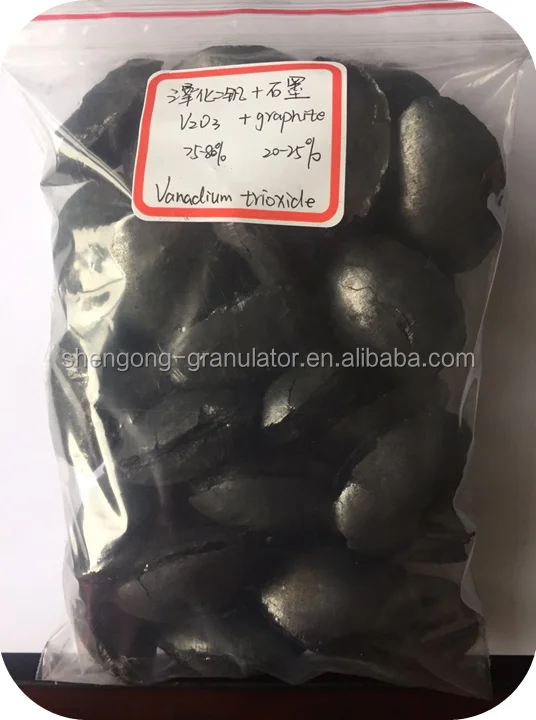

Vanadium trioxide & graphite compacted

Dry roller compaction (powder compressing machine) is the best granulation process for materials sensitive to moisture and heat. Unlike wet granulation processes, which require liquid binders, alcohol solvents and high temperature drying, our roller compaction is free of these additional ingredients and energy requirements. The end result is a higher quality, consistent granule—usually at a lower cost.

In addition to high quality and consistency, dry roller compaction produces granules that are:
** More durable, for improved crush strength.
** Roll compaction produces consistent, irregular-shaped granules that "interlock" to reduce product stratification during shipping and handling.
** Highly flowable powders compared to powders that bridge and cake.
** Sized specifically to meet your precise product requirements. Roller compaction offers control and range of granule size.
** Dust free to prevent cross-contamination in the next stage of production. By converting your raw material to granule form, you greatly minimize dust that can cause health and production problems while decreasing maintenance costs.
** Easily handled, transported and stored because of increased bulk density and flow properties.

Powder compressing machine specs.and models (taking SOP fertilizer for example, final products are No. 6 in the following 2nd pic.)

Type Item	SG-240A	SG-360A	SG-500A	SG-600A	SG-650A
Roller dia. (mm)	Φ240	Φ360	Φ504	Φ600	650
Roller width (mm)	80/120/160	180	300	310	330
Roller speed (r/min)	5-35	3-26	14-20	12-18	10-16
Power of screw feeder (kw)	4	7.5	11	11	15
Pre-pressure of accumulator (Mpa)	5	6	8-10	8-10	10-14
Max. linear pressure  (kN/cm)	65	65	70(75)	70(75)	70(75)
Thickness of products before crush (mm)	2-6	6-8	10-12	12-14	14-16
Compacting productivity (t/h)	0.8-2	2.5-3	6-8	8-10	10-12
Final output (kg/h)	200-600	1000-1200	2500-3000	3000-3600	3500-4500
Granularity (mm)	1-5	1-5	1-5	1-5	1-5
Power of compactor (kw)	11	30	75	90	110
Installed capacity (kw)	35	50	109	125	165
Dimension (l*w*h) (mm)	1850*1500*1650	2350*2000*2400	3650*2250*2500	3660*2450*2700	4000*2600*3300
Total weight (t)	7-8	10	20-21	25-26	32-33
Delivery time(d)	15	25	30	60	60

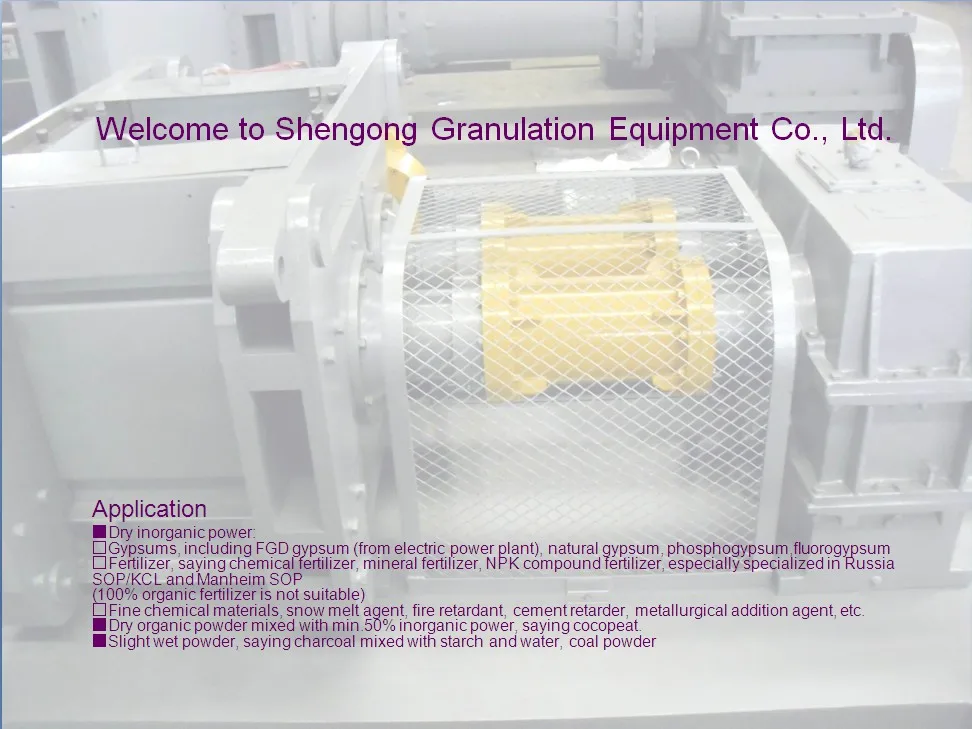

Powder compressing machine applications

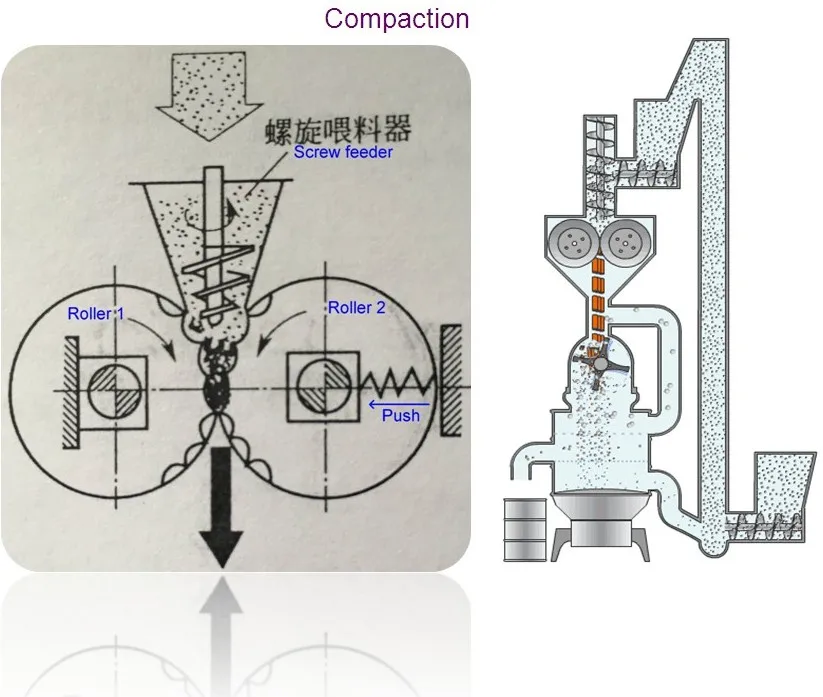

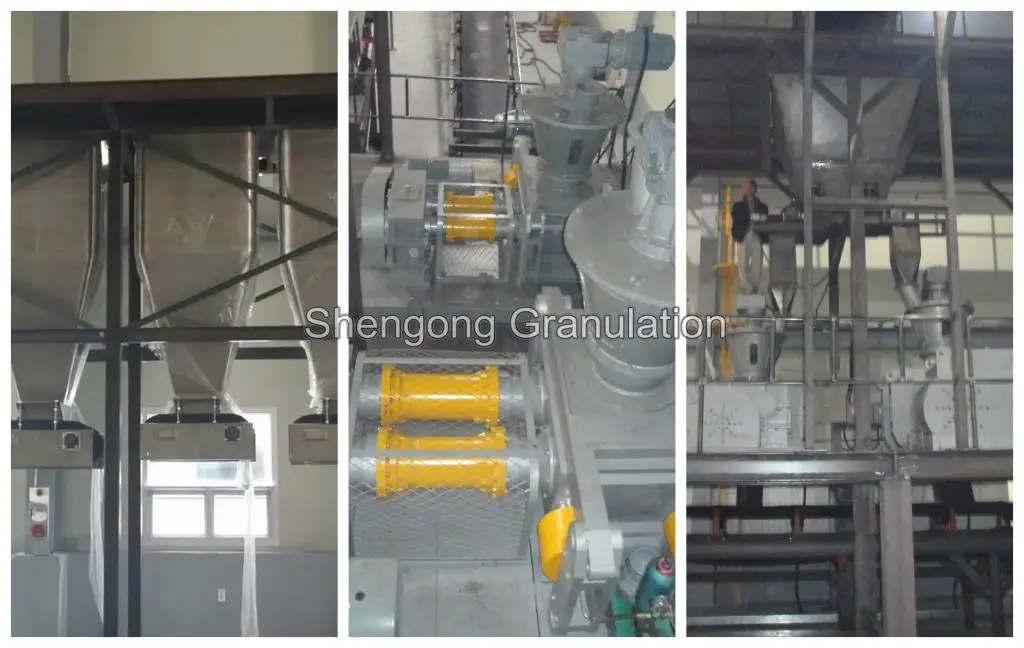

Powder compressing machine production line and principle

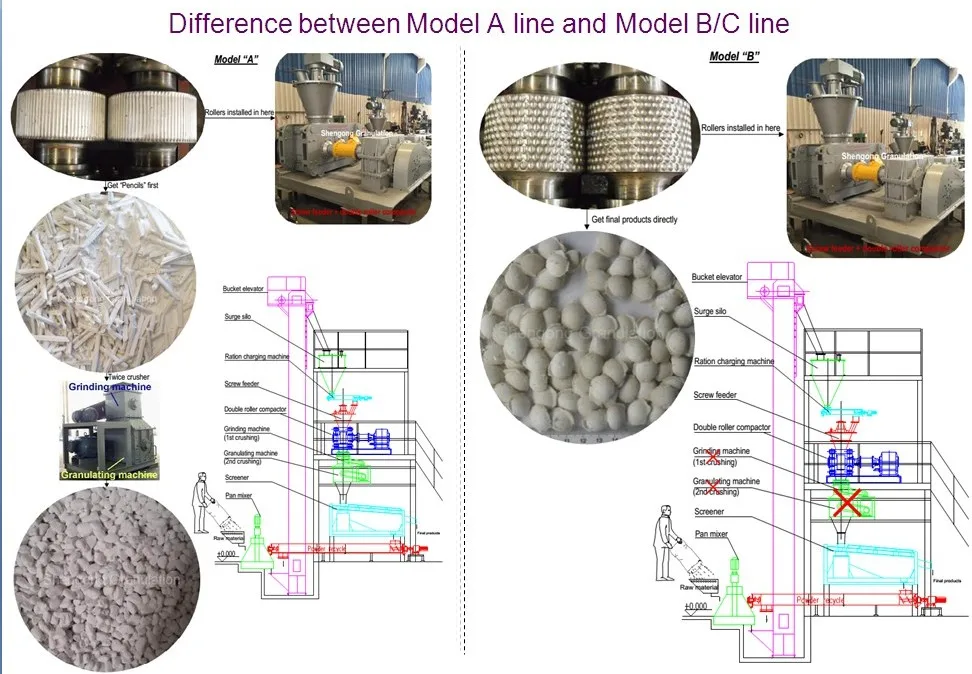

Difference between Powder compressing machine Model A and Model B

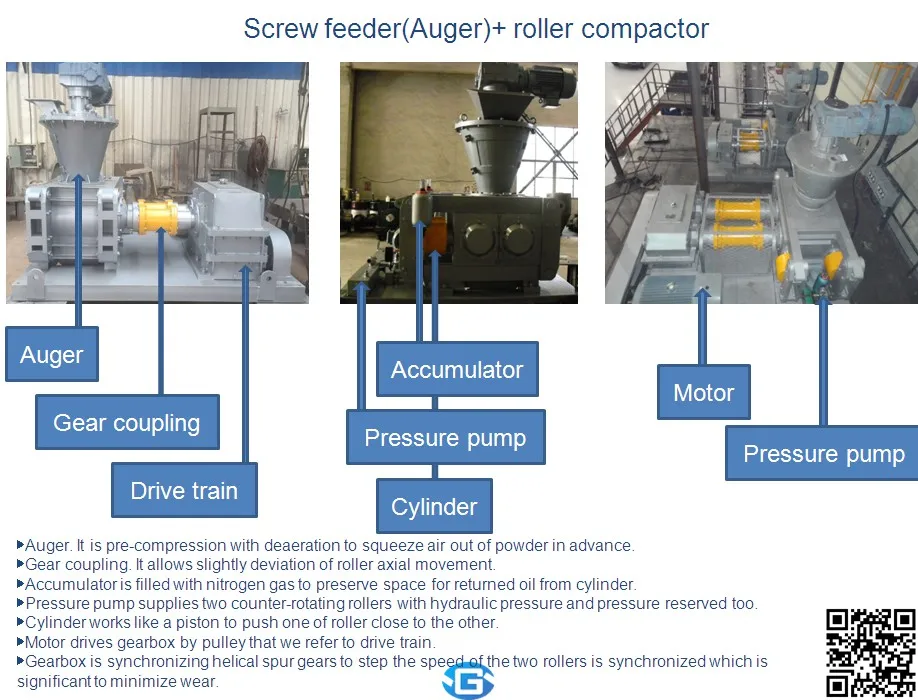

Powder compressing machine consists of screw feeder and double counter-rotating rollers

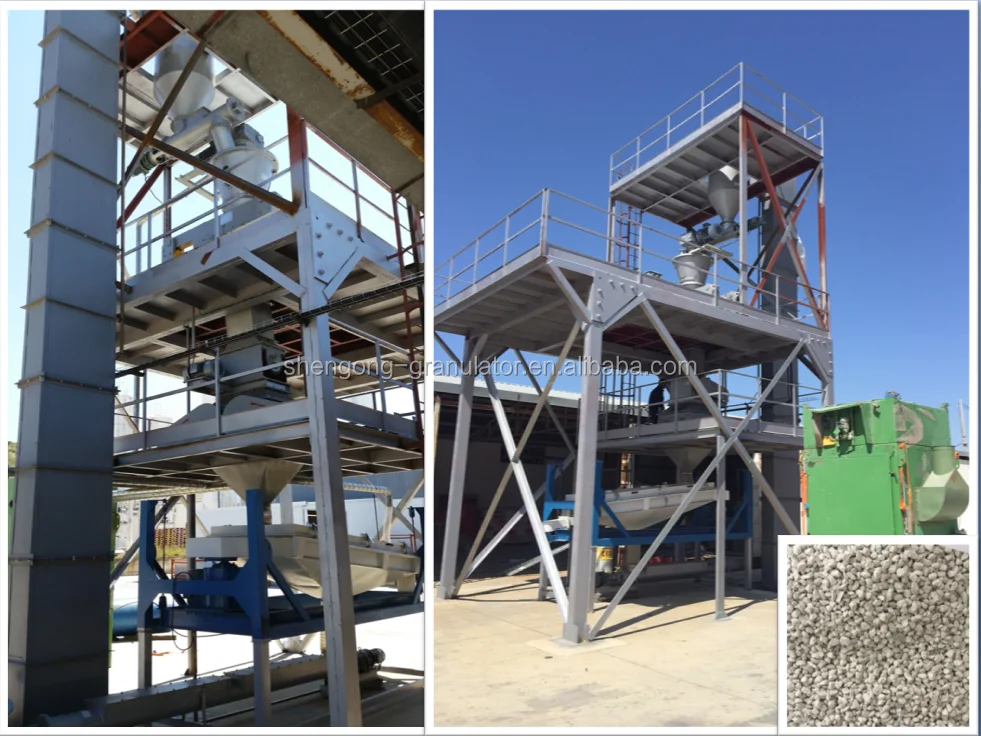

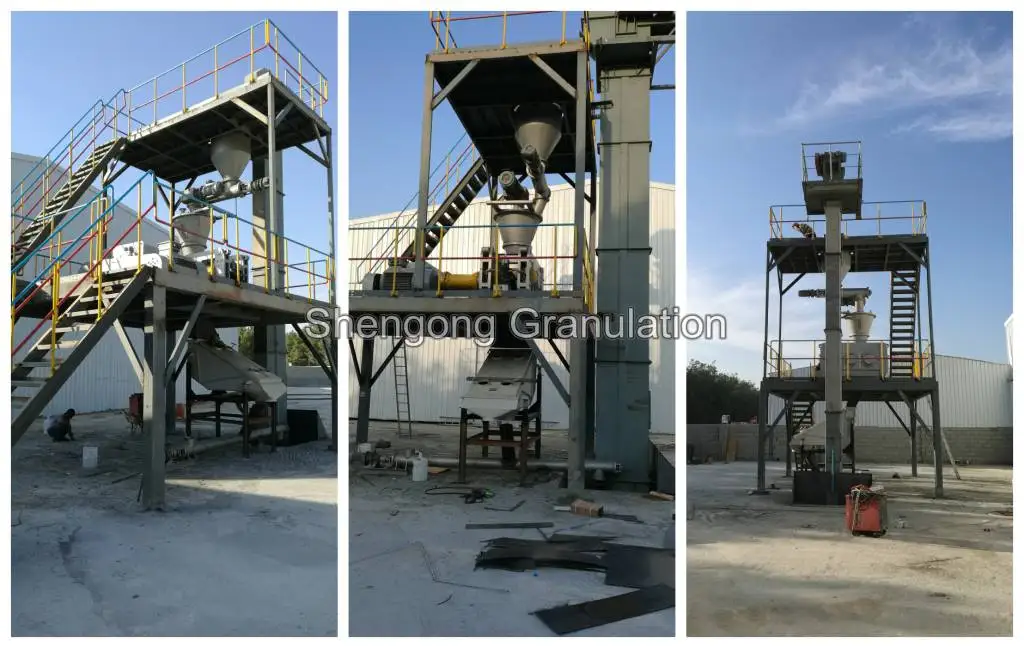

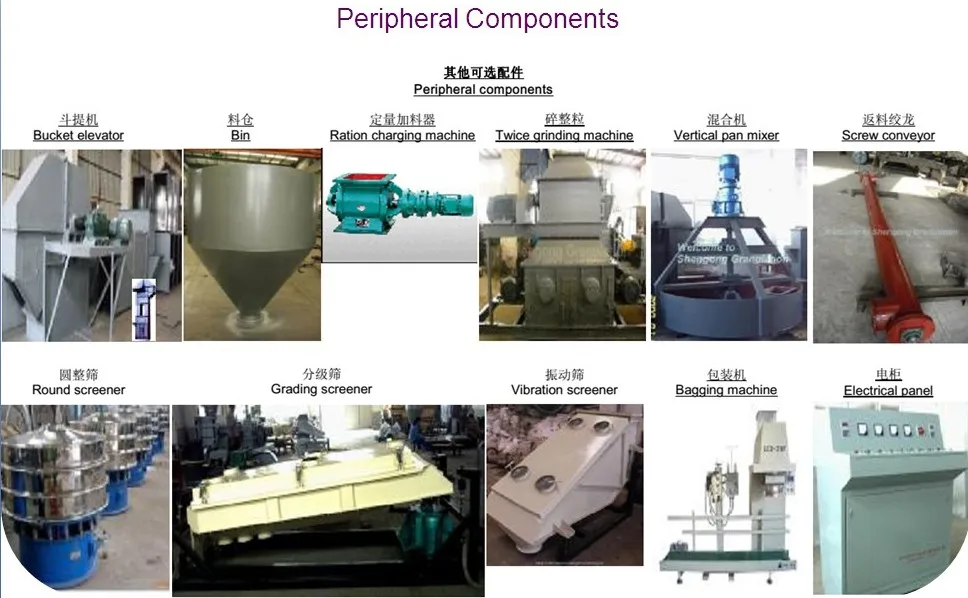

Powder compressing machine's peripheral equipments

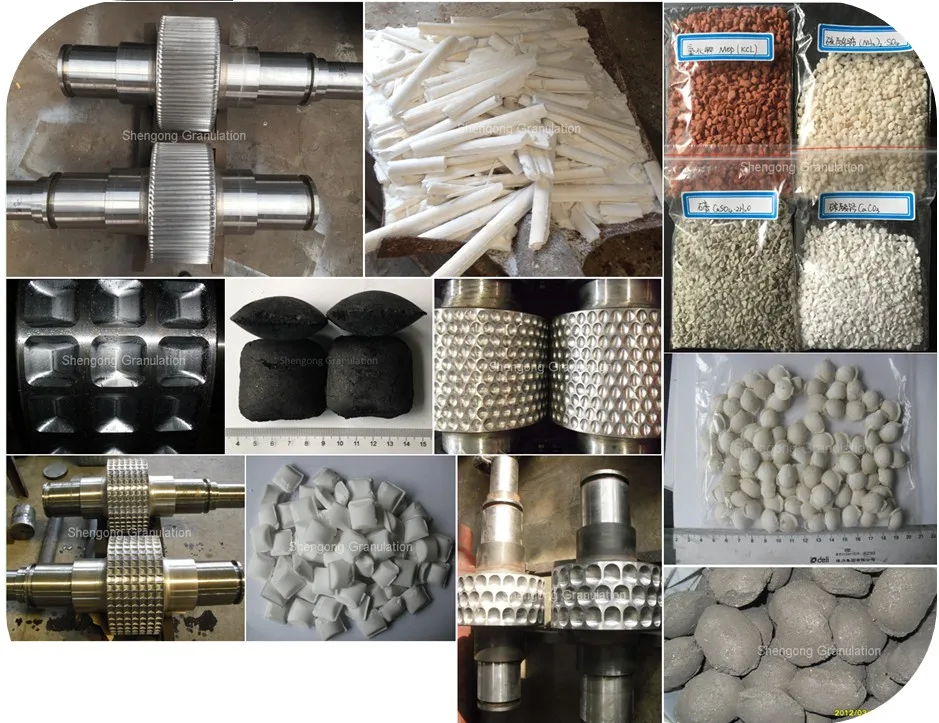

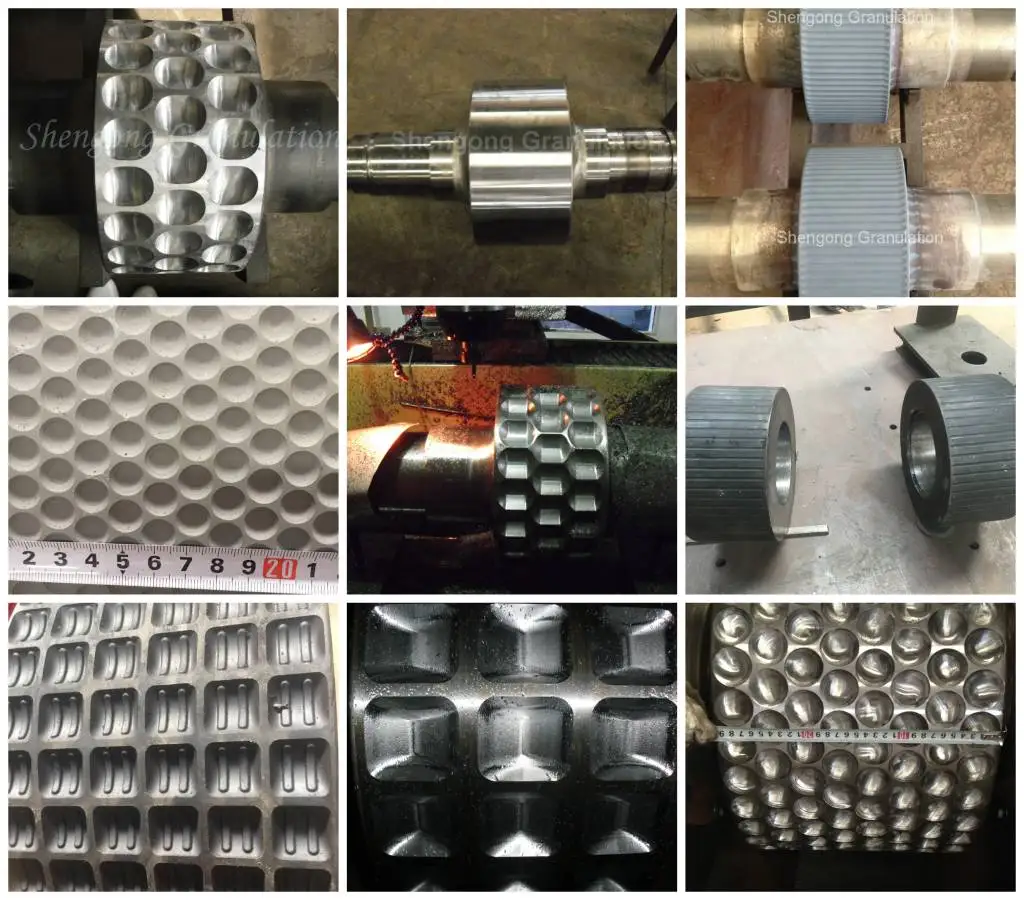

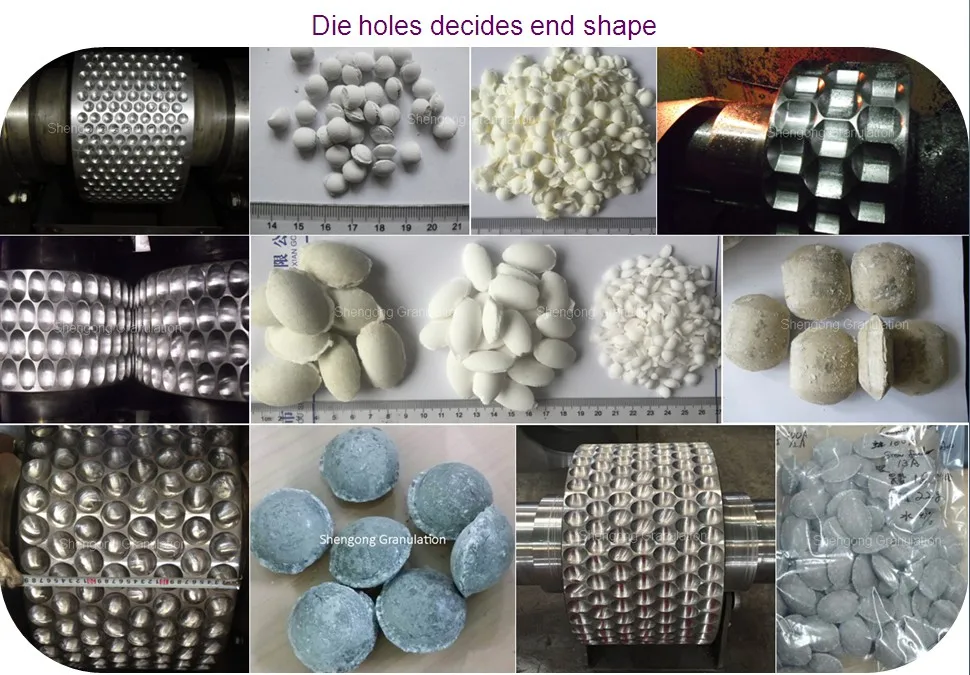

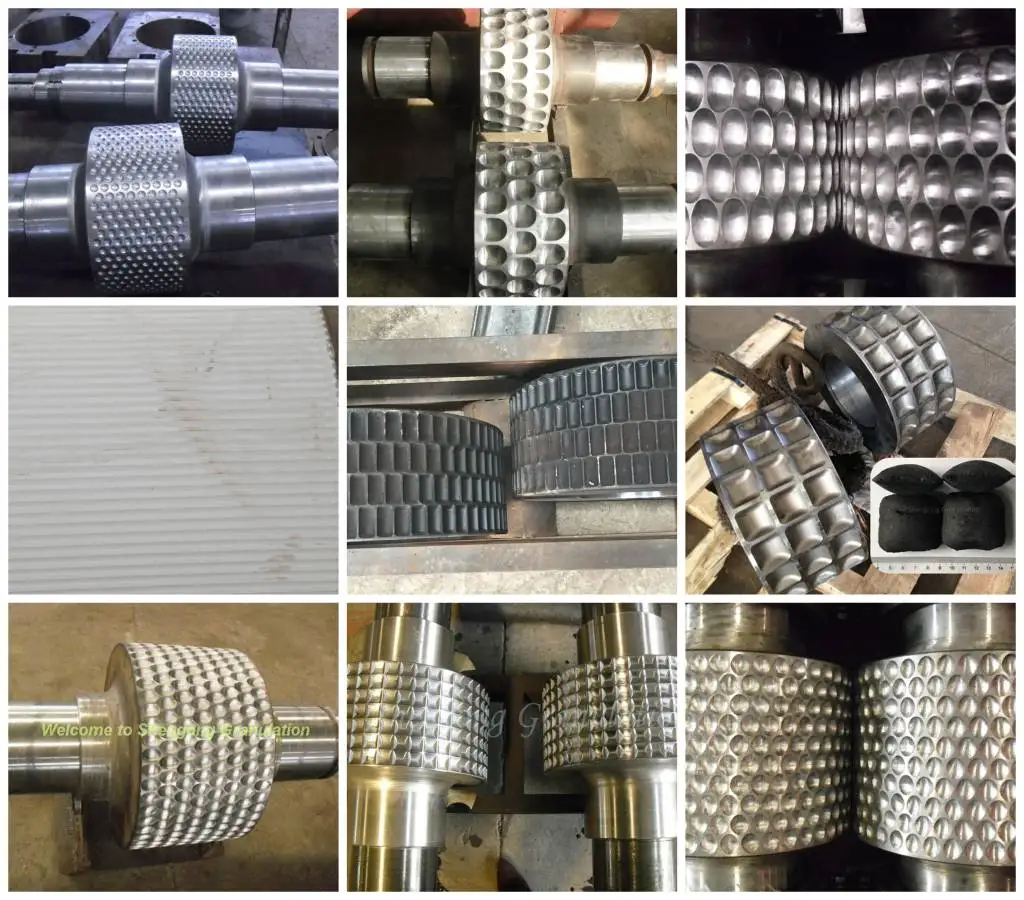

Powder compressing machine's rollers and final products' shapes

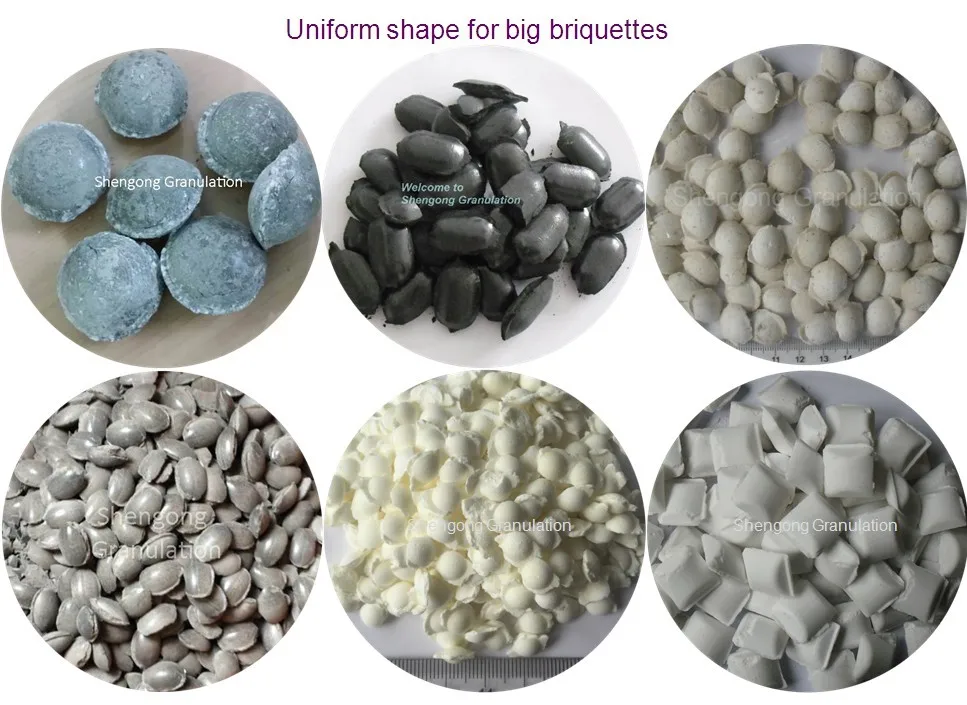

Powder compressing machine's products variable shapes

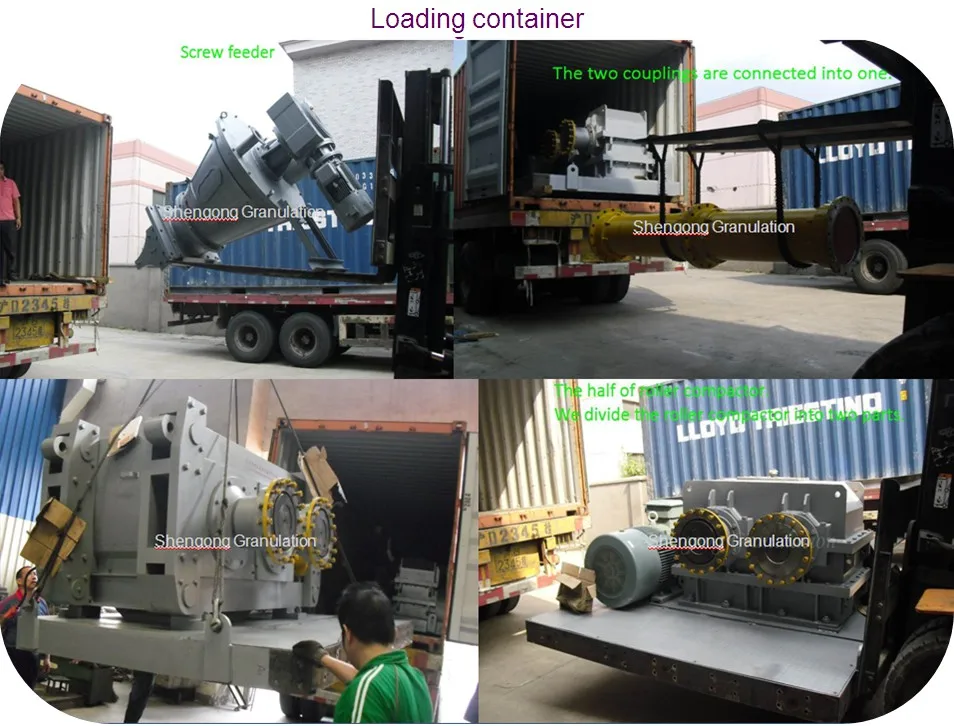

Powder compressing machine line is being loaded in one 40ft. container
