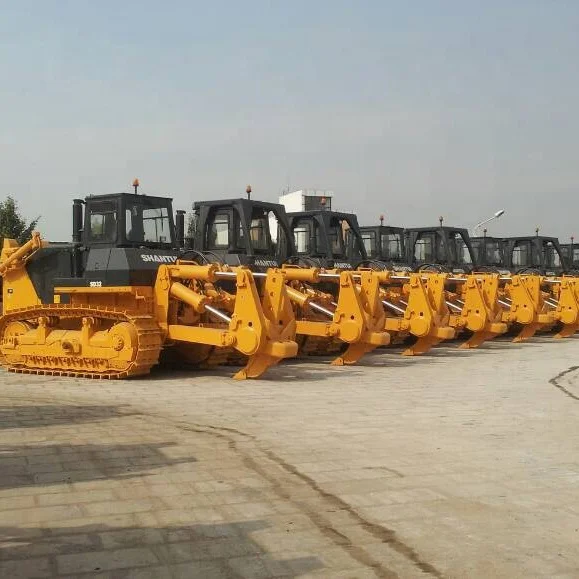

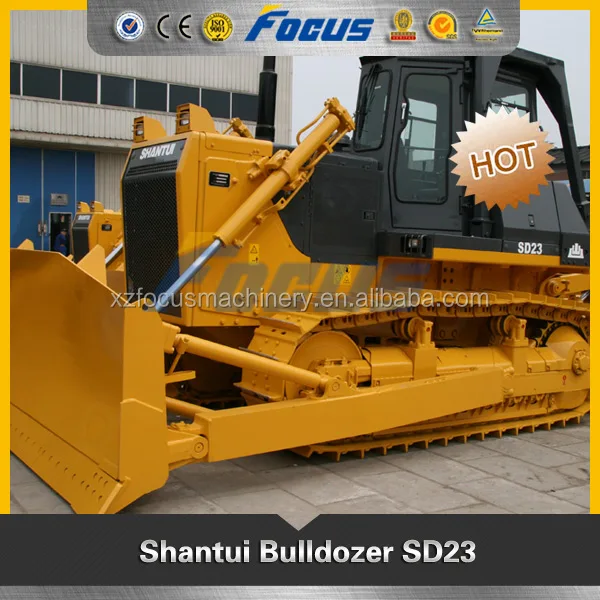

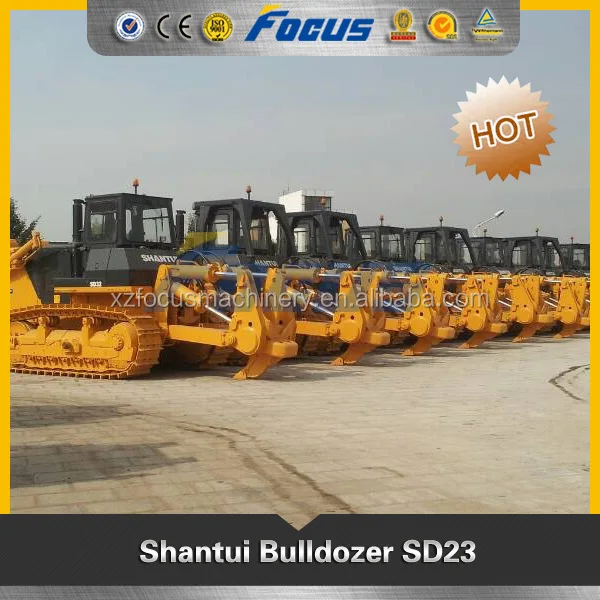

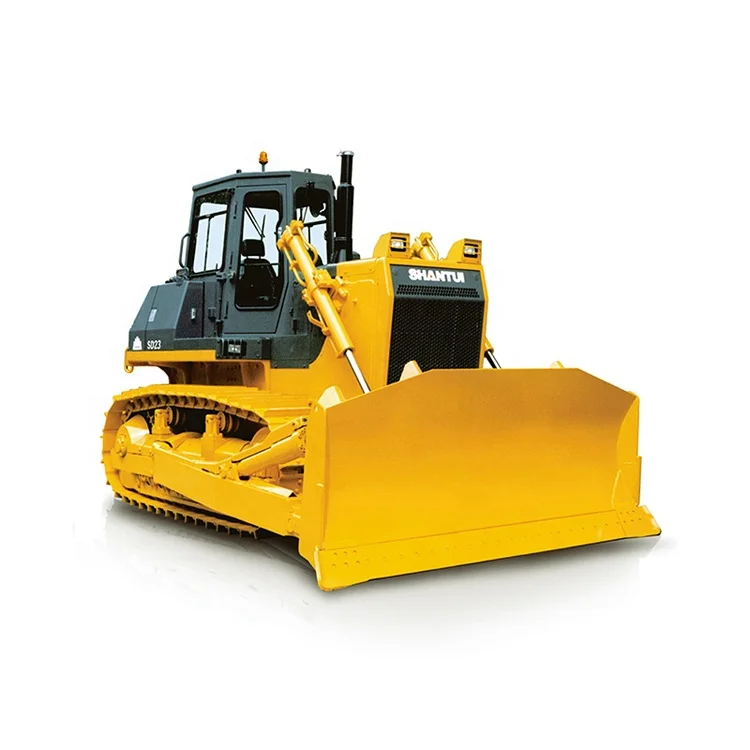

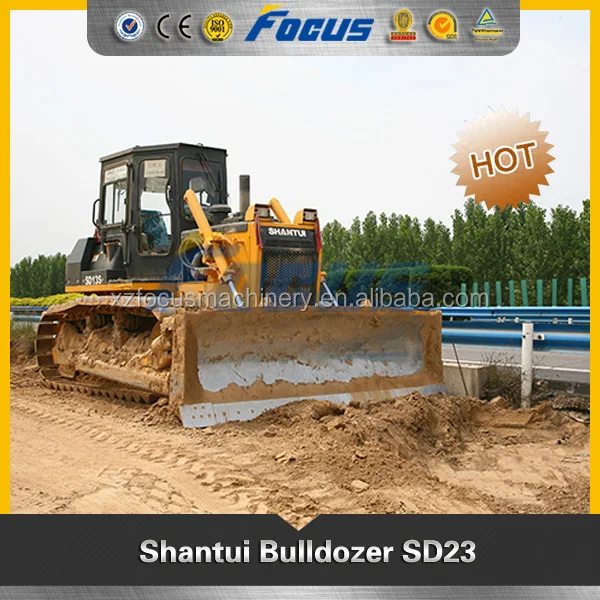

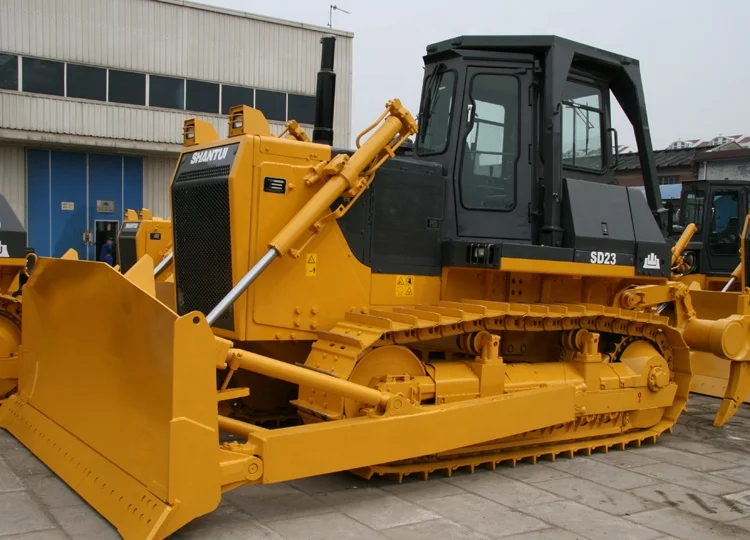

Bulldozing 230hp Dozer Shantui SD23 for sale

Product Overview

Description

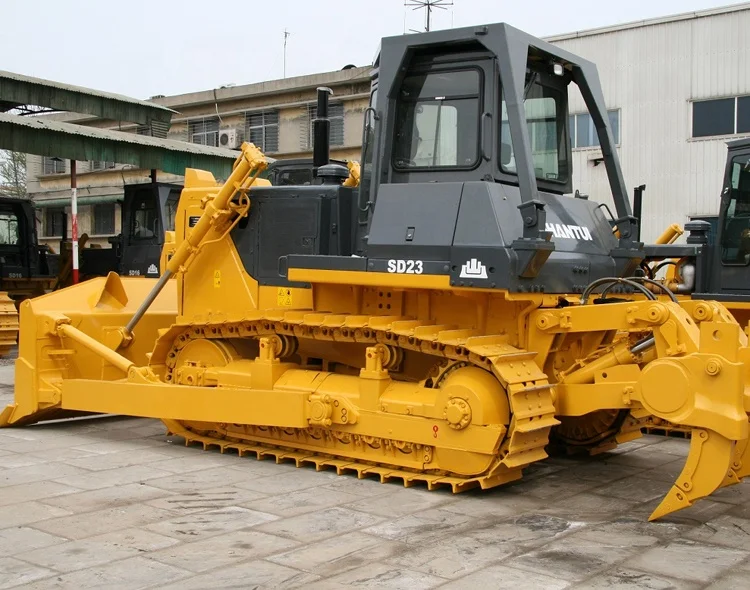

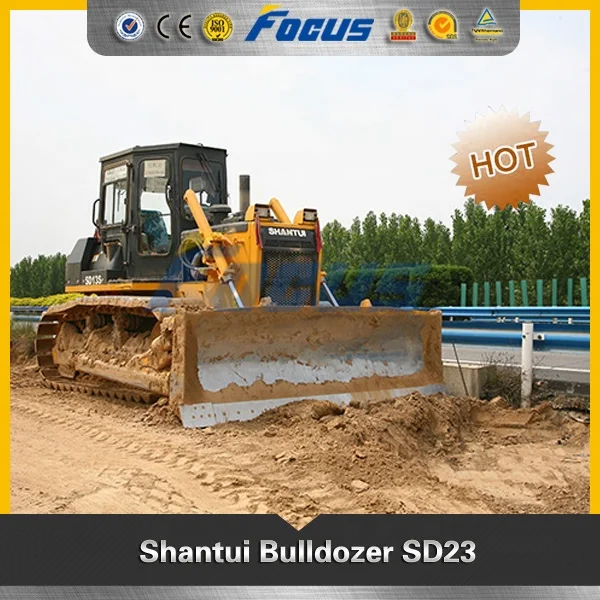

Bulldozing 230hp Dozer Shantui SD23 for sale





Main parameters:

Blade capacity 7.8CBM

Operating weight:24600kgs



Main configuration

Cummins NT855-C280S10  engine, 169/2000 kw/rpm



SHANTUI SD23 is the most popular model of China bulldozer.



OUR SERVICE

* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.

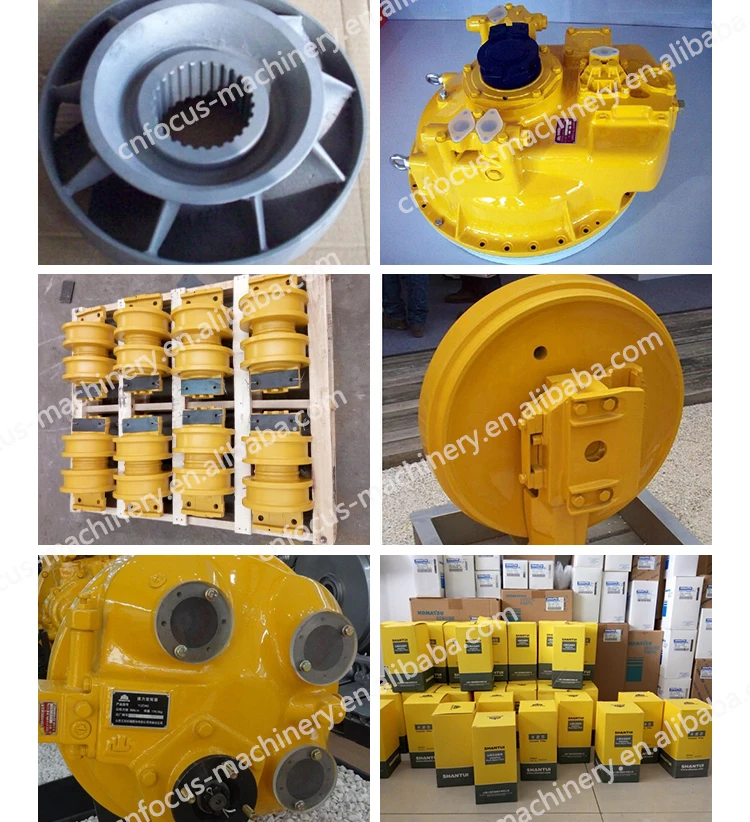

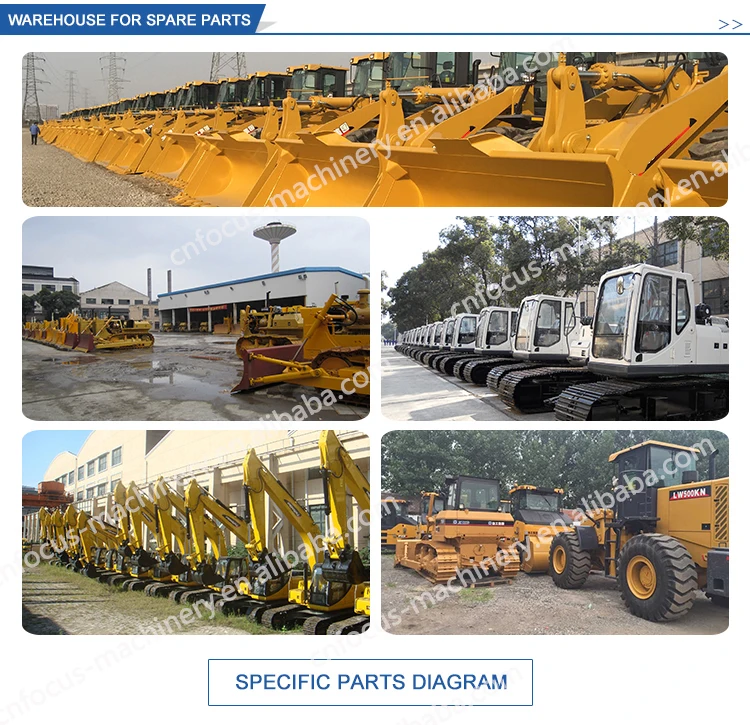

* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine spare parts with good prices, quick response and professional service.



ITEM	UNIT	SHANTUI SD23
L×W×H (Ripper not included)	mm	5874×3725×3360
Operating weight (Ripper not included)	t	24.6
Engine	-	Cummins NT855-C280S10
Rated power	kW/rpm	169/2000
Gradeability	°	30
Blade type	-	Straight tilt bladeU-bladeAngle blade
Blade width	mm	Straight tilt blade 3725×1395U blade3860×1379 Angle blade4365×1107
Dozing capacity	m3	Straight tilt blade 7.8 U blade 8.4Angle blade 5.4
Ma× drop below ground of blade	mm	540
Lift height of blade	mm	1210
Ripper type	-	Single ripperThree-shank ripper
Ripping depth of ripper	mm	Single ripper 695Three-shank ripper 666
Lifting height of ripper	mm	Single ripper 515 Three-shank ripper 555
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	7
Number of track shoes (each side)	-	39
Width of track shoe	mm	560/610/660
Track gauge	mm	2000
Ground length and ground pressure	mm/MPa	2840-0.078
Pitch	mm	216
Forward speed	km/h	0–3.8
		0–6.8
		0–11.8
Reverse speed	km/h	0–4.9
		0–8.5
		0–14.3
