ContiTech China Supplier Conveyor Belt Vulcanizing Joint Press Machine

Product Overview

Description

Antai Sectional Conveyor Belt Vulcanizing Joint Press Machine















FEATURES

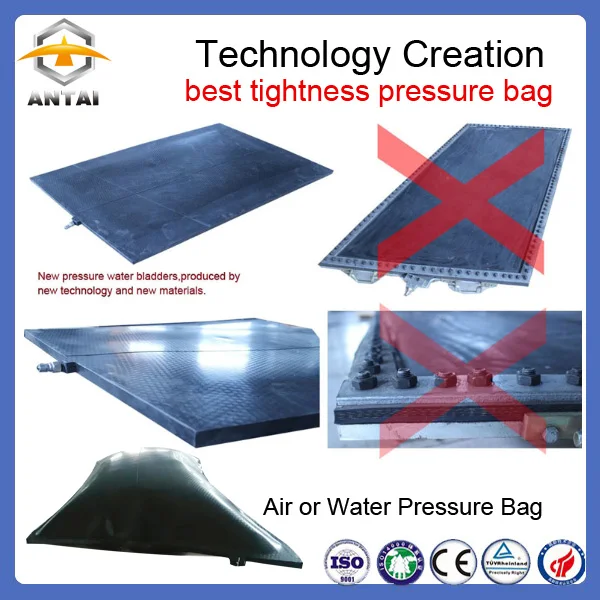

• Signature ANTAI “Pressure Bag” uniform pressure system.

• Custom “Extruded Plank” cooling system within platens.

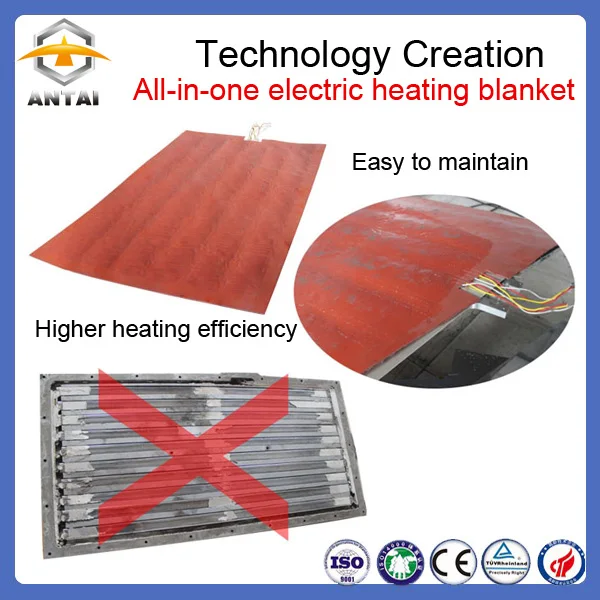

• Innovative “Silicone Element” fast heating system.

• Automatic mute pressure pumps for operating pressures above 20kg/cm² (2.0MPa).

• ZLJ platens are built to order with all dimensions offered to accommodate various belt widths.

• DELIXI electrical apparatus element assembled into insulating and waterproof control panel.

• All electrical systems are CE, CSA and UL approved.



  SPECIFICATIONS

1. Voltage: 220V 380V 415V 525V 660V 1140V 50HZ 60HZ(Customize available according to your requirement)
2. Quick water cooling device: 15 minutes From 145 ℃down to 80 ℃or even lower

3.Cooling source: Water or Air

4.Heating source: Electricity

5. Heating time: from room temperature to vulcanization temperature need less than 20 minutes
6. Heating plate surface temperature difference: ± 1 ℃
7. The temperature adjustment range: 0 ~ 200 ℃(custom)
8. Vulcanization pressure: Max 2.3MPa.
9. Curing temperature:Usually 10mm~25mins, 20mm~35mins (according to the thickness of the belt to adjust)

10. Automatic mute pressure pump

11.  Automatic control panel: insulating and waterproof, security alarm, Auto power-off when reach the vulcanization temperature. Upgrading explosion proof control box option available.





Conveyor belt vulcanizing press is the widest used conveyor belting equipment, its only need a few steps to confirm press model.





The proper model selection for a sectional vulcanizier depends on determining dimensions A and B(see diagram above)

A—  the platen length(A) is calculated by adding to the belt manufacturer’s recommended splice length.

 6 inches(150mm) for fabrics belt

14 inches(355mm) for steelcord belt

B- the platen width(B) which includes the bias angle, it determined by adding to the belt width

6 inches(150mm) for fabric belt

8 inched(200mm) for steelcord belt

To this figure multiply by:

1.07 for 22 degree bias angle

1.05 for 17 degree bias angle

Dimensions A and B represent the outside platen dimensions. Scan down the list below until  you arrive at a platen size the corresponds with your figures.

If the size you require is not listed below our Sales department will be happy to recommend a suitable size, rectangular configurations and multiple platen arrangements are also available upon request.





The following is only a small sampling of sectional vulcanizing presses available form Antai  Machinery. Contact us for more information.



100 p.s.i(7kg/cm2) units suitable for splicing fabric ply belting.

200psi 14 kg/cm sq. units suitable for splicing steel-cord belting.









Specifications are subject to change without notice.

Build-in cooling device on all vulcanizer.

Total weights include electrical control panel, cable sets are set-up templates for all models.

All models include electronic fluid pressure pump

Temperature adjustable between 0-199 Degree.C

Sectional vulcanizers are build on a 18 degree bias

Custom sizes, rectangular configurations and multiple  platen arrangements available on request.





Product name	Sectional Conveyor Belt Vulcanizing Press
Controller	ZLJ Standard Automatic Control Box
Cross Beam	High-strength 7075 aluminum alloy beams, light weight and strong
Pressure System	Flexible pressure bag provide uniform pressure suit for water and air, save 80% weight
Heating System	Almex similer heating element provide uniform temperature
Cooling	Build in quick cooling device suit for water and air
Payment Method:	T/T,LC,West Union, Paypal.
Package	Fancy paking by wooden box, suit for long distance transpot
Lead time	25 days after received the deposit
Delivery Mode:	Normal order by Sea/Vessel, Emergency order by express etc.
