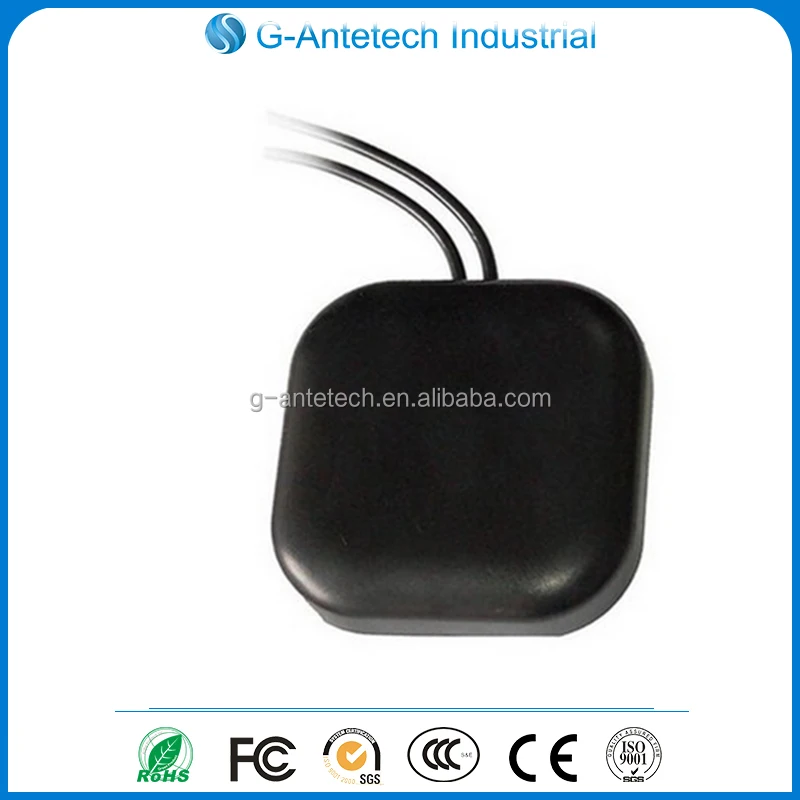

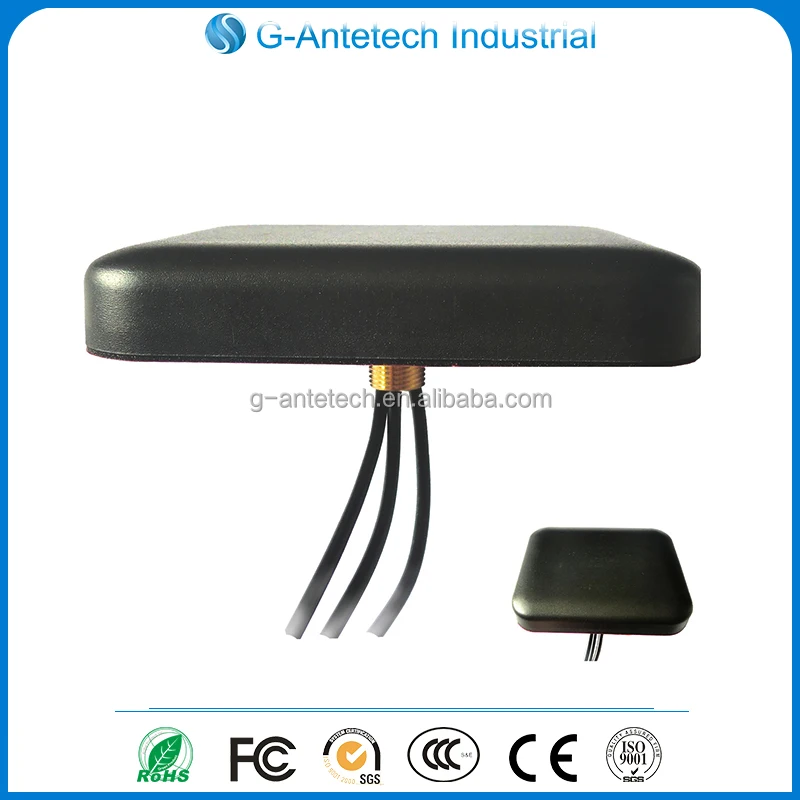

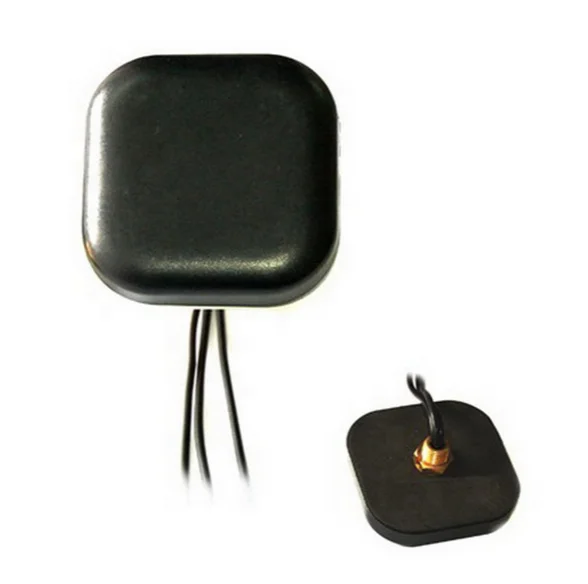

Professional active gps Iridium tracker antenna 1616MHz 1626.5MHz high singal with low price

( I ) Product Overview
(i)GPS Antenna
Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cmx7cm ground plane
Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)
Polarization:RHCP
LNA Gain(Without Cable) :28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0
DC Voltage(V): 2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current(mA):11 Max

(ii)Iridium Antenna
Frequency(MHz): 1616-1626
Impedance(Ω): 50
Peak Gain >3dBi Based on 7cmx7cm ground plane
Gain Coverage >-4dBi at -90°<0 <+90°(over 75% Volume)
( iii )Mechanical
Weight(gram)<240
Size(mm): 70x70x14
Cable GPS(m): RG174 2,5 etc.
Iridium(m): RG174 2,5 etc.
Connector GPS: SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM: SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting:  Screw(Hole/Roof)
Housing: Black
( iv )Environmental
Working Temp: -40'C~+85'C
Storage Temp: -45'C~+100'C
Vibration: Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity: Humidity95%~100%RH
Weatherproof: 100%Waterproof
