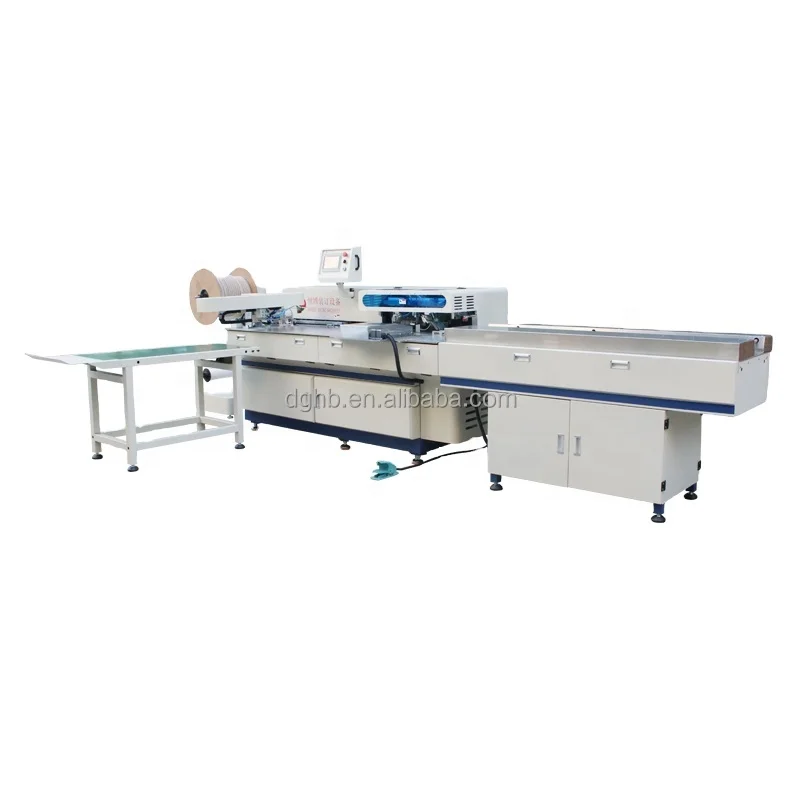

HB 520PB Automatic Double Loop Wire Binding Machine

Product Overview

Description

Description:

HB-520PB is an automatic machine that combining punching and binding function. We are the first one whom design and manufacture this machine in China. So we have many patents of this machine.



This machine can finish the job even the cover is bigger than the inner sheets it can punch and bind in one machine. It is the only one machine can finish this job in China.



High speed and stable, only need 1-2 person to opetate and very easy to adjust. Highly improve efficiency and save cost.



Feature:

1. Automatic feeding, paper/cover punching and binding in one machine;

2. Only need 1-2 person to operate;

3. High quality mould, can punch 6mm for one time. And can choose punching times for one to five times.

4. Automatic oil delivery system, two working sides of punching mould. Can be changed in a very short time and long lift time than normal mould;

5. Can finish the product even though the cover is bigger than the inner sheets;

6. Automatic alarm and display function, engineer can act promptly.



Parameter:

Model	HB-520PB
Working speed	800-1500 books/hr
Punching thickness(one-time)	1-6mm
Max. punching thickness	13mm(15mm for special product)
Max times of punching for one book	5 times
Max. book size	510mm(punched side)*800mm
Min. book size	100mm(punched side)*140mm
Max. book size for feeding belt	420mm*420mm
Size of double loop wire	1/4"-5/8"
Pitch	2:1, 3:1
Width of paper for binding	100-520mm
Air pressure	0.7-0.8Mpa
Power	380V/ 50-60Hz/ 3PH/ 4.5kw
Net weight	2000kg
Machine dimension	4800*2600*1600mm

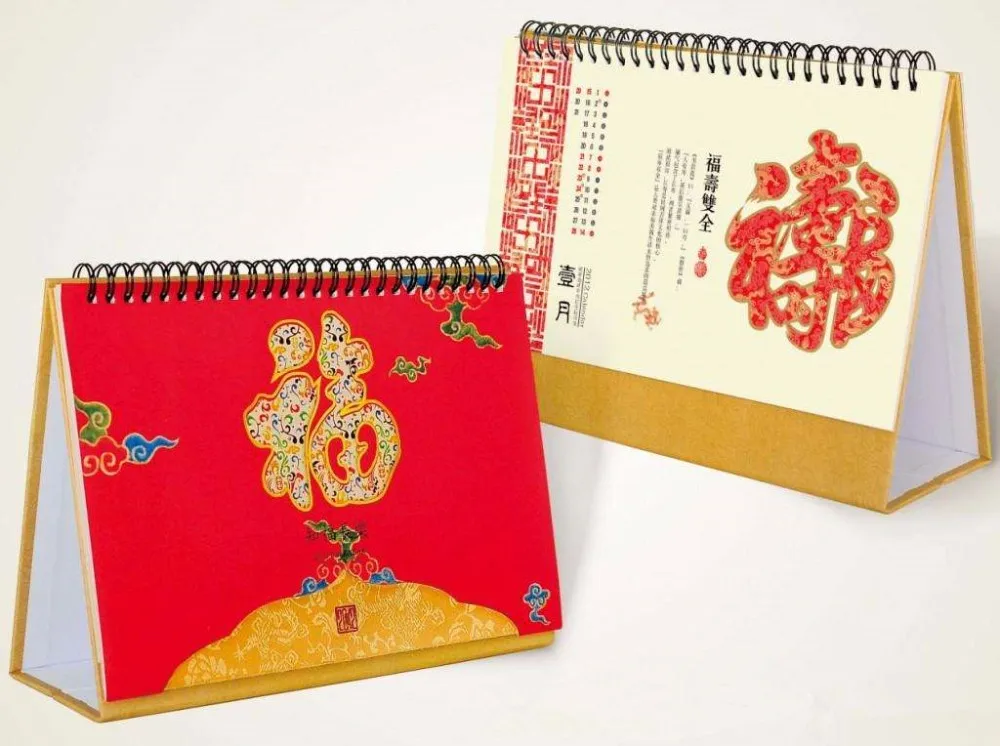

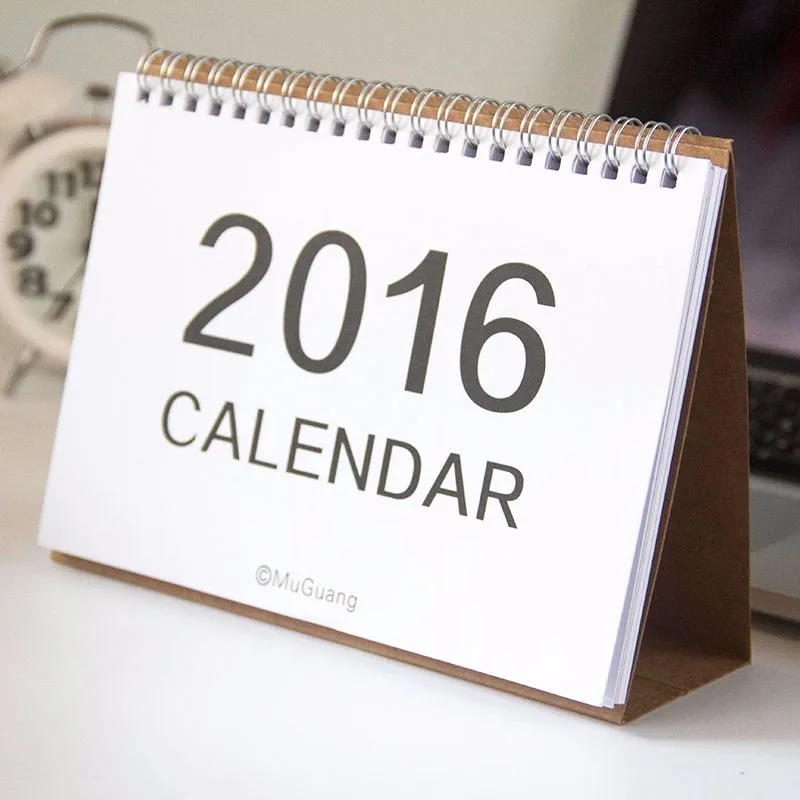

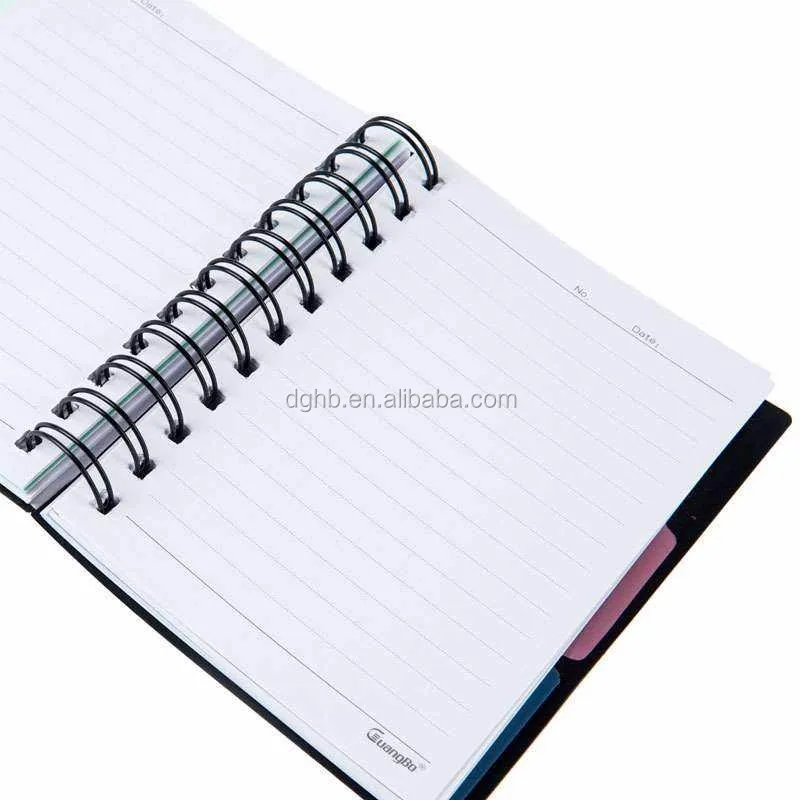

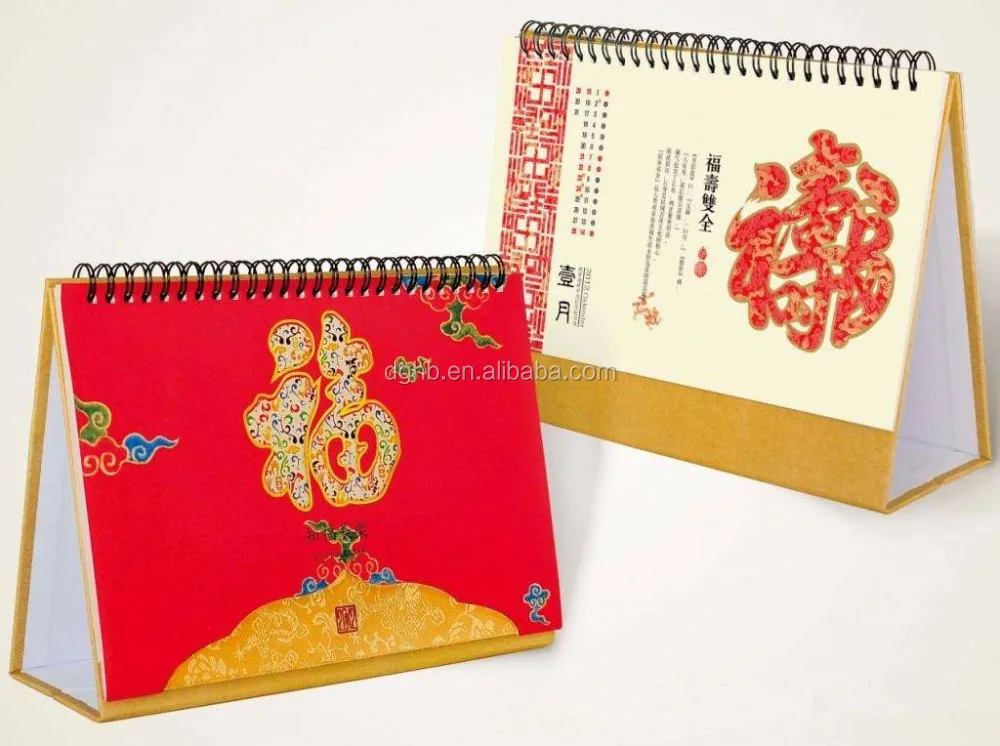

Application:
