plastic molding machine bed head side rail plastic panel for hospital bed

Product Overview

Description

 WELCOME TO "SHENGDA"

plastic blow molding machine bed head side rail plastic panel for hospital bed

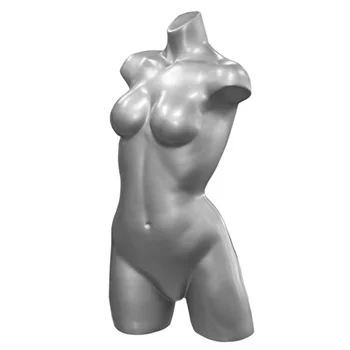

plastic blow molding machine traffic barrier mannequin model jerrycan

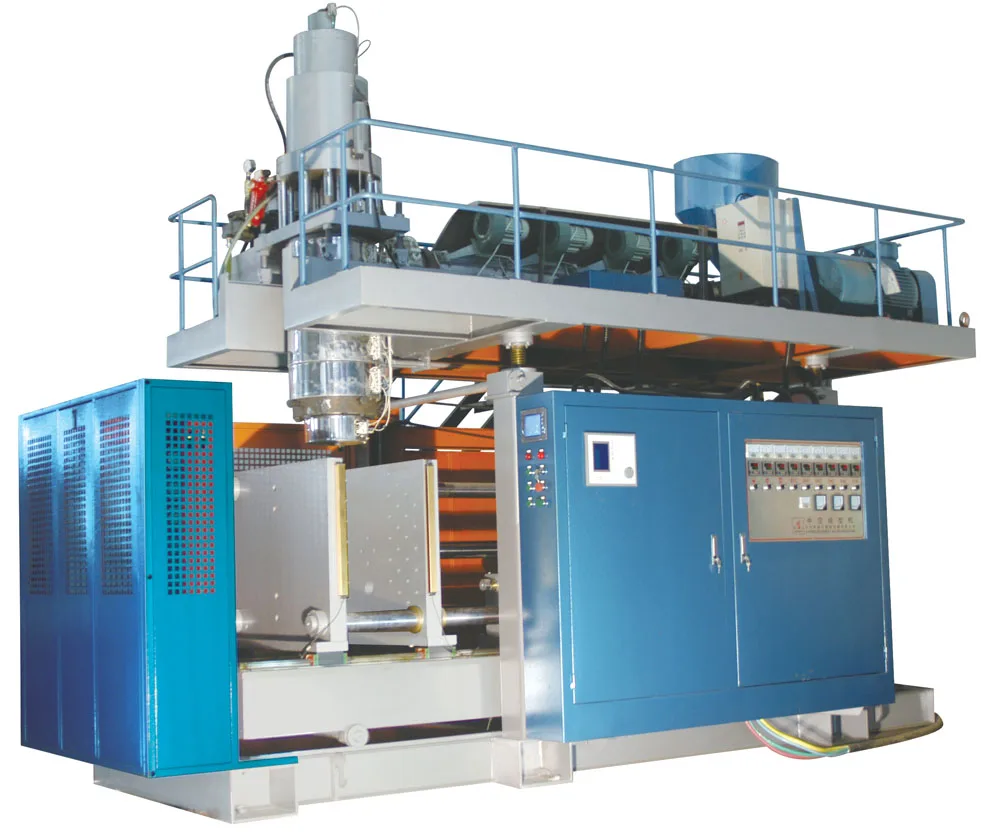

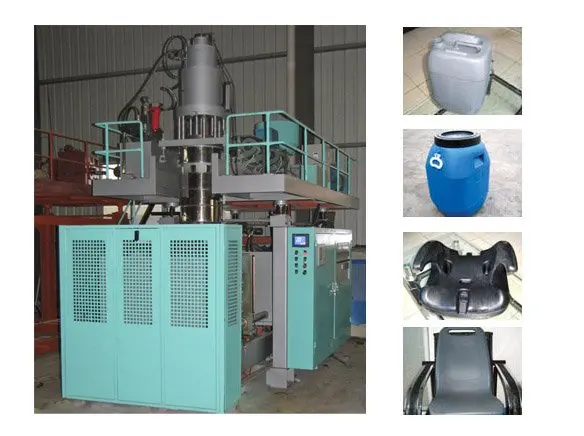

plastic blowing machine ZK-90B

plastic extrusion blow molding machine traffic barrier mannequin model jerrycan

This  model  adopts  fixed  mould  open-closing  system  and accumulator die. Parison programmer is available to control thickness. This model is automatic process with low noise, saving energy, high efficiency, safe operation, easy maintenance and  other benefits. This model  is  widely used to  produce  chemical barrel, auto parts(water box, oil box, air-condition pipe, auto tail), toys(wheel, hollow auto bike, basketball stands, baby castle), tool box, vacuum cleaner pipe, chairs for bus and gymnasium, etc. This model can produce max 60L hollow plastic product.

PE.PP.HDPE.ABS,PS,PA,EVA etc material

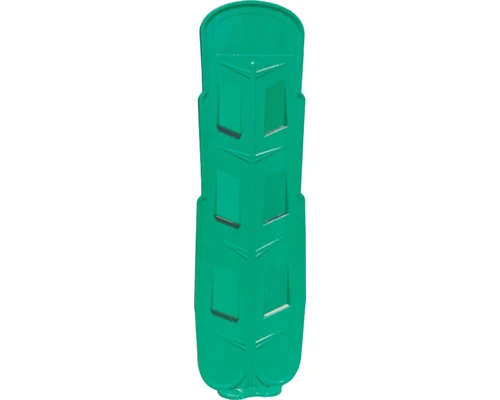

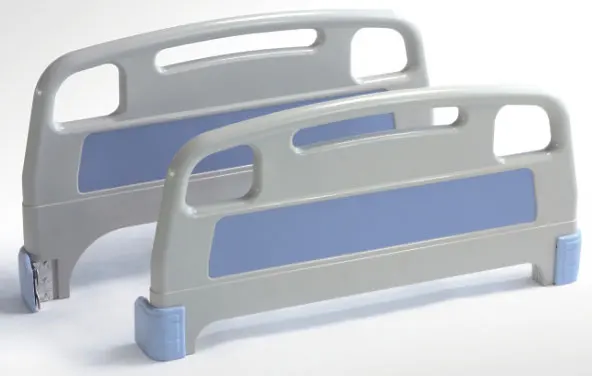

plastic side rails, head and foot plastic panels of hospital beds

Variety of functions for different products matching the technological requirements: bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, parison control system ,etc.

Technical specifications:



specification	unit	zk-90A	zk-90B
max container capacity	L	50	60
number of die heads	set	1	1
machine dimension(L*W*H)	M	5*3.1*3.2	5*3.1*3.9
total weight	ton	7	9
clamping unit
clamping force	KN	300	300
platen opening stroke	mm	350-1050	350-1050
max mould size(W*H)	mm	700*1000	700*1000
mould thickness	mm	360-500	360-500
power
max drive	KW	11	11
total power	KW	63	70
fan power for screw	KW	0.9	0.72
air pressure	Mpa	0.7	0.7
air consumption	m3/min	0.9	0.9
average energy consumption	KW	28	35
extruder unit
screw diameter	mm	90	90
screw L/D ratio	L/D	25:1	25:1
plasticizing capacity	kg/hr	100	120
number of heating zone	zone	5	4
extruder heating power	KW	12.5	12.5
extruder driving power	KW	22	30
accumulator head
die head dimension	m
number of heating zone	zone	3	5
power of die heating	KW	7	20
max die-pin diameter	mm	350	350
accumulator volume	L	5	6
