Wholesale Supply Laboratory Desktop Incubated Orbital Shaker
- Category: >>>
- Supplier: Zhengzhou Mingyi Instrument Equipment Co. Ltd.
Share on (60665370726):
Product Overview
Description

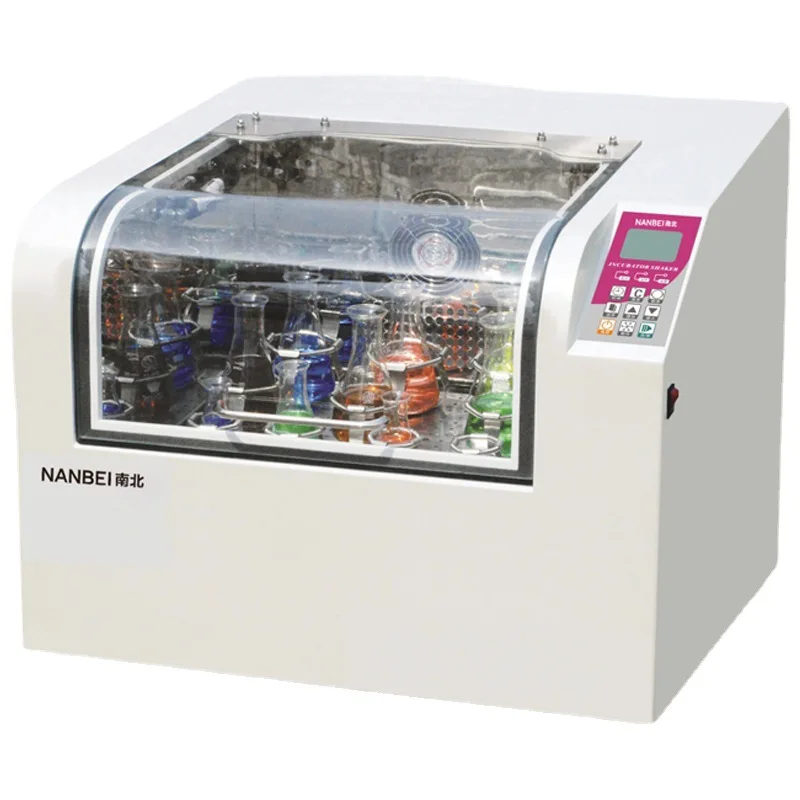

Desktop intelligent constant temperature culture shaker

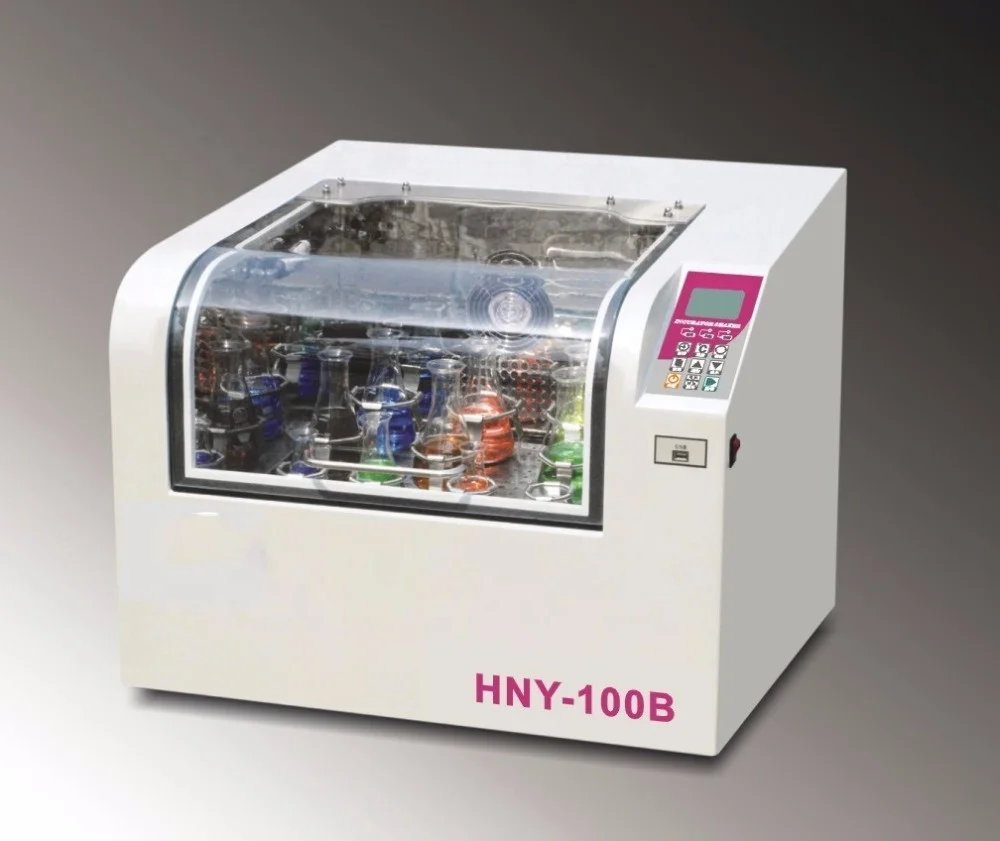

Model HNY-100B incubator shaker is a kind of training and preparation biochemical instruments.The biological samples are plants,biology, microbe, genetic virus, medicine and so on.
Product Introduction
※1. USB data storage system. The large storage capacity can automatically record and store the experimental process data throughout the process. And it can display temperature curves and speed curves on the screen, check historical data at any time, and query alarm records and door opening records.
※2. U disk completes data download instantly.
※3. Multi-stage speed, temperature and time control system. A variety of different speed, temperature, and time experimental modes can be set at one time, and the operating mode can be automatically switched during operation.
※4. When running at ultra-low speed, if the speed is out of control, it will automatically lock and the starting speed can be adjusted. Unique dynamic balance design ensures smooth operation.
※5. Silent fan design, forced convection and unique air duct design ensure good temperature uniformity.
※6. The user can freely set three operating modes: forward rotation, reverse rotation, and forward and reverse alternately.
※7, 7-inch touch screen, the same interface displays the setting and detection time, temperature, speed; and displays the current operating mode, date and time and alarm fault view.
Specification
Model | HNY-100B |
Specifications | |
Control model | P.I.D microprocessor chip |
Convection model | forced convection |
Shake model | convolution |
Display | LCD liquid-crystal display |
Drive mode | Unidimensional drive |
System of USB data download and analysis | yes |
Control system | standard mode;persistence mode |
Cyclotron frequency range(rpm/min) | 0;30-550(To do static culture) |
Cyclotron frequency sensitivity(rpm) | ±1 |
Orbit Diameter(mm) | Φ26 |
Maximum capacity | 100ML×23 OR 250ML×16 OR 500ML×9 OR 1000ML×5 |
Standard capacity | 500ml×3 250ml×3 100ml×4 50ml×4 |
Size of platform(mm) | 450×410 |
Timing range(h) | 0-999(Any time,continuous duty) |
Temperature range(℃) | ambient +5°Cto 60°C(No refrigeration) |
Temperature sensitivity(℃) | ±0.1 |
Temperature uniformity(℃) | ≤0.3(37℃) |
Temperature uniformity(℃) | ≤0.1(37℃) |
Number of platform | one |
Outside dimension(W*D*H)(mm) | 740×710×510 |
Capacity(L) | 70 |
Power(W) | 550 |
Power supply | AC220±10%50-60HZ |
Outside temperature(℃) | 5-25 |
Net weight(kg) | 75 |
Gross weight(kg) | 105 |
Product Details
Super large visual window design
ABS cabinet, mirror stainless steel lining and cavity components
Tilting humanized control panel
The remote monitoring function of mobile phone or computer is optional, and the temperature, speed, time and other parameters of multiple shaking tables can be remotely monitored through mobile APP or computer.
The mobile phone can remotely and wirelessly monitor the temperature, speed, time, and other parameters of the constant temperature oscillator through the local area network and the Internet.
The alarm information can be received in real time on the mobile phone, and the alarm can be canceled.
The mobile phone can edit and run the machine in multiple stages, and monitor related parameters.
Historical data can be viewed on the mobile phone, including temperature, rotational speed and other historical operating parameters.
Product Application
It is widely used in series of education and scientific research, such as environmental protection.
Instructions for use
1. Fault self-diagnosis function, when a fault occurs, the fault location and fault code are displayed, which can quickly and conveniently find and solve problems.
2. You can set an appointment to start the machine, and the machine will automatically run after the scheduled time is reached.
3. With power failure recovery function. If the power supply is cut off unexpectedly, it will automatically resume operation according to the original setting program after the power is received, so as to avoid the failure of the experiment due to power failure.
4. The encryption and locking function of the operation interface prevents repeated operations and human misoperations.
5. High-precision speed control: PID feedback control, avoiding long-term low-speed operation that causes the motor to overheat and cause losses due to shutdown.
6. Equipped with high-quality servo motor, precise speed control, good high and low speed performance, and strong stability. The minimum speed of 10rpm/min can be customized according to customer needs.
7. Equipped with a filter magnetic ring to reduce the interference of the outside world and its own wavelength on the stability of the machine.
8. High-precision temperature control: PID feedback control, with temperature deviation alarm function.
9. The unique single-dimensional drive system makes the machine run smoothly, stably, durable and reliable.
1O. Intelligent alarm environment scanning microprocessor controller. It has the functions of self-stop protection when opening the door, self-diagnosis and safety alarm.
11. It can run regularly or continuously, and display the remaining time or running time.

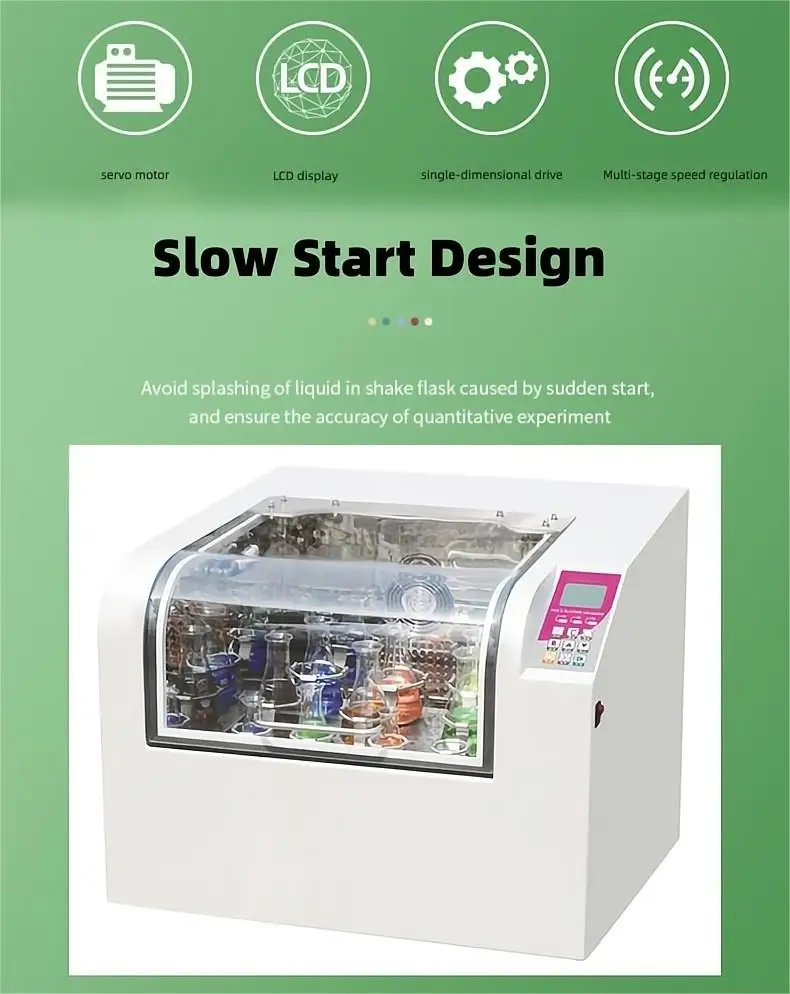

12. The unique slow start design prevents the liquid from splashing out of the shaker bottle caused by sudden start, effectively ensuring the accuracy of quantitative experiments.
2. You can set an appointment to start the machine, and the machine will automatically run after the scheduled time is reached.
3. With power failure recovery function. If the power supply is cut off unexpectedly, it will automatically resume operation according to the original setting program after the power is received, so as to avoid the failure of the experiment due to power failure.
4. The encryption and locking function of the operation interface prevents repeated operations and human misoperations.
5. High-precision speed control: PID feedback control, avoiding long-term low-speed operation that causes the motor to overheat and cause losses due to shutdown.
6. Equipped with high-quality servo motor, precise speed control, good high and low speed performance, and strong stability. The minimum speed of 10rpm/min can be customized according to customer needs.
7. Equipped with a filter magnetic ring to reduce the interference of the outside world and its own wavelength on the stability of the machine.
8. High-precision temperature control: PID feedback control, with temperature deviation alarm function.
9. The unique single-dimensional drive system makes the machine run smoothly, stably, durable and reliable.
1O. Intelligent alarm environment scanning microprocessor controller. It has the functions of self-stop protection when opening the door, self-diagnosis and safety alarm.
11. It can run regularly or continuously, and display the remaining time or running time.
12. The unique slow start design prevents the liquid from splashing out of the shaker bottle caused by sudden start, effectively ensuring the accuracy of quantitative experiments.
Perfect full service
Technical Support Customized service After-sales service shipment service
One-on-one technical guidance OME, drawing, etc. One year warranty and Professionals come to install
to solve technical problems to meet your actual needs lifetime maintenance and debug if necessary
for you around the clock
Product packaging
Machine packaging:
-Standard wooden case or carton.
- Both neutral and custom packaging are available.
Machine delivery:
- We can ship the goods to you by international express such as DHL, UPS, TNT, EMS, or you can choose the suitable one according to your schedule and budget. Additionally, you can choose to use your
move forward.
-Standard wooden case or carton.
- Both neutral and custom packaging are available.
Machine delivery:
- We can ship the goods to you by international express such as DHL, UPS, TNT, EMS, or you can choose the suitable one according to your schedule and budget. Additionally, you can choose to use your
move forward.
FAQ
We take every step strictly, modern management system and experienced gangs escort the quality, if necessary, welcome to inquire
