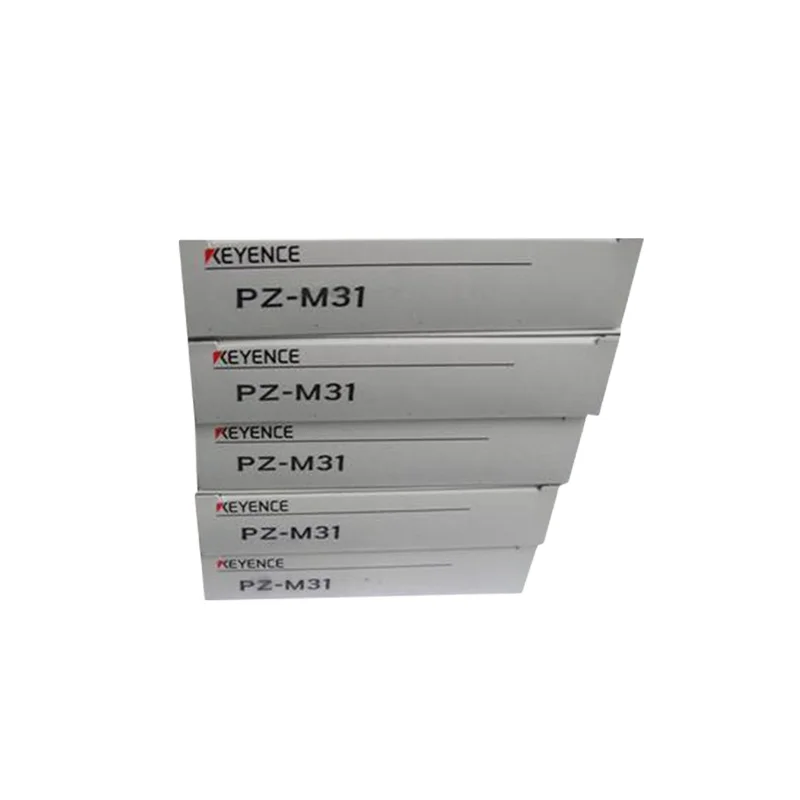

New and original Keyence photoelectric sensor PZ V/M series PZ M31
- Category: >>>
- Supplier: Wenzhou Conch Electric Co. Ltd.
Share on (60665479463):
Product Overview
Description
Product Description
New and original Keyence photoelectric sensor PZ-V/M series PZ-M31
-
Model | PZ-M13 | |||
Type | Multi reflective model (M12 connector cable type) | |||
Output | NPN | |||
Detecting distance | 5 to 100 mm0.20" to 3.94" (100 x 100 mm3.94" x 3.94"white mat paper)*1 | |||
Setting distance | 30 to 100 mm1.18" to 3.94" (100 x 100 mm3.94" x 3.94"white mat paper) | |||
Light source. | Red LED | |||
Sensitivity adjustment | 1-turn trimmer (230°) | |||
Response time | 1 ms max. | |||
Operation mode | LIGHT-ON/DARK-ON (switch-selectable) | |||
Indicator lamp | Output: orange LED, stable operation: green LED | |||
Control output | 100 mA (40 V) max.Residual voltage: 1 V max. | |||
Protection circuit | Reversed polarity, overcurrent protection, surge absorber | |||
Rating | Power voltage | 12 to 24 VDC ±10%, Ripple (P-P): 10% max., Class 2 | ||
Power consumption | 30 mA or less | |||
Environmental resistance | Enclosure rating | IP67 | ||
Operating ambientluminance | Incandescent lamp 5000 lux max., Sunlight: 20000 lux max. | |||
Operating temperature range | -20 to +55°C -4 to 131°F, No freezing | |||
Operating ambient humidity | 35 to 85% RH (No condensation) | |||
Vibration | 10 to 55 Hz, double amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis | |||
Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions | |||
Case material | Glass-fiber reinforced plastic | |||
Weight | Approx 25 g | |||
*1 The detecting distance is obtained with the maximum sensitivity. | ||||
Japan Keyence keyence photoelectric sensor:
PZ-M51 PZ-M51 PZ-M61 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ
PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ
PZ2-51 PZ2-51P PZ2-61 PZ2-61P PZ2-41 PZ2-41P PZ2-42 PZ2-42P
PZ2-62 PZ2-62P PZ2-62SPO PZ-101 PZ-41 PZ-42 PZ-51
PZ-G41N PZ-G51P PZ-G51P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P
PZ-G61N PZ-G61P PZ-G101P PZ-G101P PZ-G101P PZ-G10P PZ-G10P
PS-55 PS-50 PS-50 PS-50 PS-50 PS-
PS-20 PS-19 PS-49 PS-
PQ-01 PQ-02 PG-602 PG-610
Japan Keyence keyence proximity sensor:
EM-030 EM-030P EM-008 EM-005 EM-054 EM-054 EM-054
EM-080 EM-080P EM-010 EM-010P EM-014 EM-014P
EZ-8M EZ-12M EZ-18M EZ-18M EZ-18M EZ-18M EZ-18M
EV-108M EV-112M EV-118M EV-118M EV-11U EV
EV-130U EV-112F EV-118F EV-130F
EH-30 EH-110 EH-110 EH-110 EH-110 EH-E
EH-4010 EH-430 EH-430 EH-430
E-290 ES-M1 ES ES-220 ES ESR
