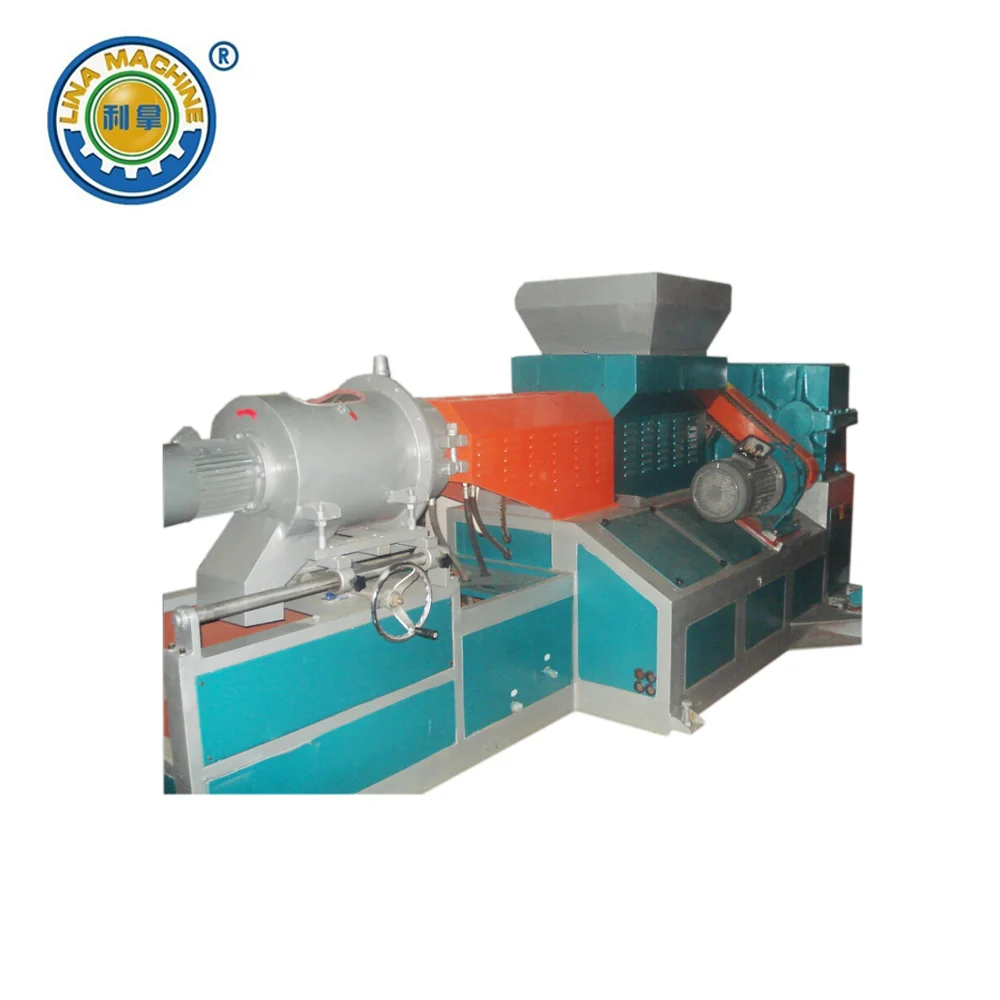

135L Rubber/Plastic Granulator/Double cone Pelletizer

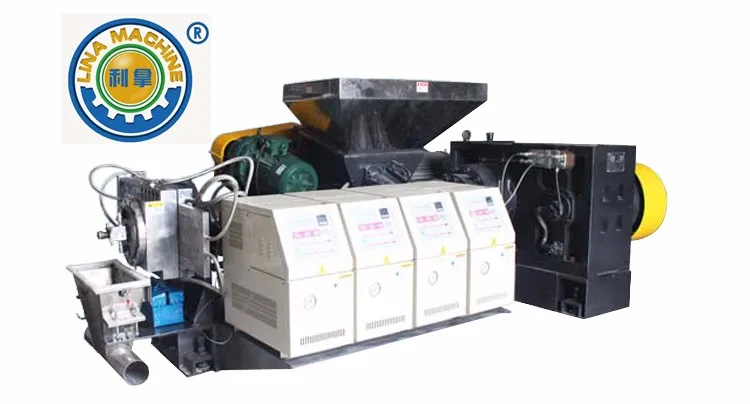

LN-135L Double-cone Rubber-Plastic Granulator

This machine is applicable to:

Granulation of Rubber-Plastic,Color Masterbatch, EVA, rubber and plastic chemical raw materials.

Competitive Edge

1.With the whole process chain units ,Acousto-optic alarming and rapid point of failure, such as locking features of intelligent control,All contact with the material even for stainless steel materials unit Pay attention to details, Perfect and reliable , Energy-saving and durable.
2.The use of temperature control system to guarantee the accuracy of materials on the temperature sensitivity.
3.Especially for the charging barrel and mold head, our company use foreign technology to protect and control Mold head pressure and to avoid excessive pressure caused injuries when the burst
4. Mandatory two-draft system and the single-screw feed technology portfolio not only meets the second consecutive high-demanding materials mixing, and the resolution of traditional work cut consumption broken time-consuming , better environmental protection and automation of production capacity and continuous operation of the corporate image.
The above are some of the characteristics of our industry leading technology embodied.

 Features

Barrel, screw, die: Barrel, screw the whole structure are, from high-quality steel nitriding

steel by the high-quality nitride (38CrMoA1) manufacturing, Hard chrome plated. nitride HV950-1050 treatment, depth of 0.6-0.75MM,brittleness is not greater than 11. good point as below:

(1) Heat deformation small, high precision and wear resistance under high temperature and high pressure, good corrosion resistance.

(2) Barrel, screw cooling device has direct access to the cooling system, cooling system and the machine barrel series to each district to the solenoid valve, in the measured temperature exceeds the set value quickly through the solenoid valve to stop water supply At the same time, then heated to the corresponding circuit, so that the temperature rose to set a value.The turn of the implementation of this work, the temperature control of the paragraphs in the smaller range of <1~3°C>. Its temperature control is accurate, responsive, local overheating can quickly reduce the operating temperature, the effective prevention of product particles have a color difference.

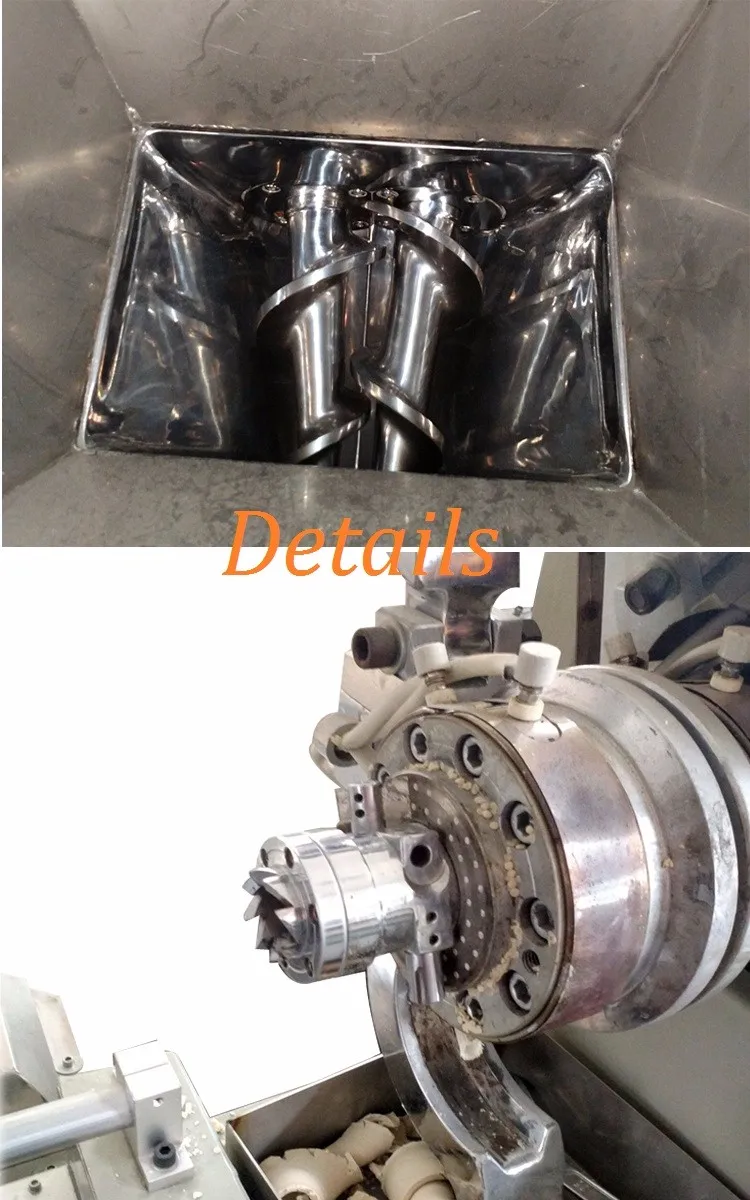

(3) Is a modular die, torn off and the lock pieces Hough can quickly open its internal structure (internal flow channel is no dead-zone design, the surface of hard chromium plating are outside reason and to achieve a high finish to prevent the accumulation of decomposition and deterioration of materials), convenient mode of head and perforated plate for clean-up and network.

Guangdong LINA Industrial Co., Ltd. has more than 10 years of experience in R & D of rubber and plastic industry chain. We have professional technical teams and reliable technical services, and we are leading the industry in terms of technology, quality and service. Our products serve education, production, military and life, and have been recognized by all circles of society.

For customers, we pay more attention to after-sale than pre-sale. LINA is an industrial leader who is servicing customers with supplying formulations and plans of machine setting, and helps customers solve the problems of production line.
