ESP8266 remote serial Port WIFI wireless module through walls Wang ESP 12E ESP 12
- Category: >>>
- Supplier: Shenzhen Jiayucheng Technology Co. Limited
Share on (60665506085):
Product Overview
Description
Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12

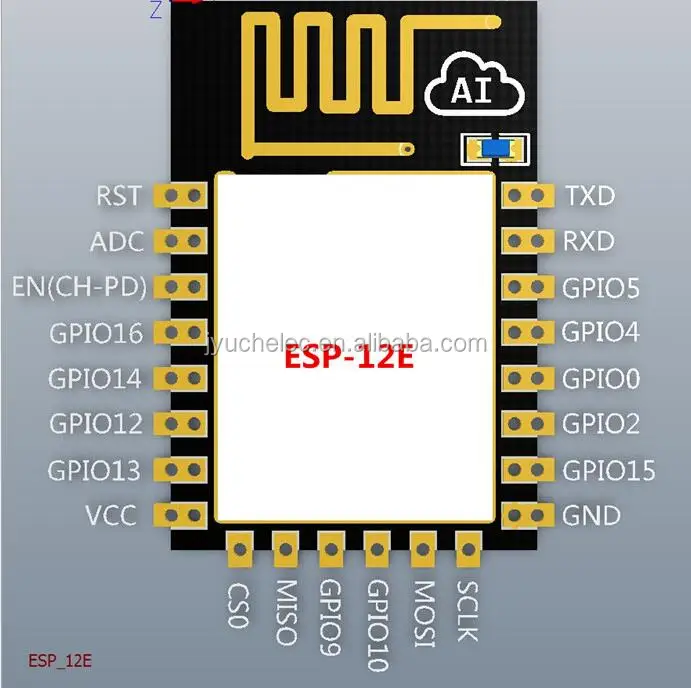

ESP8266-12E is an enhanced version of ESP8266-12, perfect peripheral circuit, enhanced impedance matching, signal output better, whether it is stability or anti-jamming capability, have been greatly improved! For those who choose ESP-12 before, even if the product has been made it does not matter, enhanced version is fully compatible with the firmware before the pin in the ESP-12 on the basis of the addition of six IO port, SPI port leads, the development more convenient, More extensive
Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
The module core processor ESP8266 integrates the industry-leading Tensilica L106 ultra low power 32-bit micro MCU in a smaller package with 16-bit lean mode with 80 MHz and 160 MHz support, RTOS support, integrated Wi- Fi MAC / BB / RF / PA / LNA, onboard antenna. The module supports the standard IEEE802.11 b / g / n protocol, the complete TCP / IP protocol stack. Users can use this module to add networking capabilities to existing devices, or to build standalone network controllers.
Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
The ESP8266 is a high-performance wireless SOC that provides maximum utility at the lowest cost and unlimited possibilities for WiFi functionality embedded in other systems
Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• 802.11 b / g / nFree Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• Built-in Tensilica L106 ultra low power 32-bit micro-MCU, clocked at 80 MHz and 160 MHz support RTOS
Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• Built-in 10 bit high precision ADC Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• Built-in TCP / IP protocol stack Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• Built-in TR switch, balun, LNA, power amplifier and matching network Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• Built-in PLL, regulator and power management components, +20 dBm output power in 802.11b mode Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• A-MPDU, A-MSDU aggregation and 0.4 s protection interval Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• WiFi @ 2.4 GHz, supporting WPA / WPA2 security mode Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• Supports AT remote upgrade and cloud OTA upgrade Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• Supports STA / AP / STA + AP operation mode Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• Support for Smart Config features (including Android and iOS devices) Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• The deep sleep hold current is 10 uA and the shutdown current is less than 5 uAFree Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• Wake up, connect and deliver packets within 2 ms Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• Standby power consumption less than 1.0 mW (DTIM3) Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
• Operating temperature range: -40 ° C to 125 ° C Free Shipping 5pcs/lot ESP8266 remote serial Port WIFI wireless module through walls Wang ESP-12E ESP-12
