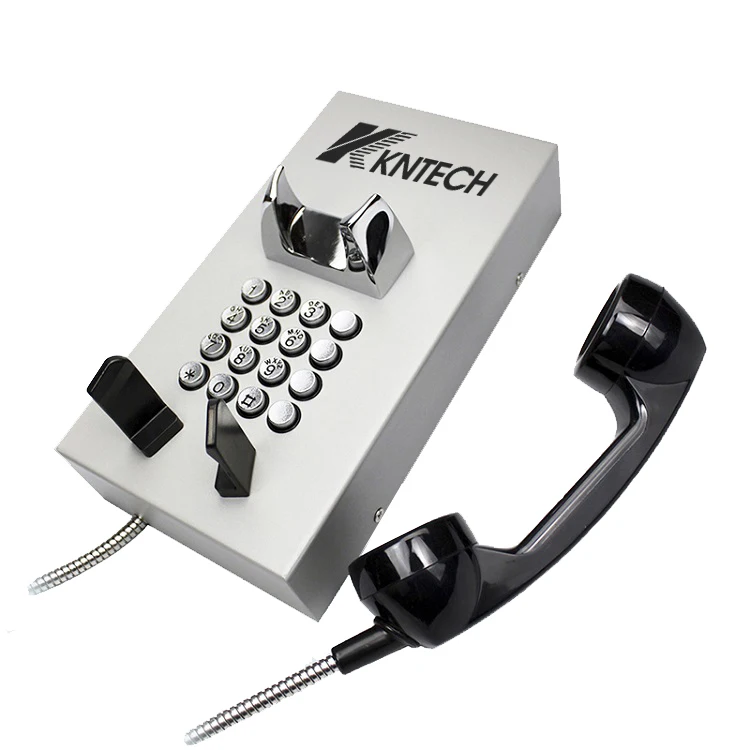

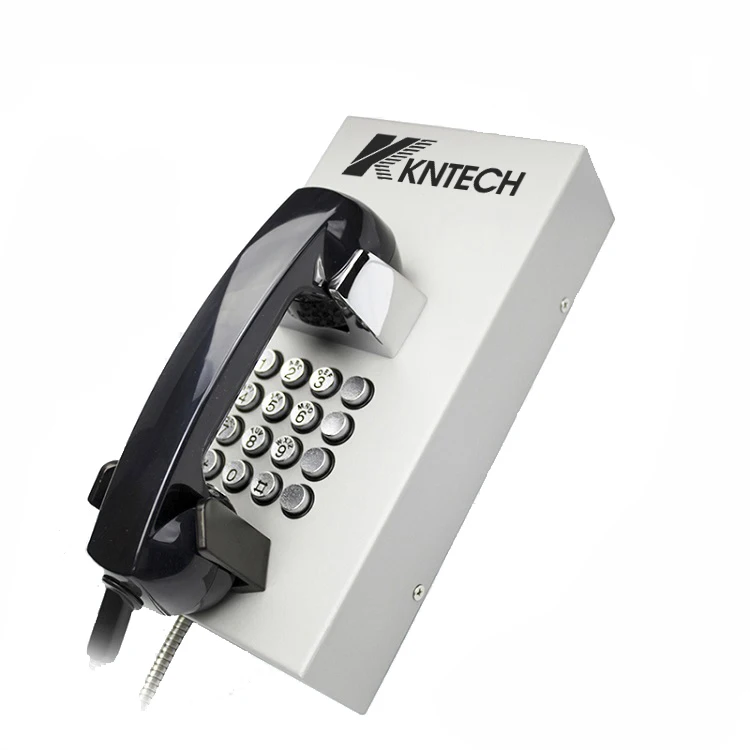

Vandal proof phone for inmate phone calls purpose. made of metal body. The vandal proof phone is rugged and durable. The vandal proof phone widely use in Jail and prison for inmate calls. The vandal proof phone are strong. The inmate can put money on phone for inmate calls.vandal proof phone for inmate phone calls purpose. made of metal body. The vandal proof phone is rugged and durable. The vandal proof phone widely use in Jail and prison for inmate calls. The vandal proof phone are strong. The inmate can put money on phone for inmate calls.
Features:
1. Cold-roll steel body for easy Installation.
2. Waterproof rating IP55 dust proof.
3. Led indicator for incoming calls, support hot-line calling.
4. Weather resistant to IP55 standard, service temperature range from -30 degree to +75 degree.
5. Lightening protection to ITU-T recommendation K.21.
6. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
7. Handset with industrial strong armored cord .
8. Phone integrity wiring to enable the telephone system to check if the telephone unit is still Operational.(If PABX have this available we can provide this function).
9. Optional 7 minute time out to release the line if the handset is left off hook. This function upon buyer’s requirement).
10. Powder coated in UV stabilized polyester finish.
11. The housing covered with a layer of reflective label for easy identification at night.Optional
12. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.
Parameter of Public service phone KNZD-05:
Defend grade
IP55/ MAX IP65
Relative humidity
10%--95%
Atmospheric pressure
86~106KPa
Circumstance noise
less than 60dB(A)
Sound level of ringing
>70dB(A)

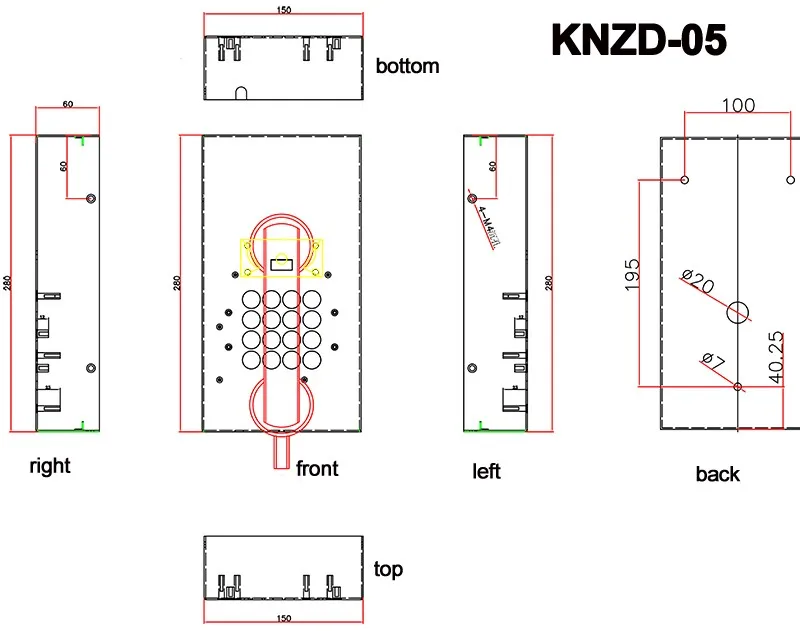

The size about the vandal proof telephone for prison
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)

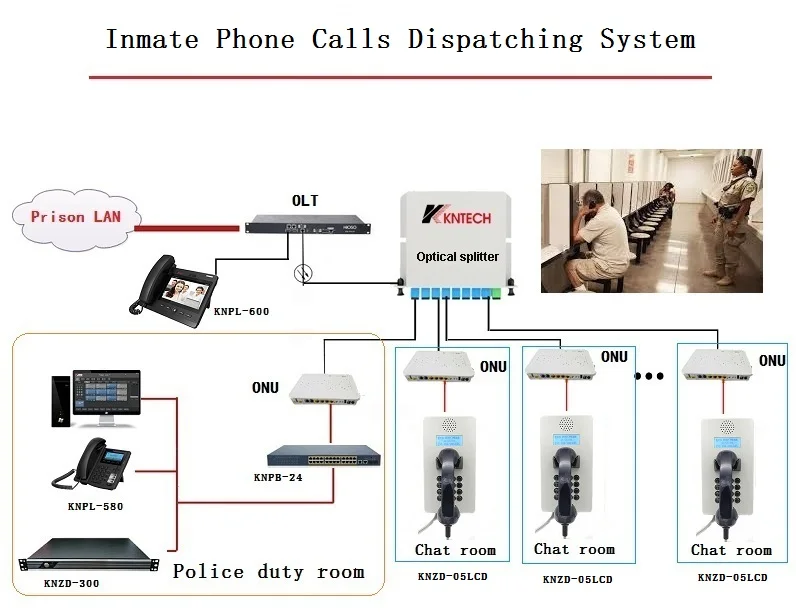

The prision telephone telephone:

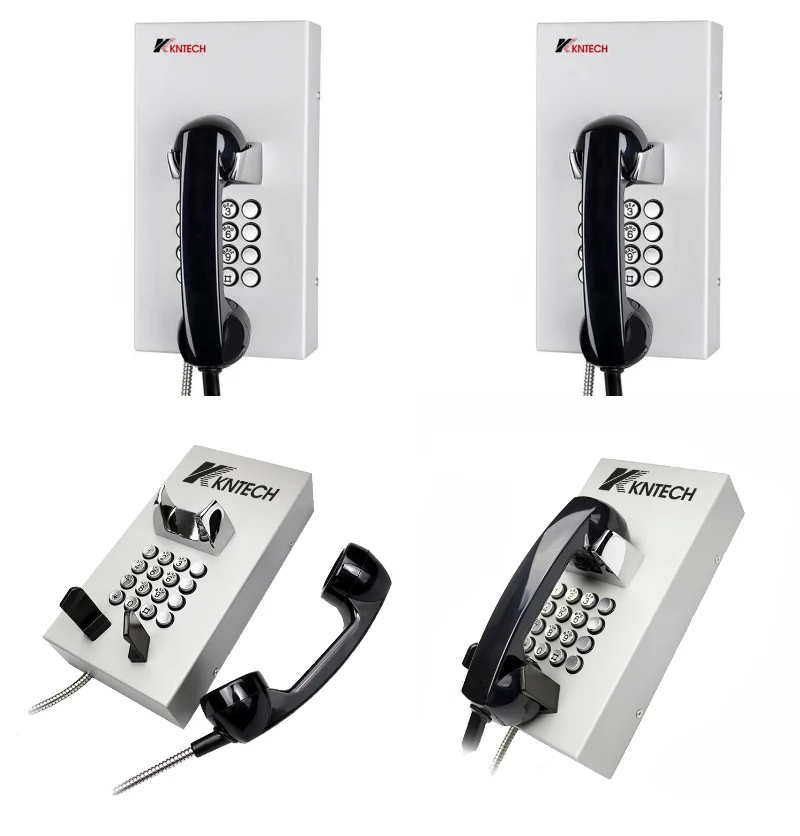

The detail about the telephone
Packaging & Shipping
Package of Emergency Telephone, Vandal Resistant Handset Telephone, ATM Sos Phone

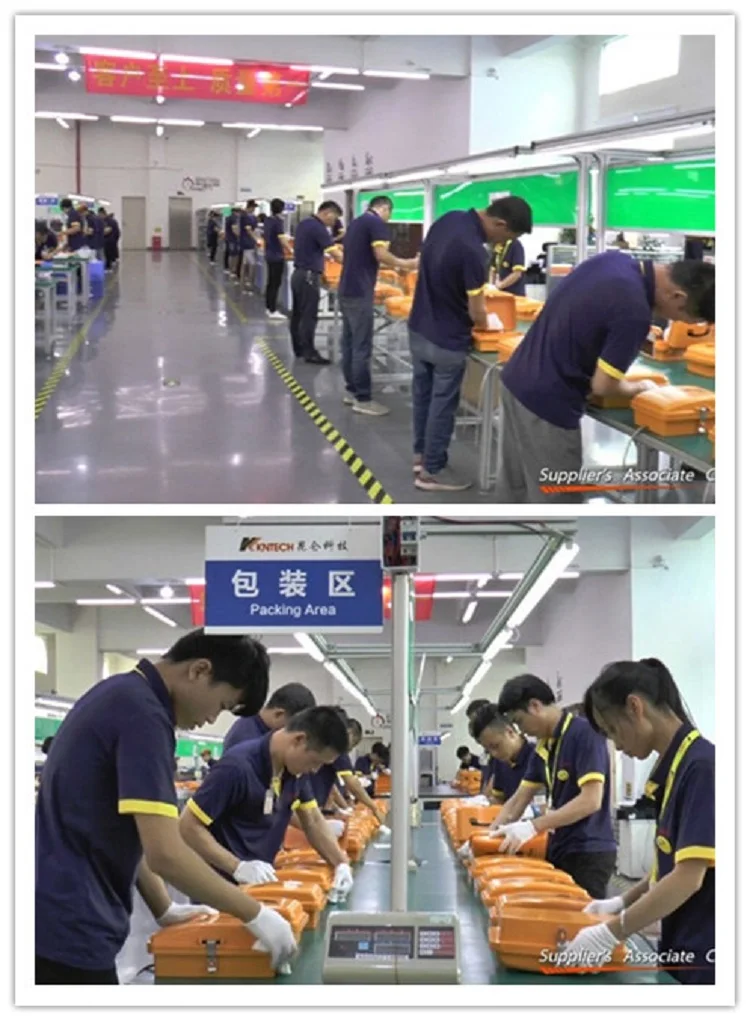

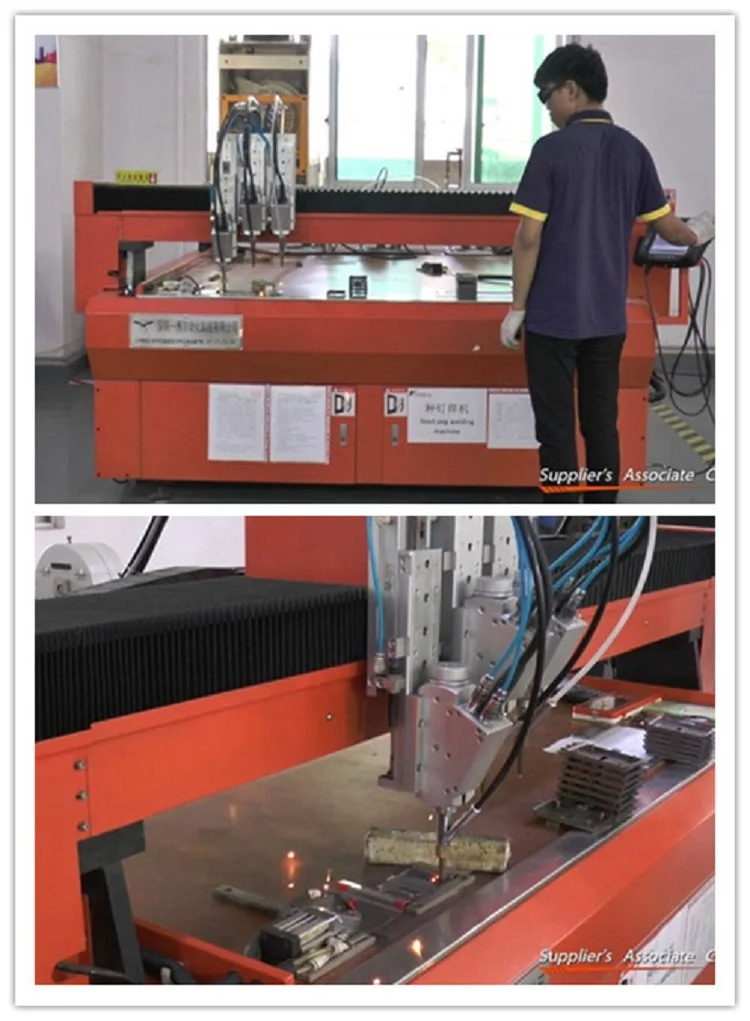

Company Information
HONGKONG KOON TECHNOLOGY LIMITED is dedicated to engaging in R&D, manufacturing and sales of various types of exclusive emergency communication system.
Products include IPPBX PAGA system, industrial SOS IP telephone,help call station,intercom,as well as large network management command systems such as TR069,SNMP Modbus TCP protocol SIP applied in metro, tunnel, airports, petrochemicals, metallurgy, nuclear power, marine,ship building, bridge,mine,and special industry. The factory has a large area of 8,500 square meters. The corporation strives for building up KNTECH to be a top international brand. We are the only Asian enterprise passing IEC, IECEX and EN50121 authentications in the industry. Our various products received the authentications from German TUV, European CE, Us FCC, ETL,PART68 as well as I SO900 . We have built up good cooperation with varied international renowned corporations for several years, includingSIEMENS, ABB, THALES, HUAWEI, AVAYA,NEC and ALCATEL. Company principle: for first quality and best service. Our team: with the camel's spirits of targeted, disciplined, perseverance, endurance. Our staff: honesty, sincerity, carefulness, meticulosity and toughness. Our vision: setting up a world brand and establishing a hundred-year store.
Certifications
FAQ
Question 1. What version of the phone do you have?
--Answer: All of our models are support five versions: analogue(PSTN), VoIP, GSM, PAGA, Wifi. Can be powered by AC110-240V, DC12V / DC5V, telephones line powered, solar, POE, battery or UPS.
Question 2. What's the advantages of your products compared with others?
--Answer:
a. Most of our products have got the International Standard certification. Such as IECEx, IP65, IP66, FCC, CCC, ISO9000, EMC, ROHS, SGS, ...etc.
b. We have enough stocks support flexible and fast lead time within 3-7 days.
c. We support the best price lower than others with good quality and 24X7 hours online service. If you could share the project name and the photos of after-installation, we will offer 5-10% discount to support you.
Question 3. How long is the warranty period?
--Answer: Normally the warranty period is 18 months after items received. If there any issues on the phones, we can send parts for your replacement.
Question 4. Will you offer any spare parts in free?
--Answer: Yes, we can offer 2% spare parts(not included the phone housing).
Question 5. Can you provide a neutral version?
--Answer: Yes. we can support neutral version. Normally, the default is our standard Kntech brand and the price is favorable than the neutral version.
Question 6. If some parts of the phones occur issue need to be changed, can we find the parts in our local store?
--Answer: Yes, if out of the warranty period, please let us know the issue and we will offer the technical data of the parts and reference price.
Question 7. Can I purchase the accessories separately like PCB board, handset, buttons, speaker, keypad, ...etc?
--Answer: Yes, we support MOQ 1pcs.
Question 8. Can I do customized of the products?
--Answer: Yes, we support OEM \ ODM order. We have our own R&D Department with high technology support. Please provide your detailed requirements.
Question 9. Can I choose other colors of the phones?
--Answer: Yes, normally the default color is yellow. Some model like KNZD-04, KNZD-11, KNZD-13, KNZD-14... support red, blue or white. It is base on our stock. If the quantity over 100pcs, we can support other colors you like.
Question 10. What's the MTBF of the phone?
--Answer: The MTBF is 50,000-70,000 hours. And the average failure rate is very low at 0.3%.
