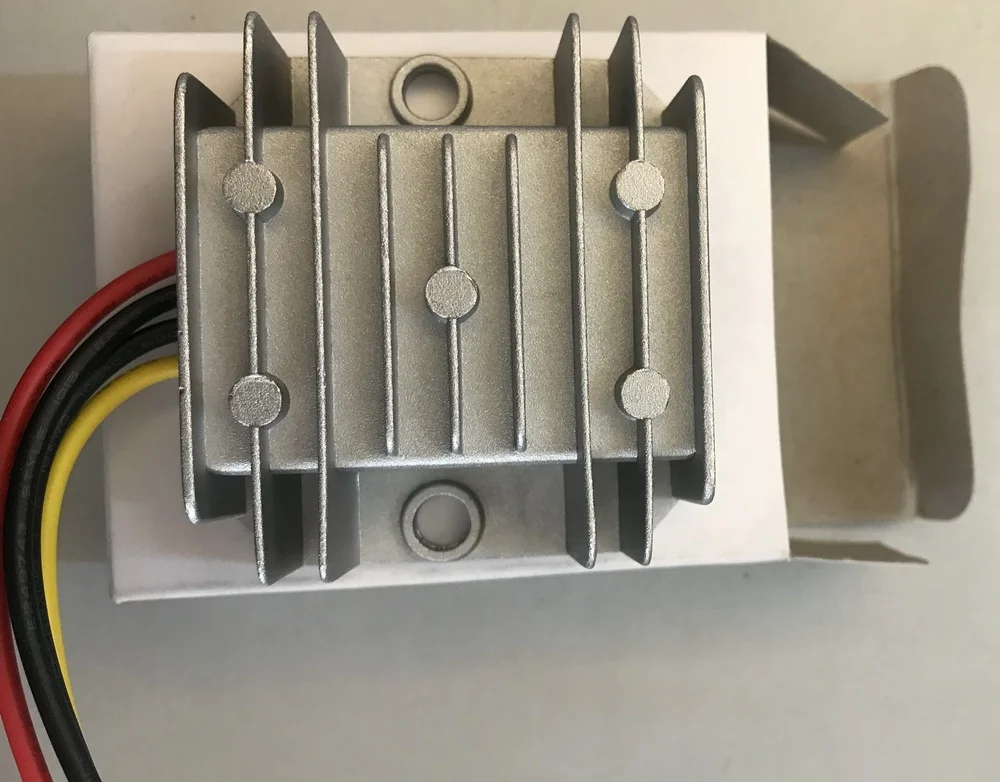

DC DC converter 12V/24V to 5V 10A Power Converter 50W BUCK DC24V TO DV 5V WS 1224T0510

Product Overview

Description

Features

1. 100% full power& stablecurrent output

     2. 100% Imported components

     3. Wide input voltagefrom 8-36Vdc

     4. 100% waterproof & anti-shockprotection, Ultra compactsize, light weight

     5. Industry gradeDC8-35V to DC5V step-down converter, efficiency up to 92%

     6. Certificates: CE/RoHS

     7. Waterproof level: IP68

     8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,

9. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, Auto-recovery whendevice is backto normal operating

10. Non-Isolated Module

11. 1 year warranty,lifetime up to 100,000 hours.

Specifications:

Model	WS-1224T0510
Input rated voltage	12V / 24V DC
Input voltage range	8-36V DC
Efficiency	93% (half load) ; 92% (full load)
Output voltage	5V DC
Output current	10 Amps
Output rated power	50 Watts
Output peak power	125%
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 50mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage
Machine size	57*64*22mm
Package size	89*72*30mm
N. Weight	125g
W. Weight	135g
Cooling way	Free air convection
Other	White box packing

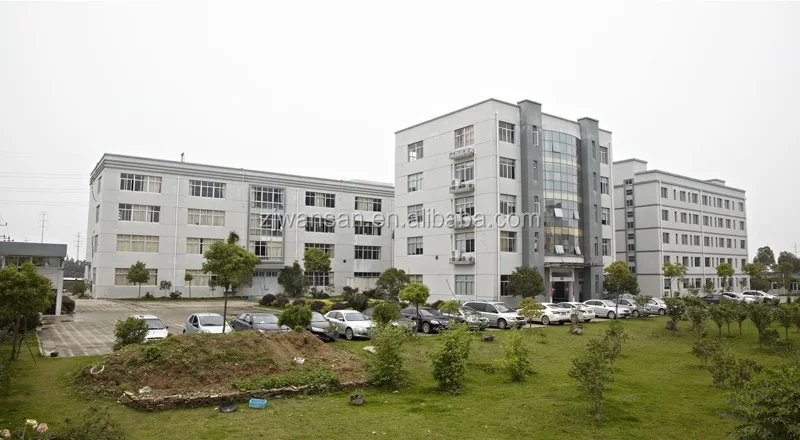

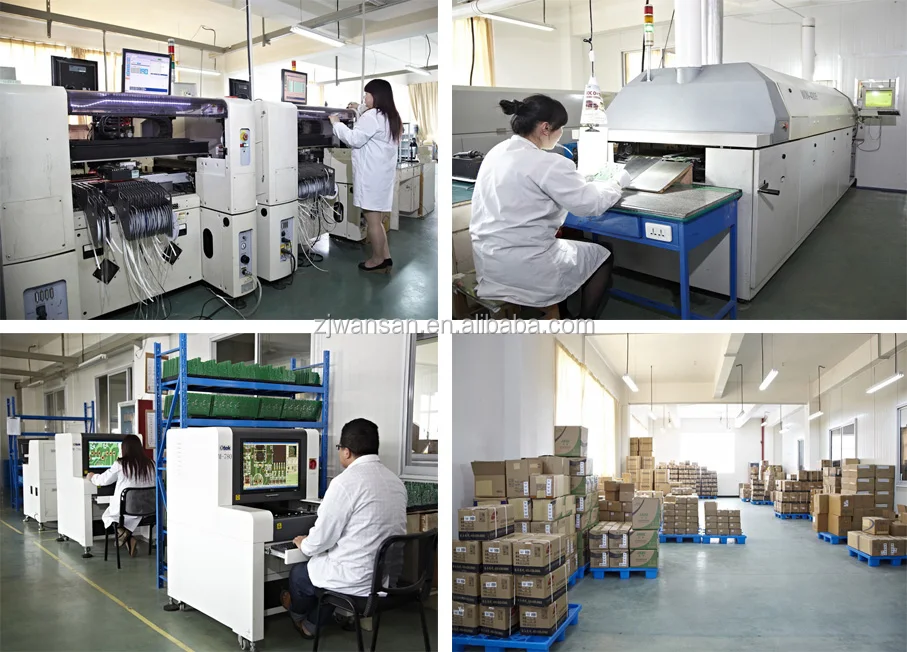

COMPANY INFORMATION

FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or from alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all DC DC converters.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional DC DC converter designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
