Power Frequency Copper Melting Furnace Copper Rod Wire Tube Horizontal Continuous Casting Machine
- Category: >>>
- Supplier: Wuxi Jintong Furnace Co. Ltd.
Share on (60665666999):
Product Overview
Description

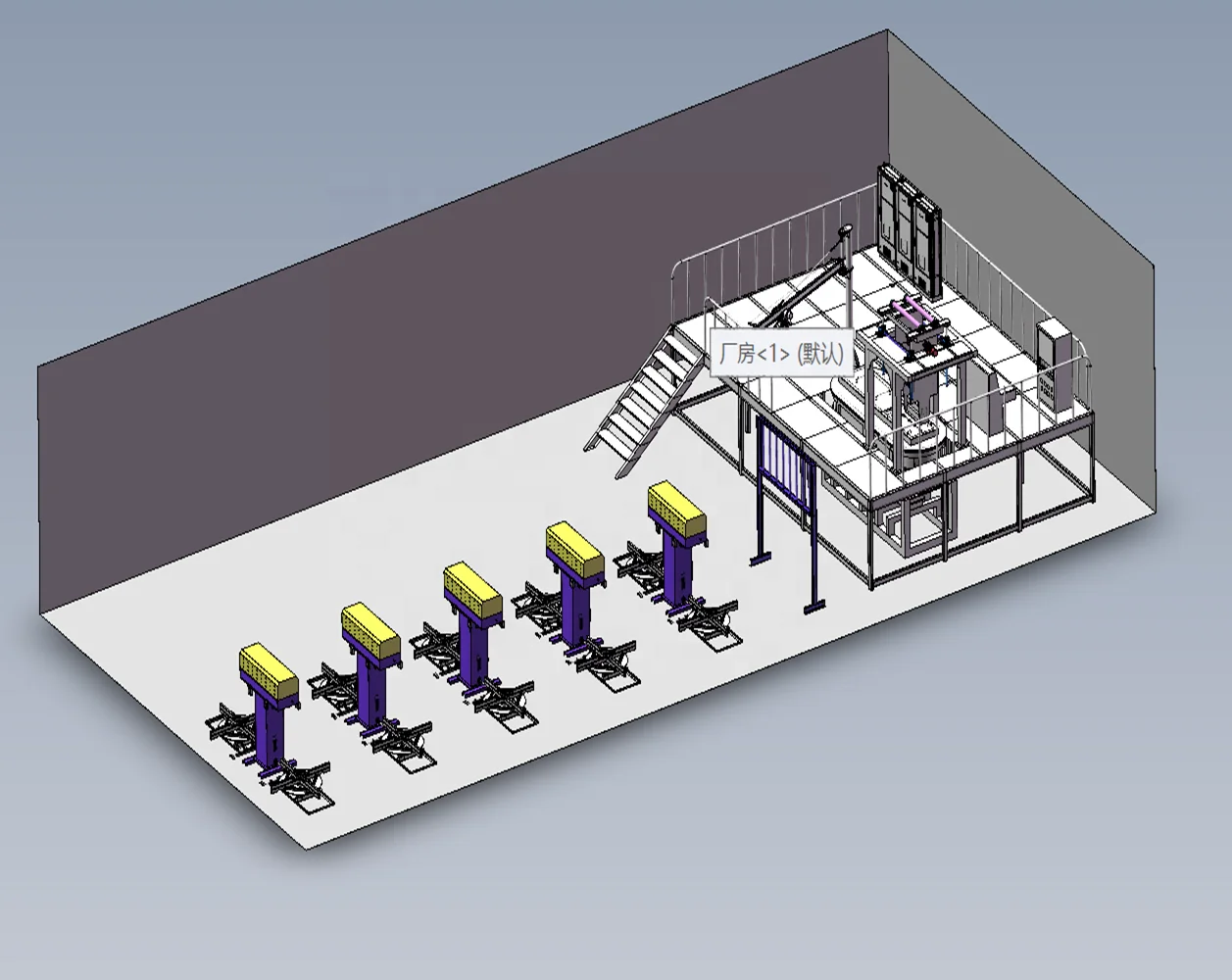

Craftwork Flow
1. Furnace
Parameter:
Model Number | GYT-300/300 | GYT500/300 | GYT-300*2/300 | GYT-500*2/300 | GYT-500*2/500 |
Content(T) | 4~5T | 5~6T | 6~7T | 7~8T | 8~9T |
Capacity Annually | 2000~2500T | 3000~4000T | 4500~5000T | 7500~8000T | 7500~8000T |
Ele. Capacity(KW) | 80/45 | 120/45 | 160/50 | 240/50 | 240/80 |
Voltage(V) | 380~415 | 380~415 | 380~415 | 380~415 | 380~415 |
Phase Number | 3 (ABC) | 3 (ABC) | 3 (ABC) | 3 (ABC) | 3 (ABC) |
Power Factor | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 |
Frequency of Input Current (HZ) | 50 | 50 | 50 | 50 | 50 |
Melting Rate ( KG) | 300 | 500 | 600 | 1000 | 1000 |
Rating Working Temperature (℃) | 1200 | 1200 | 1200 | 1200 | 1200 |

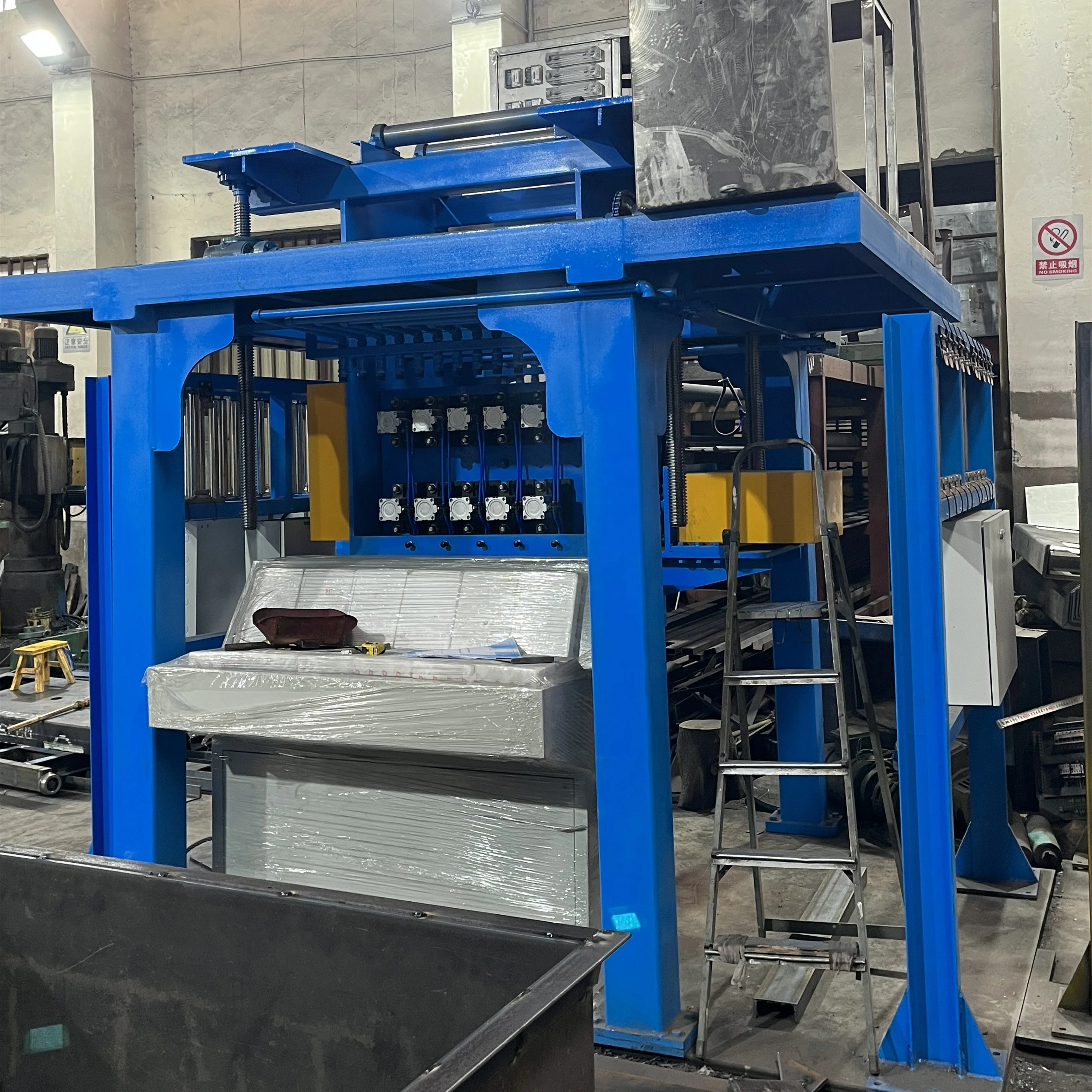

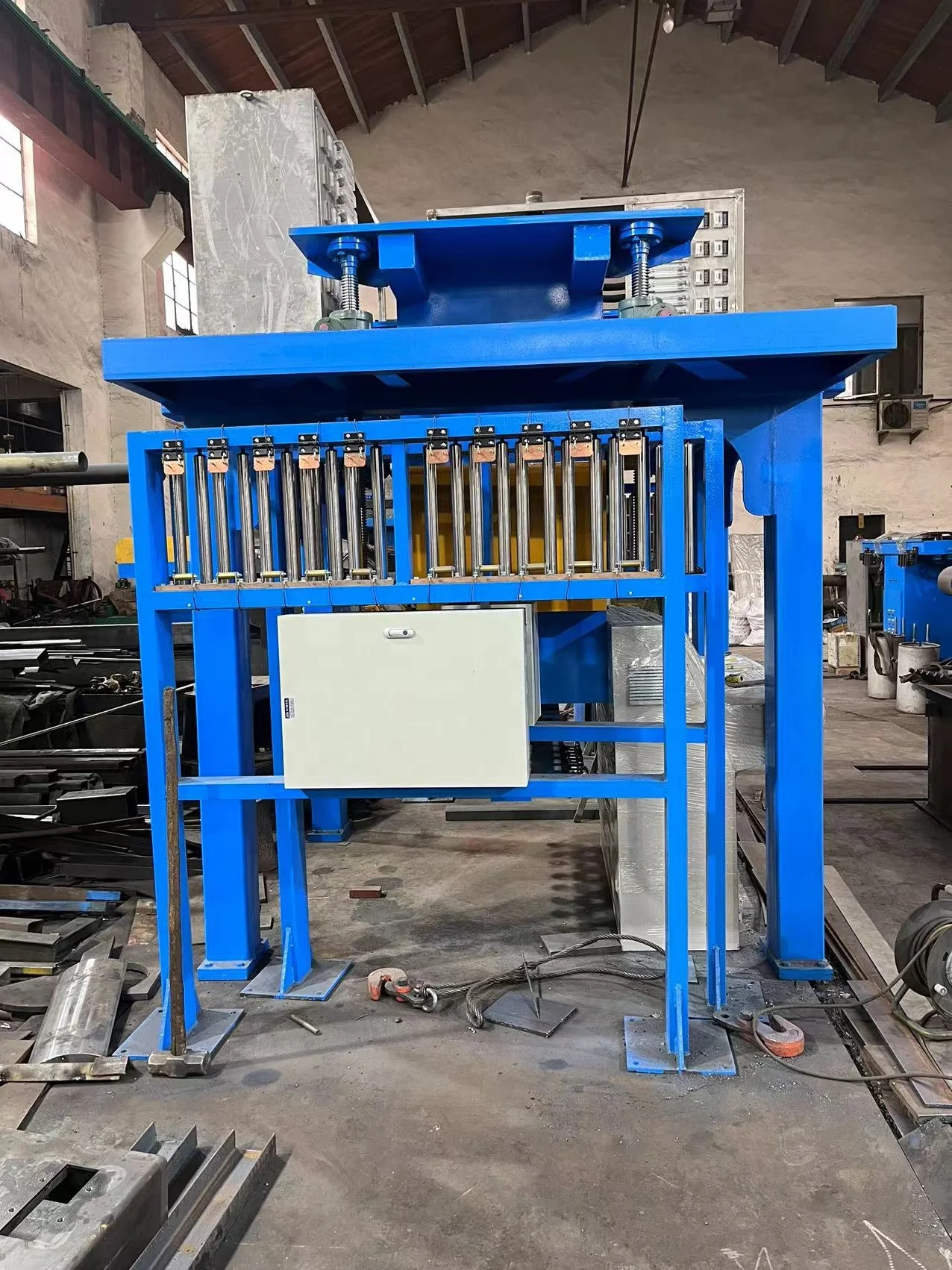

2. Upward continuous casting machine
No. | Parameters: |
1 | Motor: Servo Motor 3KW (single or double Servo Motor) |
2 | Up Drawing Speed: 0-1800mm/minute |
3 | Copper Rod Diameter: as per required size |
4 | Copper Rod Qty: as per requirement capacity |
5 | Control: PC Controlled |

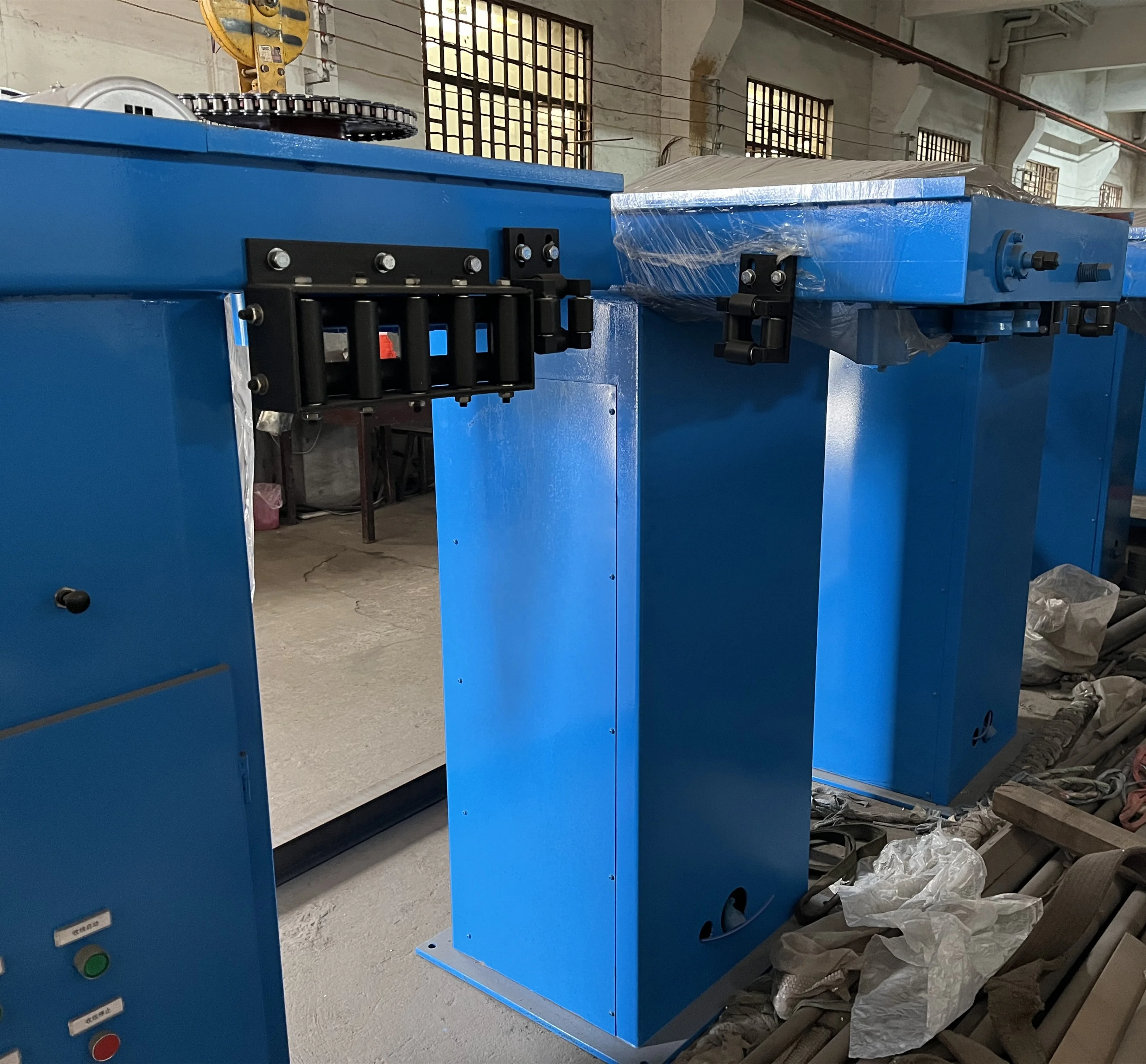

3. Take-up Machine
No. | Parameters: |
1 | Motor: Variable Frequency Motor 3kw (Two side ) |
2 | Speed Reducer: Gear Reducer |
3 | Take-up Reel Capacity:2-3T |
4 | Take-up coil standard for rod: 800mm × 1500mm× 800mm |
5 | Take-up form: Automatic adjust |
6 | Take-up copper rod rang rod automaticall |
4. Crystallizer
No. | Parameters: | Remarks |
1 | Copper rod crystallizer outer tube | Outer tube: Steel Inner tube: Copper Length: 1370mm |
Copper rod crystallizer inner tube | ||
Quick connector | ||
High-pressure pipe 1800mm |
Q. What is your MOQ?
A. 1 set.
Q. Your company is a trading firm? or Factory?
A. We are a factory with 10+ years experience in industrial melting feild. We currently have three branches: main frequency furnace production, medium frequency furnace production, component machine production. You are warmly welcomed to visit our factories.
Q. How is your products quality?
A. As a manufacturer, we have our own R&D team. Basing on several years of technical innovation, we have accumulated successful experience in induction heating, temperature holding, fast melting. We've customized so many furnaces with all positive feedbacks.
