heat press machine design, heatpress logo large larger format sublimation heat press, heating evently. The working table surface was specially treated, can print sublimating heat transfer articles.
heatpress logo large larger format sublimation heat press
1.Printing Area (cm)
60X80
80X100
2.Voltage (v)
110/220
3.Power(kw)
4.5
5.2
4.Temperature Range (°C)
0-999
5.Time Range (s)
0-399
6.Weight (kg)
125
260
7.Packing Dimension （cm)
111X93X59
119X111X49
8.Application
T-shirt ,Mouse pad, Phone case , Stone,Pillow,Puzzle, Frame etc
9.Warranty
one year
Main Features
Importantly
particle board hot press machineThe new design machine always use the Aluminum plate for heating pad,it is made by die-cutting almost horizontal,even heating,low attrition rate. while the old design always use the iron plate,very different from the Aluminum plate
1.Aluminum heating plate thickness ：other 6-7mm ，our is 8-9mm （The higher the heating plate thickness, the more uniform heating ，will be better)
2.the materials of our machine also more thickness than others ,so weight will be more heavy
3.Computer table：other use The use of resistors, capacitors are prone to leaking buck short life, there are security risks，our use Step-down transformer will be more durable，and safe
4.The first technique：Our hot cup machine can empty heating，others can not do that
the most important is we are top 3 of heat press machine factory in China ,welcome you come to visit us in the future！！！！

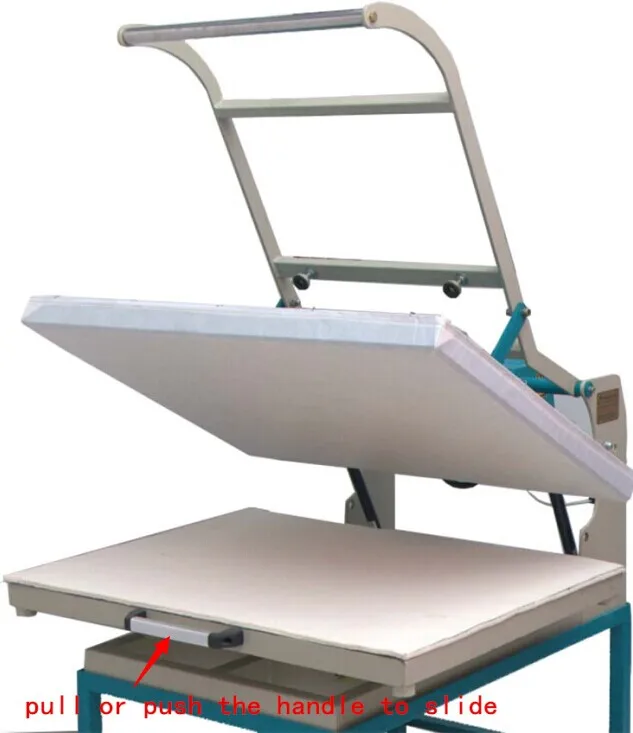

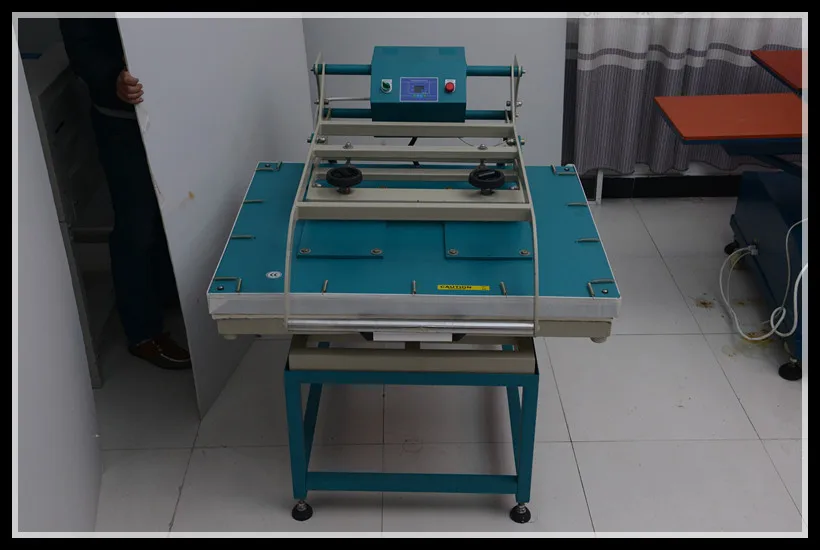

Detailed Images

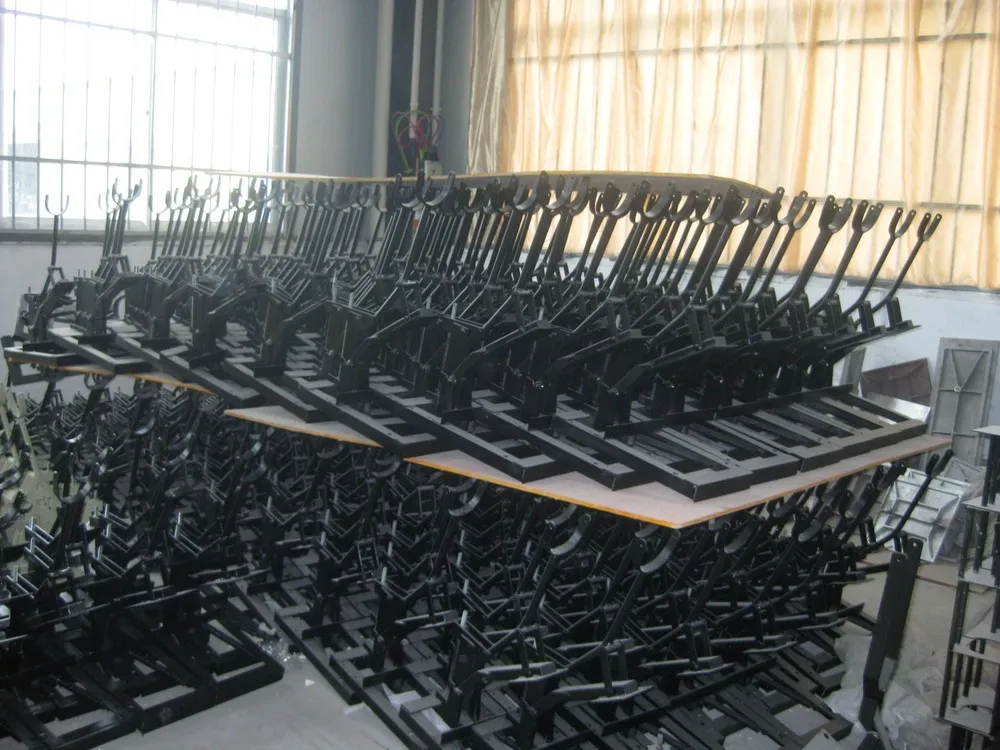

Machine Parts

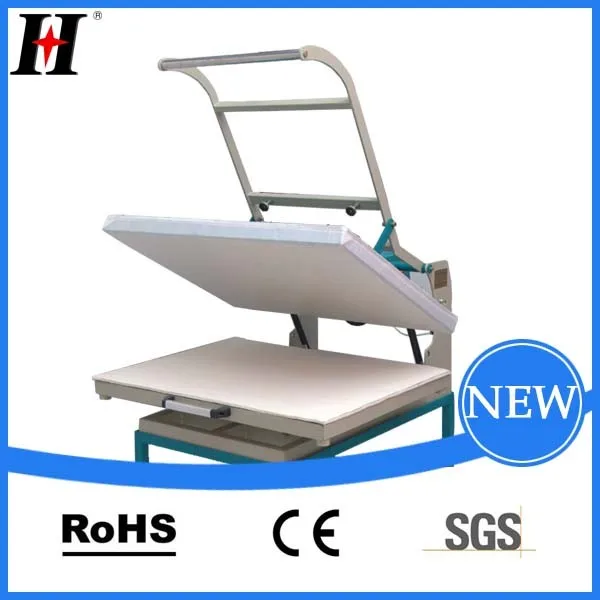

Name: heatpress logo large larger format sublimation heat press Brand: HengXing
Original: China
Sixian Hengxing Screen Printing & Heat Transfer Machinery Co., Ltd.
For T-shirt, Cap, Umbrella, Leather, Advertising board, Mouse Pad, Metal Board, Slipper, Bag, Cushion etc
This machine can print the T-shirt ,Mouse pad, Stone,Pillow,Puzzle, Frame,Mirror,Tile,etc.
Allows transfers onto T-shirts, garments, bags, mouse mats, jigsaw puzzles, ceramic tiles, plates and other flat surfaced items.
electronic equipment control the temperature, high veracity.
How to use the heat press machine?
1. Prepare for fabric and plastic paper for sumblimation
2.Open the heat press machine and set the temperature and time.
3. Put fabric and picture on the plate of heat press machine
4.Pull the handle of heat press machine and make the heat plate down.
5. Take out fabric when the time is ok and you should veil the plastic paper.
6. finished the process of printing fabric.
Operation procedures
please note:Users should operate the machine with ground wire connected for safety!
1.Check the voltage before using it.Then turn on the power supply!
2.Plug in,turn on the power switch of machine,the power indicator lightened.
3.Set the thermostat to the temperature needed (Normally 120-200ºC),set the timer to the needed.(Normally 5~20Second).
4.Place the clothes to the main plate,cover the printing paper(please note the right surface of the paper).Press the handle down until reach terminal.
5.When the time come down to over,the buzzer alarms,pull the handle back.
6.If it is cold-ripping of the transfer paper,please use blackboard wiper to rub against the whole transfer paper,wait for 5-10 seconds,then rip off the transfer paper.If it is the hot-ripping of the transfer paper,you can rip off immediately after printing.

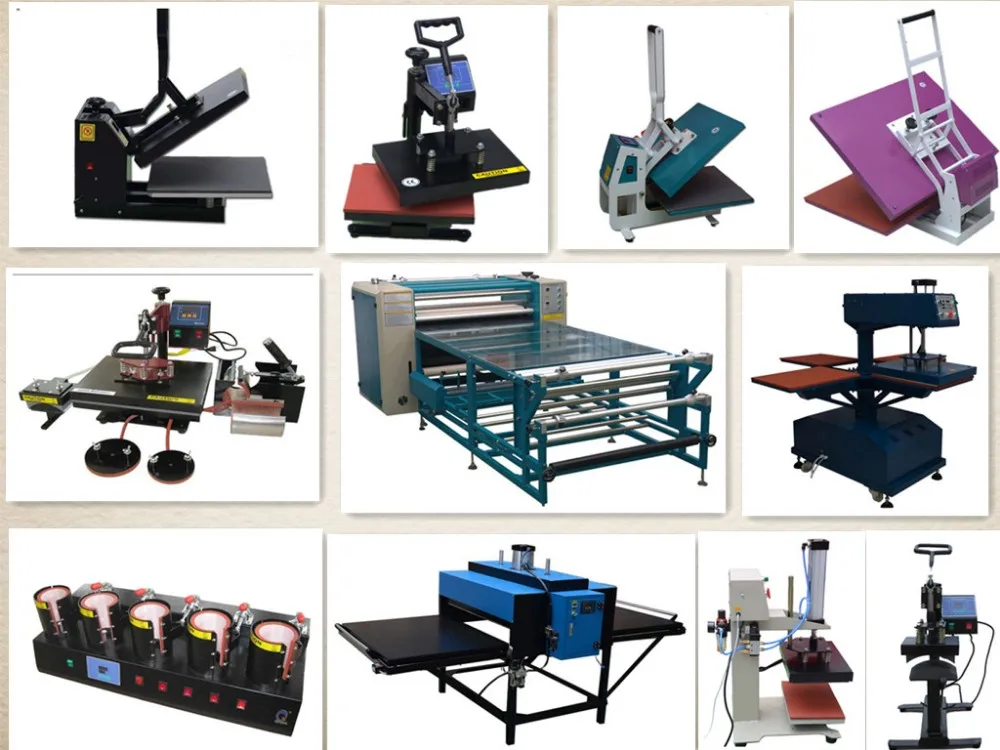

Heat presses are widely used for heat transferring images to T-shirts, mouse pads, tiles and any other objects with flat surfaces, by foil, sublimation, ink jet and more. We have many different heat presses(like 15x15 and 16x24 intch.........) meeting your need.
1. Hand shank 2.timer and temperature controller 3.heater 4.fuse 5. Power line 6. switch

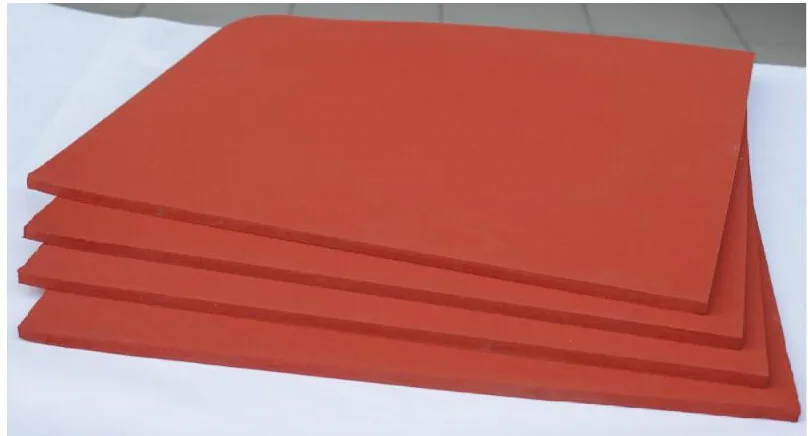

7. Pressure adjust screw 8. silicon pad
• Our machine adopts the full touch digital intergrated meter which is convenient and efficient
• High precision, it is great for both beginners and professional heat printers.
• Makes it easier for fixing garment printing.
• Easy for operate and greatly saving labor.
• This heat press is a great space saver in any shop.
• With high quality
For T-shirt, Pillowcase, Puzzle, Mouse Pad, Metal Board, Fridge Magnet, Coaster, Slipper, Bag, Cushion, etc.

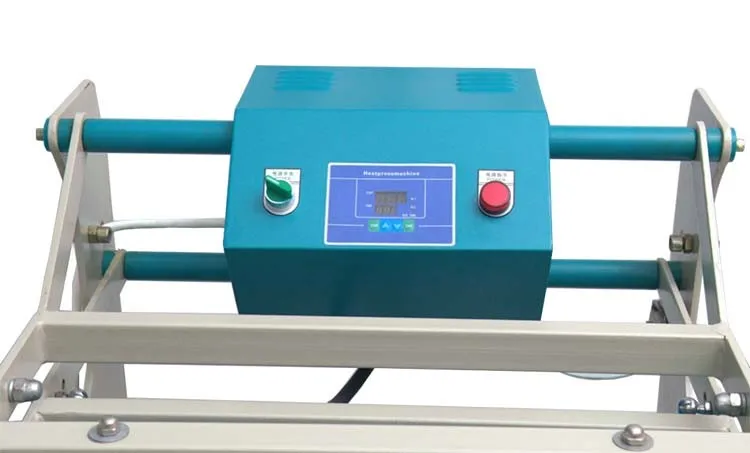

temperature and time setup:
1.turn on the switch, machine connect power with buzzer a times,showing temperature and time.
the OUT light keep lighting
2.press TEMP button, the temperature screen flash, change the temperature through up and down
key.Press TEMP button again to fix the temperature you want.
3.press TIME button, the time screen flash, change the time through up and down key.
Press TIME button again to fix the time you want.
4.When the heater temperature up to the setup temperature , the OUT light crush out.
Printing steps:
Taking the white chemical fiber cloth as an example
1.Feed material into inkjet printer, be sure printing on the printable side(white matt coated side).
2.Design you image and invert it ,printer setting use Photo Quality
or Best Quality print mode
3. Lift up the press handle, and turn on the power.The press should always be in the open position
when heating the it.
4. Setting temperature and time.
5. Press will keep in the constant temperature when rising to the ideal temperature.
Put the cloth on the silica pad with the side you want to transfer facing up and smooth out all
wrinkles to preheat for 5 second.
6.Place on fabric with image face down.
7. Lay down the grip to start the transfer ,meanwhile the timer will count automatically.
8.While time is up, the buzzer will sound .
9. Lift up the press handle again, take out the cloth and peel the paper.
peel warm or peel cool refer to transfer paper instruction
Packing & Delivery
Packaging
Size
111 (L) * 93(W) * 59(D)
Weight
125 KGS
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

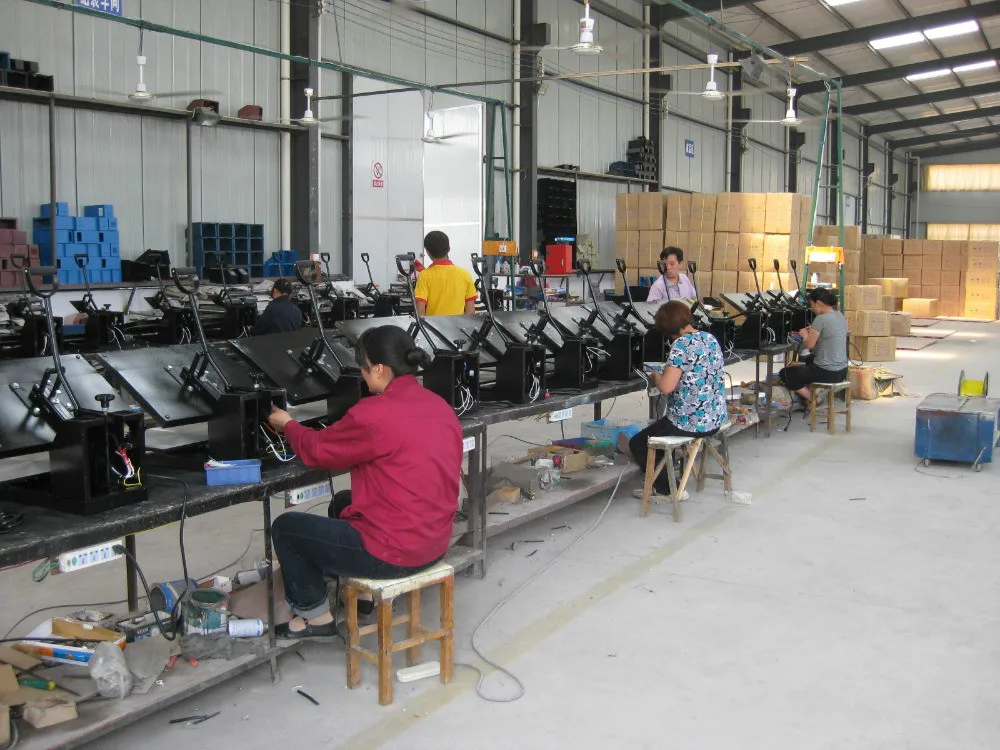

Our Company
