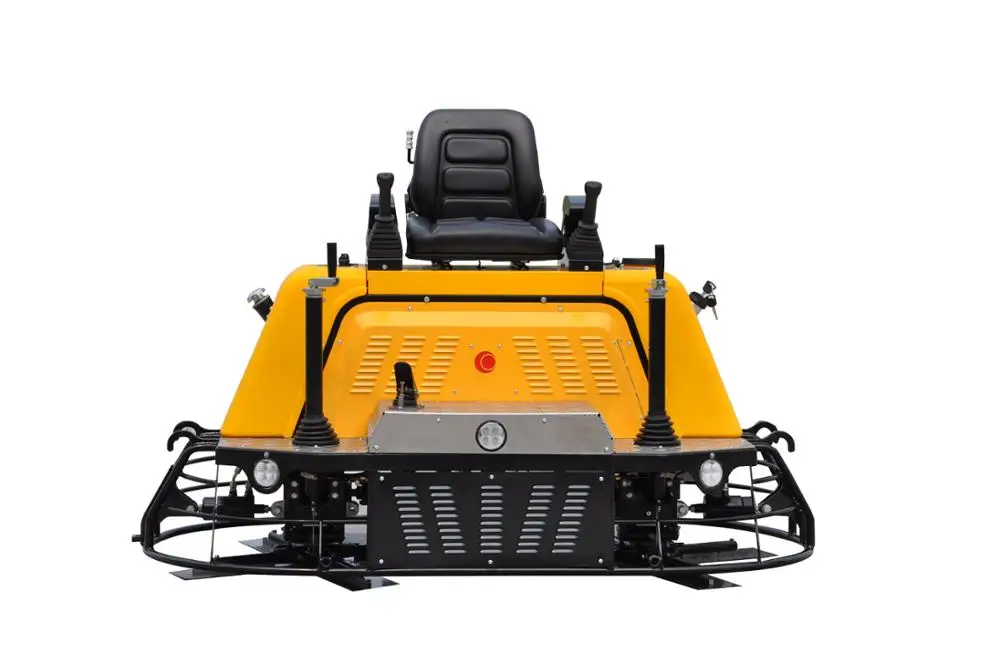

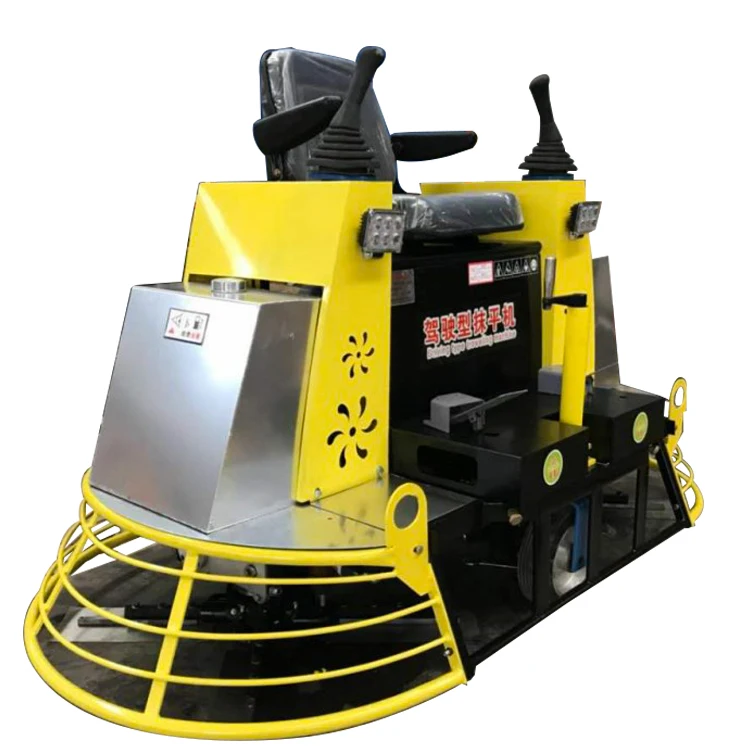

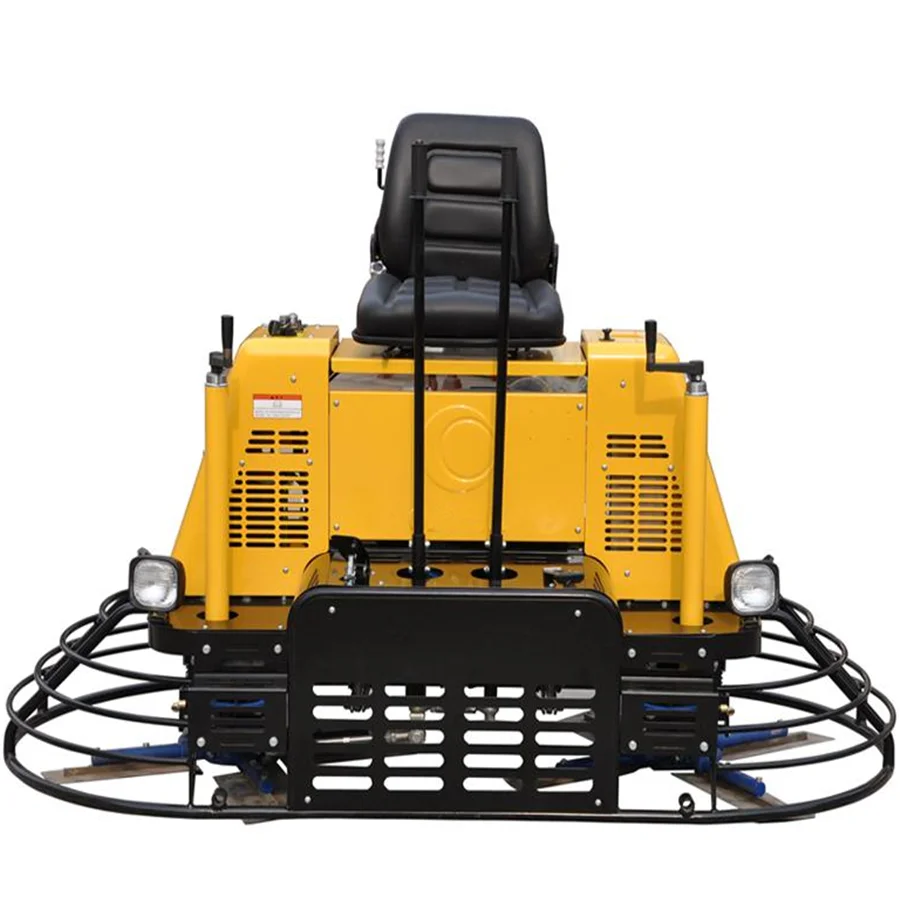

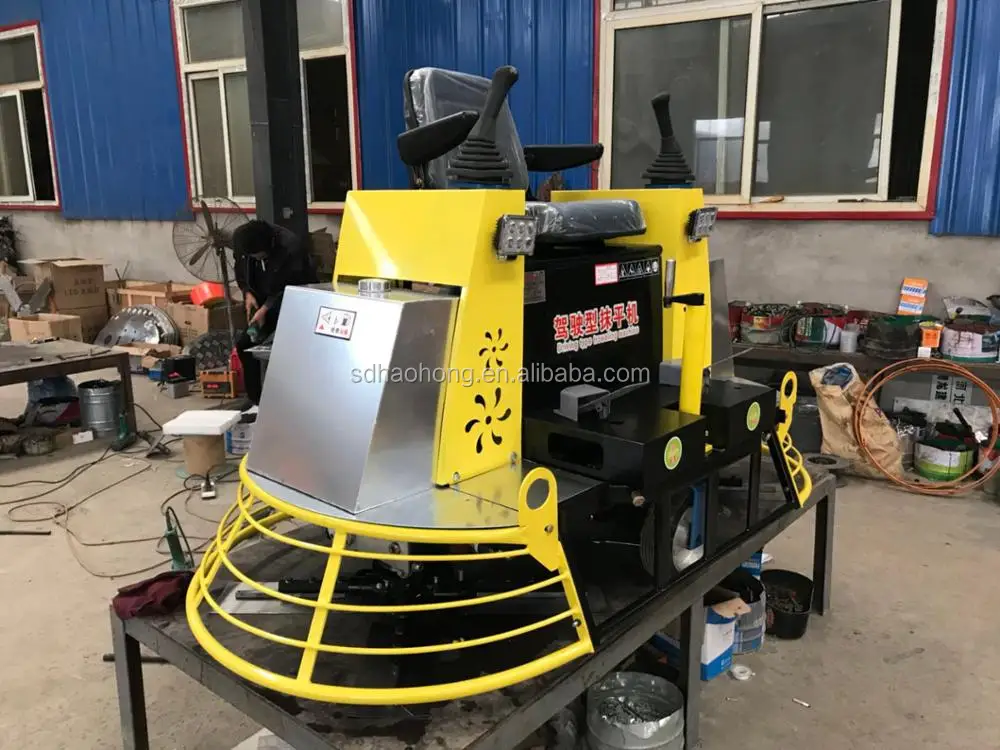

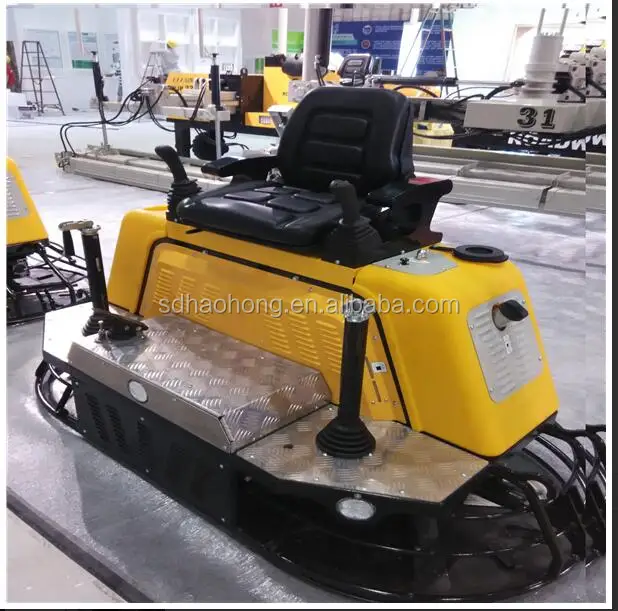

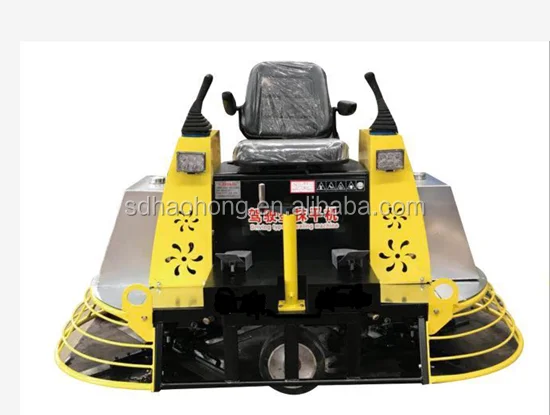

Hydraulic control HONDA gasoline powered ride-on concrete trowel machine






Products Introduction:
1.Ride on operation reduces intensity of labor and increse effeciency of work
2.with dual rotor, much heavier weight and much better compaction, the efficiency is higher than walk behind power trowel
3.A non overlapping is designed for two pans working
4.Hydraulic type steering system with rapid response and easy control
5.Low barycenter design provides stable operation
6.A strong power supplied by honda gasoline engine
7.HH-QMG2 5 Blades design, much better compaction result.
Product Description:
1.Hydraulic control for driving and pitch adjustment. It is most popular in the market.
2.Working over 14hrs,working dia2475mm.
3.Lowe barycenter design provides stable operation.
4.Hydraulic control for driving and pitch adjustment.
5.Special frame design to change blade and pan more easier.
Type | HHMGY-S36 |
Working | |
Operation mode | Ride-on, Hydraulic handle |
Working width | 75in |
Working speed | 80-150rmp |
Blade | |
Blade quantity | 8 |
Blade size | 350x150mm |
Fixed hole distance | 4.75 in |
Engine | |
Model | HONDA GX690 |
Type | Gasoline engine,air cooled, 4stroke, OHV, double cylinder |
Power | 22.5hp/3600rpm |
Fuel tank volume | 15L |
Lubricant L | 1.9L |
Fuel consumption | 313g/kWh |
Dimension | |
Total length | 2060mm |
Total width | 1030mm |
Total height | 960mm |
Packing size | 2140x1100x1100mm |
Weight | |
Weight | 400kg |
