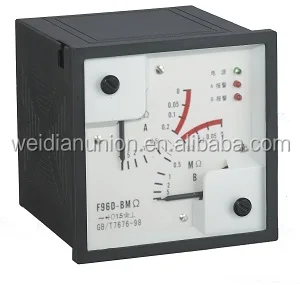

72mm Double Structure Marine Type AC Net Insulation Monitor
72mm Double Structure Marine Type AC Net Insulation Monitor
72mm Double Structure Marine Type AC Net Insulation Monitor
72mm Double Structure Marine Type AC Net Insulation Monitor

72mm Double Structure Marine Type AC Net Insulation Monitor

Share on (60665703051):


Price:RUB 3,884.09 - RUB 7,316.38

Quantity:


Product Overview

Description

Product Description
Model
Dimension
Measurement Range
WDZ96-BMΩ

96*96mm

220V/380V
WDZ72-MΩ
WDZ72-BMΩ
72*72mm
WDZ72-MΩ
Technical Parameters

Application:


 1. Monitor imperfect grounding in vessel power system and alarm output;
 2. Used for continuous monitoring resistance(less than 500V) in power system between vessel and electric circuit, and alarm release once insulation resistance lower than preset value.

Technical Data:

 1. Valid measuring range: 0.005-5MΩ, alarm level: 0.01MΩ, 0.03MΩ,0.06MΩ,0.1MΩ;
 2. Alarm output capacity: DC24V/3A or AC220V(Max) 1A, terminal 4 & 5 is normal open, 5&6 is normal close;
 3. In the same power network, it is forbidden to inspect insulation resistance by 2 units meter or other instrument;
 4. This type of meter include one-way and dual structure, while one-way type with transmitting output with 4-20mA, accuracy class: 1%.





Showroom
Factory Overview

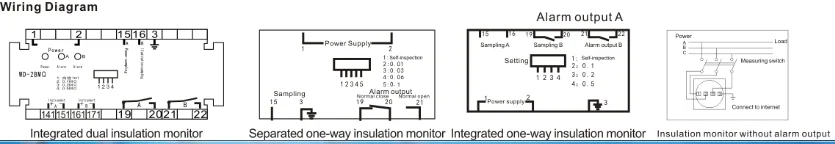

Wiring Diagram
