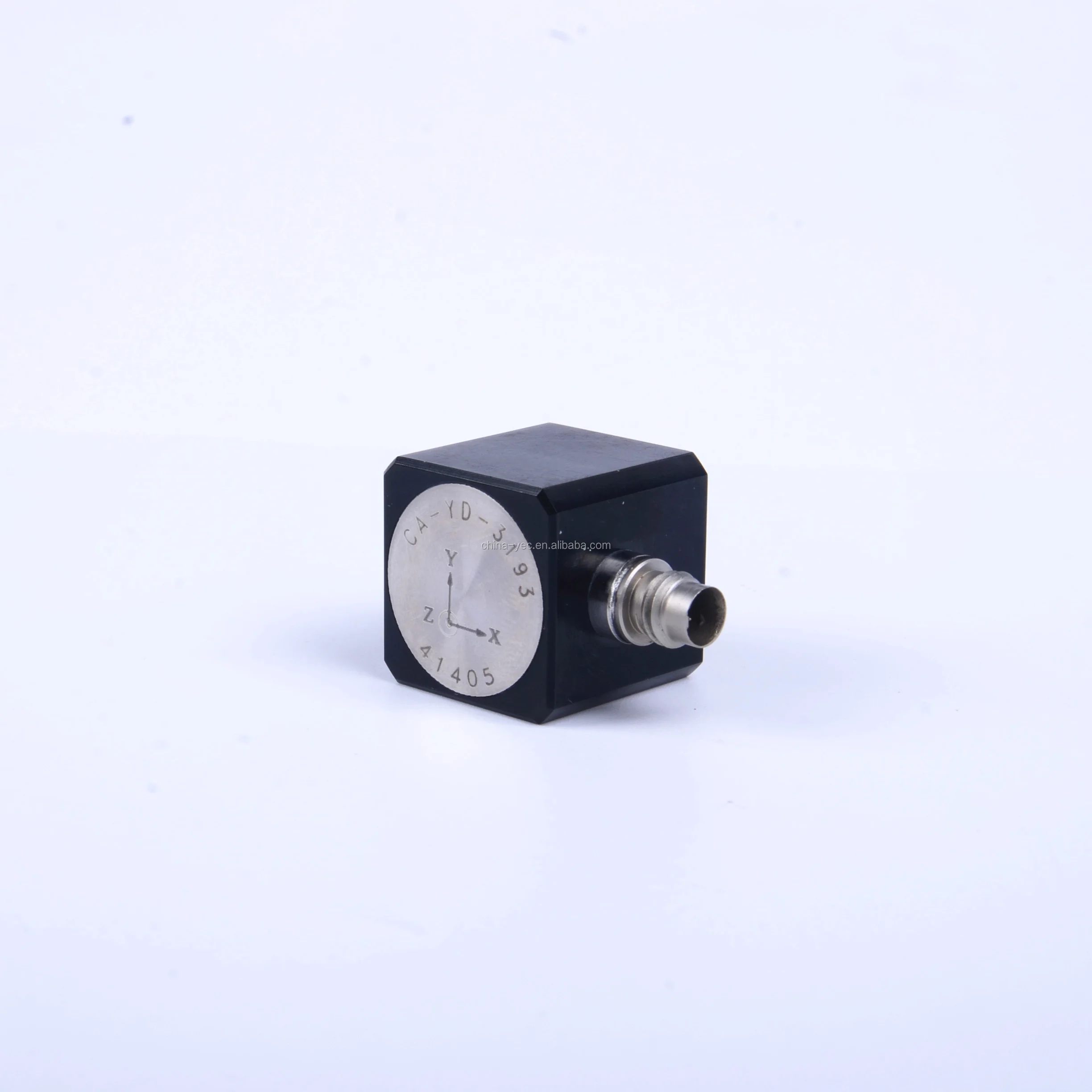

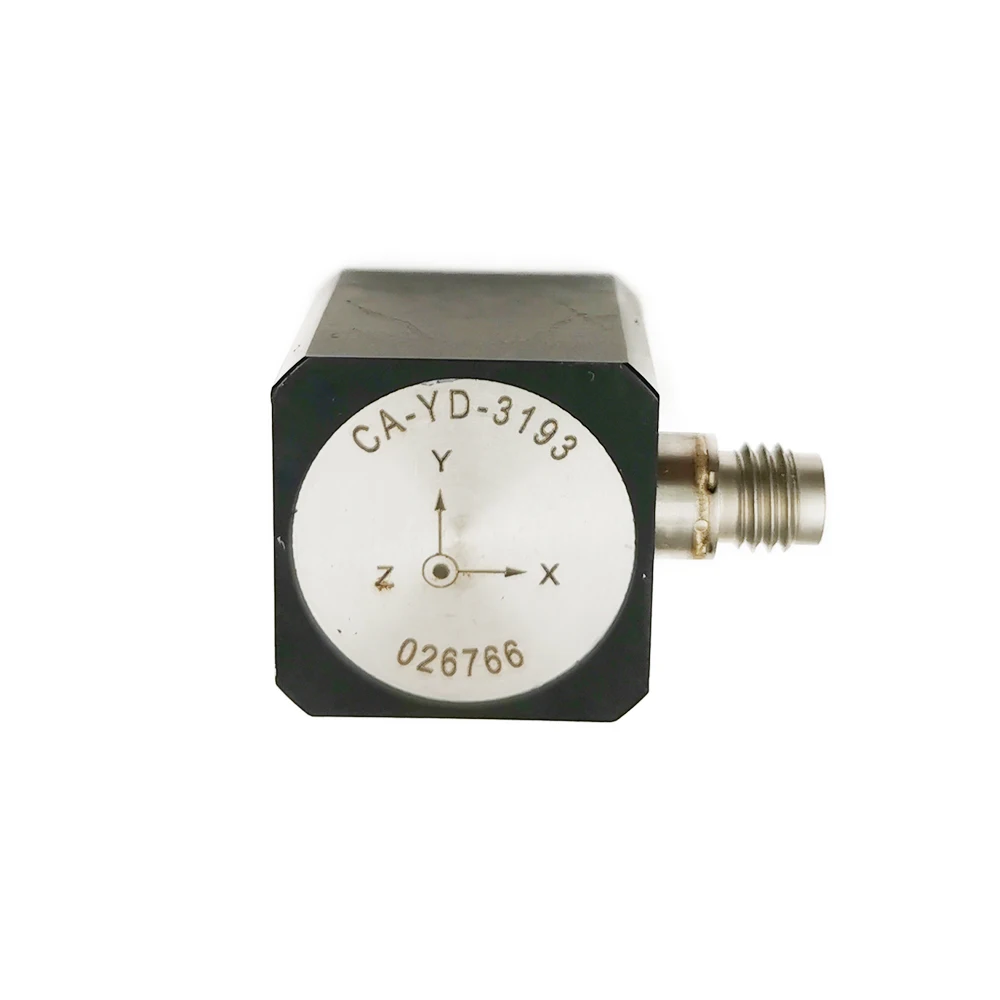

3 Axis mini accelerometer CA YD 3193 5 100g 50mv/g IEPE vibration sensor
- Category: >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (60665726083):
Product Overview
Description
Piezoelectric Accelerometer (Miniature, Tri-axial, IEPE) |
Model: CA-YD-3193-5 |
Features:
l Miniature, lightweight, 1/4-28 four-pin socket output
l Tri-axial (X,Y,Z) output
l Wide frequency response
Specifications:
Specifications:
Sensitivity(20±5℃) | ~50 mV/ g |
Measurement Range(pk) | 100 g |
Max Transverse Sensitivity | ≤5 % |
Frequency Response(±5%) | 1~ 4,000 Hz |
Mounting Resonant Frequency | 20,000 Hz |
Operating Temp. Range | -40~+120 ℃ |
Temperature Response | See Graph |
Shock Limit(pk) | 2000 g |
Max Output Signal(pk) | ≤6 V |
Noise | <2 mg |
Output Impedance | <100 Ω |
Operating Voltage(Constant current source) | +18~+30 VDC |
Operating Current | +2~+10 mA |
DC Bias Voltage | 12±2 V |

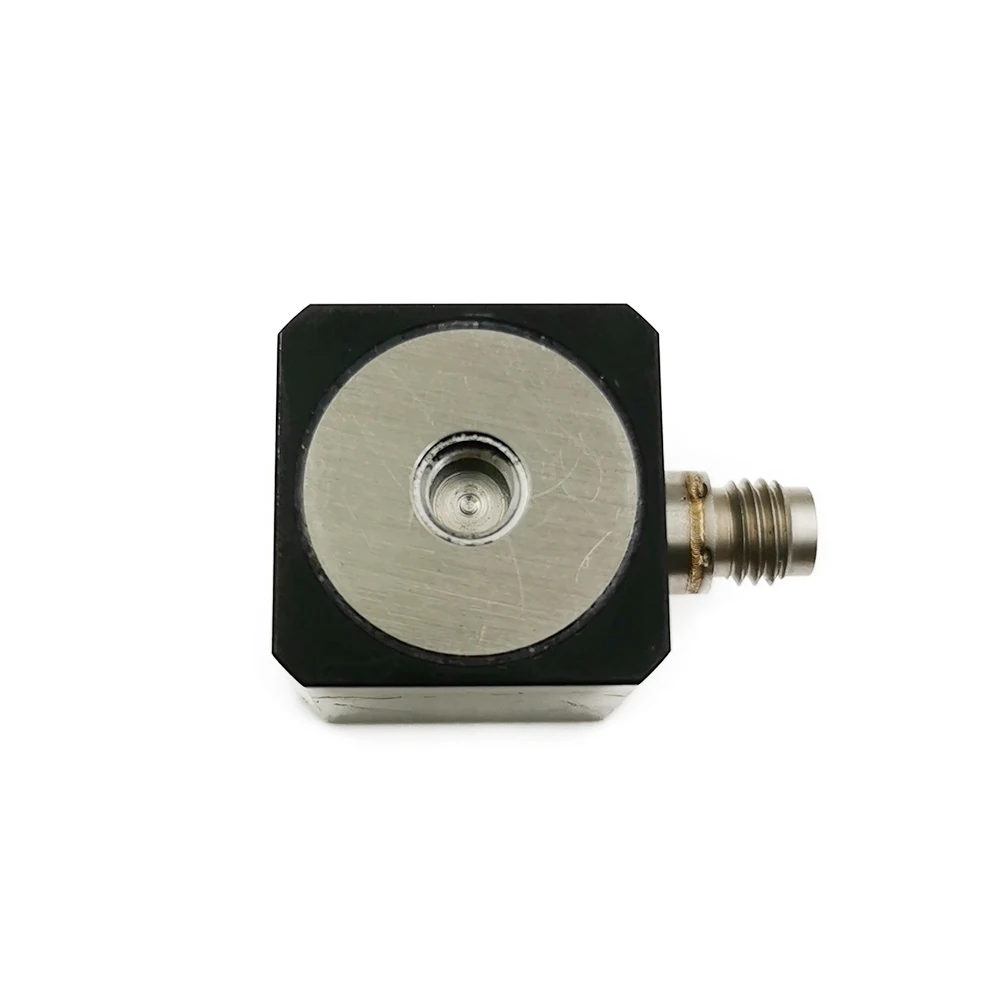

Mounting | M5 |
Sensing Element | Piezoelectric Ceramics |
Sensing Geometry | Shear |
Case Material | Stainless steel |
Weight | 16 g |

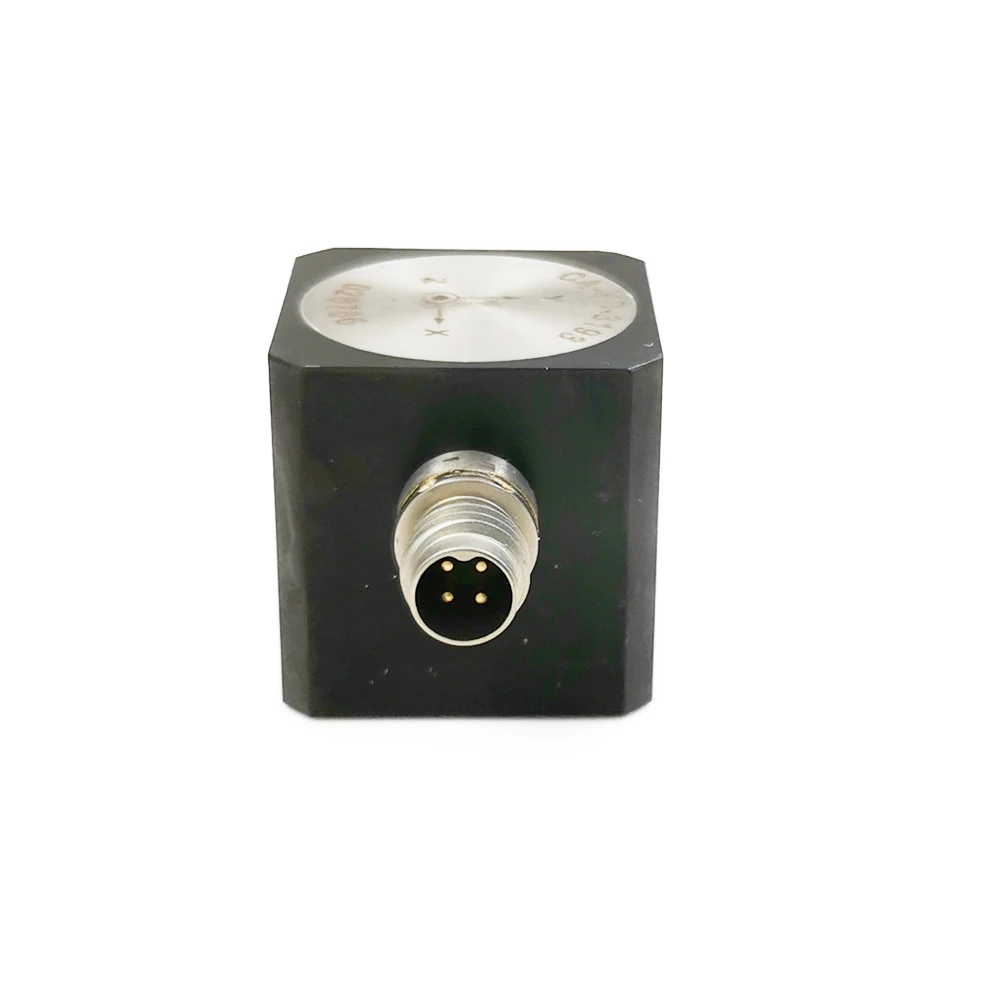

Output | 1/4-28 4-pin plug |
Accessories |
|
Certificate | Calibration parameter, frequency response |
M5 Stud, Protection cap | one |

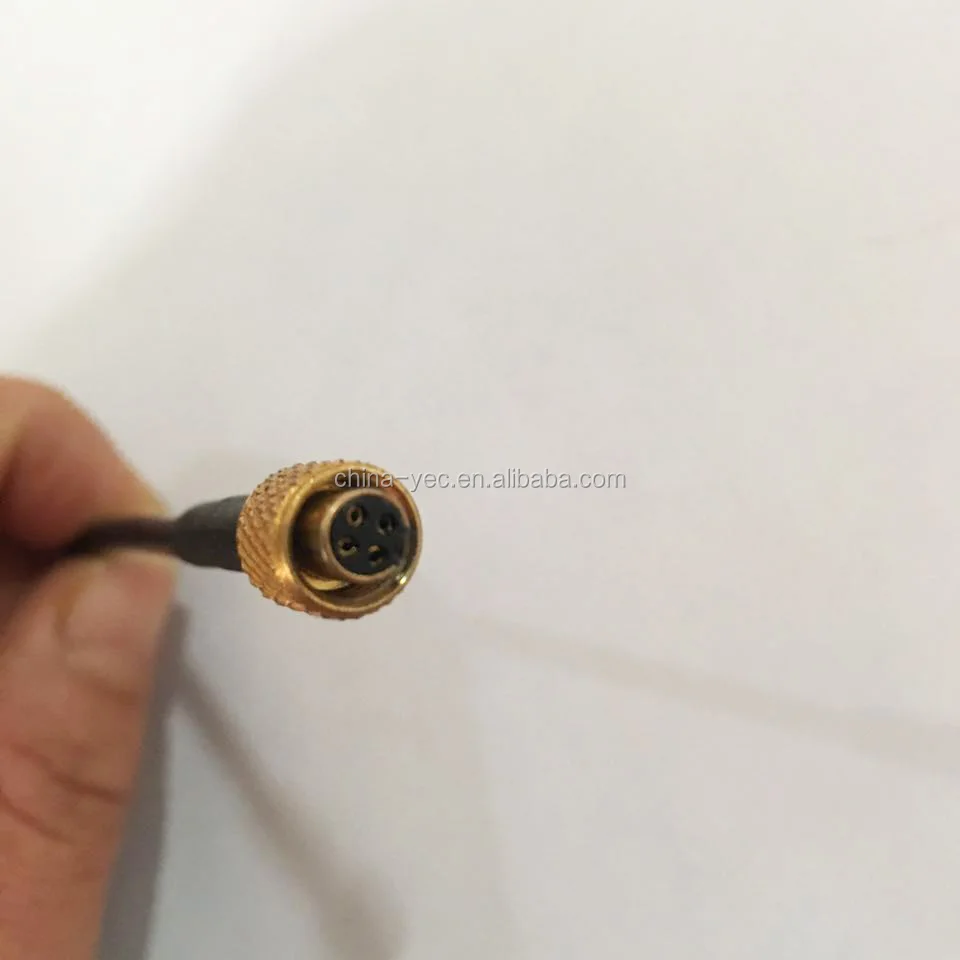

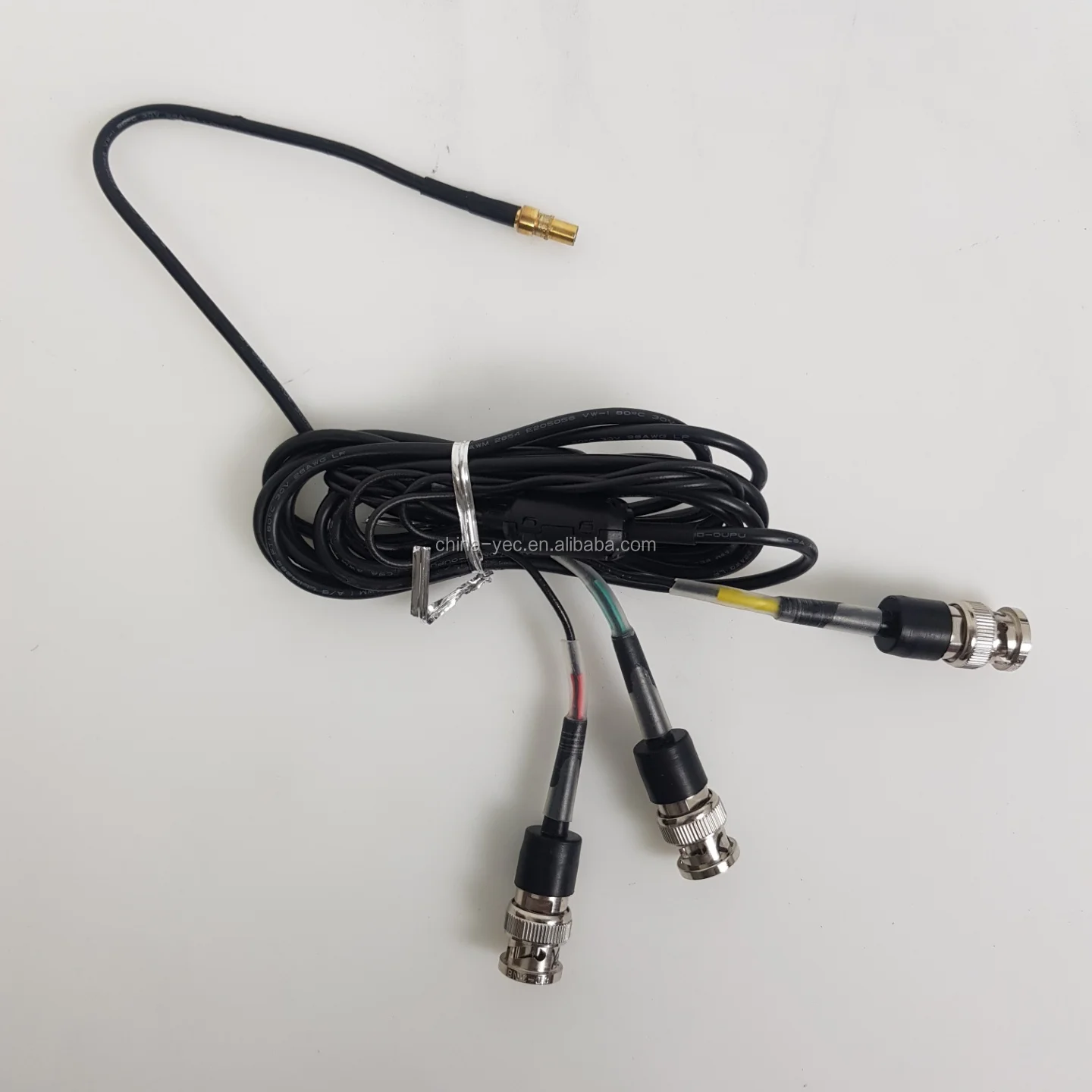

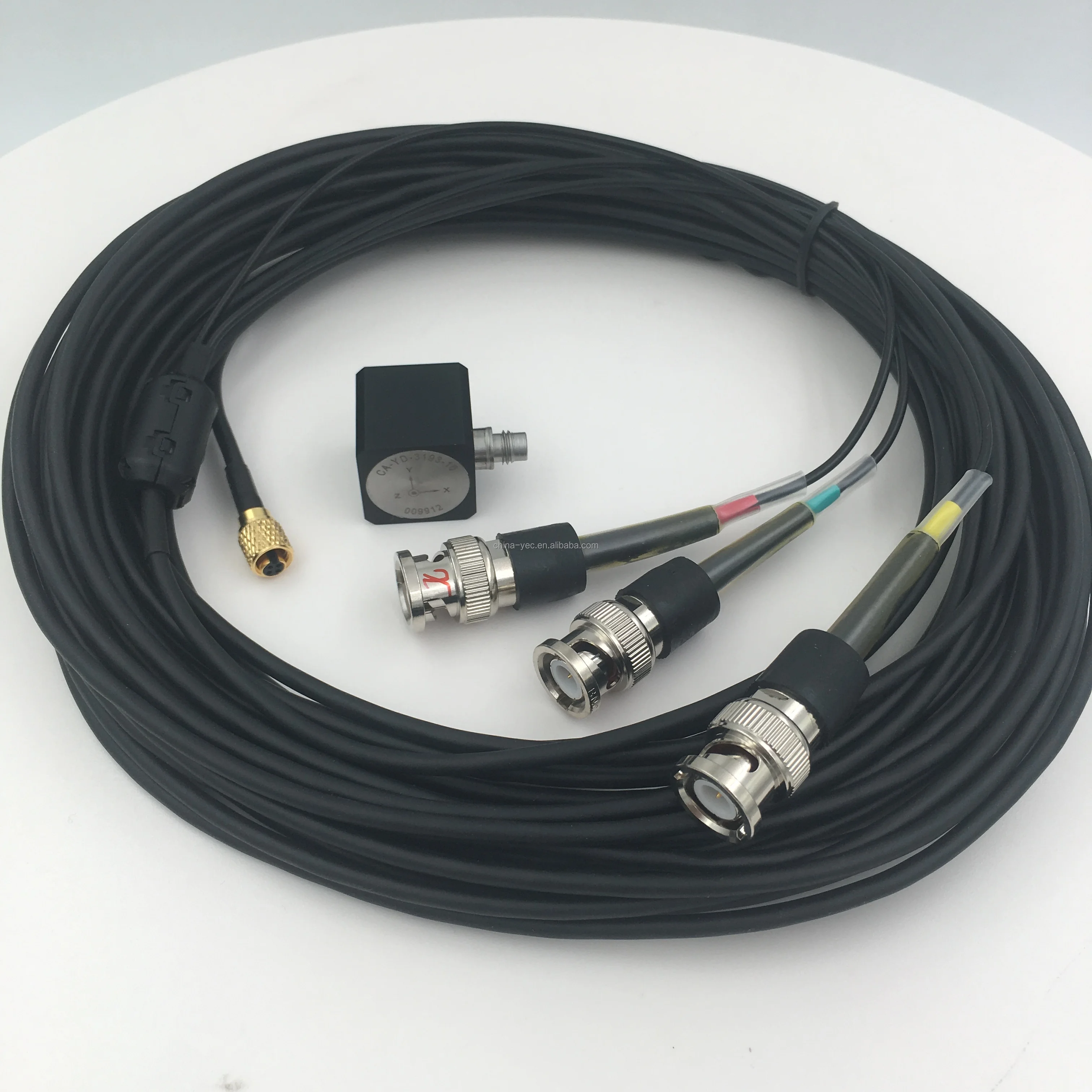

RVVP4-0.1(2m)4-pin cable | One end 4-pin plug, one end free |
