Factory Supply Ruizhou CNC cutting machine for composite materials gasket sponge

Product Overview

Description

Factory Supply Ruizhou CNC cutting machine for composite materials gasket sponge

RUIZHOU RZCRT5-1007E CNC cutting machine are designed for composite materials cutting , such as glass fiber, carbon fiber, rubber or some other composite material. It is widely applied in package, advertisement, cloth, bag, footwear, construction industries. It can also cut cardboard, corrugated board, grey board, honeycomb board, KT board, plastic sheet, cloth fabric, car mats, PVC, PU, etc.



RZCRT5-1007E can be equipped with multi-functional combined cutting tools, CCD positioning system, advanced frequency converter and some other good quality components or devices. It is easy for users to handle. And more often, RZCRT5-1007E CNC cutting machines are suitable for samples making in offices, schools or research institutes because of its’ small size.



Parameters of Cardboard Cutting machine RZCRT5-1007E

Model of cutting machine	RZCRT5-1007E
Effective working area	1000mm×700mm
Cutting speed	0-1200mm/s
Cutting thickness	0-25mm ( customized cutting machine can up to   50mm)
Our Advantages	1.A whole piece aluminum platform        2.Welding stable machine structure  3.Gear rack & Screw lever                     4.Safety device  5.Fast and convenient tools changing.
Method of fixing material	Divisional vacuum absorption
Knife	Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel
Pen type	Common signing pen, Oil pen, ball-point pen, Silver pen
Human Machine Interface (HMI)	Touch screen LCD
Machine resolution	0.01mm
Software resolution	0.025mm
Interface of transmission	Network port
Command system	HP-GL and GP-GL compatible formats
Gearing	Linear guide and gear rack
Motor	Servo motor
Machine Working Voltage	220V
Air pump power	5.5KW
Energy saving device	Frequency converter
Safety device	Automatic laser device
Software system	Independent research and development CNC software
Control system	Cutting table and computer display

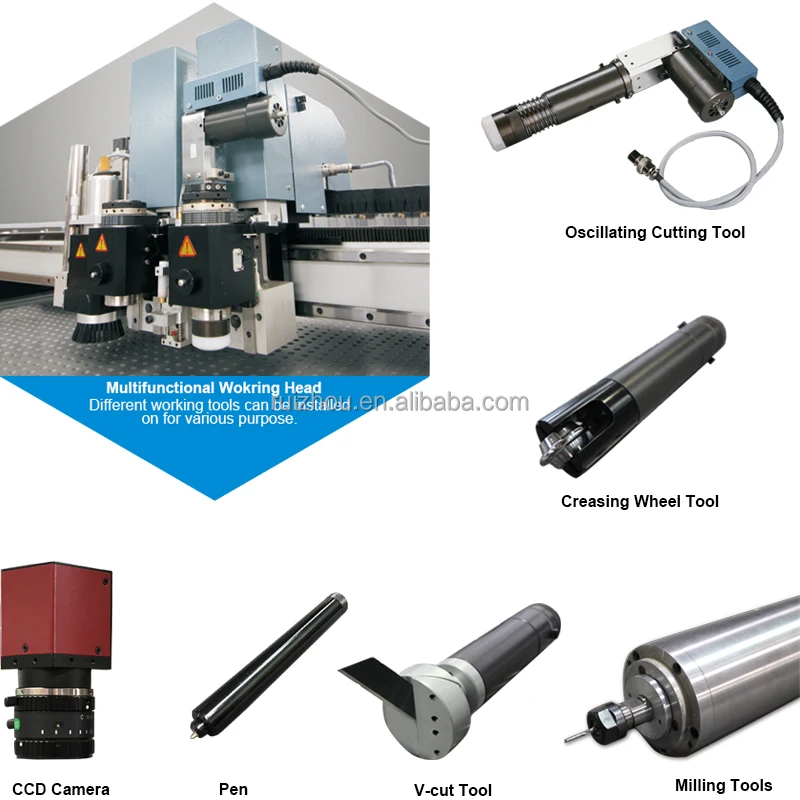

Tools and its functions of RZCRT5-1007E

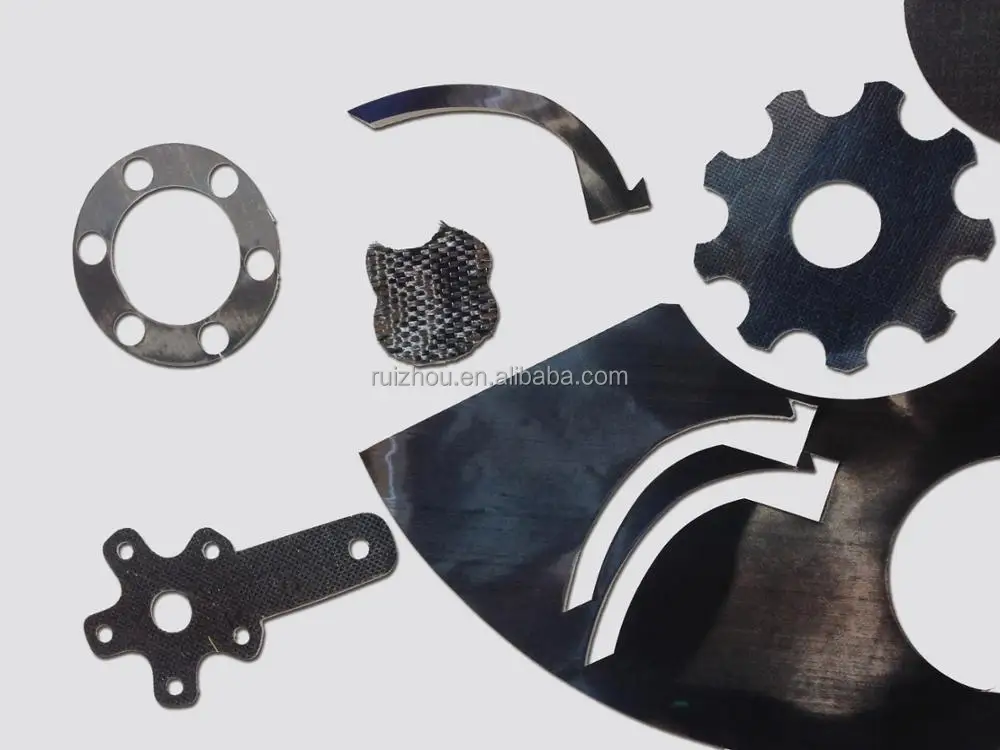

Cutting samples of RZCRT5-1007E

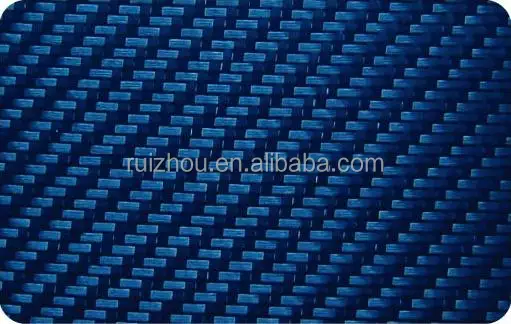

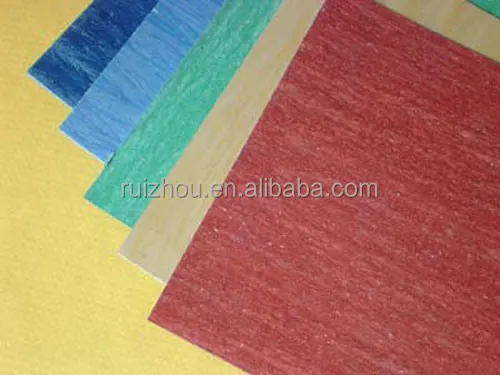

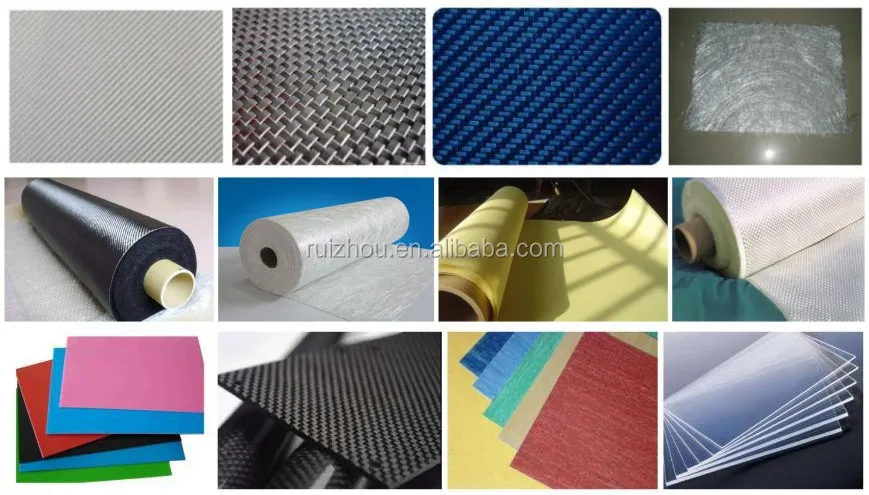

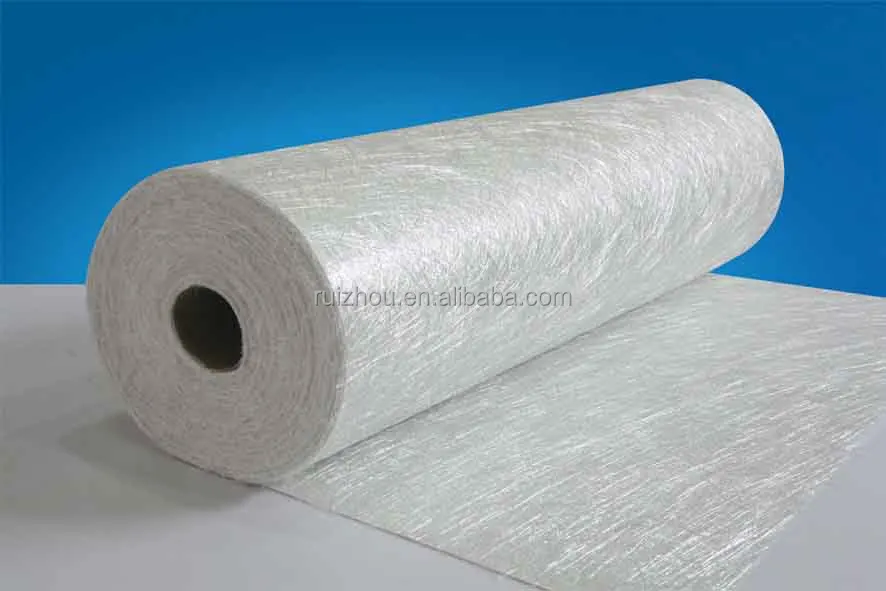

Composite materials cutting samples











CAYKY]_2{MAP9]8TZ[JUPW.png" width="775" height="597" ori-width="496" ori-height="382"/>

RUIZHOU cutting machines are packaged with standard export wooden case which can guarantee your machine safety.

Guangdong RUIZHOU Technology Co., Ltd, found in 2004,  is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.

RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves  the realization of the confluence of informatization and industrialization.
