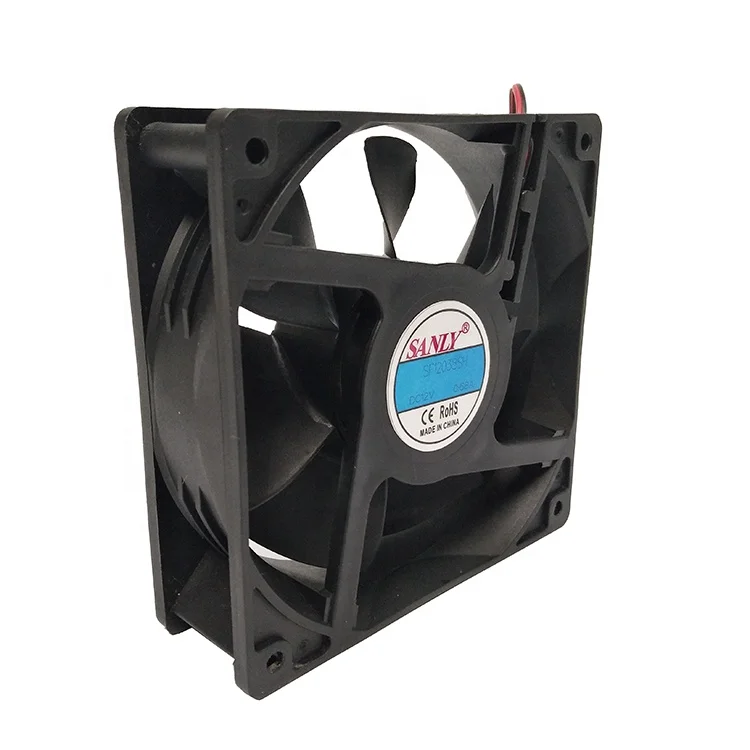

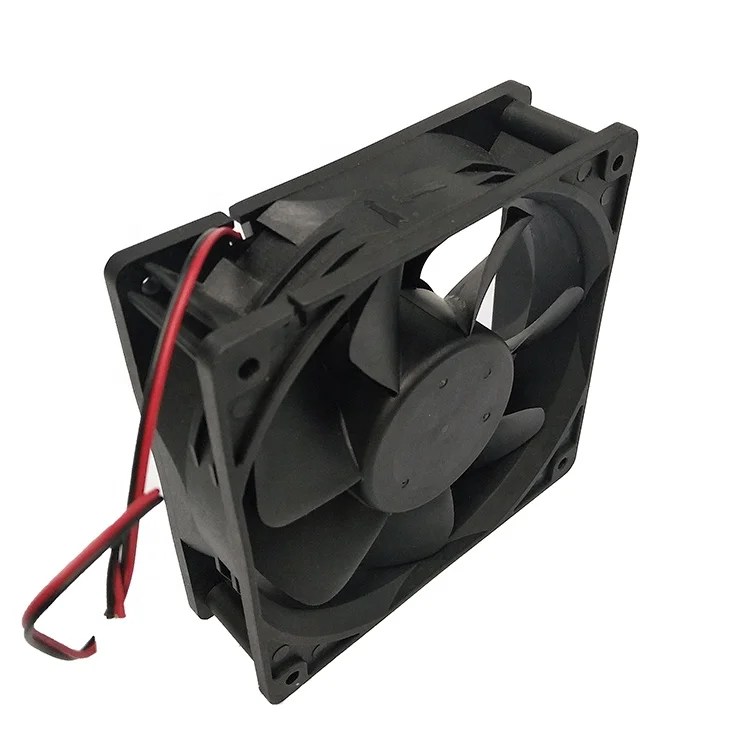

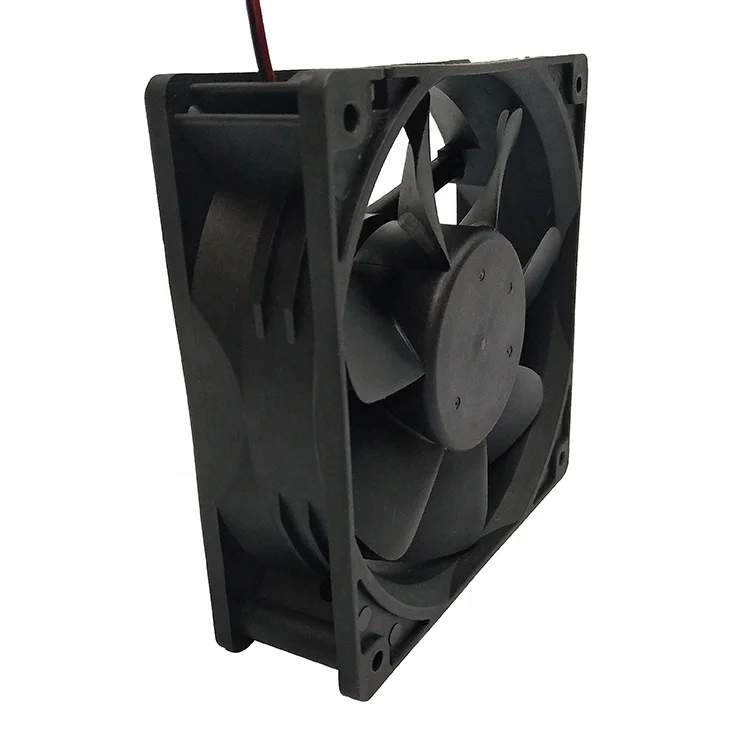

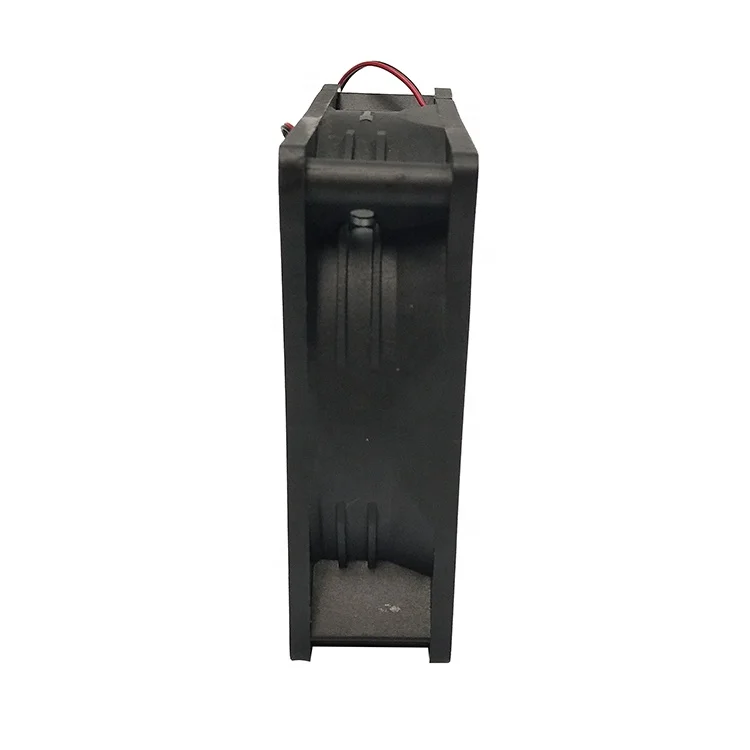

Guangdong Manufacturer Sell Ip44 Plastic 12v 1.80w Dc Cooling Pwm Axial Flow Exhaust Fan SANLY
Guangdong Manufacturer Sell Ip44 Plastic 12v 1.80w Dc Cooling Pwm Axial Flow Exhaust Fan SANLY
Guangdong Manufacturer Sell Ip44 Plastic 12v 1.80w Dc Cooling Pwm Axial Flow Exhaust Fan SANLY
Guangdong Manufacturer Sell Ip44 Plastic 12v 1.80w Dc Cooling Pwm Axial Flow Exhaust Fan SANLY
Guangdong Manufacturer Sell Ip44 Plastic 12v 1.80w Dc Cooling Pwm Axial Flow Exhaust Fan SANLY
Guangdong Manufacturer Sell Ip44 Plastic 12v 1.80w Dc Cooling Pwm Axial Flow Exhaust Fan SANLY
Guangdong Manufacturer Sell Ip44 Plastic 12v 1.80w Dc Cooling Pwm Axial Flow Exhaust Fan SANLY

Guangdong Manufacturer Sell Ip44 Plastic 12v 1.80w Dc Cooling Pwm Axial Flow Exhaust Fan SANLY

Share on (60665898501):


Price:

Quantity:


Product Overview

Description

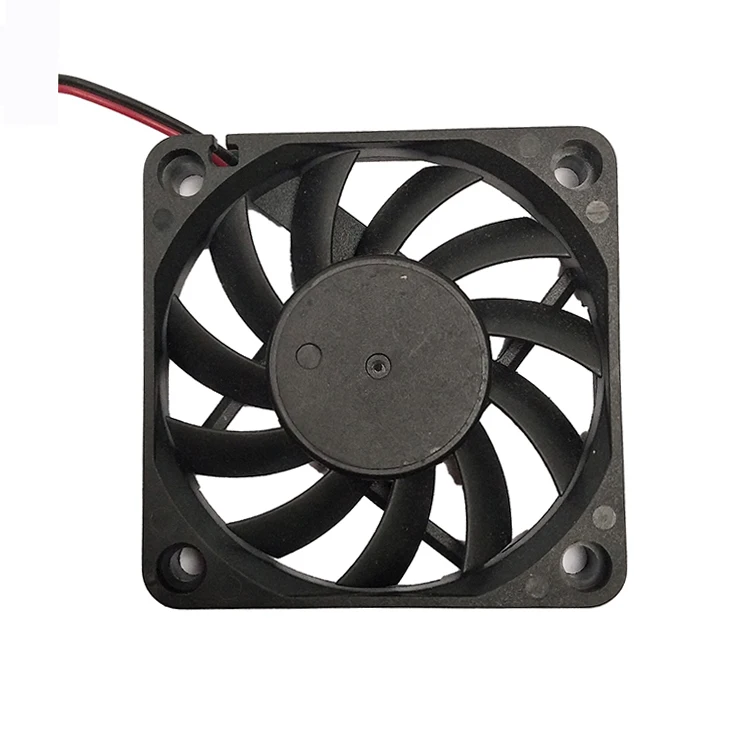

DC Axial Fan

3D Printer, Refrigerator, Air purifier, Electric Equipment, Mini-projector, Humidifier, Medical Device, etc.

General Parameter

1. Bearing Type: Sleeve/Hydraulic/2 Ball bearing
2. Frame & Impeller: PBT plastic (general fireproof or 94V-0 fireproof)

3. Operating Temperature: -10℃ ~ 60℃
4. Protection Grade: IP44 (Moistureproof)
5. Insulation Grade: Class B
6. Motor: DC brushless motor
8. Fan Rotation: Clockwise
9. Lead Wire:  RED wire Positive(+); BLACK wire Negative(-)

10. Wire connector: 0 Pin (Tin exposed 5mm)/ 2 Pin / 3 Pin
11. Features: Polarity protection; Auto re-start.
12. Certification: CE, RoHS

13. Weight:280


\t
Model
\t
Rated
Voltage
\t
Operating Voltage Range
\t
Rated
Current

\t
Rated Input Power

\t
Speed
\t
Max
Air Flow
\t
Max Static
Pressure
\t
Noise
\t
VDC
\t
VDC
\t
Amp
\t
Watt
\t
R.P.M
\t
m3/min
/ CFM
\t
mmH2O
/ INH2O
\t
dB-A
\t
SF12038SL
SF12038BL
\t
12
\t
6to13.5
\t
0.15
\t
1.80
\t
1500
\t
1.49/52.81
\t
2.84/0.11
\t
32.8
\t
24
\t
15to25.5
\t
0.12
\t
2.88
\t
SF12038SM
SF12038BM
\t
12
\t
6to13.5
\t
0.25
\t
3.00
\t
2000
\t
1.97/69.70
\t
4.01/0.15
\t
39.1
\t
24
\t
15to25.5
\t
0.20
\t
4.80
\t

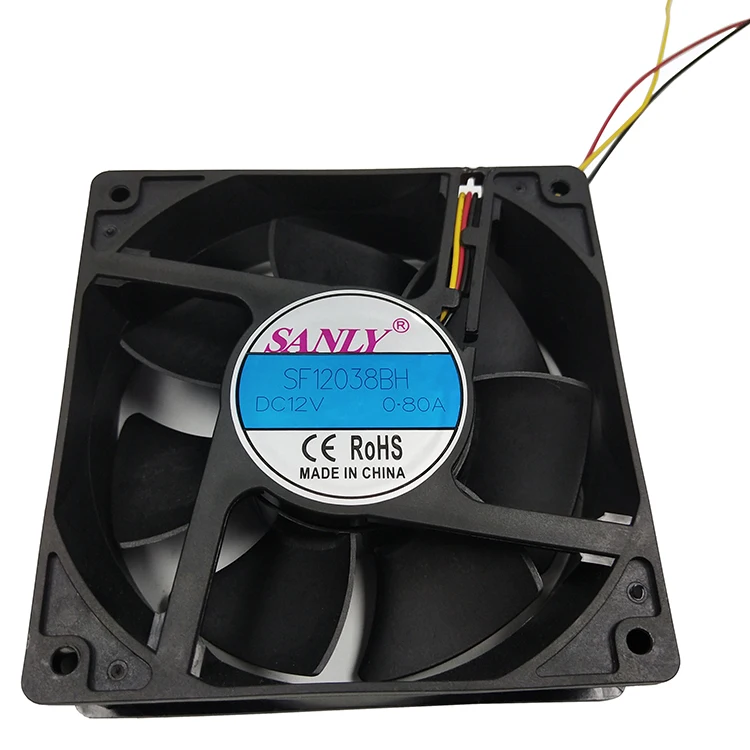

SF12038SH
SF12038BH
\t
12
\t
6to13.5
\t
0.30
\t
3.60
\t
2500
\t
2.77/97.91
\t
7.62/0.3
\t
43.9
\t
24
\t
15to25.5
\t
0.25
\t
6.00
\t
Option
\t
PWM: Speed control, FG: Tach output, RD: Fan stop alarming
\t
* S -With sleeve bearing or Hydraulic bearing, B -With 2 ball bearing
* Max lifespan: Sleeve bearing: 20000hrs, Hydraulic bearing: 30000hrs, 2 ball bearing: 50000hrs
* Max life operation environment: 25℃ temperature, 65%RH humidity
